Круглый эксцентриковый Вибрационный экран из нержавеющей стали для


Поделиться:


Цена:1 000,00 $ - 1 800,00 $*

Количество:



Описание и отзывы


Трекер стоимости

Месяц Минимальная цена Макс. стоимость
Sep-15-2025 1190.34 $* 1250.86 $*
Aug-15-2025 1180.49 $* 1239.24 $*
Jul-15-2025 990.3 $* 1040.54 $*
Jun-15-2025 1160.77 $* 1218.24 $*
May-15-2025 1010.22 $* 1061.1 $*
Apr-15-2025 1140.14 $* 1197.97 $*
Mar-15-2025 1130.96 $* 1187.72 $*
Feb-15-2025 1120.7 $* 1176.42 $*
Jan-15-2025 1110.15 $* 1166.80 $*

Характеристики

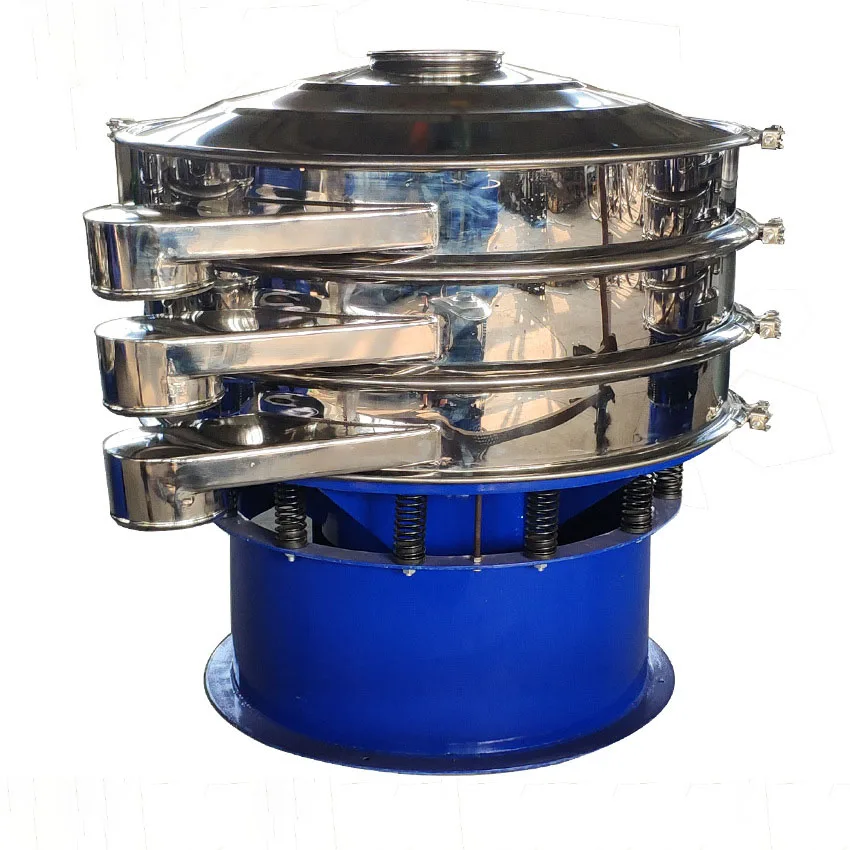

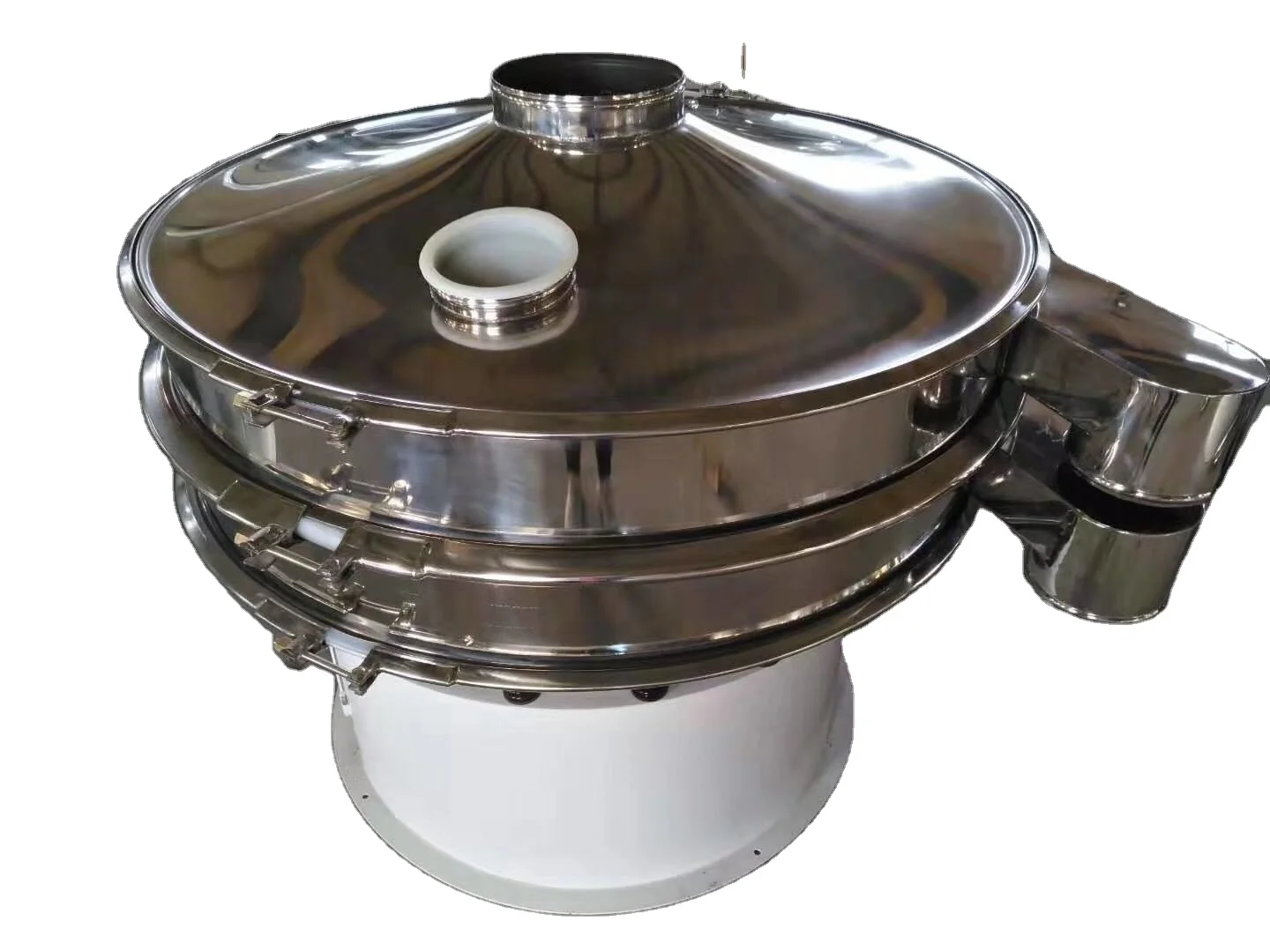

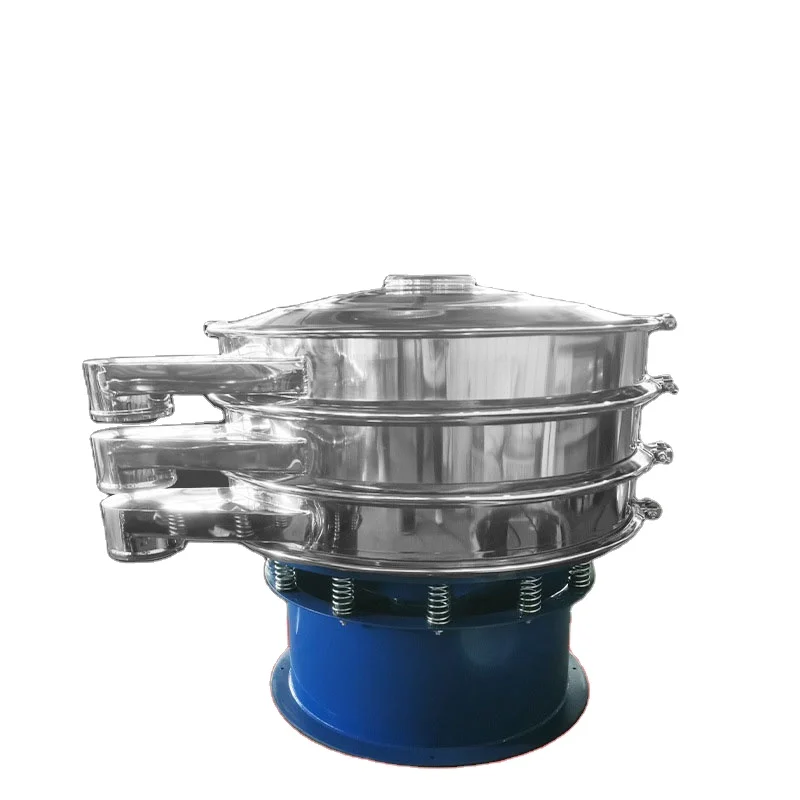

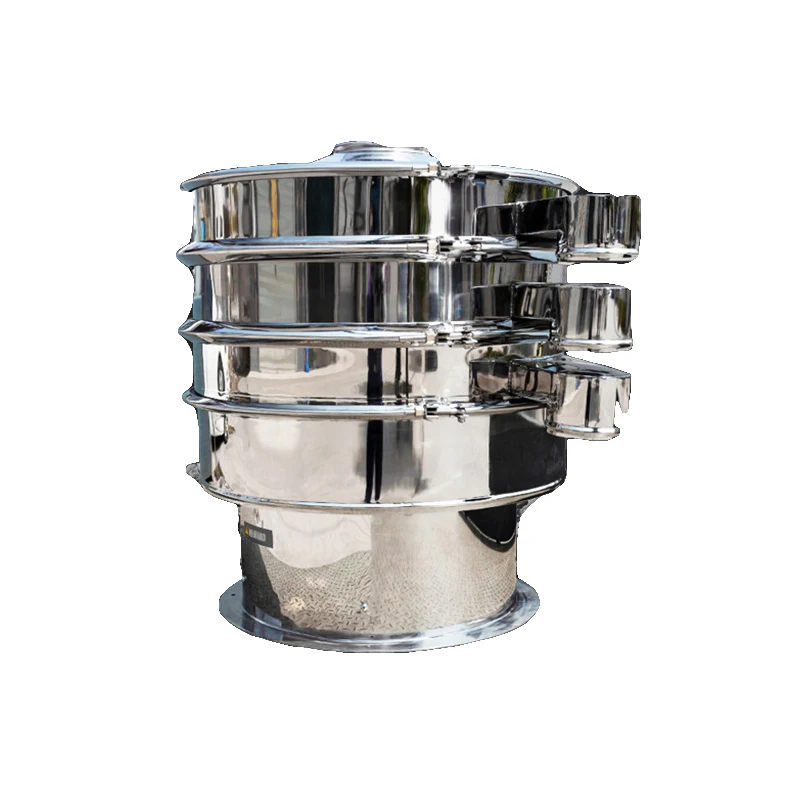

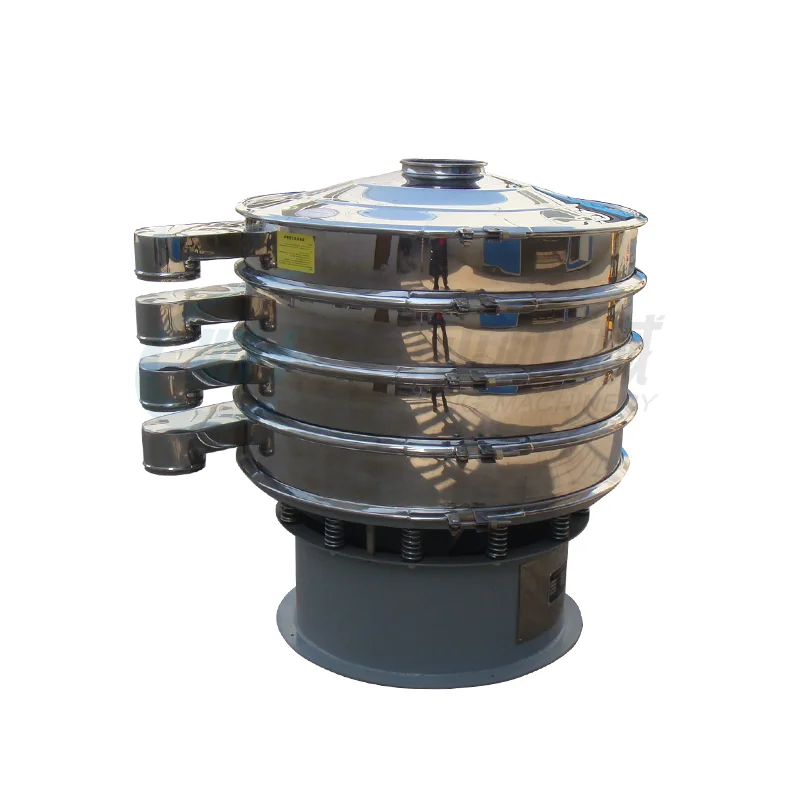

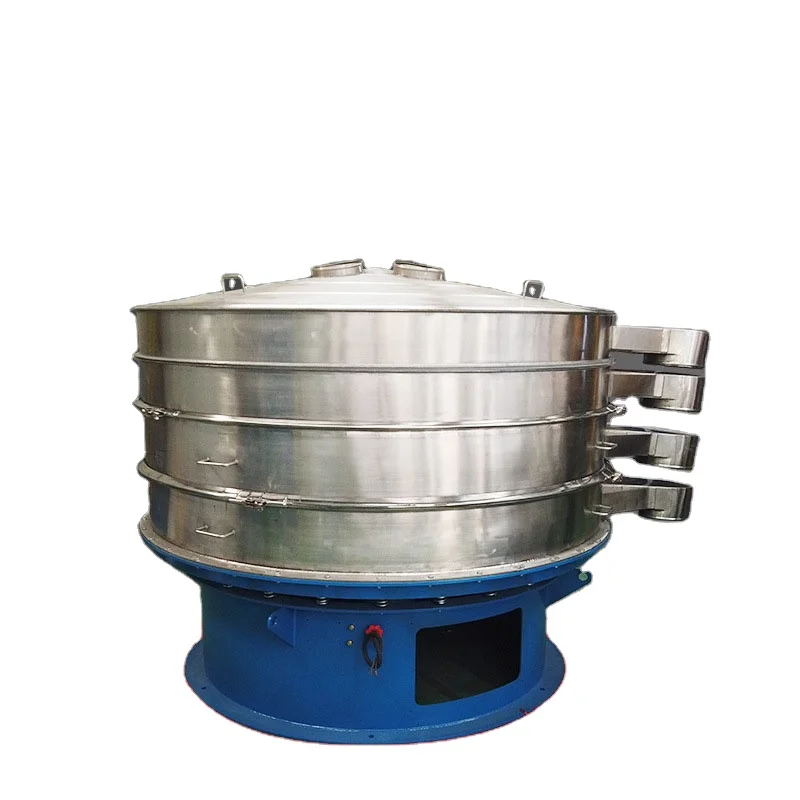

Chemical Industry Stainless Steel Round Eccentric Vibrating Screen


Product Description




Chemical Industry Stainless Steel Round Eccentric Vibrating Screen is that the eccentric hammers installed on the top and bottom ends of motor changes the rotation motion of motor to horizontal, vertical and inclined three-dimensional motions and then passes this motion to screen surface, achieving the purpose of classification, filtering and removal of impurities.






Details Images


Clamping Rings
Fixed Screen Frame


Screen Machine Base
For motor installation
Stack support


Electric Motor
Three-phase asynchronous motor
Adjustable angle of balancing weight


Vibration Springs


Sealing Ring


Working Principle


Chemical Industry Stainless Steel Round Eccentric Vibrating Screen is filtering the liquid such as sand slurry, sieving the fine powder and removing the impurity from the granules.




Application Industry




Parameter


Model
Effective diameter
(mm)
Power
(kw)
Effective sieving area  (m2)
Layers
Dimension
(mm)

ZN-400mm

Dia. 320mm

0.18kw

0.0804
1-3
580*580*560 (1 layer)
580*580*560 (2 layers)
580*580*560 (3 layers)

ZN-600mm



Dia. 550mm



0.55kw

0.2124

1-3
800*800*680 (1 layer)
800*800*780 (2 layers)
800*800*880 (3 layers)

ZN-800mm



Dia. 750mm



0.75kw

0.4072

1-3
900*900*780 (1 layer)
900*900*1030 (2 layers)
900*900*1080 (3 layers)

ZN-1000mm



Dia. 950mm



1.1kw

0.6221

1-3
1160*1160*880 (1 layer)
1160*1160*1030 (2 layers)
1160*1160*1180 (3 layers)

ZN-1200mm



Dia. 1150mm



1.1kw

0.9331

1-3
1360*1360*980 (1 layer)
1360*1360*1160 (2 layers)
1360*1360*1360 (3 layers)

ZN-1500mm



Dia. 1450mm



2.2kw

1.5175

1-3
1850*1850*1130 (1 layer)
1850*1850*1330 (2 layers)
1850*1850*1550 (3 layers)

ZN-1800mm



Dia. 1750mm



2.2kw

2.2432

1-3
2150*2150*1360 (1 layer)
2150*2150*1460 (2 layers)
2150*2150*1560 (3 layers)

ZN-2000mm



Dia. 1950mm



2.2kw

2.7922

1-3


2450*2450*1390 (1 layer)
2450*2450*1490 (2 layers)
2450*2450*1590 (3 layers)








Packing & Delivery


Packing: We used the standard export wooden case package.
Delivery: Shipping by sea, air and railway transport, also we can shipping by courier for the goods of small volume and weight.




FAQ


Q:How to choose the suitable machine?
A:Please tell us the below information and we can choose the suitable model:
1. Name and
feature of the raw material?
2. Production capacity: kg /h, L/h?
3. Purpose of using: screening, filtration, grading or get rid of
impurity?
4. The raw material size: (mesh or mm)?
5. How many final materials you want, or how many layer you need?
6. Local power supply (voltage and frequency)
Note: You had better send us the relevant pictures about the details.

Q:Is it support the special requirement available?
A:Yes, the equipment could be designed according to customer's using aim or special requirements.

Q: How long will my order take?
A: Normal delivery is about 15 working days. Ending delivery schedule depends on the quantity and items you ordered.
