Ультратонкая проволочная сетка из нержавеющей стали 100 микрон Фильтрующая Ткань ультратонкая 304
- Категория: Steel Wire Mesh >>>
- Поставщик: Anping,Binz,Metal,Products,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Aug-19-2025 | 4.36 $* | 4.99 $* |
| Jul-19-2025 | 3.29 $* | 3.57 $* |
| Jun-19-2025 | 4.83 $* | 4.93 $* |
| May-19-2025 | 4.97 $* | 4.66 $* |
| Apr-19-2025 | 3.16 $* | 3.72 $* |
| Mar-19-2025 | 4.60 $* | 4.72 $* |
| Feb-19-2025 | 4.11 $* | 4.49 $* |
| Jan-19-2025 | 4.68 $* | 4.18 $* |
Характеристики
Specification
Product Name | 304 316 316L Stainless steel hardware cloth filter mesh woven stainless steel mesh stainless steel wire cloth |
Colour | Silver |
Size | Customized |
Material | Stainless steel |
Sample service | Support |

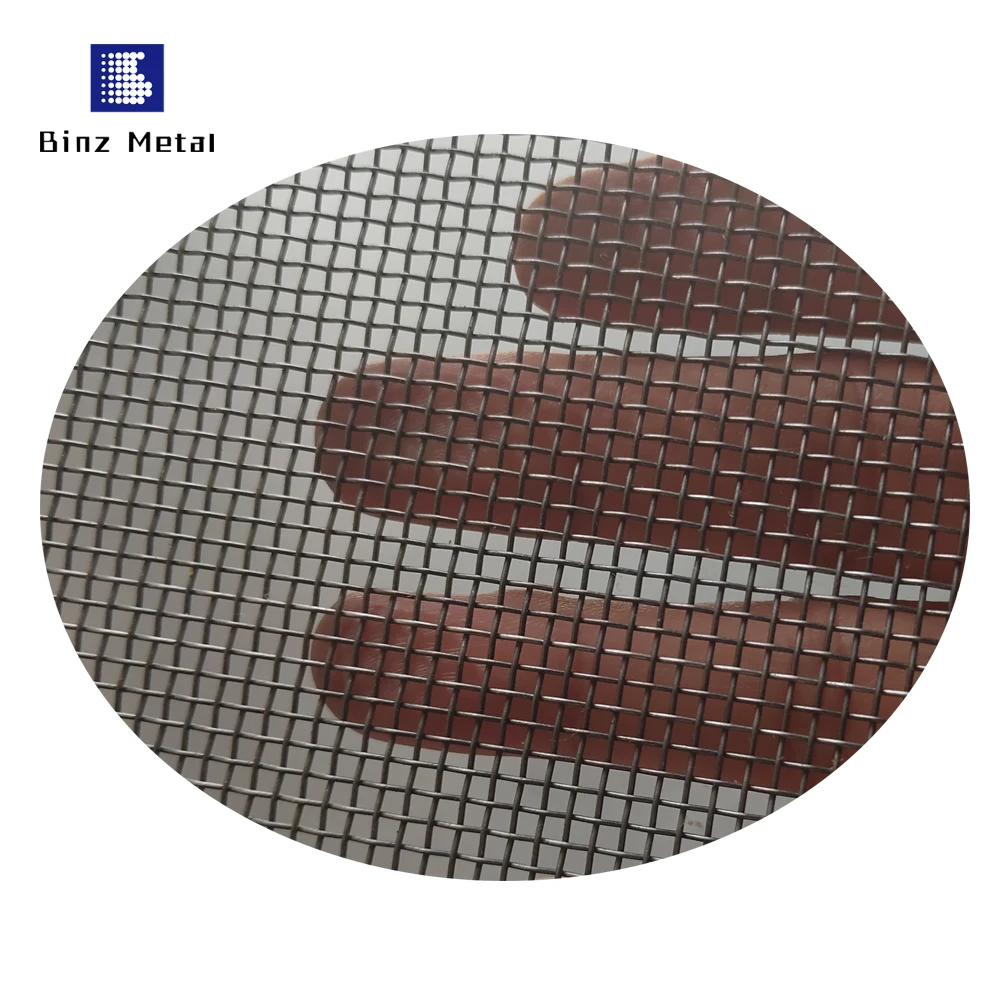

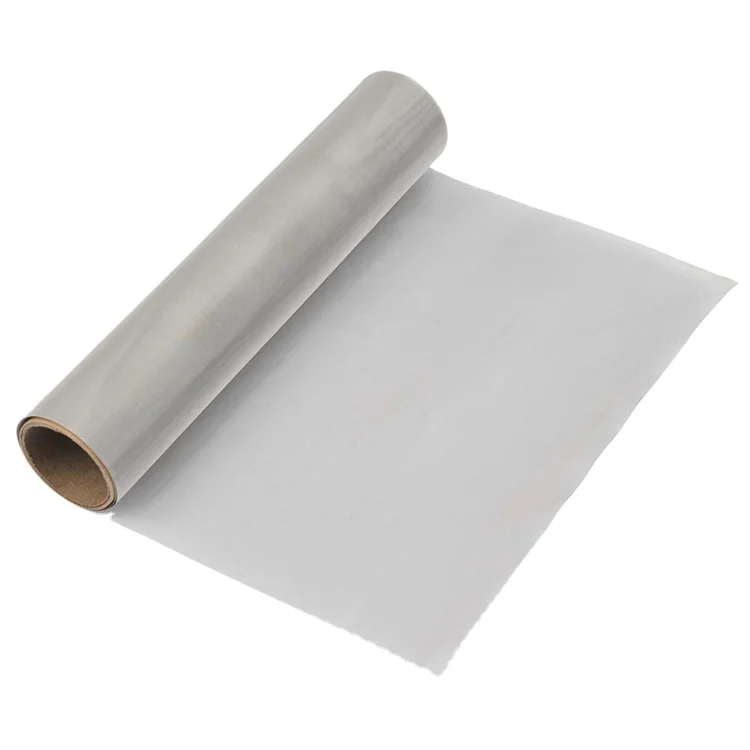

Stainless Steel Wire Mesh
Stainless steel has the good performances as wear-resisting, heat-resisting, acid-resisting and corrosion resisting.
Just because of these characteristics, the wire mesh made of stainless steel is extensively used in mining, chemical industry,food industry and pharmaceutical industry.
Our Stainless Steel Wire Mesh products are generally made of SUS302, 304, 316, 316L and 321.
Plain weave:
This is the most commonly used weaving type.
Each warp wire crosses alternately above and below each weft wire. Warp and weft wires generally have the same diameter.
Stainless steel has the good performances as wear-resisting, heat-resisting, acid-resisting and corrosion resisting.
Just because of these characteristics, the wire mesh made of stainless steel is extensively used in mining, chemical industry,food industry and pharmaceutical industry.
Our Stainless Steel Wire Mesh products are generally made of SUS302, 304, 316, 316L and 321.
Plain weave:
This is the most commonly used weaving type.
Each warp wire crosses alternately above and below each weft wire. Warp and weft wires generally have the same diameter.
Mesh/Inch | Wire Diameter | Aperture | Open Area | Weight(LB) /100 Square Foot | ||||
Inch | MM | Inch | MM | |||||
1x1 | .080 | 2.03 | .920 | 23.37 | 84.6 | 41.1 | ||
2X2 | .063 | 1.60 | .437 | 11.10 | 76.4 | 51.2 | ||
12X12 | .020 | .508 | .063 | 1.60 | 57.2 | 31.6 | ||
14X14 | .023 | .584 | .048 | 1.22 | 45.2 | 49.8 | ||
30X30 | .009 | .229 | .0243 | .62 | 53.1 | 16.1 | ||
35X35 | .011 | .279 | .0176 | .45 | 37.9 | 29.0 | ||
40X40 | .010 | .254 | .0150 | .38 | 36.0 | 27.6 | ||
80X80 | .0065 | .165 | .0060 | .15 | 23.0 | 23.2 | ||
100X100 | .0035 | .089 | .0065 | .17 | 42.3 | 8.3 | ||
110X110 | .0040 | .1016 | .0051 | .1295 | 30.7 | 12.4 | ||
120X120 | .0037 | .0940 | .0064 | .1168 | 30.7 | 11.6 | ||
150X150 | .0026 | .0660 | .0041 | .1041 | 37.4 | 7.1 | ||
160X160 | .0025 | .0635 | .0038 | .0965 | 36.4 | 5.94 | ||
180X180 | .0023 | .0584 | .0033 | .0838 | 34.7 | 6.7 | ||
200X200 | .0021 | .0533 | .0029 | .0737 | 33.6 | 6.2 | ||
250X250 | .0016 | .0406 | .0024 | .0610 | 36.0 | 4.4 | ||
270X270 | .0016 | .0406 | .0021 | .0533 | 32.2 | 4.7 | ||
300X300 | .0051 | .0381 | .0018 | .0457 | 29.7 | 3.04 | ||
325X325 | .0014 | .0356 | .0017 | .0432 | 30.0 | 4.40 | ||
400X400 | .0010 | .0254 | .0015 | .370 | 36.0 | 3.3 | ||
500X500 | .0010 | .0254 | .0010 | .0254 | 25.0 | 3.8 | ||
... | ... | ... | ... | ... | ... | ... | ||
Twill Weave:
The wires of the weft and the warp intercross two above and two below, inverting the intersections of the warp wire at an
established distance and obtaining a rigid, stable and robust type of wire mesh fabric.
The wires of the weft and the warp intercross two above and two below, inverting the intersections of the warp wire at an
established distance and obtaining a rigid, stable and robust type of wire mesh fabric.
Dutch Twilled Weaving:
Mesh | Wire Diameter (MM) | Material (AISI) |
12meshX64mesh | 0.58/0.40 | 304 or 316 |
24meshX110mesh | 0.36/0.25 | 304 or 316 |
14meshX88mesh | 0.50/0.33 | 304 or 316 |
30meshX150mesh | 0.18/0.14 | 304 or 316 |
40meshX200mesh | 0.14/0.11 | 304 or 316 |
50meshX250mesh | 0.10/0.071 | 304 or 316 |
80meshX700mesh | 0.06/0.05 | 304 or 316 |
165meshX800mesh | 0.071/0.040 | 304 or 316 |
165meshX1400mesh | 0.05/0.032 | 304 or 316 |
200meshX1800mesh | 0.05/0.03 | 304 or 316 |
325meshX2300mesh | 0.030/0.025 | 316L |
400meshX2800mesh | 0.030/0.02 | 316L |
The wires of the weft and the warp intercross two above with a larger weft wire than the warp.
Such kind of wire mesh allows a greater difference between the diameter and the number of weft and warp wire.
Such kind of wire mesh allows a greater difference between the diameter and the number of weft and warp wire.
Product Description
Company Profile
Anping Binz Metal Products Co.,Ltd. is a professional industrial and building mesh manufacturer and trader located in Anping, China, near the port of Tianjin.
We have an efficient and rigorous operation team to meet the needs of the customers. Main market: Canada, Germany, France, UK, Italy,Spain, Sweden, Switzerland, Norway, Netherlands, USA and Australia.
Our downstream supply channels are carefully screened factories of different types. And there are more than 10 years of qualified inspectors to control quality standards.
We have high speed machines to match with the big requirement of the metal mesh.
We work with leading raw material suppliers in order to provide you with reliable items.
Our company provides a wide range of industrial and building materials including:
* Stainless steel wiremesh /cloth

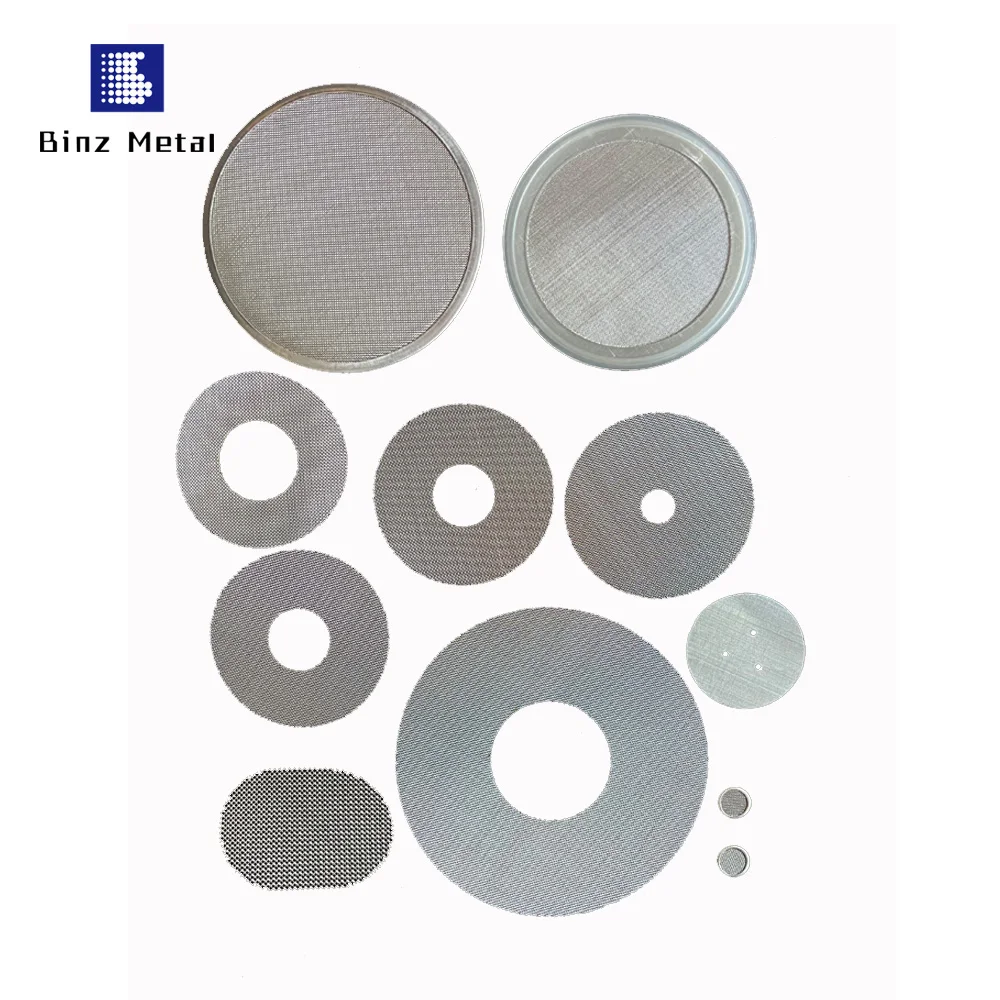

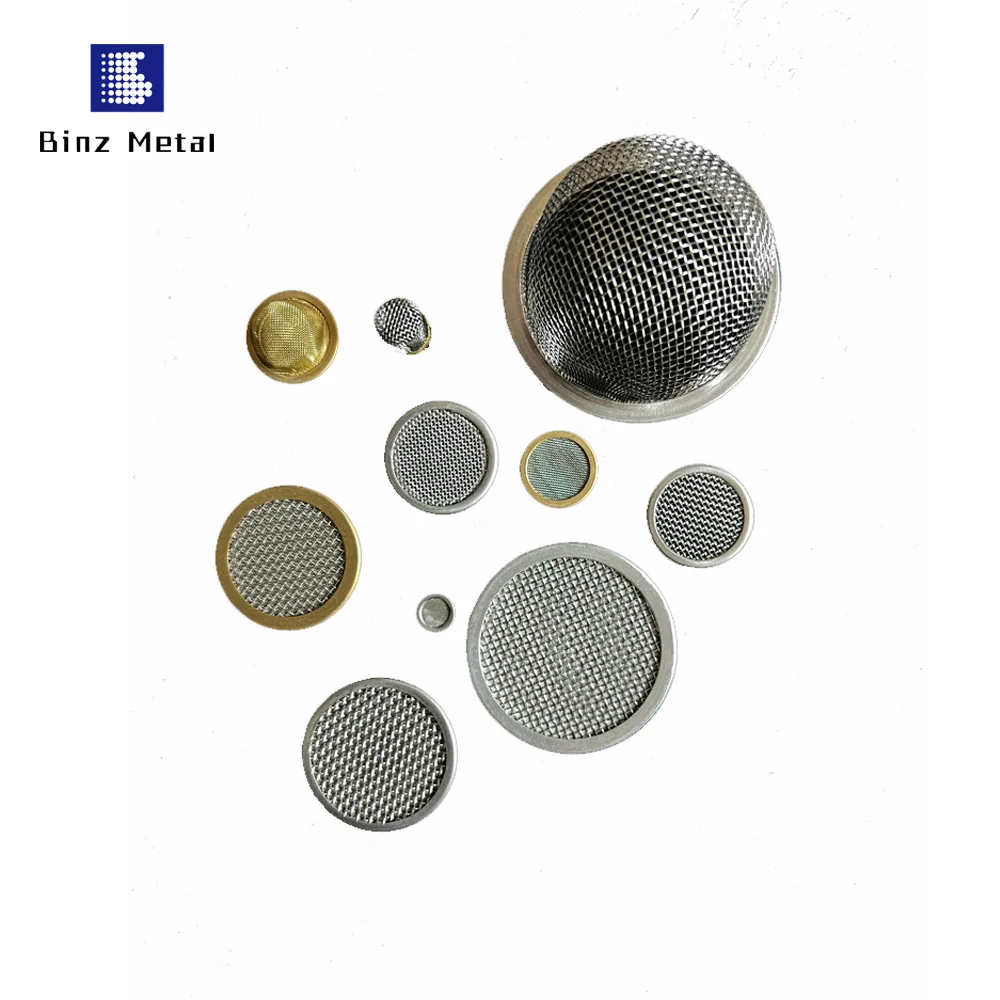

* Wire mesh filter disc

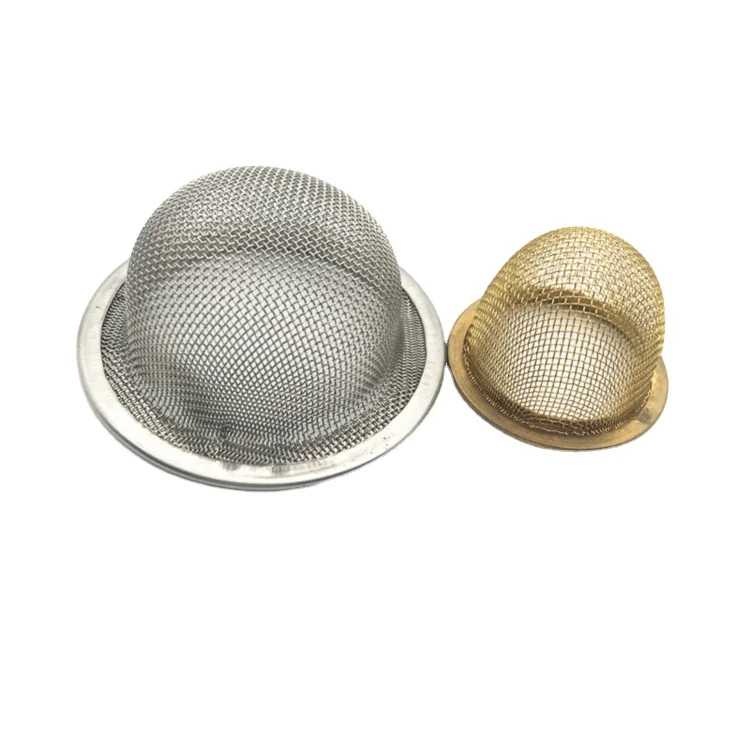

* Wire mesh filter caps
* Wire mesh filter tube
* Welded wire mesh
* Expanded metal mesh
* Crimped wire mesh
* Punching hole mesh
* Fencingmesh
* Diamond metal lath/ rib lath
* Brass mesh
* Trapping cage
We sincerely hope to establish business relationships with customers at home and abroad on the principle of mutual trusts and benefits. We will keep developing and moving forward to work with all of you to create a better future!
We have an efficient and rigorous operation team to meet the needs of the customers. Main market: Canada, Germany, France, UK, Italy,Spain, Sweden, Switzerland, Norway, Netherlands, USA and Australia.
Our downstream supply channels are carefully screened factories of different types. And there are more than 10 years of qualified inspectors to control quality standards.
We have high speed machines to match with the big requirement of the metal mesh.
We work with leading raw material suppliers in order to provide you with reliable items.
Our company provides a wide range of industrial and building materials including:
* Stainless steel wiremesh /cloth
* Wire mesh filter disc
* Wire mesh filter caps
* Wire mesh filter tube
* Welded wire mesh
* Expanded metal mesh
* Crimped wire mesh
* Punching hole mesh
* Fencingmesh
* Diamond metal lath/ rib lath
* Brass mesh
* Trapping cage
We sincerely hope to establish business relationships with customers at home and abroad on the principle of mutual trusts and benefits. We will keep developing and moving forward to work with all of you to create a better future!
Certifications
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
FAQ
1.What's your advantage?
A: Honest business with competitive price and professional service on export process. Especially stainless steel woven wire mesh.
2. How I believe you?
A : We consider honest as the life of our company, we can tell you the contact information of our some other clients for you to check our credit. Besides, there is trade assurance from Alibaba, your order and money will be well guaranteed.
3.Where are you? Can I visit you?
A: Sure,welcome to you visit our factory at any time.
4.How about the delivery time?
A: According to your requirement.
5.What kind of payment does your company support?
A: T/T, Paypal,MoneyGram,Western Union at sight, Cash, Western Union are all accepted if you have other payment,please contact me.
A: Honest business with competitive price and professional service on export process. Especially stainless steel woven wire mesh.
2. How I believe you?
A : We consider honest as the life of our company, we can tell you the contact information of our some other clients for you to check our credit. Besides, there is trade assurance from Alibaba, your order and money will be well guaranteed.
3.Where are you? Can I visit you?
A: Sure,welcome to you visit our factory at any time.
4.How about the delivery time?
A: According to your requirement.
5.What kind of payment does your company support?
A: T/T, Paypal,MoneyGram,Western Union at sight, Cash, Western Union are all accepted if you have other payment,please contact me.
