Характеристики

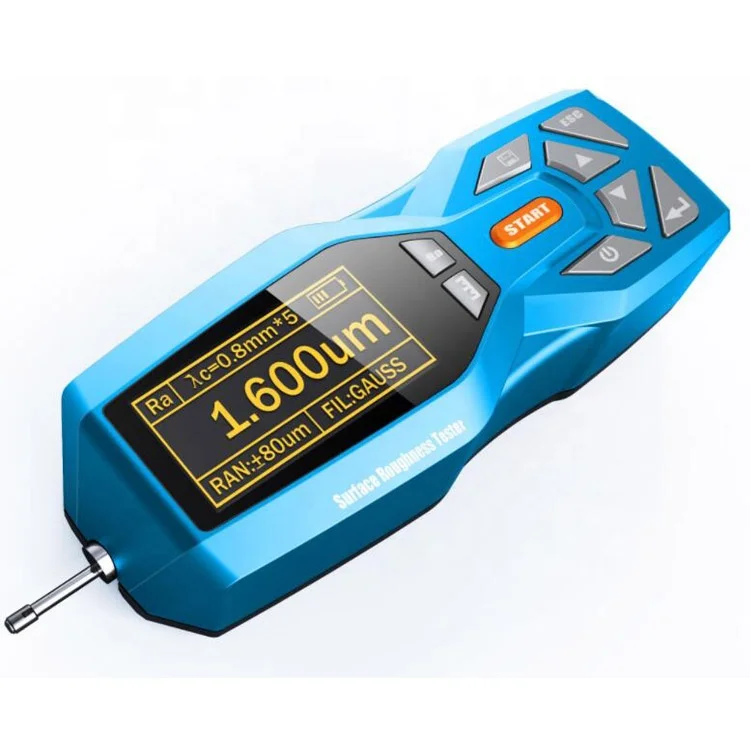

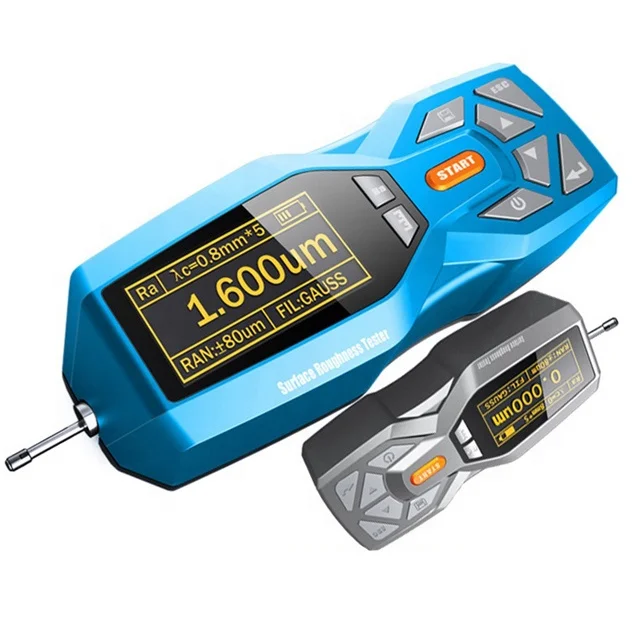

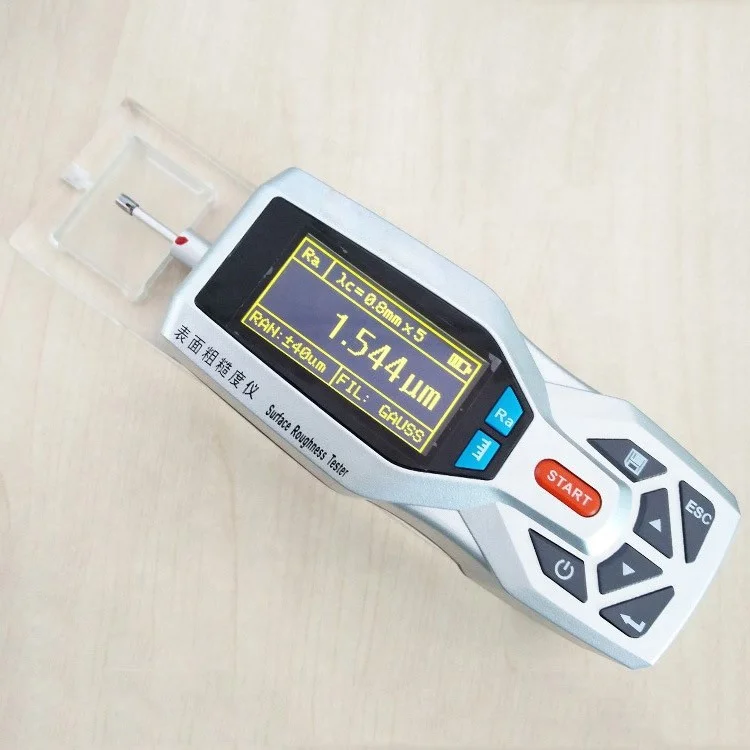

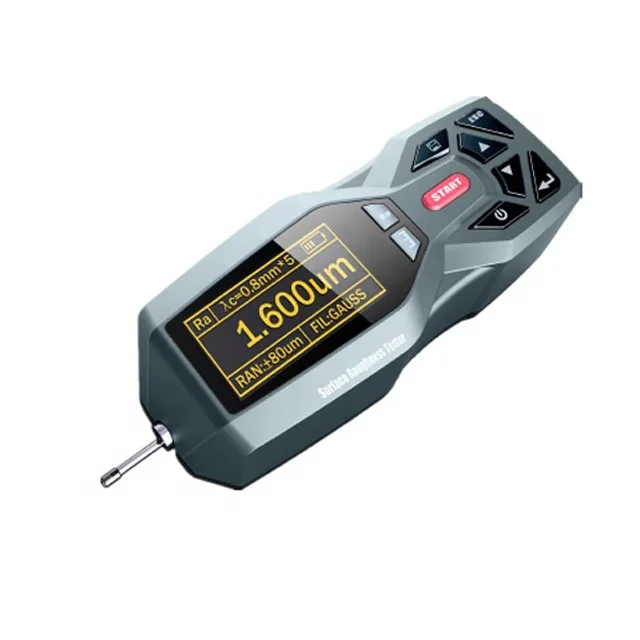

surface roughometer/portable surface roughness tester/Surface Roughness gauge
MAIN FEATURE
*Stylish design with plastic shell, inspired by “TRANSFORMERS”;
*Visual waveform display;
*Electromechanical integration design, small volume, light weight, easy to use;
*Using DSP chip to control and data processing, high speed, low power consumption;
*128 x 64 OLED dot matrix display, digital / graphic display; highlight no perspective;
*Intuitive and rich display information, can display all the parameters and graphics;
*Compatible with ISO, DIN, ANSI, JIS national standards;
*Residual quantity icon, prompting the user to charge;
*Continuous working time: more than 20 hours;
*Real-time clock settings and display, convenient data recording and storage;
*With automatic dormancy, automatic shutdown and power saving function;
*Multi-info Display: measurement information, menu prompt, fault and power switch information indicated.
*With PC software, can be connected to a computer and printer;
*Optional different sensor, measuring platform, mini printer, extension rod and other accessories;
*Support OEM Service, high price performance.
surface roughometer/portable surface roughness tester/Surface Roughness gauge
TECHNICAL DATA
20 Testing Parameters | Ra, Rz=Ry(JIS), Rq, Rt=Rmax, Rp, Rv, R3z, R3y, RzJIS, Rsk, Rku, Rsm, Rmr, Rx, RPc, Rk, Rpk, Rvk, Mr1, Mr2; |
Measuring Range | Ra: 0.005~16.000μm Rz: 0.02~160.00μm |
Sample Length | 0.25, 0.80, 2.50mm |
Evaluation Length | (1~5)L |
Maximum Drive Stroke | 17.5mm/0.7inch |
Indication Accuracy | 0.001μm |
Indication Error | ≤±10% |
Variability | <6% |
Data Storage | 100 groups |
Power | Rechargeable Li-battery |
Relative Humidity | <90% |
Working Temperature | -20°C~40°C |
Size | 158x63.5x46mm |
Weight of Host | 0.3kg |
surface roughometer/portable surface roughness tester/Surface Roughness gauge
STANDARD DELIVER
ITEM | QTY |
432A Host | 1 PC |
Standard Sensor KS100 | 1 PC |
Standard Calibration Block | 1 PC |
Bracket for Calibration Block | 1 PC |
Adjustable Support | 1 PC |
Power Charger | 1 PC |
USB Cable | 1 PC |
PC Software | 1 PC |
User manual | 1 PC |
Instrument case | 1 PC |
Warranty | 1 Years |
