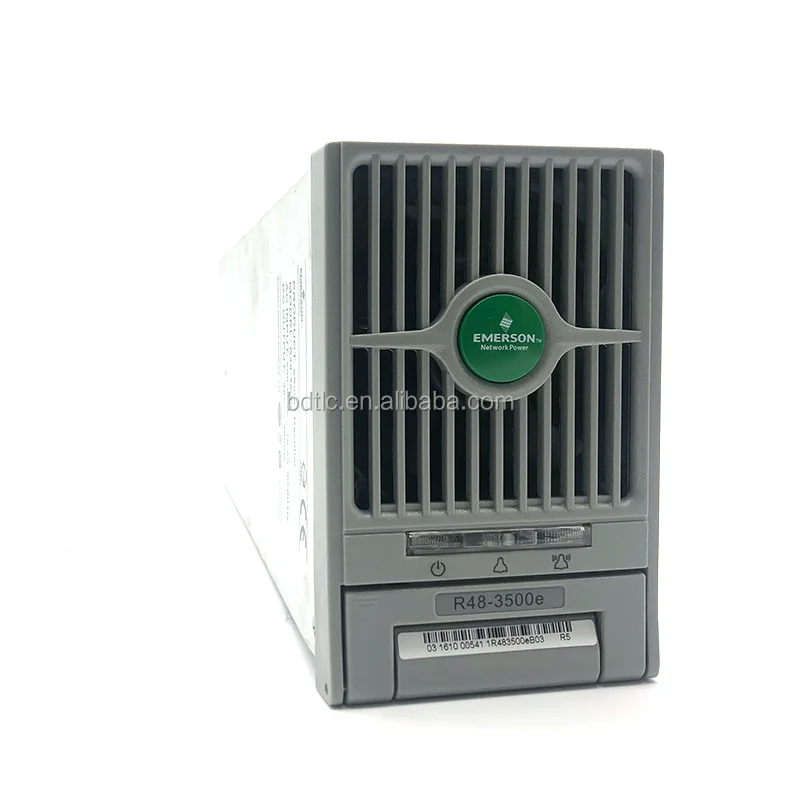

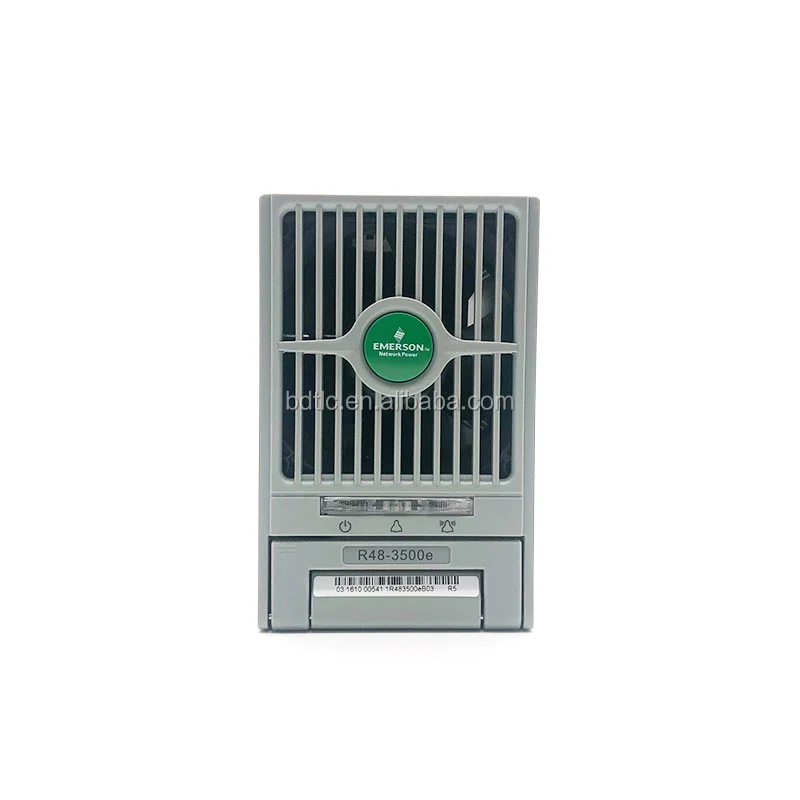

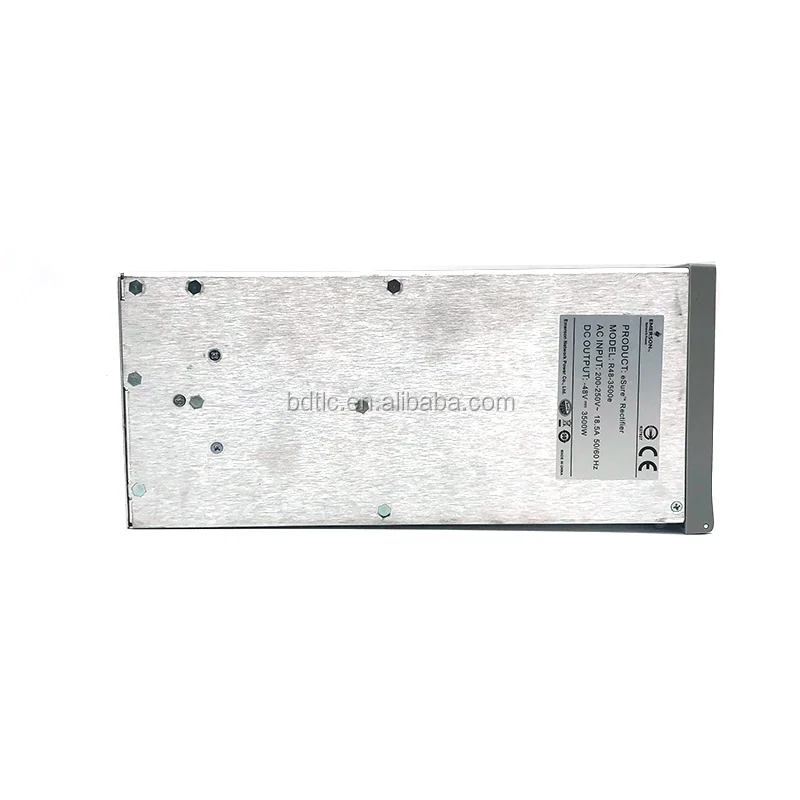

Emerson r48-3500e vertiv выпрямительный модуль 48v

1, the efficiency is as high as 93%.

2, power factor 0.998;

3. Input grid frequency: 45 ~ 65Hz;

4. Working temperature range: -40 ~ +65 C;

5, rated output power: 5800W, power density as high as 0.813 W/cm3;

6, safety regulations: EN60950: 1992, UL1950;

7, EMC: EN55022 Class B;

8, hot swap non destructive;

9, rectifier module MTBF>57 hours.

* Emerson's high-efficiency rectifier module R48-3500e adopts non-destructive hot-swapping technology, and its output and input have soft-start units, so the output voltage of the system will not fluctuate when the module is swapped.

* working temperature: -40°C~70°C

* altitude: less than 2000m (2000m with upper power).

* output power: 3500W (input voltage 176Vac~30Vac).

* input voltage range: 85Vac~300Vac (single phase three wire system).

* rated input voltage: 200Vac~250Vac

* maximum static voltage without working time: 415Vac

* input current: <20A @2900W/176Vac

* starting current: <32A

* rated input frequency: 50Hz/60Hz

* output DC voltage range: 42V~58V

* output DC current: 0A~65.5A

* regulation accuracy: less than or equal to 0.5%.

* load adjustment rate: less than or equal to 0.5%

* voltage adjustment rate: less than or equal to 0.1%.

* power factor: greater than or equal to 0.90 (@25%~50% rated output power).

                        More than 0.90 (@50%~100% rated output power)

                        More than 0.99 (@50%~100% rated output power)

* efficiency: greater than or equal to 91%

* over voltage protection: input under voltage protection point 80 + 5Vac input overvoltage protection point 305V + 5Vac

* Output Overvoltage Hardware Protection Point: 58.5-59.5V (Output Overvoltage Software Protection Point 56V-59V can be set by monitoring)

* module current sharing error: less than + 0.9A

* cooling mode: forced air cooling.

* safety standards: UL/EN/IEC 60950-2000

* safety requirements: CE/UL/NEBS

* outline size: 87.9mm (high) X85.3mm (wide) X272mm (deep)

* module weight: ≤4kg

 Lead time:
We have a lot of stock ,If the quantity isn't very big , we can send the goods as soon as possible after recieve payment.If big quanity, the lead time need according to the quantity.
Transporting:
If small quantity, usually send by courier (DHL,FEDEX,TNT and so on) . If big quantity, we advice ship by air or by sea. this will use longer time ,but cheaper fees. We are near the port of TianJin.
Our service:
We can offer the sample. If the quality is good, we can offer very very competitive price .And can pack according to customer's requirment.

1. Could I put my own logo on it?

> Sure, of course,we have over 18 years OEM experience,customers' logo can be made by laser, engraved, embossed, transfer printing etc.

2. Should I pay extra for logo printing ?
> If you order amount over out MOQ for OEM package,all OEM fees would be free,if you want to make a trial order,we need to charge a very little fees for the printing and cartons.

3. How about the quality?

> Many of our company's products are sourceed from well-known manufacturers, and the quality is absolutely in line with the corresponding international standards. Some of our company's products are project surplus purchased from telecommunications operators. We guarantee that the products are the original original package. Of course, our company promises to provide a one-year warranty for such products in order to ensure the rights of customers. If there is any quality problem during this period, our company can replace it for free for customers.

4. Could i buy 1pc sample first and small order ?
> Of course, support sample order and small order, especially for new customers under certain condition.

5. How much for 1pc sample ?
> We can provide free samples for some products, but customers need to bear the shipping cost. For some products, we charge a corresponding sample fee.

6. If i have my thoughts, do you have person to design according to my concept?
> Certainly,our design team is willing to do for you.

7. How long to make a sample?
> 3days which depends on the samples' complexity.
