2023 высокий уровень защиты чувствительность датчик давления на сидение ребенка для автомобиля автобуса ресторана кинотеатра стул
- Категория: Auto Sensors >>>
- Поставщик: Westbay,Intelligent,Technology,(Shenzhen),Co.,Ltd
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-20-2025 | 0.5 $* | 0.49 $* |
| Aug-20-2025 | 0.67 $* | 0.56 $* |
| Jul-20-2025 | 0.29 $* | 0.62 $* |
| Jun-20-2025 | 0.83 $* | 0.61 $* |
| May-20-2025 | 0.41 $* | 0.49 $* |
| Apr-20-2025 | 0.99 $* | 0.14 $* |
| Mar-20-2025 | 0.78 $* | 0.55 $* |
| Feb-20-2025 | 0.6 $* | 0.30 $* |
| Jan-20-2025 | 0.85 $* | 0.36 $* |
Характеристики
Products Description
Product Description
WESTBAY SMART SEAT OCCUPANCY MONITOR SOLUTION
Intelligent Seat Occupancy Monitor/Seat Belt Reminder System
The purpose of passenger car safety belt detection system is to realize scientific passenger safety management, remind passengers to wear safety belts and reduce secondary injuries caused by traffic accidents.
1. Statistics on passenger car occupancy rates, to help passenger transport companies realize real-time monitoring of the seat status of operating passenger vehicles, and to help managers use big data analysis to make scientific and effective decisions.
2. Statistics on the attendance rate of Car, Bus, Restaurant, Cinema, Hospital Seat, Bed, Office Chair, sitting room Sofa, intelligently identify and count the number of people seated in movie theaters through the Internet of Things technology, and provide technical support for big data analysis.

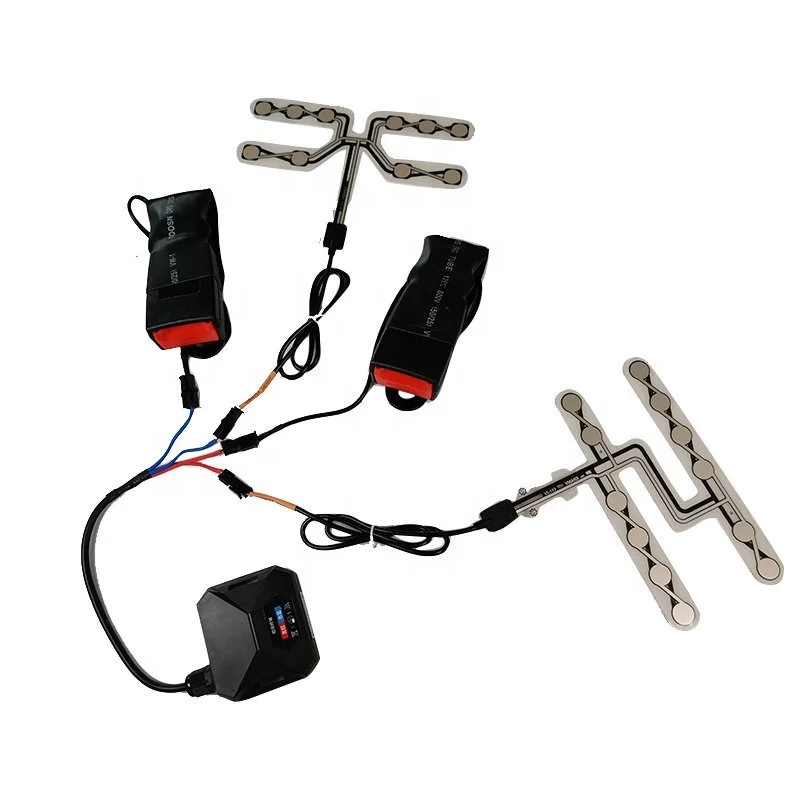

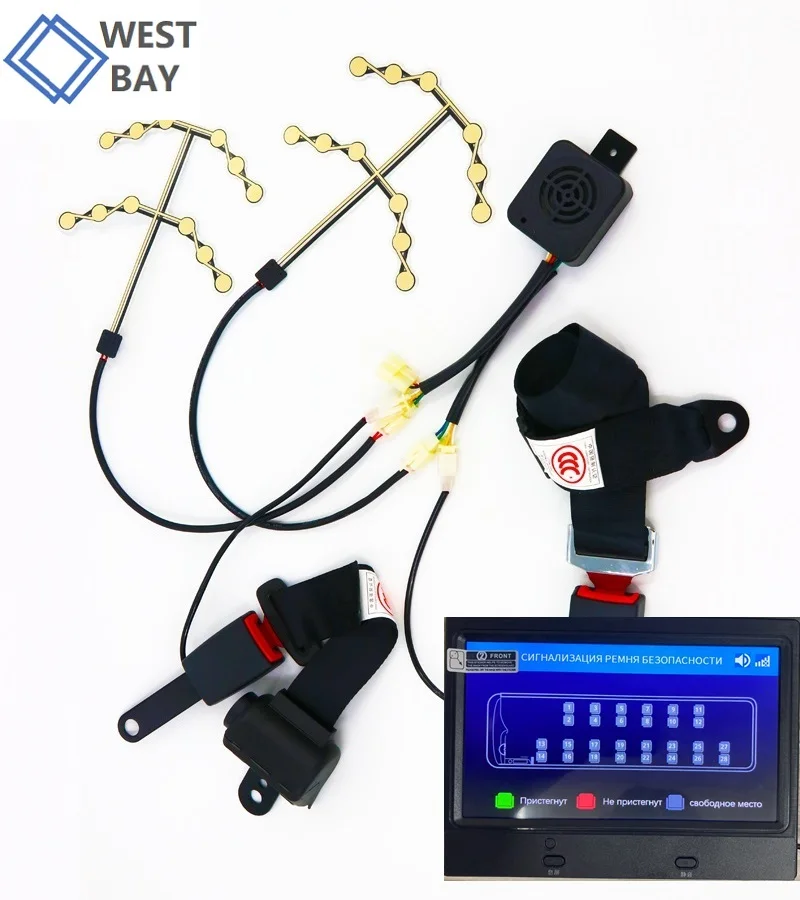

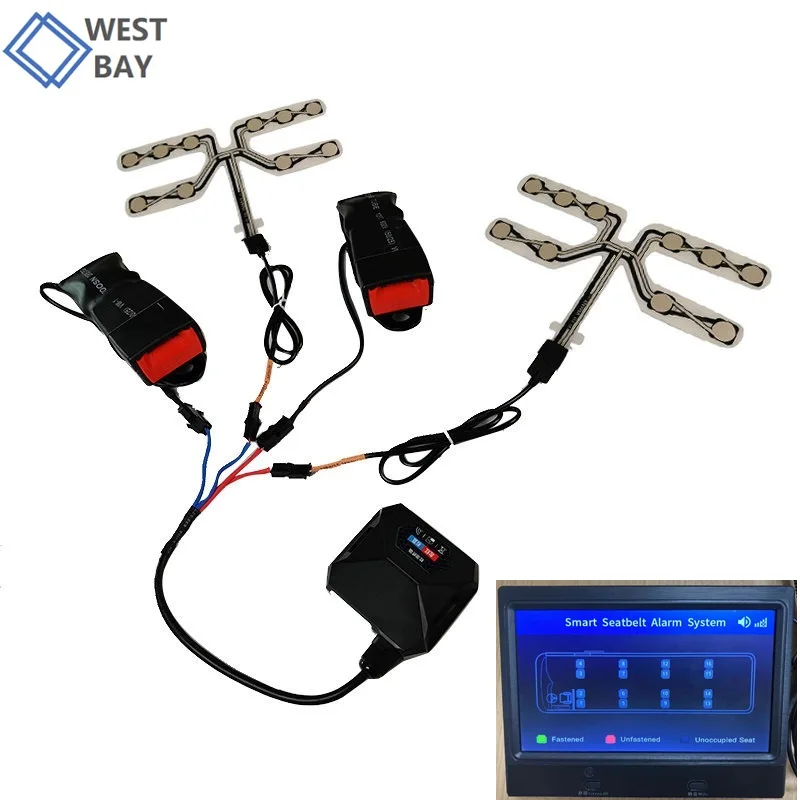

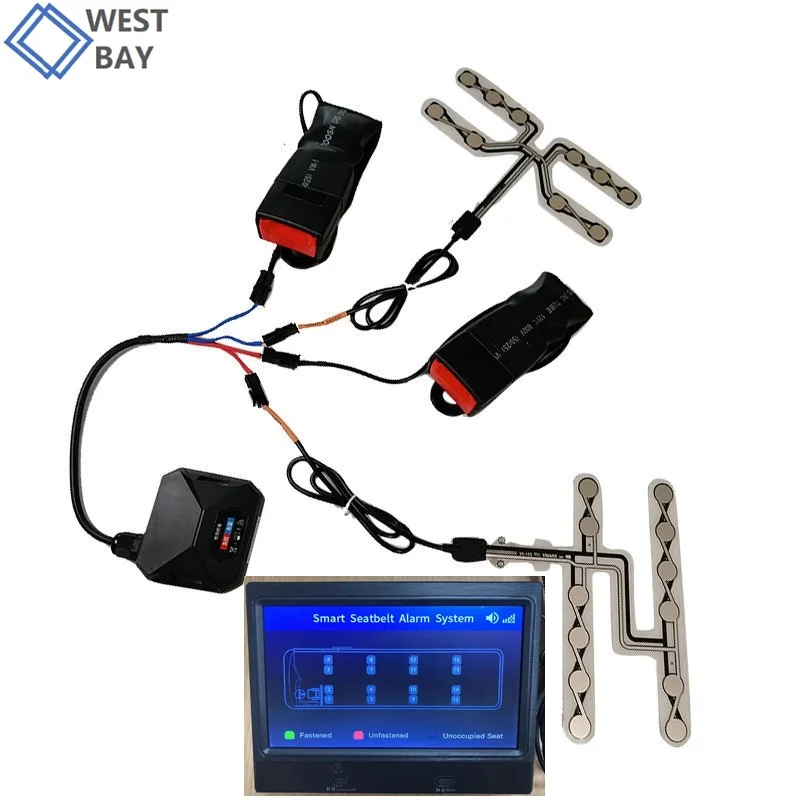

Westbay Intelligent seat Occupancy Monitor/safety belt reminder system: this system is composed of safety reminder host, seat detection terminal, safety belt socket and seat sensor, handheld pad, background system and vehicle audio system.
When the pressure is detected on the seat, the sensor will send a signal to the seat detection terminal, which wirelessly transmits the signal to the reminder host, handheld pad and cloud terminal. At the same time, it will send an audible and visual reminder to inform passengers to fasten their seat belts.
By installing a wireless sensor transmitter on each seat, data is transmitted to the driver interactive device and goes to the cloud server. The vehicle position and passenger seat belt status can be monitored in real time, and real-time remote supervision can be achieved through the cloud server, which can effectively reduce safety risks.
This smart seat occupancy system can be widely used in Car, Bus, Restaurant, Cinema, Hospital Seat, Bed, Office Chair,Sofa, Occupancy status remote monitor by sitting in office or at home.
Custom Language: Chinese, English, Russian, Turkish, Germany, Italian, Spanish, others
1. Security reminder host
The reminder host terminal receives the signal from the seat detection terminal, displays the result on the screen, outputs the audio signal to the on-board audio system, broadcasts to remind passengers who do not fasten their seat belts to fasten their seat belts, and uploads the data to the background system through 4G network.
2. Seat detection terminal
The seat detection terminal packs the detection results of the seat sensor and the seat belt socket and sends them to the safety reminder host regularly through wireless signals. One seat detection terminal can detect the status information of one or two seats.
3. Safety belt socket and seat sensor
The safety belt socket detects whether the safety belt is buckled, the seat sensor detects whether someone is sitting on the seat, and the detection result is output to the seat detection terminal through the level signal.
4. Handheld pad
The handheld pad has special wireless communication function, which can be used by installation and maintenance personnel for input configuration, acceptance and rapid problem location and search. And can interact with server data through 4G.
5. Background system
The background system can remotely monitor the situation of passengers on board, count passenger flow, store data, and remotely manage the equipment.
The reminder host terminal receives the signal from the seat detection terminal, displays the result on the screen, outputs the audio signal to the on-board audio system, broadcasts to remind passengers who do not fasten their seat belts to fasten their seat belts, and uploads the data to the background system through 4G network.
2. Seat detection terminal
The seat detection terminal packs the detection results of the seat sensor and the seat belt socket and sends them to the safety reminder host regularly through wireless signals. One seat detection terminal can detect the status information of one or two seats.
3. Safety belt socket and seat sensor
The safety belt socket detects whether the safety belt is buckled, the seat sensor detects whether someone is sitting on the seat, and the detection result is output to the seat detection terminal through the level signal.
4. Handheld pad
The handheld pad has special wireless communication function, which can be used by installation and maintenance personnel for input configuration, acceptance and rapid problem location and search. And can interact with server data through 4G.
5. Background system
The background system can remotely monitor the situation of passengers on board, count passenger flow, store data, and remotely manage the equipment.

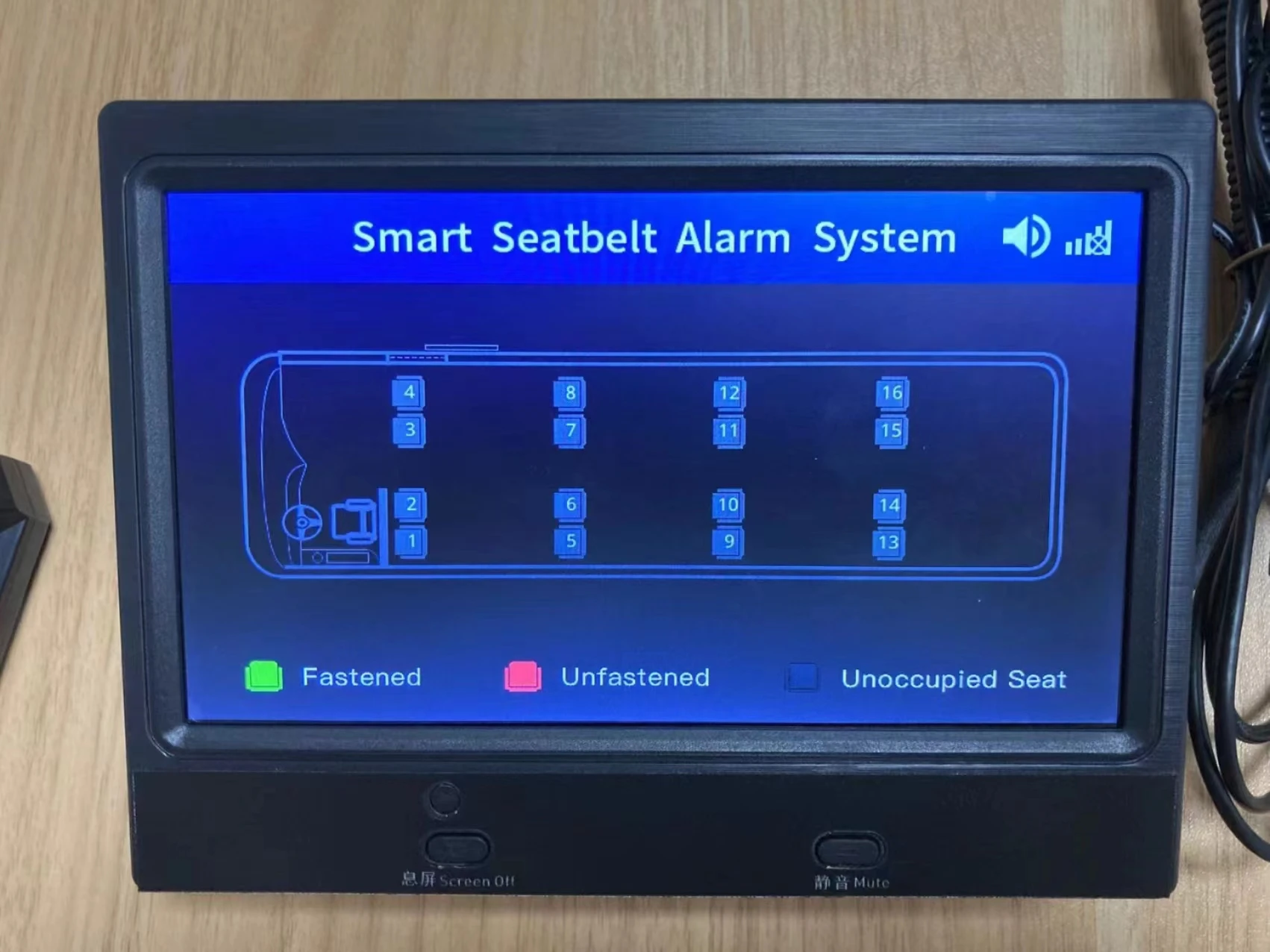

Security Reminder Host

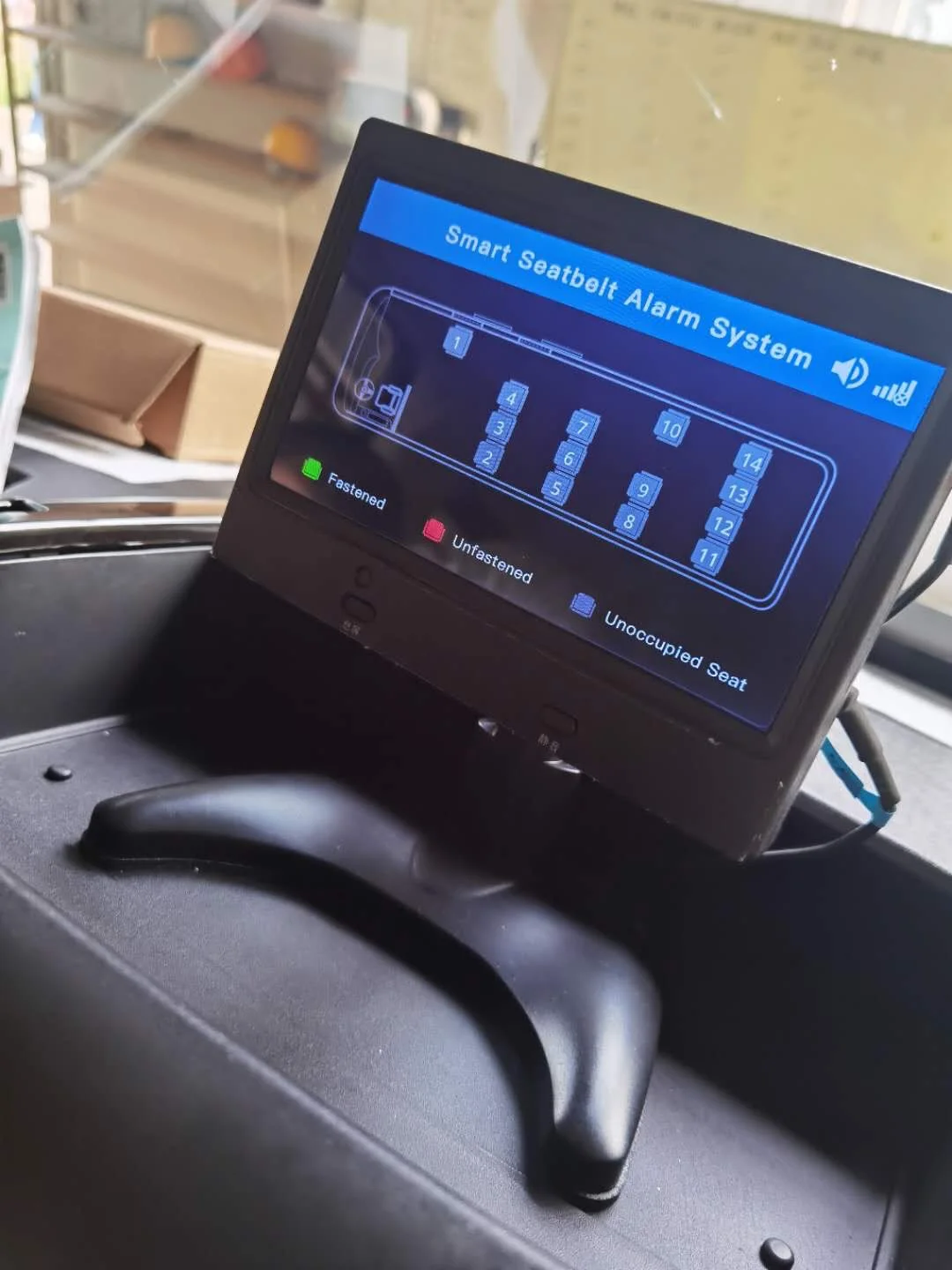

As shown in above Figure, the safety reminder host is installed at the front of the vehicle, which is responsible for receiving the signal of the seat detection terminal, displaying the result on the screen, outputting the audio signal to the on-board audio system, broadcasting and reminding passengers who do not fasten their seat belts to fasten their seat belts, and transmitting the data to the background system through 4G network.
(1)Communication frequency band: Sub-1G;
(2)Communication distance: 60 meters(spacious space);
(3)Power supply mode: DC9V~36V, outerlead 2000mm, red positive and black negative, including modified fuses suitable for vehicle;
(4)Data upload: 4G function;
(5)Screen size: 7inch;
(6)Audio interface: Outer lead 1500mm,3.5mm audio plug;
(7)Installation method: Enhanced version bracket installation.
(8)GPS: positioning function
(9)Dimension: 172mm*127mm*38mm
(2)Communication distance: 60 meters(spacious space);
(3)Power supply mode: DC9V~36V, outerlead 2000mm, red positive and black negative, including modified fuses suitable for vehicle;
(4)Data upload: 4G function;
(5)Screen size: 7inch;
(6)Audio interface: Outer lead 1500mm,3.5mm audio plug;
(7)Installation method: Enhanced version bracket installation.
(8)GPS: positioning function
(9)Dimension: 172mm*127mm*38mm
Seat Detection Terminal
As shown in above picture, the seat detection terminal and the reminder host transmit wirelessly without wiring, efficient and energy-saving algorithm, the battery can be used for more than 3 years, simple installation design, and the seat detection terminal can be connected with 2 seat belt sockets and 2 seat sensors; The equipment serial number is marked on it, and there is a signal line identification prompt on the front.
(1)Communication frequency band: Sub-1G;
(2)Communication distance: 60 meters(spacious space);
(3)Power supply: replaceable battery,battery life:3 years;
(4)Dimension: 73mm×65mm×24mm
(5)Installation method: screw or cable tie.
(6)Supply voltage: 3.6V
(7)Lead length: 100mm
(2)Communication distance: 60 meters(spacious space);
(3)Power supply: replaceable battery,battery life:3 years;
(4)Dimension: 73mm×65mm×24mm
(5)Installation method: screw or cable tie.
(6)Supply voltage: 3.6V
(7)Lead length: 100mm
Safety Belt Buckle
As shown in above picture, an electronic detection device is built into the safety belt socket to detect whether the safety belt is buckled; The seat sensor detects whether someone is sitting on the seat through weight monitoring, and reports the detection results to the safety reminder host through the seat detection terminal.
(1)Detection method: bayonet contact type;
(2)Dimension: 145mm*48mm*2.8mm;
(3)Color:black
(4)Insert specification: 21.5mm
(5)Installation method: screw fixed installation,aperture 12.05mm.
(2)Dimension: 145mm*48mm*2.8mm;
(3)Color:black
(4)Insert specification: 21.5mm
(5)Installation method: screw fixed installation,aperture 12.05mm.
Seat Sensor
Most vehicles have been equipped with safety belt socket and seat sensor in advance, which only needs to be matched with the interface model of seat detection terminal.
(1)Material quality: transparent PET;
(2)Starting method: two rows of double contact triggers.
(3)Detection method: pressure, range 5kg (different test methods,data are different);
(4)Dimension:Covering area: 108.26x123mm, the length of conductive partis: 118.26mm.
(5)Installation method: pasting (with backadhensive).
(2)Starting method: two rows of double contact triggers.
(3)Detection method: pressure, range 5kg (different test methods,data are different);
(4)Dimension:Covering area: 108.26x123mm, the length of conductive partis: 118.26mm.
(5)Installation method: pasting (with backadhensive).
Background Software system on computer
It can remotely monitor the passenger flow and time table of the vehicle, and remotely monitor the passenger flow and time table of the vehicle.
Background Software system
The system interface can set account management, vehicle management, etc. Account management can set account authority to facilitate different people to manage their own vehicles; Vehicle management can enter new vehicle information for configuration, classification, management, etc.
•Through the operation of the system interface, you can view the use of each vehicle equipment and realize scientific management for passenger transport enterprises.
•Through the operation of the system interface, you can view the use of each vehicle equipment and realize scientific management for passenger transport enterprises.
CAR SEAT PRESSURE SENSOR | ||
Electrical Properties: | ||
Rated Voltage | Screensize:7inch; | |
Rated Current | ≤100mA | |
Operating Power | ≤1W | |
Insulation Resistance | ≥100MΩ (250V DC) | |
Loop Resistance | 10Ω~2kΩ (based on the design) | |
Contact Resistance | 0.5 ~ 5Ω | |
Wire Lead Resistance | <1Ω/cm | |
Base Material Voltage Withstand | 1500V DC | |
Mechanical Properties: | ||
Life Expectancy | More than 10 years (more than 5 million times) | |
Operation Force | More than 500g | |
Tail Bending Performance | ≤180° | |
Vibration | 20G's max. | |
Thickness | 0.7~2 mm | |
Environmental Properties: | ||
Operation Temperature | -40°C to +90°C (-40°to 176°F) | |
Storage Temperature | -40°C to +90°C (-40°to 185°F) | |
Atmospheric Pressure | 86 ~ 106 kPa | |
Humidity | +40°C, 90%~95%RH for 480 Hours | |
Working principle: | ||
Sensors | detect if the safety belt is fastened | |
Two-level reminder | 1st level: vision,2nd level: vision + sound | |
SBR Features | 1.Membrane,2.Activated by pressure | |
Usage | Can adjust layout and sensibilities of sensors according to the shape | |
SBR Applications | taximeters, air-bag sensors and driver-presence sensing sensors | |
Layer and Material specification | ||
Top printing circuit | Silver paste +carbon paste + PET 0.125mm | |
Spacer | adhesive 0.10mm | |
Bottom printing circuit | Silver paste +carbon paste + PET 0.125mm | |
Connector types: | BS01,BS02,BS03,BS04,BS05,BS06 | |
Wiring types | C01,C02,C03 | |
Other Features | ||
Artwork/Drawings Format | CorelDraw, Adobe Illustrator AI, AutoCAD | |
Tail/Pin/Circuit Layout | Based on customers detailed requests | |
Antistatic Shielding | Can be added For Protection | |
Connector | Female/Male Connectors or ZIF Connector | |
Rear Adhesive: | 3M467, 3M468, 3M9080 etc… | |
Cables | Extension of Circuit and Connect with your Device | |
Printing Method | Silk Screen Printing/Digital printing | |
Windows/Lens Coating | Can be added | |
Certificate | ISO9001 RoHS CE SGS | |
MS Application
Working principle:
When someone is sitting on a car seat, The car seat surface is subjected to a pressure, This pressure makes the upper and lower circuit layers of the seat sensor contact each other, Thus, the circuit loop is turned on conductive to generate a signal to other devices, Showing someone is sitting on the car seat, and, other systems in the car will use this signal to work, For example, the seatbelt warning system will detect if the person on the car seat whether put a seat belt on himself.
