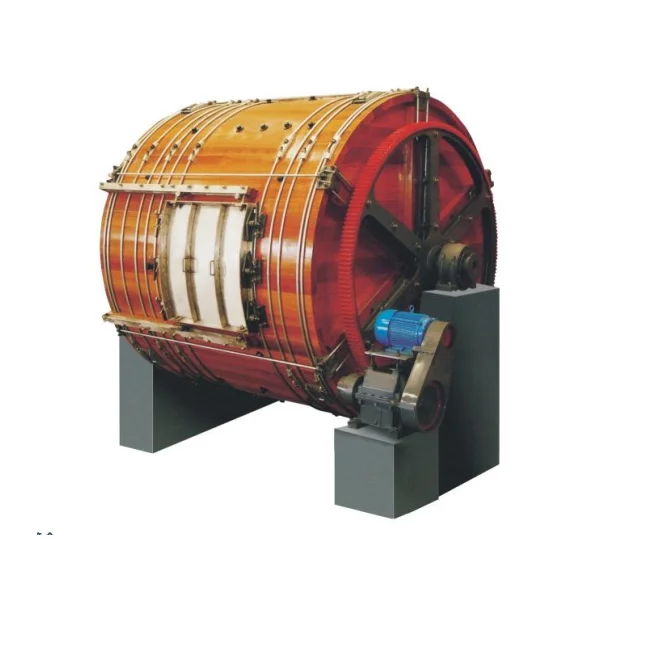

Большая вместимость обычный деревянный барабан для загара шкуры оборудование продажи
- Категория: >>>
- Поставщик: Foshan,Beit,Industry,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-17-2025 | 27132.6 $* | 28489.73 $* |
| Aug-17-2025 | 26904.20 $* | 28249.54 $* |
| Jul-17-2025 | 22572.57 $* | 23701.5 $* |
| Jun-17-2025 | 26448.84 $* | 27770.51 $* |
| May-17-2025 | 23028.68 $* | 24179.54 $* |
| Apr-17-2025 | 25992.47 $* | 27292.73 $* |
| Mar-17-2025 | 25764.53 $* | 27052.0 $* |
| Feb-17-2025 | 25536.89 $* | 26813.49 $* |
| Jan-17-2025 | 25308.97 $* | 26573.75 $* |
Характеристики
Product Overview
PRODUCT SPECIFICATIONS
Description:
Wooden drums is one of the favorite type in the tannery industry, Wood is an withstand strong alkaline solutions and chemicals used in the initial stages of the tanning processes.
They are very sturdy and have good insulation properties, unlike metal.
They are also cheaper and are easy to work with when modifications or repairs are required.
The use of wooden drums also has a long tradition.Depending on the purpose of the leather, It may be used by various industries to produce shoes, clothing, bags, automotive and upholstered furniture.
SHENSEN wooden drums with more than 30 years technical experiences, Adhering to the advantages of the above wooden drums, and using advanced drum doors with excellent sealing.The waterway system allows water and chemical materials to come into full contact with the leather.The drum is filled with water and the drainage structure is ccompact, which solves the disadvantages that the drain valve is easy to block, the water inlet and the drainage are slow.
SIZE 1.2*1.0M
SIZE 1.5*1.5M
SIZE 2.5*2.0M
SIZE 3.0*3.0M
SIZE 3.5*3.5M
SIZE 3.5*4.0M
SIZE 4.0*4.0M
SIZE 4.2*4.5M
SIZE 4.5*4.5M
They are very sturdy and have good insulation properties, unlike metal.
They are also cheaper and are easy to work with when modifications or repairs are required.
The use of wooden drums also has a long tradition.Depending on the purpose of the leather, It may be used by various industries to produce shoes, clothing, bags, automotive and upholstered furniture.
SHENSEN wooden drums with more than 30 years technical experiences, Adhering to the advantages of the above wooden drums, and using advanced drum doors with excellent sealing.The waterway system allows water and chemical materials to come into full contact with the leather.The drum is filled with water and the drainage structure is ccompact, which solves the disadvantages that the drain valve is easy to block, the water inlet and the drainage are slow.
Multiple sizes available for Normal Wood Drum
SIZE 1.2*1.0M
SIZE 1.5*1.5M
SIZE 2.5*2.0M
SIZE 3.0*3.0M
SIZE 3.5*3.5M
SIZE 3.5*4.0M
SIZE 4.0*4.0M
SIZE 4.2*4.5M
SIZE 4.5*4.5M
NAME | SPECIFICATION | MATERIAL | QTY (PC) | REMARK | |||
WOOD | Φ4.2x4.5m OVERLOAD DRUM BODY THICKNESS —90MM | AFRICA ULIN WOOD | 1 | FINE GRINDING INSIDE THE DRUM | |||
CROWN WHEEL GEAR | DIA＝3136mm M=14 | CAST STEEL | 1 | ||||
Drum size L*W mm | AXIS HOLE＝140 mm | 1000*1000 | 1 | ||||
SPIDER | DIA ＝2600 mm | CAST STEEL | 1 | ||||
Transmission gear - modulus | AXIS HOE＝140mm | 14 | 14 | ||||
BEARING | 22252 | WA-FANG ITEM | 2 | ||||
BEARING HOUSE | 22252 | CAST IRON | 2 | ||||
SETTING SCREWS FORCROWN WHEEL GEAR | DIA＝30mm | 45# | 48 | GLAVANIZATION | |||
NUTS FOR DRUM INSIDE（MUSHROOM HEAD) | DIA＝150mm | NYLON | 48 | PP MUSHROOM HEAD,45# SCREWS | |||
DRUM STRUCTURE | 4 PCS HIGH BAFFLES, THICKNESS 110mm ,HEIGHT 1050mm | SPECIAL WATERWAY STRUCTURE | 1 | ||||
DRUM DOOR | BIG DOOR1200×1200mm ARC SLIDING DOOR | 316 STEEL THICKNESS 12mm | 1 | ||||
SMALL DOOR450*450mm | 316 STEEL | 1 | |||||
EXHAUST VALVE | HAMMER-TYPE EXHAUST VALVE | 3 | STEEL 316 | ||||
SMALL DOOR | 450X450mm | DOOR PANEL 316 STEEL | 1 | ||||
DRAINAGE VALVE | DRAIN AT TWO SIDES | STEEL 304 | 6 | ||||
AUTOMATIC ELECTRICAL CONTROL BOX | 45KW TIME RELAY FORWARD/REVERSE /STOP 45KW | 304 CONTROL BOX BODY | 1 | WITH VICE-BOX | |||
REDUCER | SPECIAL FOR DRUM WXGT280 | 20CrMnMo | 1 | CHANGZHOU JIANGSU | |||
MOTOR | 4 POLE 45KW MOTOR | 1 | |||||
SMALL GEAR | 14 MOLDS 18 TEETH | AL.BRONZEZQA19-4 | 1 | JIANGCHENG MOTOR | |||
SPEED | DRUM SPEED 2 RPM ( SOCKING LIMING PROCESS) | ||||||
SALES AND SERVICE NETWORK
SHENSEN DRUMS HAS MORE THAN 30 YEARS EXPERIENCE IN PRODUCING DRUMS.
FOSHAN NANHAI SHENSEN LEATHER MACHINERY COMPANY IS A PROFESSTIONAL MANUFACTURER SPECIALIZES IN TANNERY DRUMS AND PADDLES.WE ARE PRODUCING NORMAL WOODEN DRUMS FROM DIA800 MM - DIA 4500 MM,SUPERLOAD WOODEN DRUMS,ALL KINDS OF PADDLES AND NEW TYPE ENERGY-SAVING DRUMS(INCLUDING:NEW TYPE SUPERLOAD RECYCLE ENVIRONMENTAL DRUM,AUTOMATIC STAINLESS STEEL OCTAGOAL MILLING DURM,Y TYPE SECTION AUTOMATIC DURM)ETC.
WE WIN THE MARKET THROUGH OUR ADVANCED EQUIPMENTS,TECHNOLOGY AND PERFECT AFTER-SALE SERVICE.OUR PRODUCTS HAS SALED ALL OVER THE WORLD.
OUR PRINCIPLE IS “QUALITY FIRST,WELL MANAGEMENT CONTROL,SATISFY CUSTOMERS”.LET’S HAND IN HAND TO COOPERATE.AND BOTH DEVELOPING
FOSHAN NANHAI SHENSEN LEATHER MACHINERY COMPANY IS A PROFESSTIONAL MANUFACTURER SPECIALIZES IN TANNERY DRUMS AND PADDLES.WE ARE PRODUCING NORMAL WOODEN DRUMS FROM DIA800 MM - DIA 4500 MM,SUPERLOAD WOODEN DRUMS,ALL KINDS OF PADDLES AND NEW TYPE ENERGY-SAVING DRUMS(INCLUDING:NEW TYPE SUPERLOAD RECYCLE ENVIRONMENTAL DRUM,AUTOMATIC STAINLESS STEEL OCTAGOAL MILLING DURM,Y TYPE SECTION AUTOMATIC DURM)ETC.
WE WIN THE MARKET THROUGH OUR ADVANCED EQUIPMENTS,TECHNOLOGY AND PERFECT AFTER-SALE SERVICE.OUR PRODUCTS HAS SALED ALL OVER THE WORLD.
OUR PRINCIPLE IS “QUALITY FIRST,WELL MANAGEMENT CONTROL,SATISFY CUSTOMERS”.LET’S HAND IN HAND TO COOPERATE.AND BOTH DEVELOPING
Successful Project
Project in Thailand
Project in India
Project in Russia
FAQ
Warranty: Engineers available to serive All of our leather wooden drums overseas.
During the guaranteed period, any of the parts could be replaced upon receipt of your photos for proof.
1. The wooden frame 15 years
2. grear reducer:5 years
3. gearwheel/spider:all use life except normal abrasion
4. The whole machine:1 year except normail abrasion
5. 24-hour online service, 24-hour standby
6. LC available, minimum order quantity 1 piece.
7. Help you supervise all manufacturing steps and take photos for you.
8. Fast and punctual delivery.
9. Some parts are provided free of charge.
All our leather wooden barrels have reached international standards, and we have obtained sgs CE and other certificates.
11. Competitive price. The more drums you order, the better our price will be.
During the guaranteed period, any of the parts could be replaced upon receipt of your photos for proof.
1. The wooden frame 15 years
2. grear reducer:5 years
3. gearwheel/spider:all use life except normal abrasion
4. The whole machine:1 year except normail abrasion
5. 24-hour online service, 24-hour standby
6. LC available, minimum order quantity 1 piece.
7. Help you supervise all manufacturing steps and take photos for you.
8. Fast and punctual delivery.
9. Some parts are provided free of charge.
All our leather wooden barrels have reached international standards, and we have obtained sgs CE and other certificates.
11. Competitive price. The more drums you order, the better our price will be.
