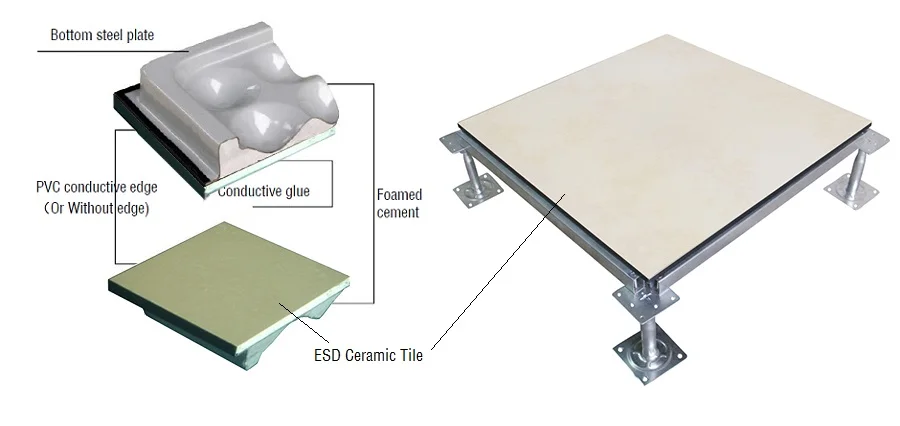

C4- Bare finish type sringer support Steel raised floor



OA Raised floor is specially designed for the modern office. It is convenient for cabling and overcome the disadvantages of traditional cabling solution. It meets the requirements of fast change of network, variety of input and output ports, different heights of office, anti-static and fire resistance. So it is greatly suitable to use in the following buildings: large scale office, computer facilities, intelligent office, securities hall, government office, financial institution, research institution, broadcasting center, post telecommunications, communication station, audio-visual education center, advertising and publication, conference center, media production center, commercial web center, electrical power and traffic control center etc. It greatly boost the development of modern high technology.

Product advantages:



1. Made of steel plate, high mechanical strength, high loading capacity, good fire resistance.

2. Epoxy power painting on surface, matt and soft, wear resistant and anti-corrosion.

3. Covering is glued under high pressure.  Multiple choices and good decorated surface. Wear resistant and anti scratch, excellent electrical conductivity, anti pollution and easy cleaning.

4. High dimensional accuracy,  interchangeable, flexible assembly, easy maintenance.

5. Products can be upgraded or adjusted according to the loading requirements.



 raised access floor      raised access floor        raised access floor         raised access floor           raised access floor





Technical data of steel raised floor-C4

NO.	Size	Thickness	Concentrated load (deflection=2mm)			Ultimate load	Uniform load	Rolling load			Electrical resistance
	(mm)	(mm)	lb	N	kg	N	N/m2	N	deflection	Permanent deformation	(Ω)
PRT-C4-FS662	600×600	33	662	2950	301	8850	12500	2255	≤2mm	≤0.5mm	106 - 1010
PRT-C4-FS800	600×600	33	800	3550	363	10650	16500	2950			106 - 1010
PRT-C4-FS1000	600×600	33	1000	4450	454	13350	23000	3560			106 - 1010
PRT-C4-FS1250	600×600	34	1250	5560	567	16680	33000	4450			106 - 1010
PRT-C4-FS1500	600×600	35	1500	6665	680	19995	39324	5560			106 - 1010
PRT-C4-FS2000	600×600	36	2000	9000	910	31130	58000	8000			106 - 1010
Floor covering			Carpet, PVC floor, ceramic tiles, linoleum, wooden floor etc.
Raised height			Normally from 100mm to 1000mm, above 1000mm, it should be in special solution.

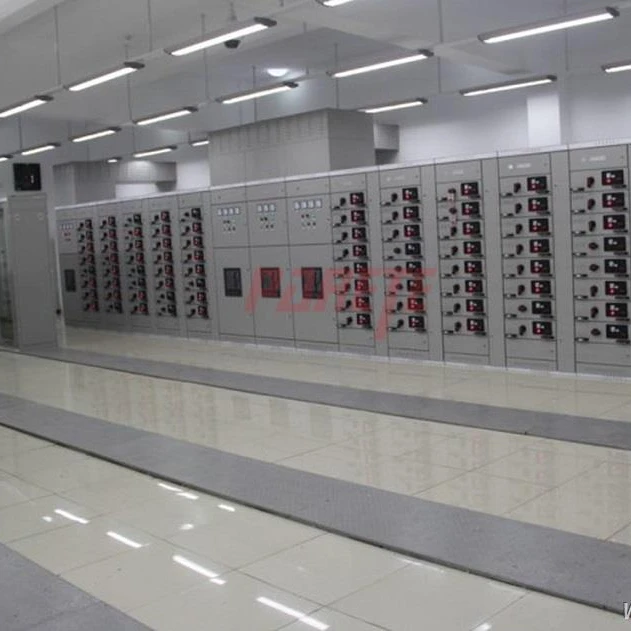

Applications

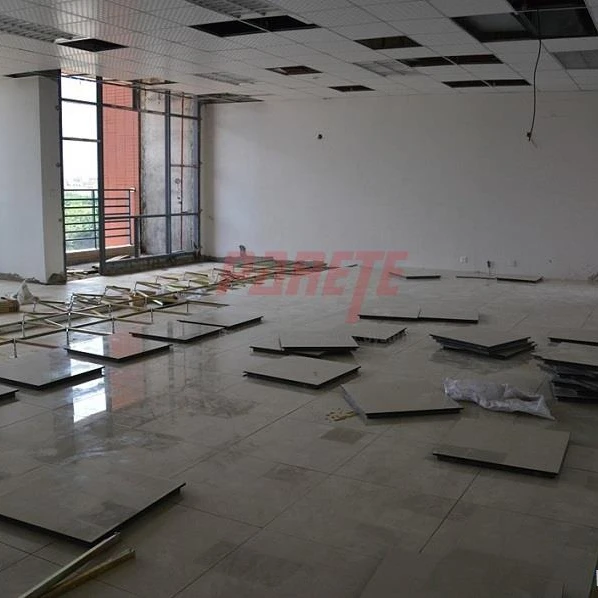

bare OA-network steel raised floor installation site

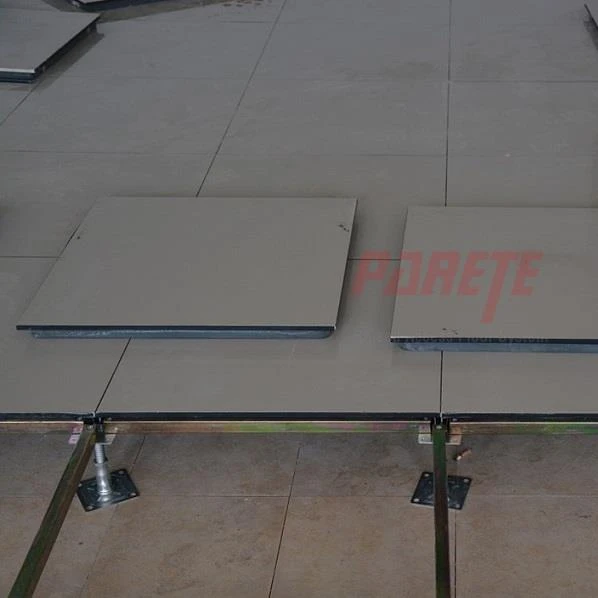

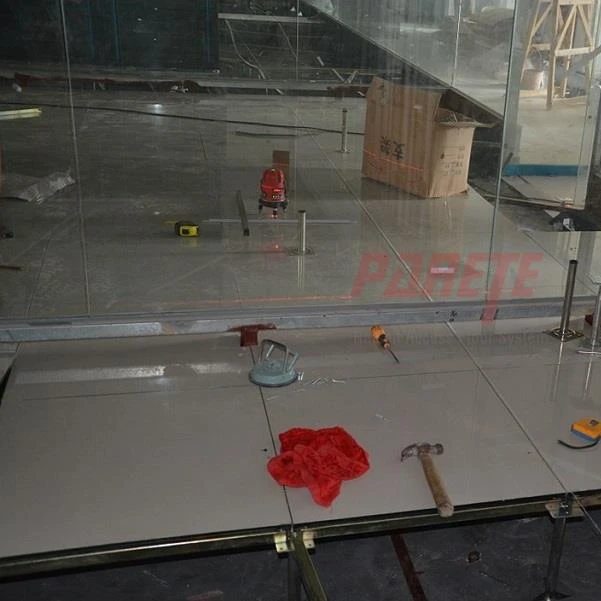

Some details of raised floor installation

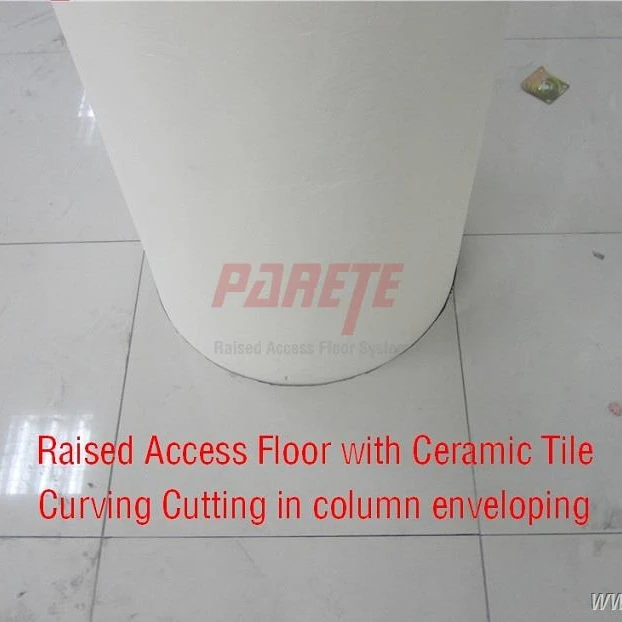

Some details of raised floor installation close to wall or curtain wall



Cable trunk under raised floor
