OCOM OCBS-T218 Настольный 4Mil 2D всенаправленная Cmos Сканер Штрих-кодов штрих-кодов 1D сканер штрих-кода
- Категория: Scanners >>>
- Поставщик: Shenzhen,OCOM,Technologies,Limited
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-19-2025 | 0.66 $* | 0.41 $* |
| Aug-19-2025 | 0.70 $* | 0.47 $* |
| Jul-19-2025 | 0.63 $* | 0.17 $* |
| Jun-19-2025 | 0.30 $* | 0.61 $* |
| May-19-2025 | 0.26 $* | 0.32 $* |
| Apr-19-2025 | 0.23 $* | 0.65 $* |
| Mar-19-2025 | 0.68 $* | 0.11 $* |
| Feb-19-2025 | 0.57 $* | 0.57 $* |
| Jan-19-2025 | 0.93 $* | 0.54 $* |
Характеристики
VR
Product details

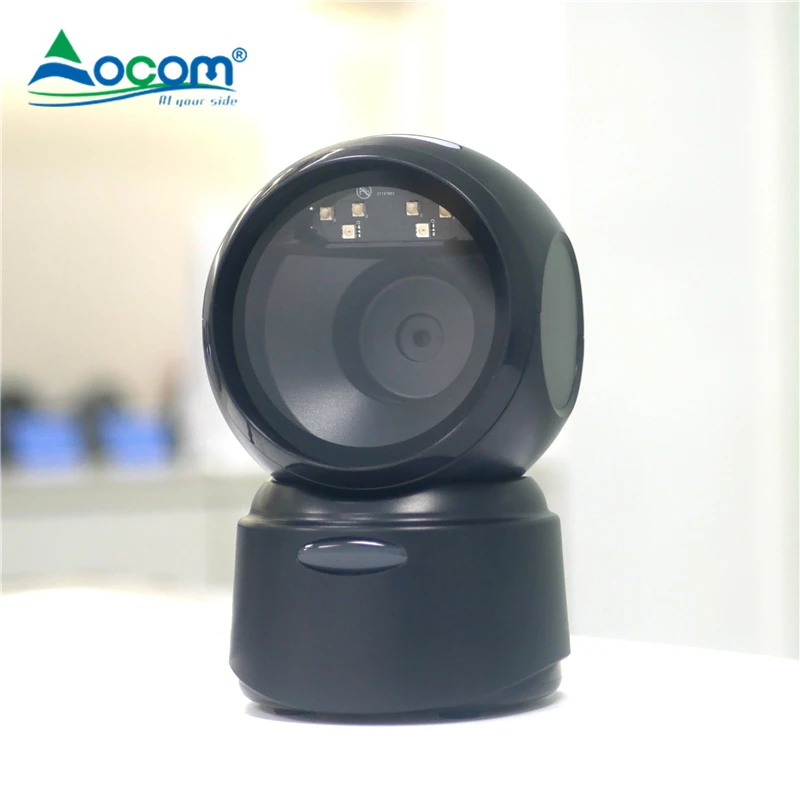

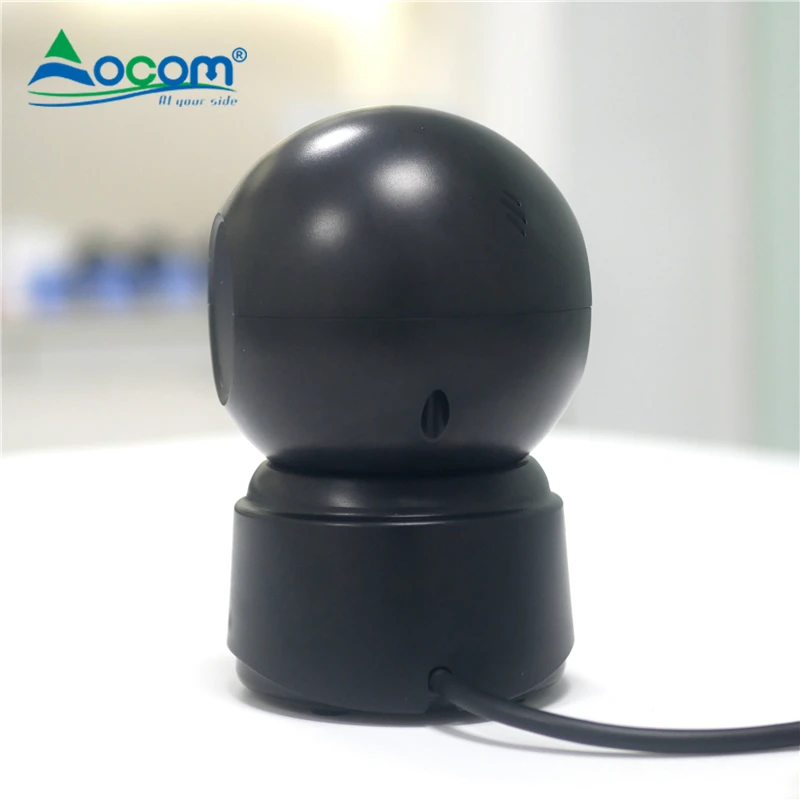

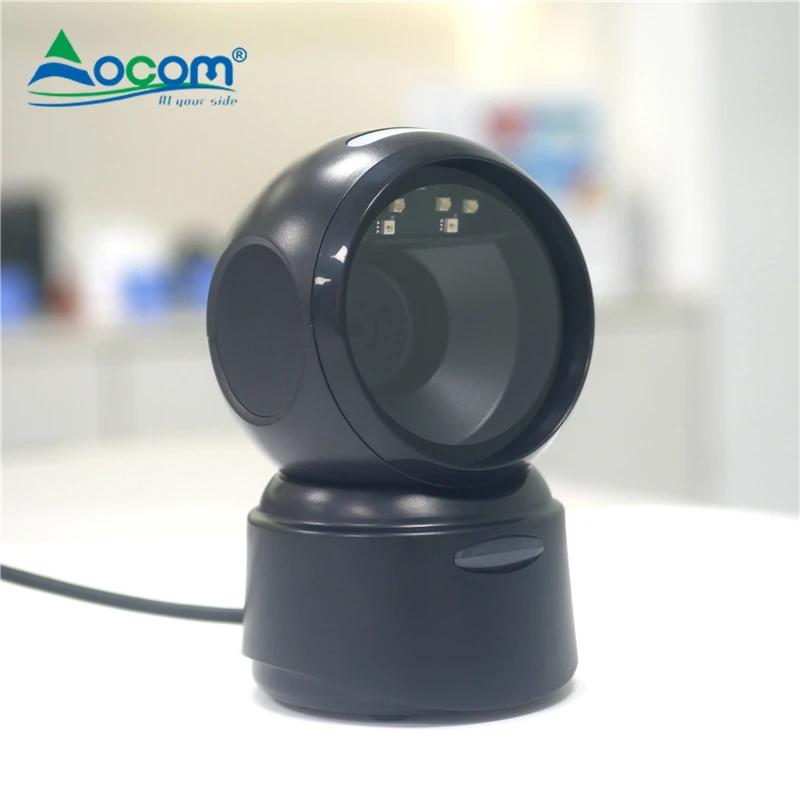

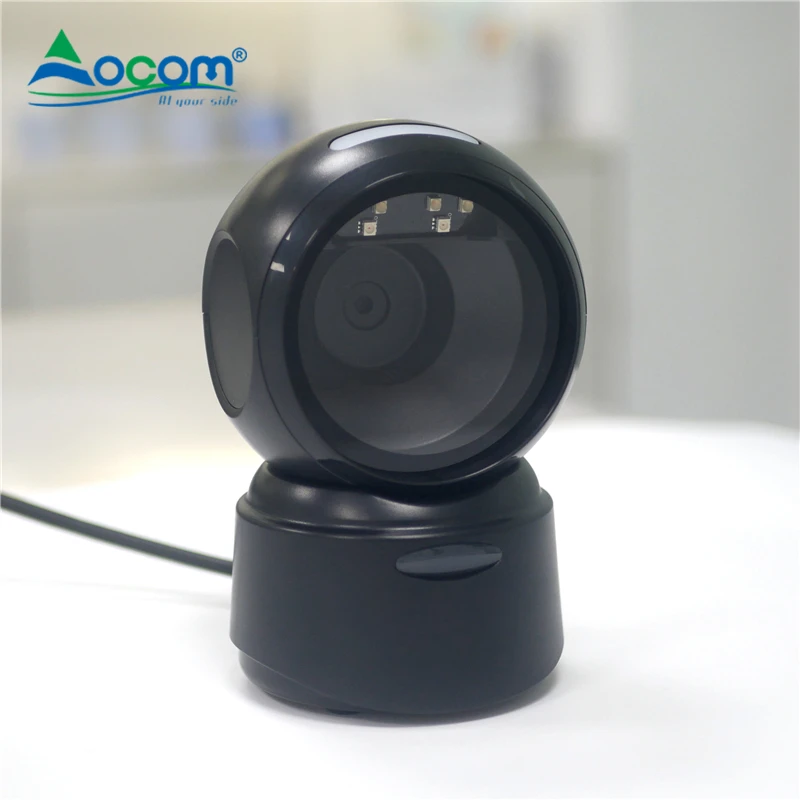

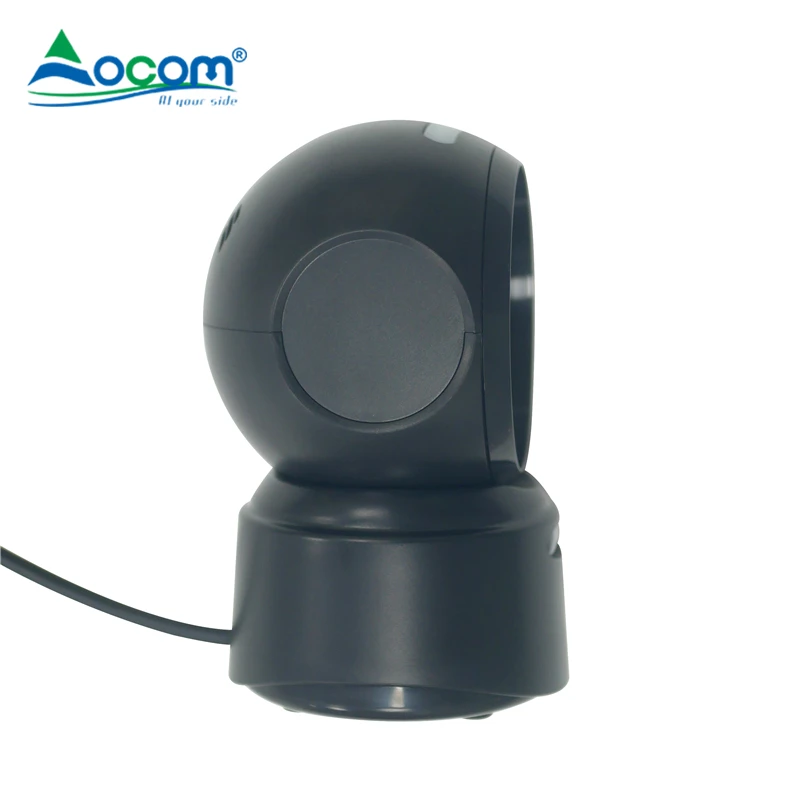

2D Omni-Directional Barcode Scanner
(M/N:OCBS-T218)
Feature:
1. Support Multiple kinds of 1D and 2D barcodes
2. 4mil scanning resolution
3. 640*480 CMOS Sensor
4. Easy to scan screen barcodes
2. 4mil scanning resolution
3. 640*480 CMOS Sensor
4. Easy to scan screen barcodes
General | |
Model | OCBS-T218 |
Interface | USB |
Operating Voltage | 5V |
Starting Curent | 315mA |
Work Current | 320mA |
Standby Current | 235mA |
Shock specification | Design to withstand 1.2M drops |
Performance | |
Sensor | CMOS 640*480 pixels |
Light source | (Aimer) Blue color LED, (Illumination) Red color LED |
Field of view | 39° (H)x29°(V) |
Resolution | >/= 4mil |
Scan Angle | Pitch ±65°@ 0°Roll and 0° Skew Roll 360°@ 0°Pitch and 0° Skew Skew ±65°@ 0°Roll and 0° Pitch |
Symbol Contrast | 20% minimum reflective difference |
Ambient Light Immunity | 0-100,000 Lux |
Typical Depth of Field | Code39(5mil):0mm-70mm,Code39(13mil):0mm-170mm QR(20mil):0mm-110mm,Alipay (QR 30mm*30mm):0mm-300mm |
Decoding ability | 1D:Codabar,Code 39,Code 32 Pharmaceutical (PARAF), Interleaved 2 of 5,NEC 2 of 5,Code 93,Straight 2 of 5 Industrial,Straight 2 of 5 IATA,Matrix 2 of 5,Code 11,Code 128,GS1-128,UPC-A,UPC-E, EAN/JAN-8,EAN/JAN-13,MSI,GS1 DataBar Omnidirectional,GS1 DataBar Limited,GS1 DataBar Expanded,China Post(Hong Kong 2 of 5),Korea Post 2D:DOTCode,Codeblock-A,Codeblock-F,PDF417,MicroPDF417, GS1 Composite Codes,QR Code,Data Matrix,MaxiCode,Aztec,HANXIN |
code-opening by factory | Codabar,Code39,Interleaved2of5,NEC2of5,Code93,Code128,GS1-128,UPC-A,UPC-E0,EAN/JAN-13,EAN/JAN-8,GS1-DataBar,PDF417,QR,DM,Aztec |
Physical | |
Weight | Gross:249g |
Dimension | 140.2*84*90.1mm |
Environment | |
Working temperature& humidity | 0 to 45 degrees centigrade, 10%~80% No condensation |
Storage temperature& humidity | -20 to 60 degrees centigrade , 10%~90% No condensation |
OCOM Product Family
OCBS-2017
* 1D 2D Barcode Scanner
* 4mil excellent scanning accuracy
* USB;RS232 Interface
* Competitive price
OCBS-2019
* 1D 2D Barcode Scanner
* 4mil excellent scanning accuracy
* 300 scans/s high speed scanning
* USB;RS232 Interface
OCBS-L017
* 1D Laser Barcode Scanner
* USB Interface
* 200scans/s high speed scanning
* competitive price
OCBS-LA15
* 1D Laser Barcode Scanner
* Auto sense function
* 200scans/s high speed scanning
* USB;RS232 Interface
OCBS-LA09
* 1D Laser Barcode Scanner
* PS2, RS232,USB Interface
* 200scans/s high speed scanning * Auto sense function
OCBS-W013
* 1D Laser Barcode Scanner
* USB cable;Wireless 2.4G Interface
* 200scans/s high speed scanning
OCBS-W233
* 1D/2D Barcode Scanner
* Standard Blue-tooth 2.4G USB Communication
* 1million pixel high precision scanning engine
* 250mA low power design can scan 30,000 times
OCBS-W234
* 1D/2D Barcode Scanner
* Standard Long distance 2.4GHz Communication
* 12 hours working time on one charge
* Standard charging and receive base
* Unblocked can transmit 80 meters
OCBS-C020/C020H
* 1D CCD Barcode Scanner
* 2500 pixel CCD sensor
* USB Interface
* 300 scans/s high speed scanning
* 4 mil excellent scanning accuracy
OCBS-T209
* 1D/2D Omni-Directional Barcode Scanner
* Bright white LED for illuminating scanning surface
* 300,000 pixels overall situation exposure
OCBS-T211
* 1D/2D Omni-directional Barcode Scanner
* 1280*1024 Millions high resolution, super large window
* High-strength shell that can withstand 1.5 meters drop
* USB,RS232 Interface
OCBS-T214
* 1D/2D Omni-directional Barcode Scanner
* Sound can be adjustable
* 1280*1024 Millions high resolution, super large window
* USB Interface
OCBS-R04
* Mini Ring Barcode Scanner
* 8hours working time on one charge
* Magnetic suction head USB port for easy plugging
* 70 minutes fast charge
* USB port can charging and transmit data
Since 2007, OCOM is a leading One-stop POS and Auto-ID Related Products Supplier which is qualified by Global Fortune 500 company.
OCOM's products portfolio covers Thermal Printer, Barcode Printer, DOT Matrix Printer, Barcode Scanner, Data Collector, POS Machine, POS monitor, Customer Display, Cash Drawer, Magnetic Card Reader Writer, Money Counter, Barcode Scale, RFID, and other POS Peripherals products, which are widely used for retailing, restaurant, bank, lottery, transportation, logistics, and other applications. We have CE, FCC, ISO and other required certifications.
OCOM has a experienced professional team including marketing, R&D, quality control, production and sales service. The management members have worked in the FORTUNE500 companies, like Walmart Global Procurement, Huawei, Great Wall, as senior managers for many years, it bring us the scientific management system in every proceeding. All of the sales representatives have more than 3 years experience in international trading, which help us to meet and exceed the customers' satisfaction. The strong R&D capacity makes us turn the customer request tobe reliable products freely. 13 years OEM/ODM experiences with good evaluation.
OCOM's headquarter in Hong Kong, and the production line is located in Hunan and Shenzhen, which is the heart of the global electronic industry. OCOM have been sticking to the quality system of ISO9001: 2015. We make strictly IQC, IPQC and OQC inspection per industrial standard. All the products must pass 24-48 hours aging test before shipment. Some designated models can have as long as 24months warranty. We have the mass production capabilities that produce thousands of printers, scanners and other products a day. Based on our strong capacity, the normal lead time for main products is about 3 to 7 days even for bulk order.
Together we quest for the best！
Packing&Shipping&Payment
FAQ
1. MOQ policy
No MOQ limitation for the standard products, but the unit price is different, bigger quantity better price.
For customized production, you can discuss the MOQ with our sales representative directly.
2. Sample Availability & Policy
After customers confirmed the specification, we are very glad to provide samples for testing and qualification. All samples should be paid before shippment, the samples price is a higher than mass order. When the mass order placed, we can return you the samples cost, or send you more piece products with the shippments. You can buy the samples from us directly using t/t, western uion, or paypal.
3. Warranty
OCOM is dedicated to providing most cost-effective products and services with reliable quality that will meet customers 'satisfication; We was qualified by global fortune 500 company, and we have the top 1 level trade assurance which 100% protect your money and lead time. Our warranty of the products is about 12+1 months from the shipment normally, some designated models can have as long as 24 months warranty; Any product within 30 days of delivery failure occurs shall be deemed invalid delivery (DOA). DOA products will give priority to the replacement, and shipped by courier. For mass order, we would like to supply some spare parts with shipment for local quickly repair. And after that, you can returned failure parts for rework andanalysis.
4. Payment
Terms For mass order, you can pay us by using T/T, LC, Western Union, Escrow or others.
No MOQ limitation for the standard products, but the unit price is different, bigger quantity better price.
For customized production, you can discuss the MOQ with our sales representative directly.
2. Sample Availability & Policy
After customers confirmed the specification, we are very glad to provide samples for testing and qualification. All samples should be paid before shippment, the samples price is a higher than mass order. When the mass order placed, we can return you the samples cost, or send you more piece products with the shippments. You can buy the samples from us directly using t/t, western uion, or paypal.
3. Warranty
OCOM is dedicated to providing most cost-effective products and services with reliable quality that will meet customers 'satisfication; We was qualified by global fortune 500 company, and we have the top 1 level trade assurance which 100% protect your money and lead time. Our warranty of the products is about 12+1 months from the shipment normally, some designated models can have as long as 24 months warranty; Any product within 30 days of delivery failure occurs shall be deemed invalid delivery (DOA). DOA products will give priority to the replacement, and shipped by courier. For mass order, we would like to supply some spare parts with shipment for local quickly repair. And after that, you can returned failure parts for rework andanalysis.
4. Payment
Terms For mass order, you can pay us by using T/T, LC, Western Union, Escrow or others.
About samples order,T/T, Western Union, Escrow,Paypal are acceptable.Escrow Service is powered by Alipay.com.
5. Shipment
We accept all kinds of shipping ways including: express, air, sea, truck, or pick up by customers personally.
5. Shipment
We accept all kinds of shipping ways including: express, air, sea, truck, or pick up by customers personally.
