Недорогой портативный стоматологический микроскоп Zumax со светодиодными источниками света и большим рабочим
- Категория: Optical Instruments >>>
- Поставщик: Suzhou,Jingtong,Instrument,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 809.81 $* | 849.77 $* |
| Aug-16-2025 | 802.3 $* | 842.79 $* |
| Jul-16-2025 | 673.47 $* | 707.1 $* |
| Jun-16-2025 | 789.98 $* | 828.51 $* |
| May-16-2025 | 687.24 $* | 721.37 $* |
| Apr-16-2025 | 775.50 $* | 814.18 $* |
| Mar-16-2025 | 768.22 $* | 806.37 $* |
| Feb-16-2025 | 762.0 $* | 800.34 $* |
| Jan-16-2025 | 755.35 $* | 793.26 $* |
Характеристики
Product Description
Super Long Working Distance
Any Directions
WF10X/20X Eyepiece
3.3x~220X Magnification
16MP 1/2.33” CMOS Sensor
HDMI+USB2.0 Ports
VMS103CD is a new dental microscope which has super long working distance and clear sharp images. The standard equipment is WF 10X eyepiece & 0.65X~5.5X objective, high brightness LED lamp. Adding 0.5X & 2X auxiliary objectives, the magnification could be 3.3X~220X, with the 20X Eyepiece.
Features
Features for Dental Microscope:
---Super long working distance, for any directions
---Total Standard Magnifictaion:6.5X~55X; Optical Magnificaton: 3.3X~220X
---Wide field of view, clear imaging and strong stereo sensation
Features for Microscope Camera:
---Adopt 16MP Panasonic CMOS Sensor
---Adopt 1/2.33” Sensor, more wide view field
---HDMI 1080P 60 FPS
---USB2.0 free drive 1080P 30FPS Image Output
---4K Video Record
---One push freeze/ defrost function, digital scaling function
---Supplying manual/ auto / one push exposition, exposure compensation adjustable
---Supplying manual/ auto / one push white balance, R, G, B adjustable
---Supplying 8 draw lines function, color, thickness, position adjustable
---Center cross lines display/ close
---Providing TF Card for saving, 64GB(max)
---Remote control
---Chinese / English Language, English(Default)
---Providing datas saved after closing camera
---Solid Metal Shell

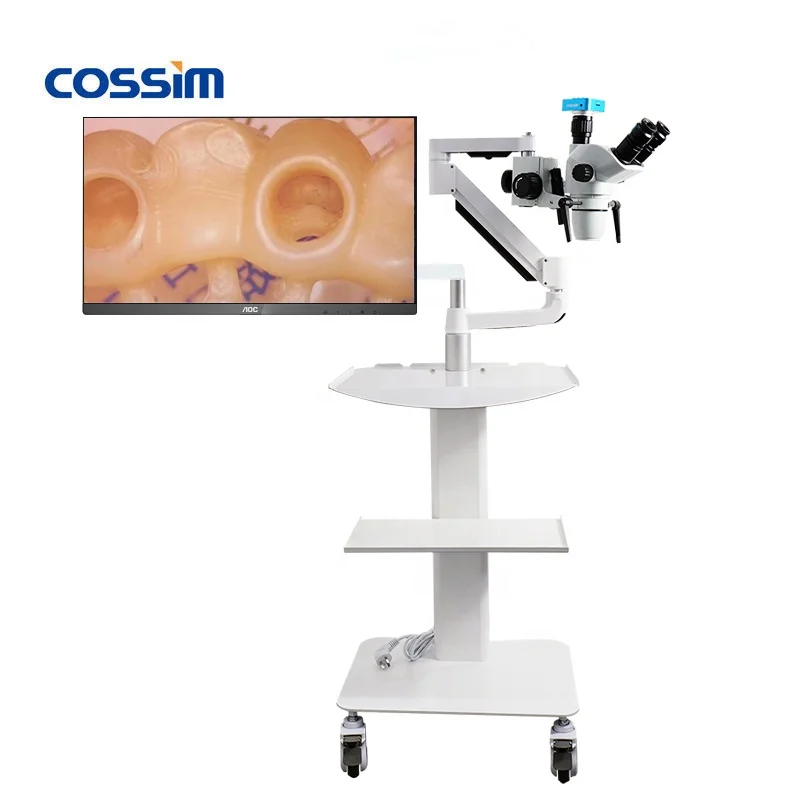

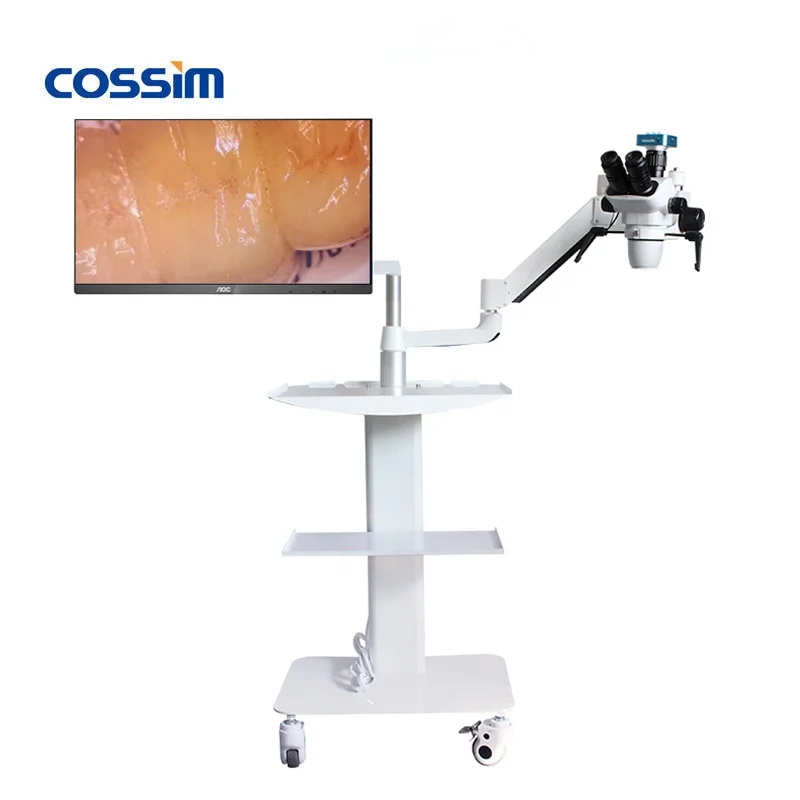

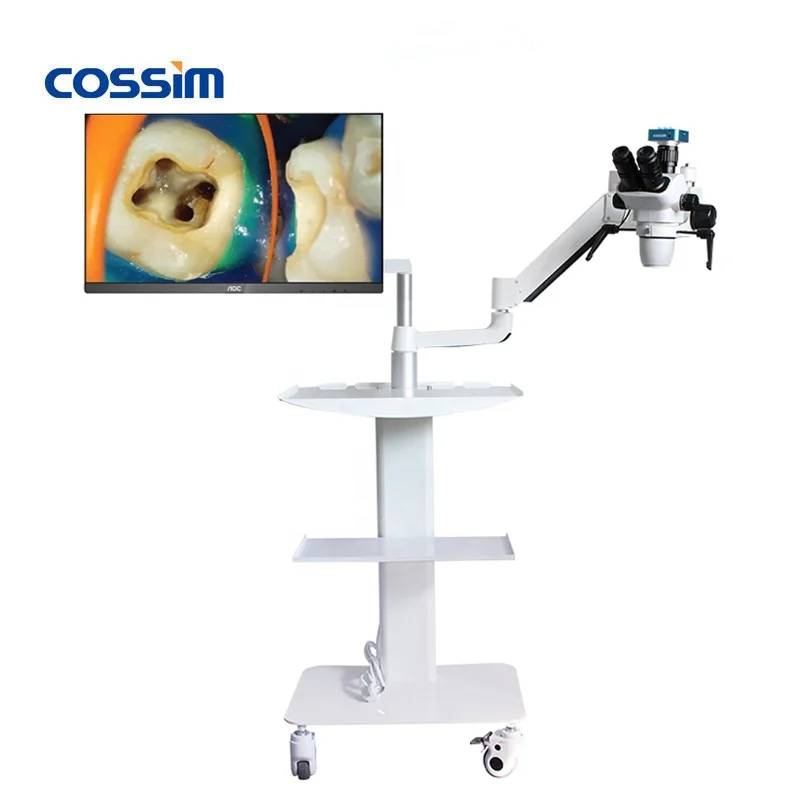

| VMS103CD Dental Stereo Microscope with HDMI Microscope Camera & 23inch Display Screen |

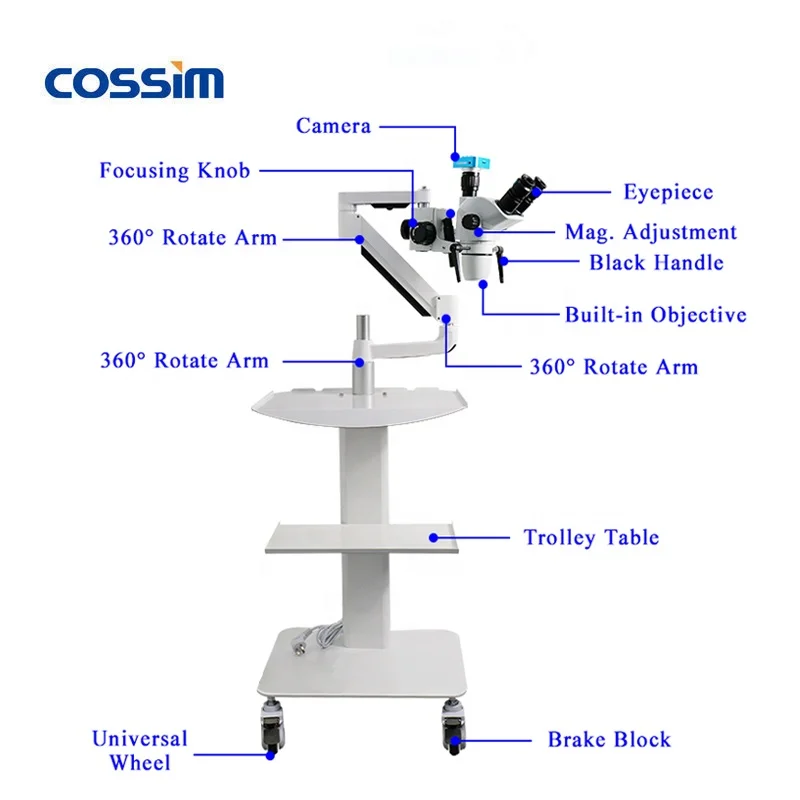

| Structure of VMS103CD Dental Stereo Microscope |
Specification
Specification for Head: | ||
|---|---|---|
Eyepiece | High eye point WF10X/Φ22mm | |
Objective | 0.65X-5.5X, ratio: 1:8.5 | |
Total Mag. | Standard:6.5X-55X (Optional Aux.0.5X, 2X ) 3.3X-220X with optional 20X eyepiece | |
Head | Trinocular, inclined 45°, rotatable 360°, Diopter adjustment: ±5 diopters | |
F.O.V | 4.0-31.4mm | |
Interpupillary Distance | 54-75mm | |
Working Distance | 105mm | |
Focusing Range | 45mm (pole: 240mm) | |
Illuminator | LED Ring Light | |
Specification for Microscope Camera | ||
Sensor | 1/2.33” Panasonic 16MP CMOS Sensor | |
Resolution | 1.335μm x 1.335μm | |
HDMI output | 1920 * 1080 60fps | |
USB output | 1920 * 1080/ 30, 1280*720/30, 640 * 480/30, 320 * 240/30(MJPG) | |
Interface | C/CS | |
Exposure | Auto/ Manal/ One-button | |
Exposure Compensate | Supply | |
White Balance | Auto/ Manal/ One-button, RGB Adjustable | |
Memory | 64GB | |
Input Voltage | DC 5V~12V | |
Lines | 8 types, color & thickness adjustable | |
Center Lines | Supply | |
Language | English(default)/ Chinese | |
Remote | Remote Operation Supply | |
Product Details
 | Eyepiece High eye point WF10X/Φ22mm. The trinocular head is inclined 45°. The field of plan objective can achieve ø 22mm, which let you have more wide and comfortable of observation. The trinocular can easily change in the observation and photography. |
Continuous Zoom Different multiple can be chosen. |  |
 | Built-in Objective 0.65X-5.5X, ratio: 1:8.5. |
Focusing Knob Focusing Range: 45mm. |  |
 | Black Handle A pair of black handle, which is convenient for user to operate. |
LED Right Light Working Diameter Range: 40~160mm, Metal Light Head: 60 LED granule, Color Tem. 5500 / 6500K. |  |

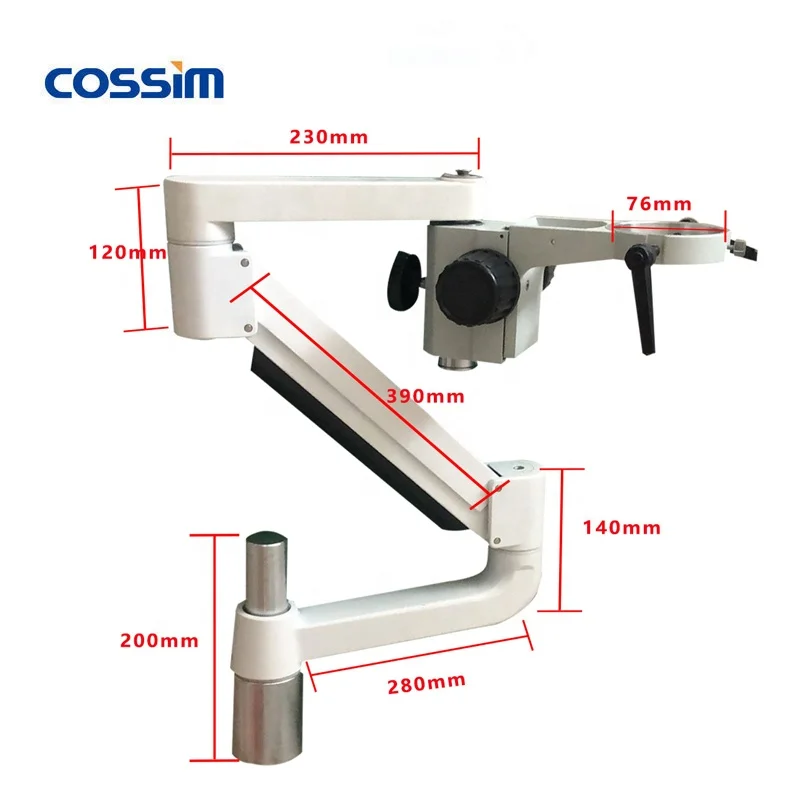

 | Supporting Arm Rotate for any directions, easy and convenient operation. |
 |
14MP, USB2.0 & HDMI Interface, High Resolution,
|
 |
Packing List
No. | Item | Spec. | Quantity | Unit |
|---|---|---|---|---|
1 | Microscope Head | 6555 | 1 | unit |
2 | Eyepiece | WF10X | 1 | pair |
3 | Built-in Objective | 0.65X-5.5X | 1 | unit |
5 | Microscope Support Arm Mounting | / | 1 | unit |
6 | Microscope Camera | HD1600 | 1 | unit |
7 | Spot Light, LED Ring Light | / | 1 each | pc |
8 | Power Cord | / | 1 | pc |
9 | Microscope Adapter | / | 1 | pc |

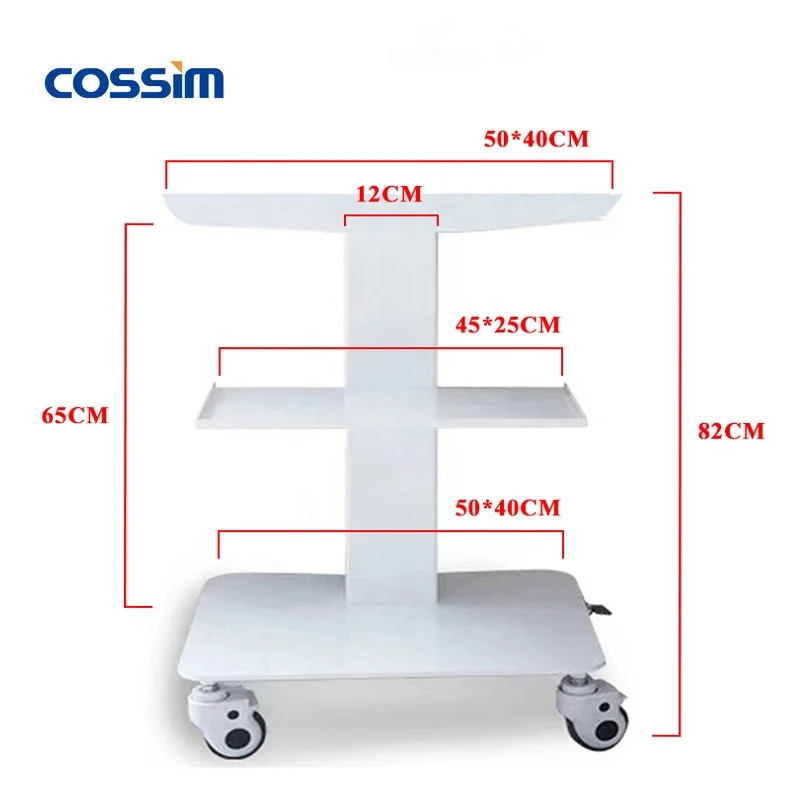

10 | Trolley Table | / | 1 | unit |
11 | Operation Manual | / | 1 | pc |
