Открытый Волоконно 1 2 Core 4 Хило с одинарным сердечником ядра 1f G657a1 волоконно-оптический провод Ftth оптоволокно кабель для зарядки
- Категория: Communication Cables >>>
- Поставщик: Hunan,Feibo,Guangtong,Communication,Equipment,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Aug-17-2025 | 37.94 $* | 38.49 $* |
| Jul-17-2025 | 30.29 $* | 31.28 $* |
| Jun-17-2025 | 36.29 $* | 37.96 $* |
| May-17-2025 | 36.7 $* | 37.25 $* |
| Apr-17-2025 | 29.14 $* | 30.4 $* |
| Mar-17-2025 | 35.45 $* | 36.62 $* |
| Feb-17-2025 | 35.36 $* | 36.37 $* |
| Jan-17-2025 | 35.14 $* | 36.54 $* |
Характеристики
Self-supporting Outdoor Steel Messenger Wire FRP G657 FTTH Drop Fibra Optica 2 4 1 core fiber optic cable
Product Description
Product Characteristics
• Flex durable fiber to provide greater bandwidth and enhance network transmission characteristics
• Two parallel metallic strength member to protect the fiber and provide adequate tension and pressure
• single metallic strength member makes optical cable having good tensile performance
• Optical cable has simple structure, light weight and strong practicability
• unique groove design, Easy peeled off and splice, simplify the installation and maintenance
• Low smoke halogen-free flame-retardant sheath, pro-environment
Application
• Indoor and outdoor wiring system
• FTTH, terminal system
• Indoor and outdoor shaft,building wiring

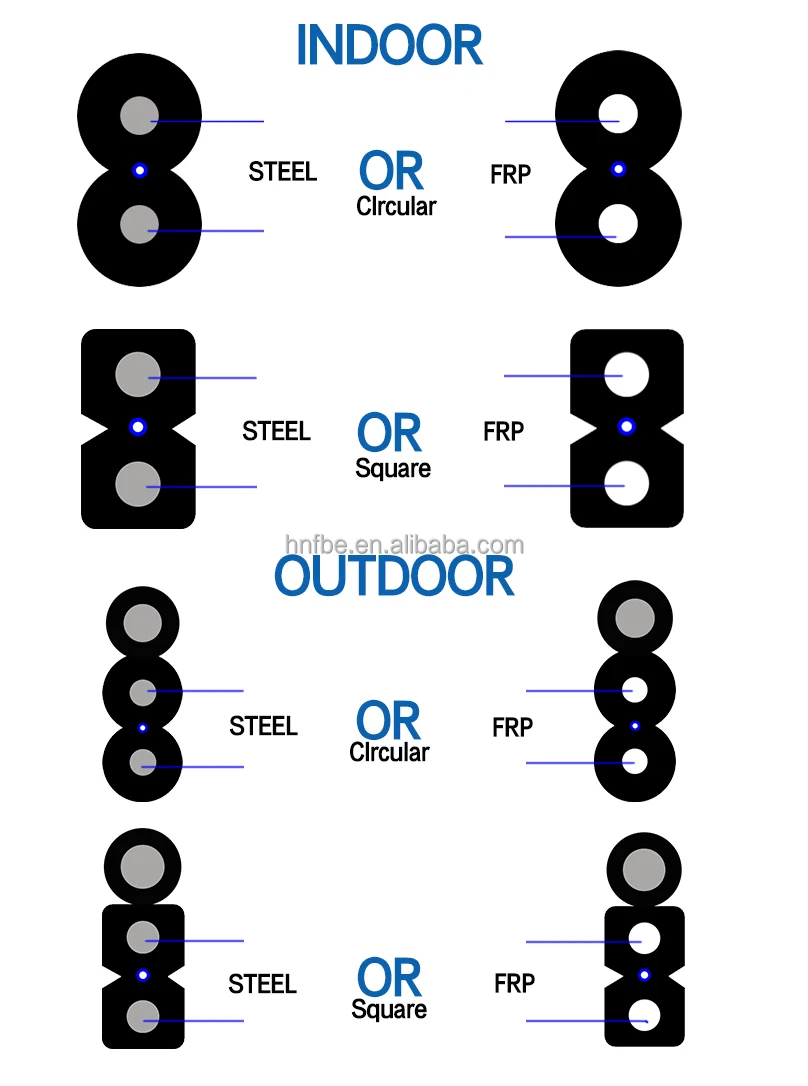

Structural Parameter
Model No. | Count | Cable Size (mm) | Weight (kg/km) | Tension | Crush (N/100mm) | Bending Radius Static / dynamic |
GJYXCH-1Xn | 1 | (2.0±0.1)×(5.0±0.1) | 20 | 300/600 | 1000/2200 | 15/30 |
GJYXCH-2Xn | 2 | (2.0±0.1)×(5.0±0.1) | 20 | 300/600 | 1000/2200 | 15/30 |
Optical Fibre Performance
Type | Fiber attenuation(+20℃) | OFL | Band Width | 10G Ethernet link length | Minimum bending radius | |||
Condition | 1310/1550nm | 850/1300nm | 850/1300nm | 850nm | 850nm | / | ||
Typical value | MAX | Typical value | MAX | |||||
Unit | dB/km | dB/km | dB/km | dB/km | MHZ.km | MHZ.km | m | mm |
G657A1 | 0.36/0.22 | 0.5/0.4 | --- | --- | --- | --- | --- | 10 |
G657A2 | 0.36/0.22 | 0.5/0.4 | --- | --- | --- | --- | --- | 7.5 |
OM3 | --- | --- | 3.0/1.0 | 3.5/1.5 | ≥1500/500 | ≥2000 | ≤300 | 30 |
OM4 | --- | --- | 3.0/1.0 | 3.5/1.5 | ≥3500/500 | ≥4700 | ≤550 | 30 |
Transportation / storage / use temperature: -20 ℃ ~ + 60 ℃
