Junai огнеупорная керамическая изоляционная плита
- Категория: Ceramic Fiber Boards >>>
- Поставщик: Shaanxi,Junai,Energy,Saving,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-18-2025 | 2.79 $* | 2.23 $* |
| Aug-18-2025 | 2.31 $* | 2.46 $* |
| Jul-18-2025 | 2.34 $* | 2.58 $* |
| Jun-18-2025 | 2.27 $* | 2.22 $* |
| May-18-2025 | 2.2 $* | 2.60 $* |
| Apr-18-2025 | 2.90 $* | 2.57 $* |
| Mar-18-2025 | 2.41 $* | 2.38 $* |
| Feb-18-2025 | 2.40 $* | 2.76 $* |
| Jan-18-2025 | 2.26 $* | 2.50 $* |
Характеристики
Products Description

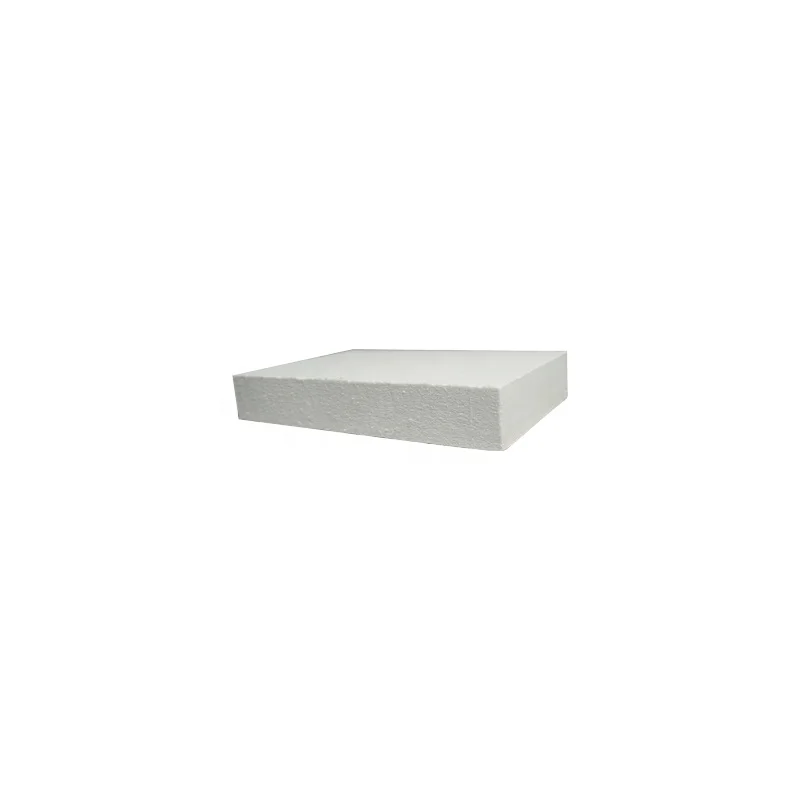

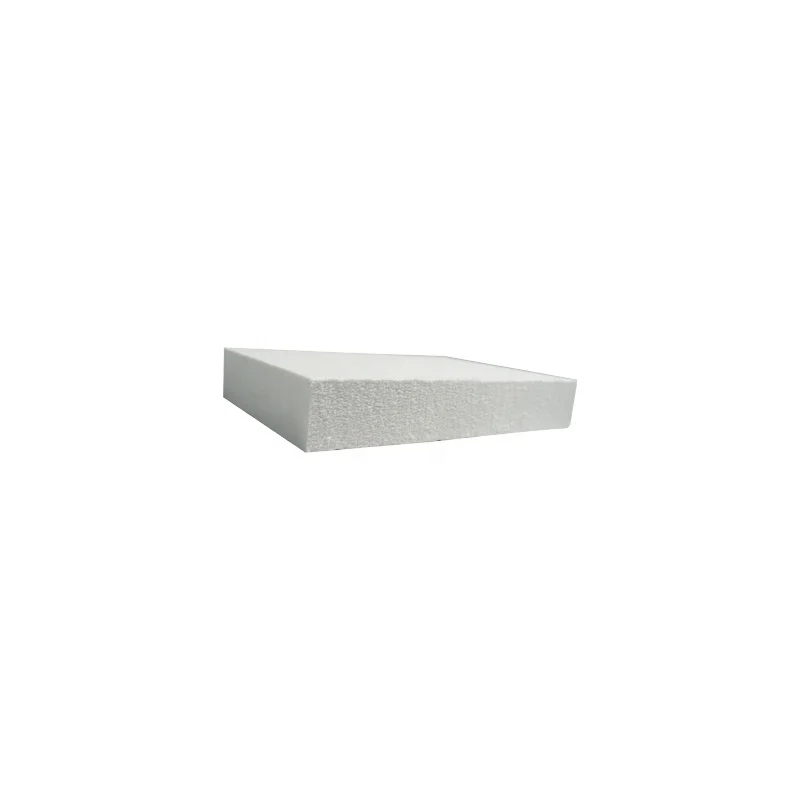

Junai ceramic fiber board
Junai ceramic fiber board is manufactured by wet forming process, and the product has excellent strength, toughness, and erosion resistance due to the addition of inorganic binders during forming. Ceramic fiberboard has a high thermal insulation capacity, which reduces energy costs and cycle time. Ceramic fiber boards are more rigid than fiber blankets and felt and have a high modulus of rupture and compressive strength as well as high abrasion and hot gas resistance.

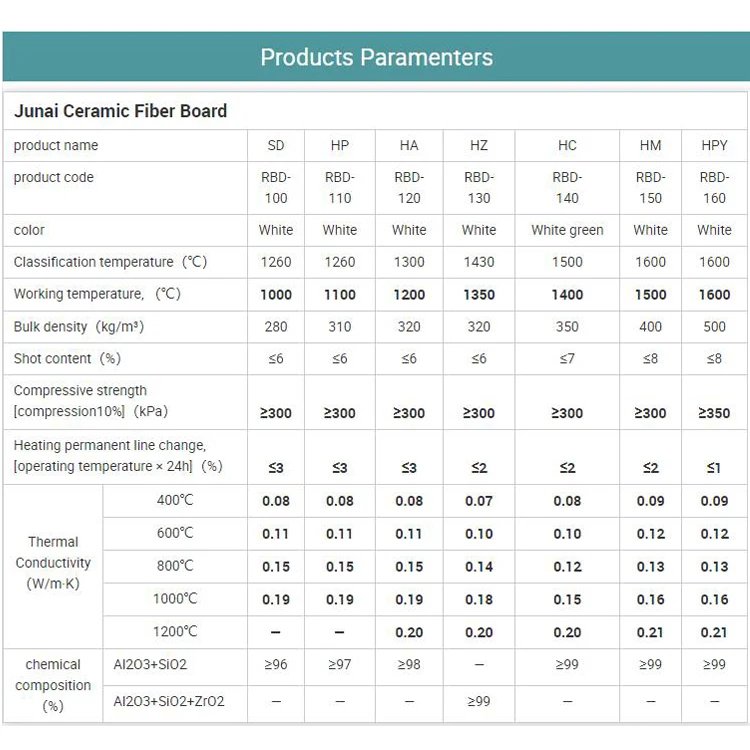

Products Paramenters
Junai Ceramic Fiber Board | ||||||||||||||||
product name | SD | HP | HA | HZ | HC | HM | HPY | |||||||||
product code | RBD-100 | RBD-110 | RBD-120 | RBD-130 | RBD- 140 | RBD-150 | RBD-160 | |||||||||
color | White | White | White | White | White green | White | White | |||||||||
Classification temperature（℃） | 1260 | 1260 | 1300 | 1430 | 1500 | 1600 | 1600 | |||||||||
Working temperature, （℃） | 1000 | 1100 | 1200 | 1350 | 1400 | 1500 | 1600 | |||||||||
Bulk density（kg/m³） | 280 | 310 | 320 | 320 | 350 | 400 | 500 | |||||||||
Shot content（%） | ≤6 | ≤6 | ≤6 | ≤6 | ≤7 | ≤8 | ≤8 | |||||||||
Compressive strength [compression10%]（kPa） | ≥300 | ≥300 | ≥300 | ≥300 | ≥300 | ≥300 | ≥350 | |||||||||
Heating permanent line change, [operating temperature × 24h]（%） | ≤3 | ≤3 | ≤3 | ≤2 | ≤2 | ≤2 | ≤1 | |||||||||
Thermal Conductivity （W/m·K） | 400℃ | 0.08 | 0.08 | 0.08 | 0.07 | 0.08 | 0.09 | 0.09 | ||||||||
600℃ | 0.11 | 0.11 | 0.11 | 0.10 | 0.10 | 0.12 | 0.12 | |||||||||
800℃ | 0.15 | 0.15 | 0.15 | 0.14 | 0.12 | 0.13 | 0.13 | |||||||||
1000℃ | 0.19 | 0.19 | 0.19 | 0.18 | 0.15 | 0.16 | 0.16 | |||||||||
1200℃ | — | — | 0.20 | 0.20 | 0.20 | 0.21 | 0.21 | |||||||||
chemical composition（%） | Al2O3+SiO2 | ≥96 | ≥97 | ≥98 | — | ≥99 | ≥99 | ≥99 | ||||||||
Al2O3+SiO2+ZrO2 | — | — | — | ≥99 | — | — | — | |||||||||
Product Application

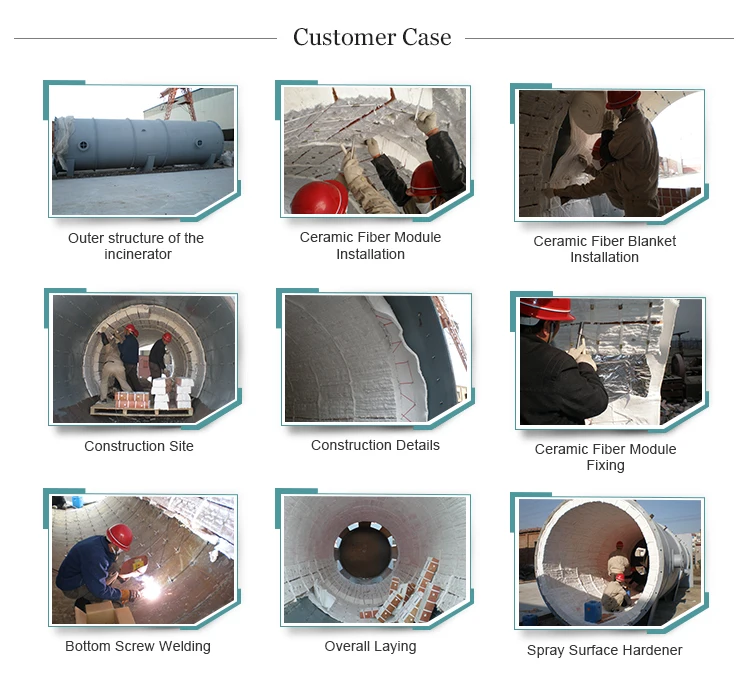

Our products are widely used and experienced in these industries.
We can provide the system solutions in the field of high and low-temperature industry energy-saving including project design, product supply, site instruction, and technical support.4e979d
Production line
Company Profile
Shaanxi Junai Energy-saving Technology Co., Ltd
We are the overseas business division of Luoyang Naiyan Ceramic Fiber Co, Ltd, a subsidiary of Sinosteel Cooperation Luoyang Refractory Research Institute Co., Ltd. We are founded in 1963, and are recognized as the pioneer and forerunner in the field of refractory fiber and nano microporous thermal insulation material in China.
Professional Team
At present, we have 39 R & D personnel, including 17 scientific researchers with the title of the engineer or above.
Over several decades focus on refractory, cold chain, energy saving, thermal insulation materials, and equipment R&D and manufacturing.
Certificate and Honor
Junai has the most authoritative certificate and honor system.
Packaging and Delivery
Payment and delivery
Payment can be done by T/T, Credit Card, Western Union, PayPal and more.
delivery：By sea/by air/by train/DHL/Fedex/ups/EMS/TNT etc.
FAQ
1.Are you a factory ？
We are a manufacturer founded in 1963, located in Henan China.
We also can offer system solutions including project design, site instruction, and technical support.
2.What is your main product?
Such as ceramic fiber products, microporous thermal insulation panels, vacuum insulation panels and other thermal insulation products.
Such as ceramic fiber products, microporous thermal insulation panels, vacuum insulation panels and other thermal insulation products.
3. Can I get free sample?
Yes, you only need to pay the fright and this fee will return to your formal order.
4. What is your MOQ?
No specific moq, but good price for large quantity.
5. Is there any discount?
5. Is there any discount?
Yes, it depends on the quantity.
6.Can we have a visit to your factory ?
Yes! Of course,welcome to visit our factory at anytime !
