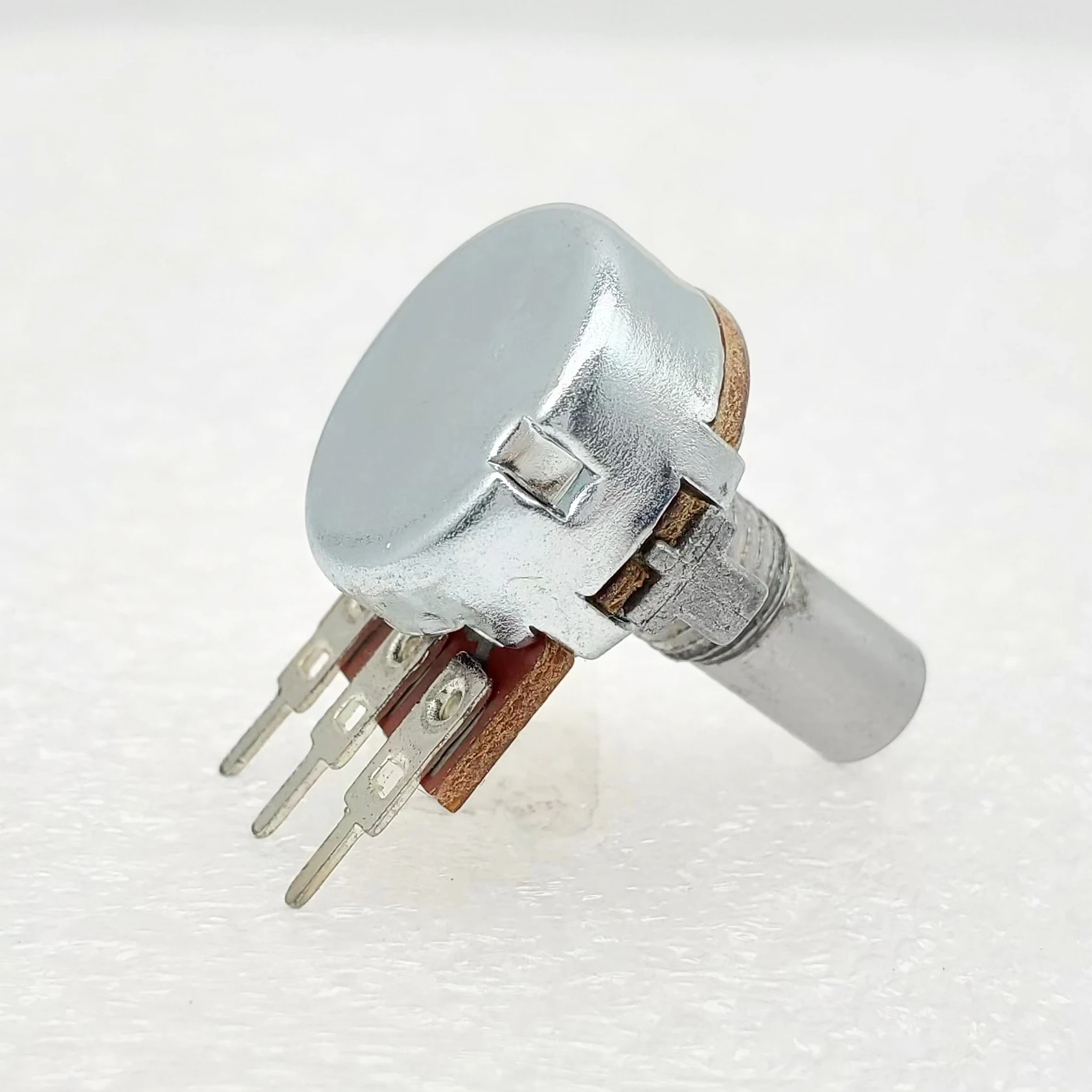

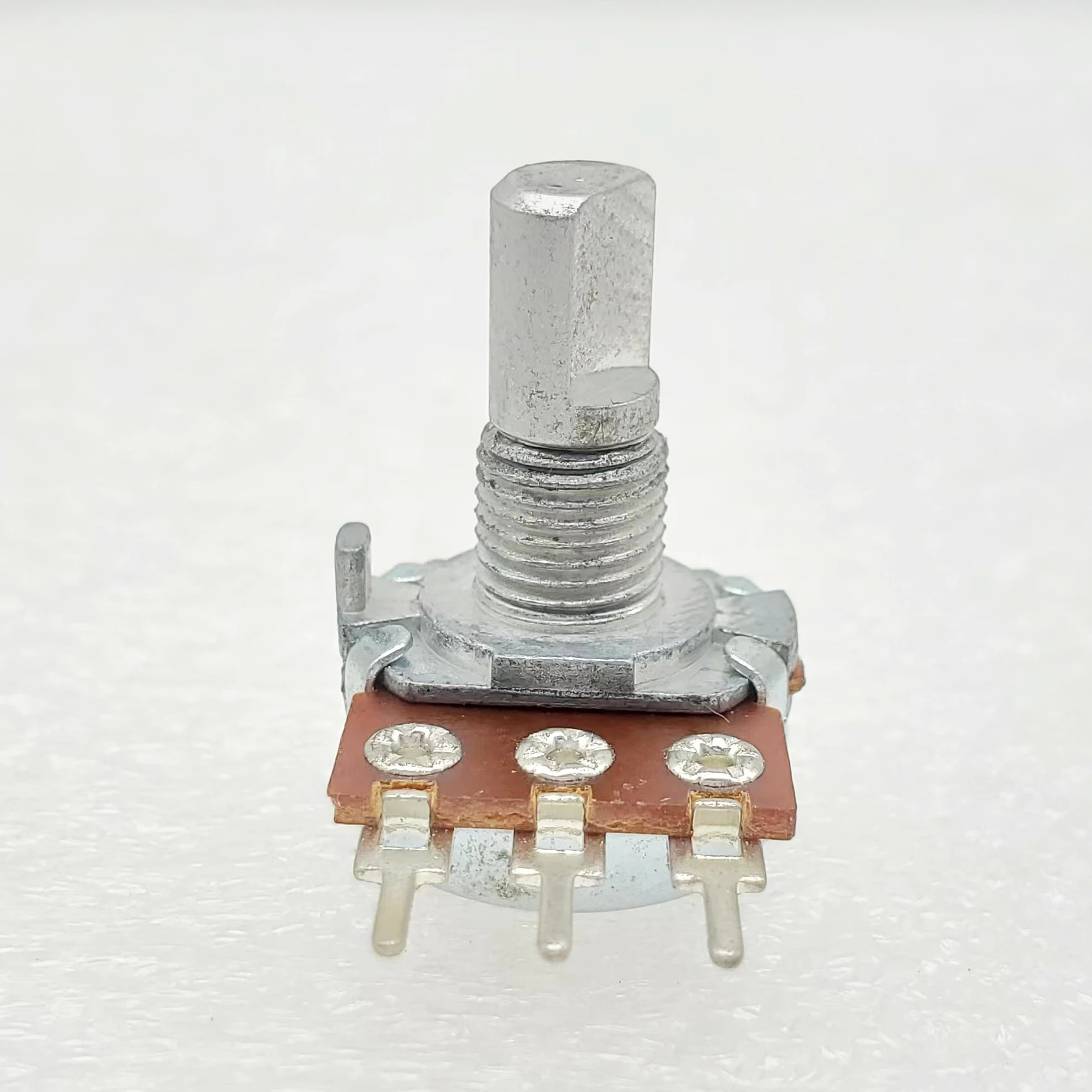

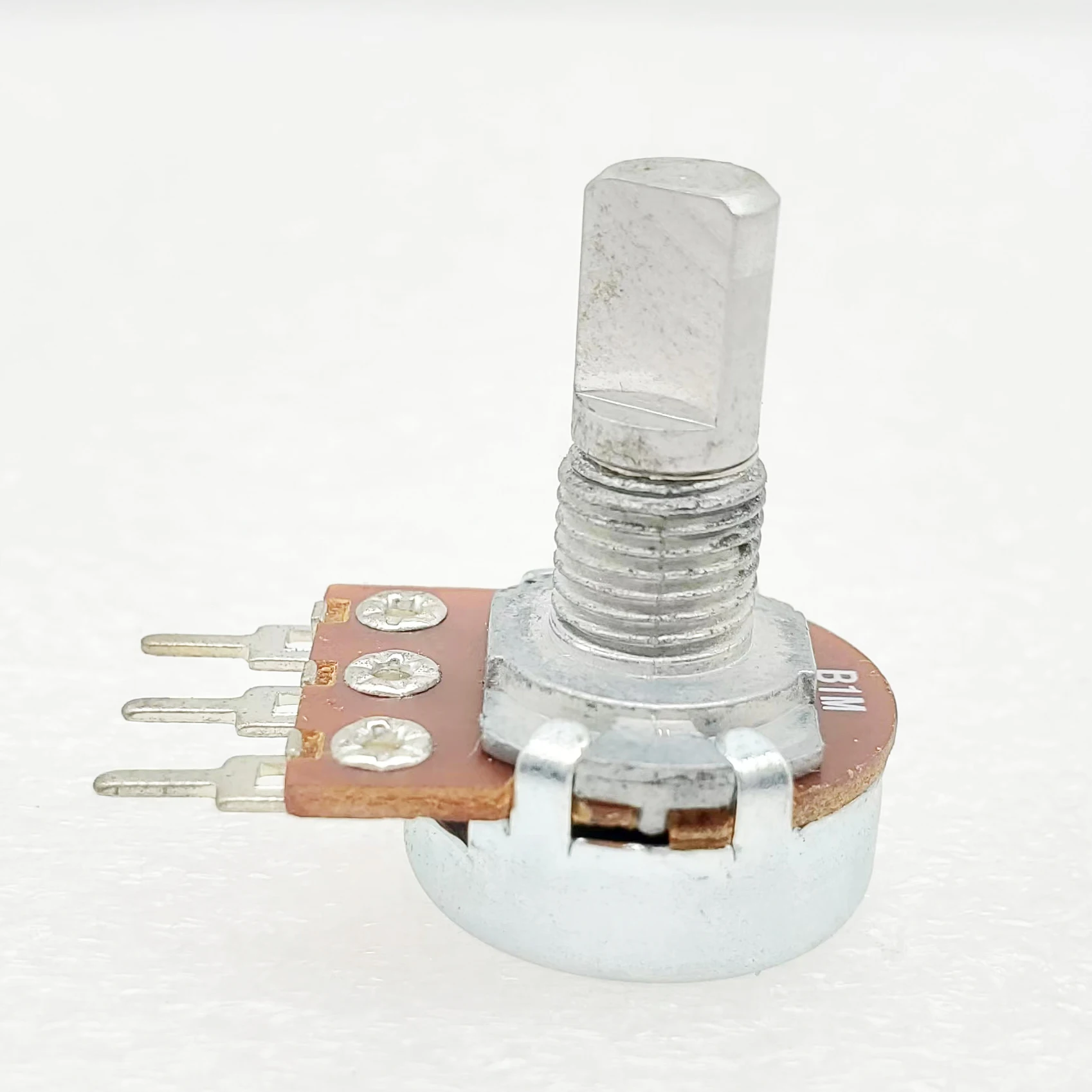

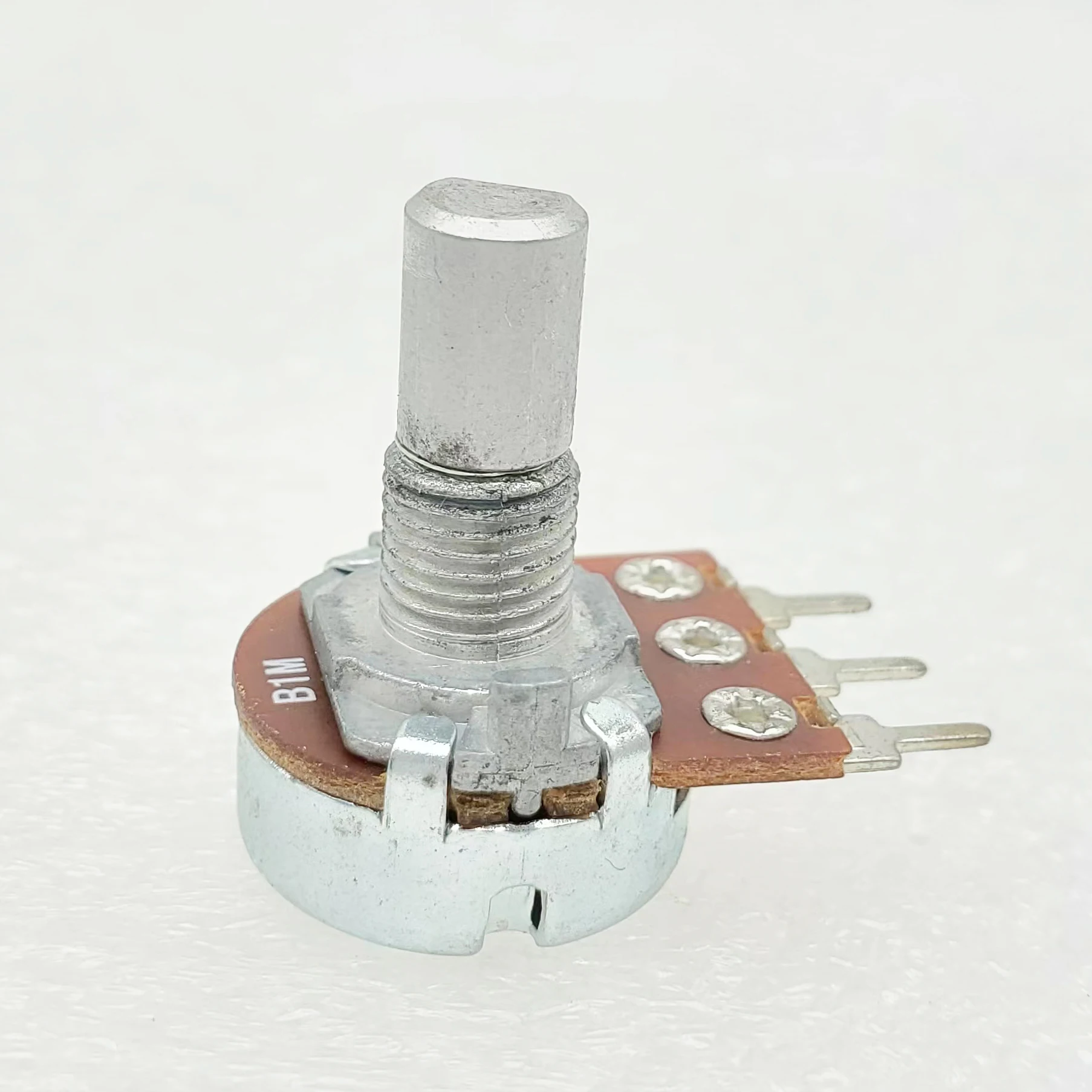

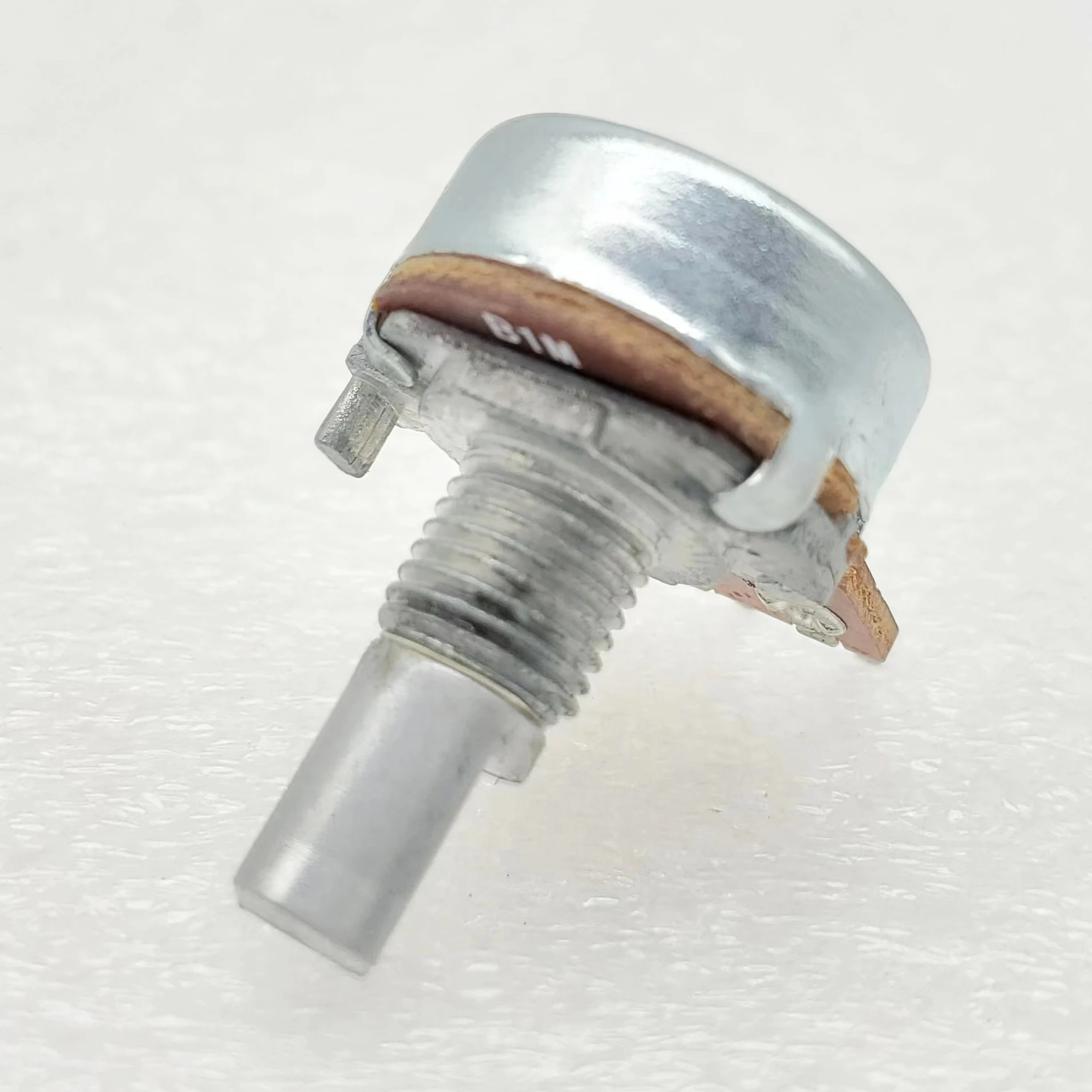

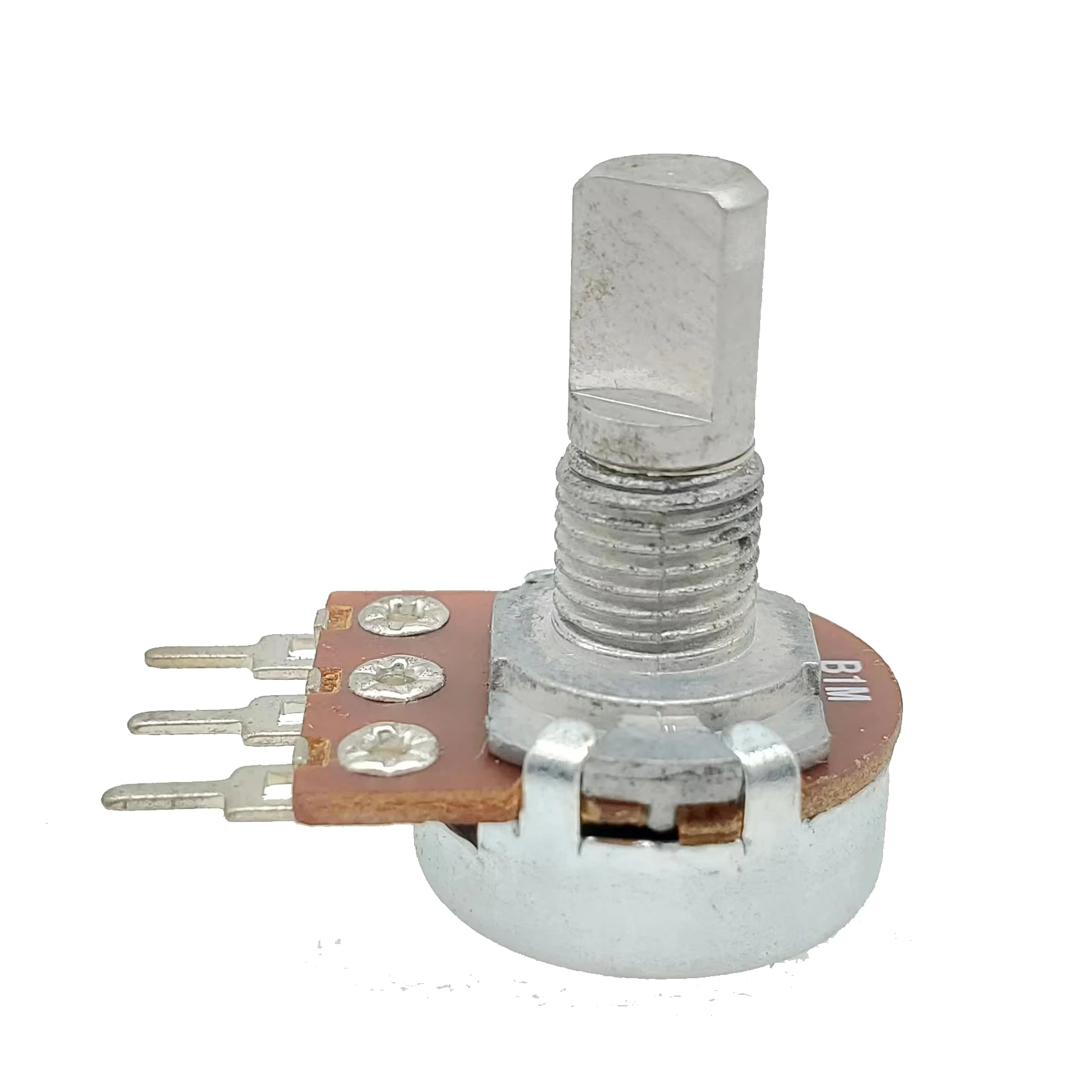

R1610N 16 мм регулируемый громкость напряжение температура и скорость вращения потенциометра
- Категория: Potentiometers >>>
- Поставщик: Dongguan,Jinglun,Electronic,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-20-2025 | 0.90 $* | 0.80 $* |
| Aug-20-2025 | 0.54 $* | 0.74 $* |
| Jul-20-2025 | 0.51 $* | 0.89 $* |
| Jun-20-2025 | 0.68 $* | 0.9 $* |
| May-20-2025 | 0.6 $* | 0.28 $* |
| Apr-20-2025 | 0.68 $* | 0.92 $* |
| Mar-20-2025 | 0.90 $* | 0.78 $* |
| Feb-20-2025 | 0.48 $* | 0.78 $* |
| Jan-20-2025 | 0.77 $* | 0.29 $* |
Характеристики
Quality: Due to the high requirements for product quality, the industrial control of raw material selection, processing and assembly exceeds the industrial standards. A new design and quality management system is adopted to comprehensively track every detail. Provide customers with high-quality products.
Service: continuous and efficient after-service for the customer support. 24 hours service with.
Mechanical specifications 機械特性 | ||
Total rotational angle 全回轉角度 | 300°±5° | |
Rotaional torque 回轉扭力 | 2~20mN.m(20~200gf.cm) | |
Rotation stopper strength 止回轉强度 | 0.7N.m(7kgf.cm) | |
Push pull strength 軸推拉强度 | 70N(7kgf) | |
Click position C.C.位置 | Center,11,21,31,41 detent | |
Electrical specifications 電氣特性 | ||
Total resistance 縂阻值 | 5KΩ~2MΩ | |
Total resistance tolerance 縂阻值容許差 | ±20%(more than 1MΩ±30%) | |
Rated power 定格電力 | curve B:0.125W other than B:0.06W | |
Max. operating voltage 最高使用電壓 | curve B:200v AC other than B:150V AC | |
Resistance taper 阻值綫性 | A,B,C | |
Residual resistance 殘留阻值 | R≥250KΩ 0.01% max. of total resistacne 250KΩ>R>10KΩ 20Ω max. 10KΩ≥R 10Ω max. | |
Insulation resistance 絕緣抵抗 | more than 100MΩ at DC 500V | |
Tracking 相互偏差 | -40~0dB≤3dB | |
Rotational life 回轉壽命 | 15000 cycles | |
