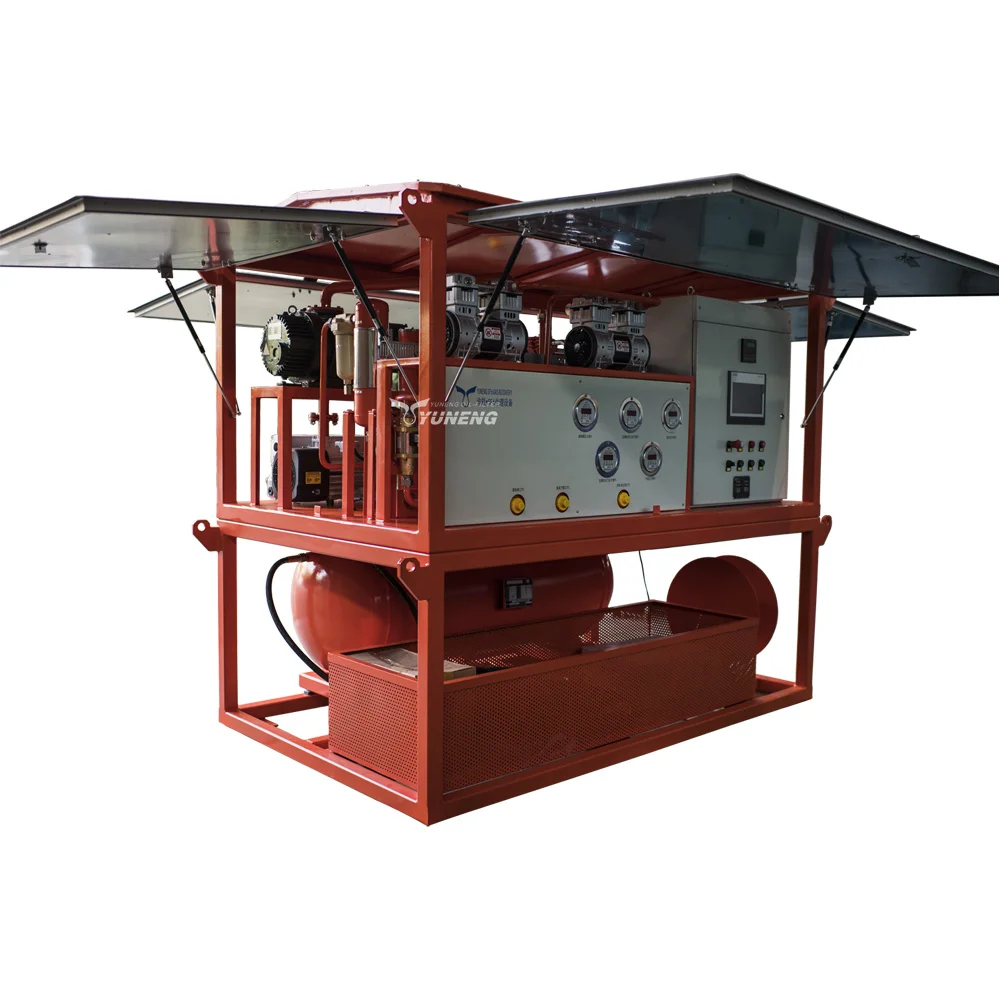

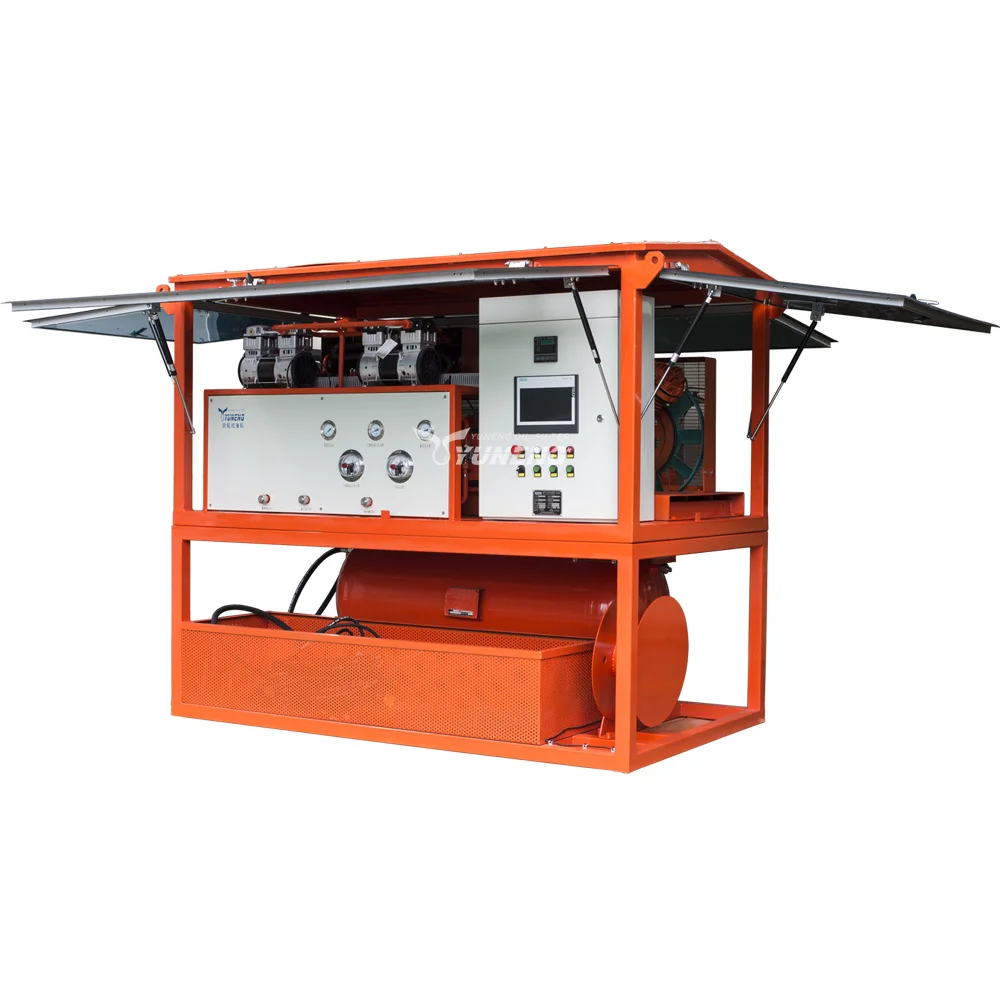

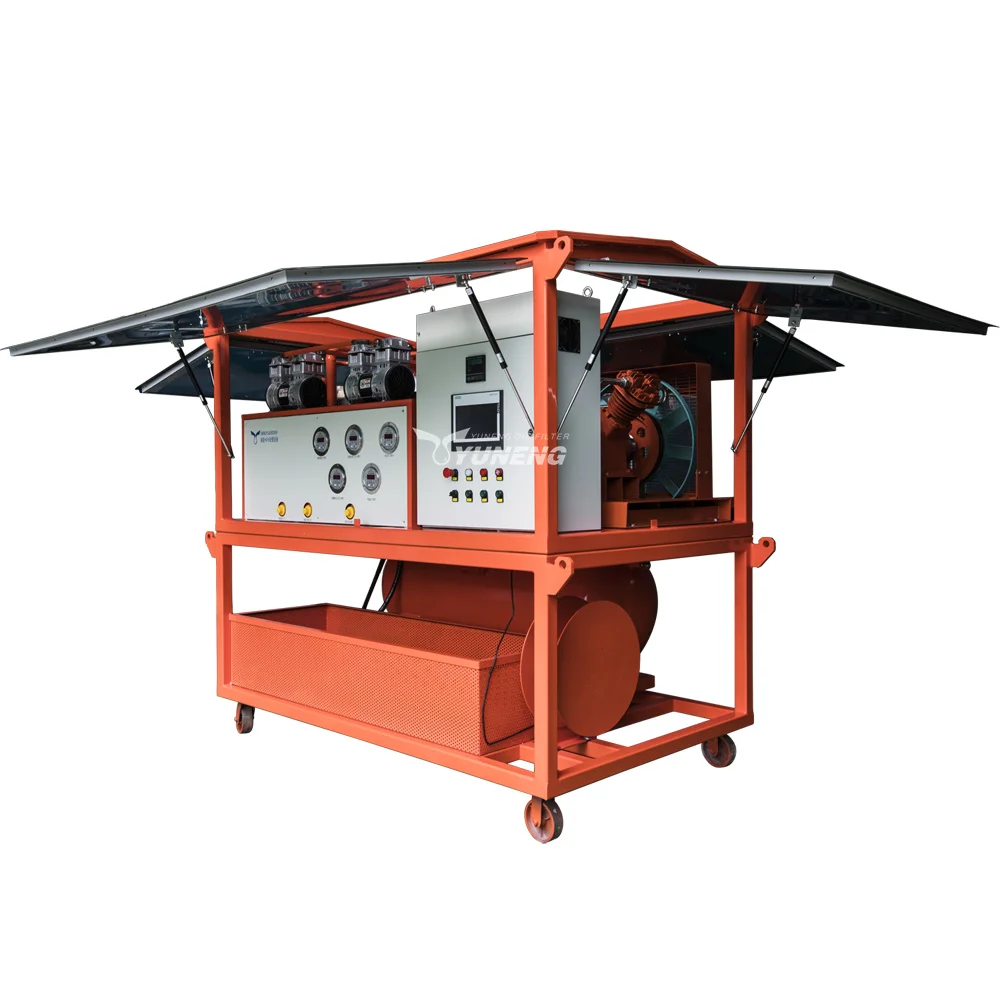

High Performance Vacuum SF6 Gas Purification and Filling Machine





High Performance Vacuum SF6 Gas Purification and Filling Machine widely used in SF6 gas insulated electrical equipment factory, use, operation, scientific research departments and so on, to create vacuum for a variety of electrical equipment, and fill electric wquipment with SF6 gas, and recover SF6 gas from  use or test equipment, then fill to storage tank after purifying and compressing. The recovery device is suitable for SF6 electrical appliance and GIS combined electrical apparatus. The gas recovery unit of  SF6 is based on the standard of DL/T662-2009 "SF6 gas filling and recovery device", which consists of recovery system, and inflating system, vacuum  system, purification system and gas storage system.





1. Vacuumize and check vacuum pressure for retrieving device itself including its storing vessel and pipes;



2. Vacuumize and check vacuum pressure for the insulation equipment



3. Retrieve and store SF6 gas and check the remaining vacuum pressure of the insulation equipment;



4. Get rid of water content and other particulates in the SF6gas with filtration and purification process;



5. Refill up the SF6 gas into the insulating equipment to specified operating pressure.





1) Advanced design, full function and compact structure with simple operation.



2) Compressed systems: it takes closed compressor to ensure no leakage.



3) Vacuum systems: it takes rotary vane vacuum pump to prevent oil returning



4) Purification systems: Equipped with Ingersoll Rand filters which takes electric heating and high efficient adsorbents. Without frequent replacement of the adsorbents, so the purification result is better.



5) Electric systems: Equipped with automatically confirmation three phase power devices, failure protection.



6) Control systems: the valves take the latest technology.



7) Storage system: Provide the storage tank according to users requirements.



8) This equipment is mobile type.



Other Products:

Ultra-High Voltage Transformer Oil Purifier

Double Stage Vacuum Transformer Oil Purifier

Single Stage Vacuum Transformer Oil Purifier

Dry Air Generator, SF6 Gas Recovery

Oil Blending Plant, Vacuum Pumping Unit

Lubrication Oil Purifier

Transformer Oil Regeneration System

Online Coalescing and Vacuum Turbine Oil Purifier

Oil Tester





Item	Name of  Parameter	Unit	Model
			QTHS-1-2	QTHS-1-10	QTHS-1-15	QTHS-1-30	QTHS-1-60
Technical parameter of the equipment	Capacity	m³/h	2	10	15	30	60
	Recovery pressure	MPa	≤0.05
	1m³ gas recovery time (initial pressure 0.6MPa)	h/m³	≤3	≤0.6	≤0.4	≤0.2	≤0.1
	Final pressure	MPa	0~0.8 Adjustable
	1m³ gas injection time(initial pressure 133Pa to 0.6MPa)	h/m³	≤3	≤0.6	≤0.4	≤0.2	≤0.1
	The time required for 1m³ volume vacuity from 0.1MPa to 133Pa	h	≤1	≤0.6	≤0.4	≤0.4	≤0.4
	Ultimate vacuum	Pa	≤10
	Gasification way		Electric Heating
	Liquefaction way		High pressure condensation liquefaction
	Dry filter regeneration mode		Vacuum activation regeneration
	External dimensions(including storage tank rack)	mm	1000*800*1500	1600*1200*1800	1800*1200*1800	1800*1200*1800	2300*15800* 2000
	Working power	V	(380V-50Hz) 3Phase 4 Wires, or as per buyer's option
	Total electrical power	KW	5	8	12	18	22
Index	SF6 Gas purity after recovery	PPM	60
	Oil content	PPM	5
	Impurities	μm	1
