Перфорированная сетка оцинкованная перфорированная металлическая сетчатая пластина перфорированный стальной лист
- Категория: Steel Wire Mesh >>>
- Поставщик: Hebei,Boni,Tech,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-20-2025 | 0.83 $* | 0.25 $* |
| Aug-20-2025 | 0.76 $* | 0.92 $* |
| Jul-20-2025 | 0.85 $* | 0.36 $* |
| Jun-20-2025 | 0.2 $* | 0.1 $* |
| May-20-2025 | 0.88 $* | 0.47 $* |
| Apr-20-2025 | 0.27 $* | 0.79 $* |
| Mar-20-2025 | 0.30 $* | 0.69 $* |
| Feb-20-2025 | 0.9 $* | 0.15 $* |
| Jan-20-2025 | 0.77 $* | 0.75 $* |
Характеристики

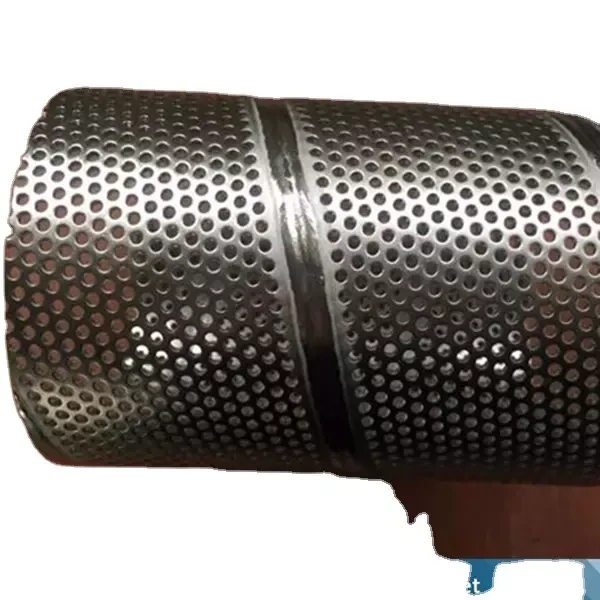

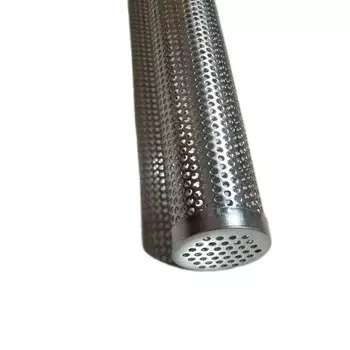

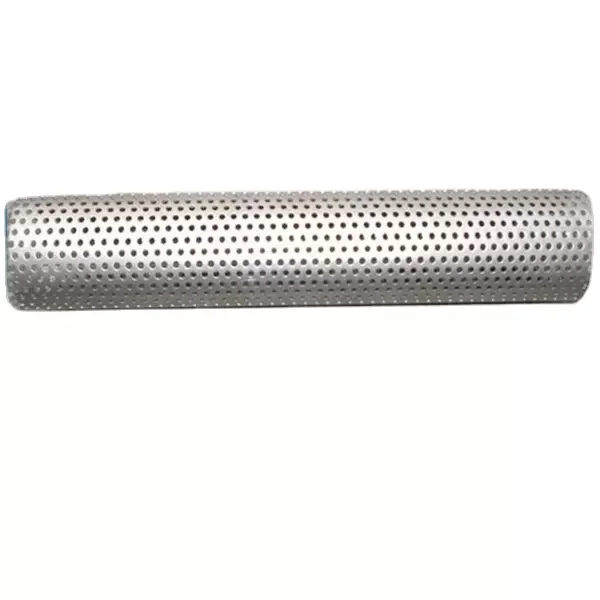

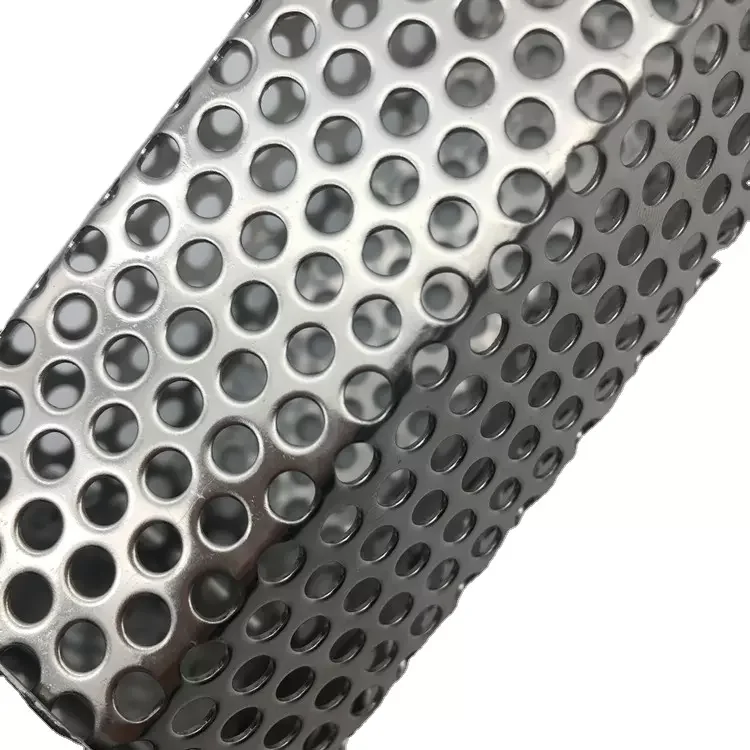

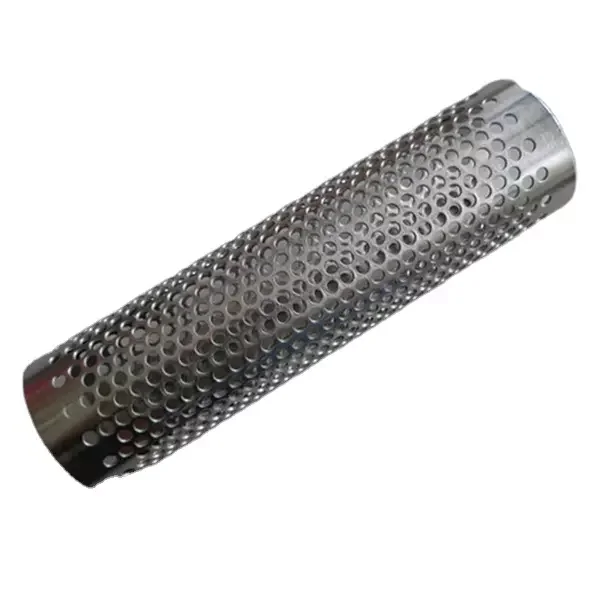

Perforated metal, also known as perforated sheet, perforated plate, or perforated screen, is sheet metal that has been manually or mechanically stamped or punched using CNC technology or in some cases laser cutting to create different holes sizes, shapes and patterns. Materials used to manufacture perforated metal sheets include stainless steel, cold rolled steel, galvanized steel, brass, aluminum, tinplate, copper, Monel, Inconel, titanium, plastic, and more.
* Architectural - infill panels, sunshade, cladding, column covers, metal signage, site amenities, fencing screens, etc.[3]
* Food & beverage - beehive construction, grain dryers, wine vats, fish farming, silo ventilation, sorting machines, fruit and
vegetable juice presses, cheese molds, baking trays, coffee screens, etc.
* Chemical & energy - filters, centrifuges, drying machine baskets, battery separator plates, water screens, gas purifiers,
liquid gas burning tubes, mine cages, coal washing, etc.
* Material development - glass reinforcement, cement slurry screens, dyeing machines, textile printers and felt mills, cinder screens, blast furnace screens, etc.
* Automotive - air filters, oil filters, silencer tubes, radiator grilles, running boards, flooring, motorcycle silencers,
ventilation grids, tractor engine ventilation, sand ladders and mats, etc.
* Construction - ceiling noise protection, acoustic panels, stair treads, pipe guards, ventilation grilles, sun protection slats,
facades, sign boards, temporary airfield surface, etc.
* Food & beverage - beehive construction, grain dryers, wine vats, fish farming, silo ventilation, sorting machines, fruit and
vegetable juice presses, cheese molds, baking trays, coffee screens, etc.
* Chemical & energy - filters, centrifuges, drying machine baskets, battery separator plates, water screens, gas purifiers,
liquid gas burning tubes, mine cages, coal washing, etc.
* Material development - glass reinforcement, cement slurry screens, dyeing machines, textile printers and felt mills, cinder screens, blast furnace screens, etc.
* Automotive - air filters, oil filters, silencer tubes, radiator grilles, running boards, flooring, motorcycle silencers,
ventilation grids, tractor engine ventilation, sand ladders and mats, etc.
* Construction - ceiling noise protection, acoustic panels, stair treads, pipe guards, ventilation grilles, sun protection slats,
facades, sign boards, temporary airfield surface, etc.
Product Paramenters
ROUND HOLES STAGGERED PATTERN | ||||||
HOLE | CENTERS | GAUGE / PLATETHICK. | OPEN AREA | |||
.020" RD | .045" Stag | 26 | 18% | |||
1/32" RD | 1/16" Stag | 22 | 23% | |||
3/64" RD | 5/64" Stag | 24 | 33% | |||
3/64" RD | 3/32" Stag | 22 thru 18 | 23% | |||
1/16" RD | 3/32"Stag | 22 thru 16 | 40% | |||
1/16" RD | 7/64" Stag | 20 thru 16 | 30% | |||
1/16" RD | 1/8" Stag | 26 thru 16 | 23% | |||
5/64" RD | 1/8" Stag | 22 thru 14 | 35% | |||
3/32" RD | 5/32" Stag | 24 thru 14 | 33% | |||
3/32" RD | 3/16" Stag | 24 | 23% | |||
.117 RD | 5/32" Stag | 18 | 51% | |||
1/8" RD | 3/16" Stag | 24 thru 11 | 40% | |||
1/8" RD | 7/32" Stag | 14 thru 12 | 30% | |||
1/8" RD | 1/4" Stag | 14, 13 | 23% | |||
9/64" RD | 3/16" Stag | 18 | 51% | |||
5/32" RD | 3/16" Stag | 22 thru 16 | 63% | |||
5/32" RD | 1/4" Stag | 20 thru 10 | 35% | |||
3/16" RD | 7/32" Stag | 22 thru 16 | 67% | |||
3/16" RD | 1/4" Stag | 24 thru 12 | 51% | |||
3/16" RD | 5/16" Stag | 10, 3/16" | 33% | |||
3/16" RD | 3/8" Stag | 14 thru 10 | 23% | |||
1/4" RD | 5/16" Stag | 20 thru 16 | 58% | |||
1/4" RD | 3/8" Stag | 26 thru 1/4" | 40% | |||
17/64" RD | 5/16" Stag | 20 | 66% | |||
5/16"RD | 7/16" Stag | 20 thru 1/4" | 46% | |||
3/8" RD | 9/16" Stag | 20 thru 1/4" | 40% | |||
1/2" RD | 11/16" Stag | 20 thru 1/4" | 48% | |||
1/2" RD | 3/4" Stag | 16 | 40% | |||
5/8" RD | 7/8" Stag | 10 thru 1/4" | 46% | |||
3/4" RD | 1" Stag | 16 thru 1/4" | 51% | |||
1" RD | 1-3/8" Stag | 10 thru 1/4" | 48% | |||
1-1/4" RD | 1-5/8" Stag | 1/4" | 54% | |||
1-1/2" RD | 2" Stag | 1/4" | 51% | |||
2" RD | 2-1/2" Stag | 1/4" | 58% | |||
2-1/2" RD | 3" Stag | 3/16" | 63% | |||
3" RD | 3-1/2" Stag | 3/16" | 67% | |||
4" RD | 4-1/2" Stag | 10 | 72% | |||
Details Images
Recommend Products
Why Choose Us
Company Profile
Exhibition
Product packaging
FAQ
1. Are you a manufacture?
-Yes, we have been in providing products in this field for 25 years.
2 . Can Boni help me determine the most suitable product for my application?
-Absolutely! We have many years of experience working with different clients. We can advise you on the best options for your needs, or work with you to develop new products.
3 . What is your lead time?
-It takes 1-4 weeks. In the case of tight work deadlines, delivery times can be shortened.
4 . How to inquire about expanded metal mesh?
-You need to provide material, thickness, strand width, SWD, LWD, surface treatment, frame type and quantity to inquire, if you have any special requirements, you can also tell us.
5 . How to query perforated metal mesh?
-You need to provide material, thickness, hole type, hole diameter, spacing, surface treatment, width, length and quantity for inquiry, if you have special design, you can also send drawings.
