Высококачественный 51/105 конический двойной пластиковый экструдер с винтовым
- Категория: Plastic & Rubber Machinery Parts >>>
- Поставщик: Bloom(Suzhou),Materials,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-17-2025 | 595.70 $* | 625.94 $* |
| Aug-17-2025 | 590.17 $* | 620.65 $* |
| Jul-17-2025 | 495.30 $* | 520.56 $* |
| Jun-17-2025 | 580.97 $* | 609.0 $* |
| May-17-2025 | 505.60 $* | 530.20 $* |
| Apr-17-2025 | 570.5 $* | 599.16 $* |
| Mar-17-2025 | 565.21 $* | 593.2 $* |
| Feb-17-2025 | 560.53 $* | 588.2 $* |
| Jan-17-2025 | 555.10 $* | 583.63 $* |
Характеристики
Hot sale high performance and high precision extruded barrel
Main Charactors:

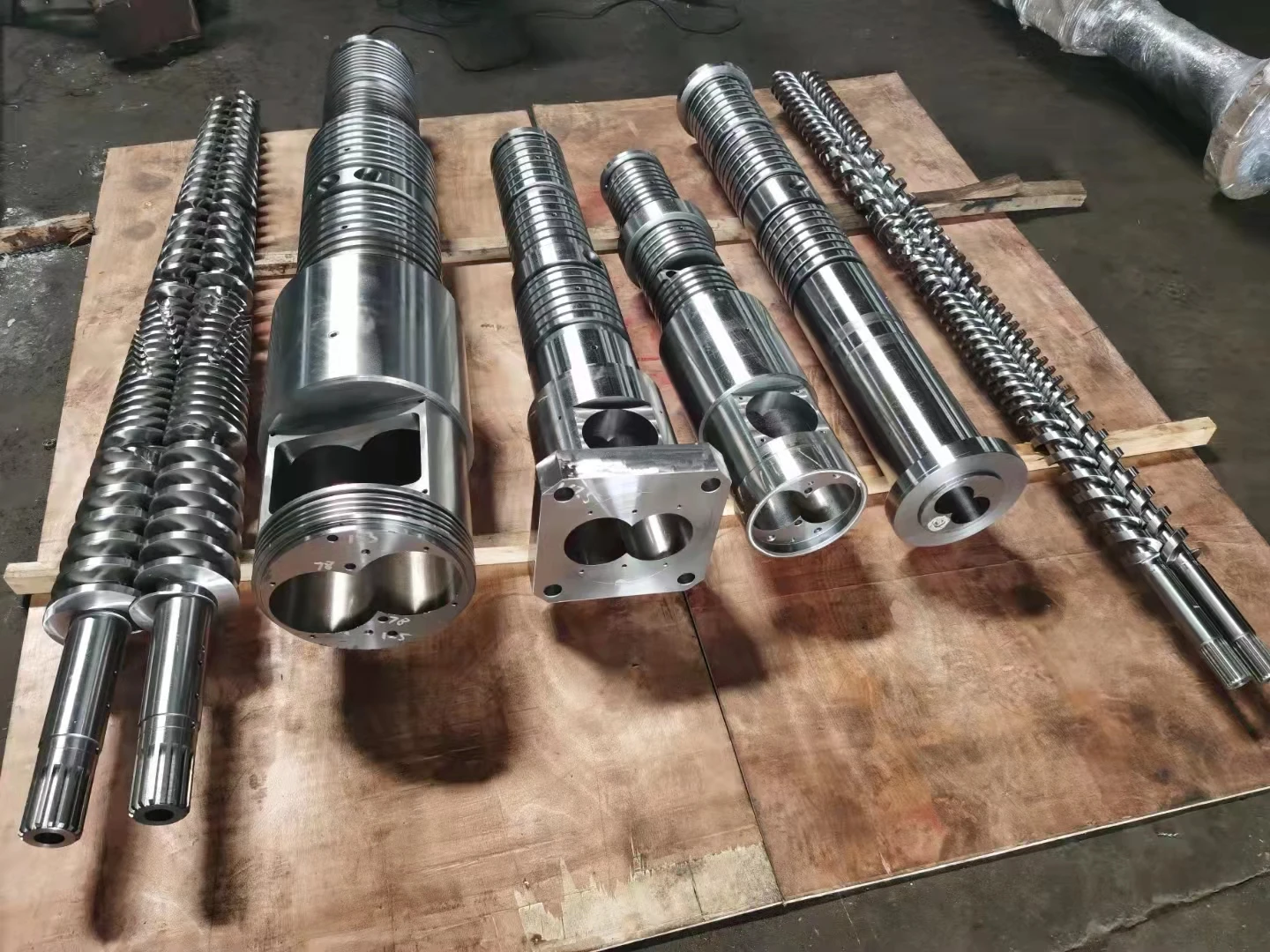

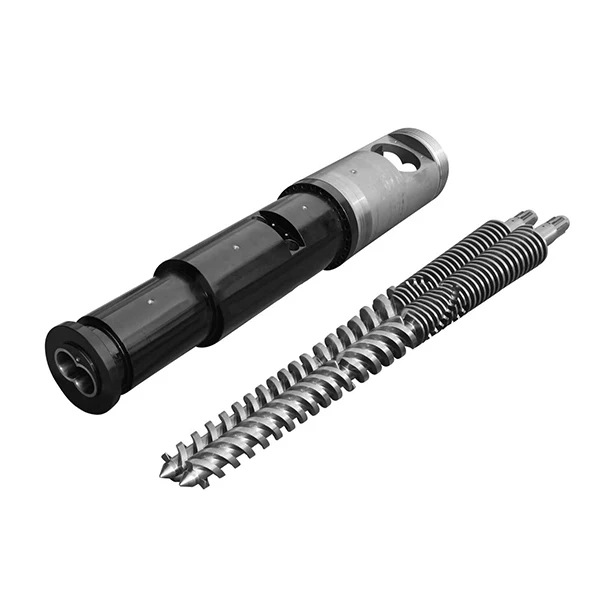

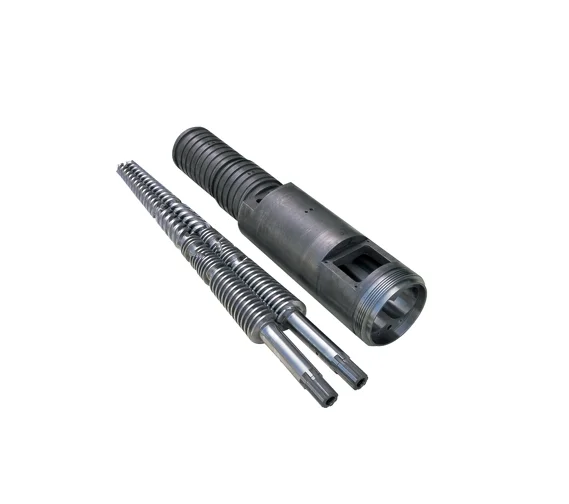

Using machining center finishing, reasonable processing technology, advanced testing equipment, to ensure that the processing accuracy of each product.Twin-screw extruder screw element:
- convenient interchangeability by agile combination.
- fulfill efficient self-cleaning, transmission, compounding, pressure-forming and etc.
- made of high speed tool steel W6Mo5Cr4V2, or anti-corrosion steel 38CrMoAlA by speed treatment.

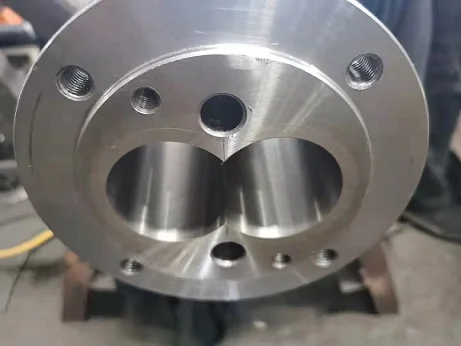

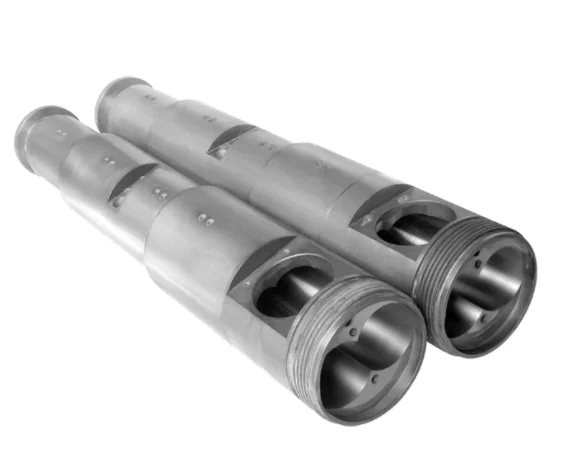

The flexible modular principle is realized with screw barrel sections from the wide range of different designs possible. Fast, intensive and uniform heating of the screw barrel section is ensured by electrical heaters. The barrel sections are cooled with water by means of an internal bore system with bores arranged close to the inside barrel wall.
Code No | Description | Materials | Alloy Thickness | Application |
BLM-B-01 | Barrel | 38CrMoAl+Alloy | 2mm | Extruder |
BLM-B-02 | Barrel | 45 Steel +Alloy | 3mm | Extruder |
BLM-B-03 | Barrel | 316Steel+Alloy | 5-20mm | Extuder |
BLM-B-04 | Barrel | 304Steel+Alloy | 5-20mm | Extruder |
No | Size W*H*L (mm) | Hole Diameter Φ (mm) | Center Distance D(mm) | |||
BLM-001 | 115*105*132 | Φ23 | 18.4 | |||
BLM-002 | 135*115*120 | Φ30.6 | 26 | |||
BLM-003 | 190*150*190 | Φ51 | 42 | |||
BLM-004 | 210*160*220 | Φ53.3 | 48 | |||
BLM-005 | 210*170*240 | Φ60 | 52 | |||
BLM-006 | 310*240*360 | Φ92 | 78 | |||
BLM-007 | 330*240*420 | Φ100 | 91.5 | |||
BLM-008 | 370*300*410 | Φ134 | 110 | |||
Note：We can customize all sizes according to your drawings. | ||||||
