Автоматическая дозирующая машина для добавки бетона сертифицированная CE собранный диспенсер La Серена Di De Bortoli & C. Snc Италия
- Категория: Video Game Consoles >>>
- Поставщик: LA,SERENA,SNC
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-20-2025 | 2347.5 $* | 2464.67 $* |
| Aug-20-2025 | 2327.15 $* | 2443.12 $* |
| Jul-20-2025 | 1952.75 $* | 2050.82 $* |
| Jun-20-2025 | 2288.68 $* | 2402.44 $* |
| May-20-2025 | 1992.32 $* | 2092.48 $* |
| Apr-20-2025 | 2248.35 $* | 2360.13 $* |
| Mar-20-2025 | 2228.22 $* | 2339.57 $* |
| Feb-20-2025 | 2209.70 $* | 2319.97 $* |
| Jan-20-2025 | 2189.90 $* | 2298.9 $* |
Характеристики

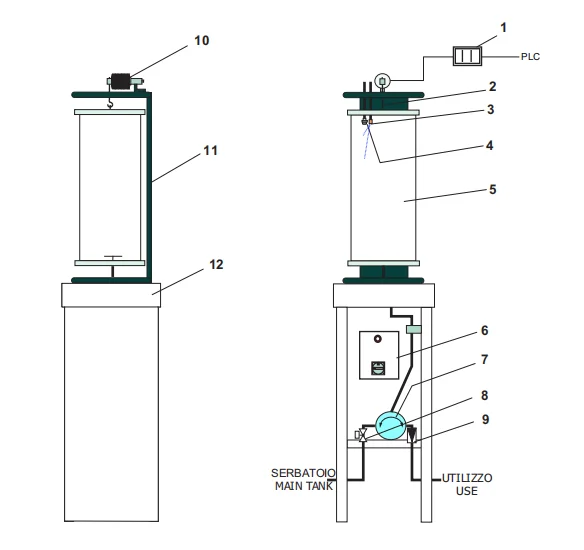

PRODUCTS DESCRIPTION
1. AMPLIFIER FOR MANAGING THE LOAD CELL
2. HOOK AXLE
3. NOZZLE FOR WASHING
4. SAFETY CONTACT
5. GRADUATED PLEXIGLASS CYLINDER SP.MM.5
COMPLETED WITH GALVANIZED FLANGES AND BRASS
SCREW STAYS
6. ELECTRIC CONTROL BOARD IP55
2. HOOK AXLE
3. NOZZLE FOR WASHING
4. SAFETY CONTACT
5. GRADUATED PLEXIGLASS CYLINDER SP.MM.5
COMPLETED WITH GALVANIZED FLANGES AND BRASS
SCREW STAYS
6. ELECTRIC CONTROL BOARD IP55
7. ELECTRIC PUMP ENBLOC SELF èPRIMING WITH CAPACITY 40 LT/MIN . CLASS E HP 0.8 THREE PHASE MOTOR 380V 50-60 Hz
8. AIR ACTUATED VALVE
9. SAFETY PROBE
8. LOAD CELL FOR INTERFACE IN AUTOMATIC CONTROL SYSTEM
10. IRON 50/10 FRAMEWORK
11. GALVANIZED IRON 12/10 SPRAYED BOX
12. ELECTRIC CONTROL BOARD IP55 IN PAINTED PLATE
PRODUCT CONFIGURATION
ELECTRICAL CONNECTION
LEGEND:
CS CYLINDER UNLOAD CONSENT
EV-L (9-11) : CYLINDER LOAD ELECTRIC VALVE
EV-U (10-11) CYLINDER UNLOAD ELECTRIC VALVE
CS CYLINDER UNLOAD CONSENT
EV-L (9-11) : CYLINDER LOAD ELECTRIC VALVE
EV-U (10-11) CYLINDER UNLOAD ELECTRIC VALVE

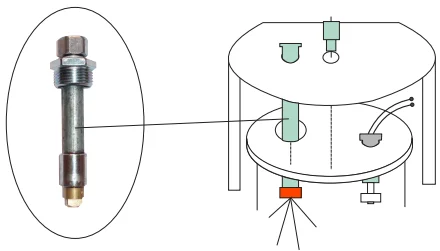

ARMATURE ASSEMBLY
N.B. THE IRON FRAMEWORK HAS TO BE PERPENDICULAR TO AVOID THE CONTACT WITH THE LOAD PIPE OF THE CYLINDER. AFTER HANGING THE
CYLINDER WITHOUT PULL, SCREW THE WASHING KIT, BY SETTING THE UPPER FLANGE'S HOLE PERPENDICULAR WITH THE IRON FRAMEWORK'S HOLE TO
AVOID THE CONTACT.
CYLINDER WITHOUT PULL, SCREW THE WASHING KIT, BY SETTING THE UPPER FLANGE'S HOLE PERPENDICULAR WITH THE IRON FRAMEWORK'S HOLE TO
AVOID THE CONTACT.

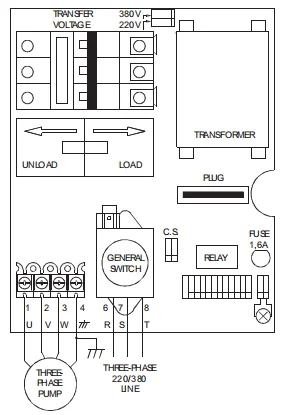

TERMINAL BLOCK DISPLAY INSTRUMENT
CONTROL BOX
C.S. : CYLINDERUNLOAD CONSENT
EVS(11-9): CYLINDERLOAD SOLENOID VALVE
EVC (11-10): CYLINDERUNLOAD SOLENOID VALVE
14 - 15 : LOAD SELECTOR
14 - 13 : UNLOAD SELECTOR
12 - 16 : SAFETY CONTACT
EVS(11-9): CYLINDERLOAD SOLENOID VALVE
EVC (11-10): CYLINDERUNLOAD SOLENOID VALVE
14 - 15 : LOAD SELECTOR
14 - 13 : UNLOAD SELECTOR
12 - 16 : SAFETY CONTACT
