Anytone AT-D878S 10 Вт DMR двухстороннее радио IP54 водонепроницаемый 3100 мАч с одной полоской GPS цифровой иди и болтай
- Категория: Walkie Talkie >>>
- Поставщик: Qixiang,Electron,Science,&,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 0.73 $* | 0.62 $* |
| Aug-16-2025 | 0.44 $* | 0.28 $* |
| Jul-16-2025 | 0.42 $* | 0.49 $* |
| Jun-16-2025 | 0.64 $* | 0.42 $* |
| May-16-2025 | 0.18 $* | 0.17 $* |
| Apr-16-2025 | 0.33 $* | 0.26 $* |
| Mar-16-2025 | 0.42 $* | 0.42 $* |
| Feb-16-2025 | 0.0 $* | 0.1 $* |
| Jan-16-2025 | 0.91 $* | 0.22 $* |
Характеристики
Product Description
MODEL NO.: AT-D878S Single band
Frequency range:
66-88MHz;136-174MHz; 220~260MHz;
350~400MHz; 400~480MHz(EXP 400-520MHz)
350~400MHz; 400~480MHz(EXP 400-520MHz)
#True-2-slot: Provide 2-slot communication which allows for 2 talk paths on 1 frequency; ETSI DMR Tier I and II compliant
#Power:10W turbo/5W/2.5W/0.5W
#Power:10W turbo/5W/2.5W/0.5W
#Auto-senses digital or analog reception
#4000 channels + VFO; 200,000Contacts
#Display: 1.77 inch TFT color LCD, dual display; dual standby; dual PA
#Bandwidth: 12.5K/25K (Analog); 12.5K (DMR)
#4000 channels + VFO; 200,000Contacts
#Display: 1.77 inch TFT color LCD, dual display; dual standby; dual PA
#Bandwidth: 12.5K/25K (Analog); 12.5K (DMR)
#Fixed and defined CTCSS/DCS encode and decode
#DTMF/2TONE/5TONE encode and decode
#Four different Tone-pluse frequencies
#Four different Tone-pluse frequencies
#Individual/Group/All call
#Support Contact Manager
#Display the Caller ID and name
#Support Contact Manager
#Display the Caller ID and name
#Icon indicator or Voice prompt when connecting with repeater
#SMS via keyboard, One touch call/text
#Zone selection; Ranging function between radios with GPS
#ANI function and PTT ID; VOX; Digital Recording and Play
#Roaming function; Talker alias function
#SMS via keyboard, One touch call/text
#Zone selection; Ranging function between radios with GPS
#ANI function and PTT ID; VOX; Digital Recording and Play
#Roaming function; Talker alias function
#IP connect to Motorola Repeater
#Emergency alarm (with GPS data transmission)
#Either Voice Recording 500 hours(optional) or BT (optional)
#GPS (optional)
#AES256 Digital encrytion
#Earphone: KENWOOD connector; Waterproof: IP54

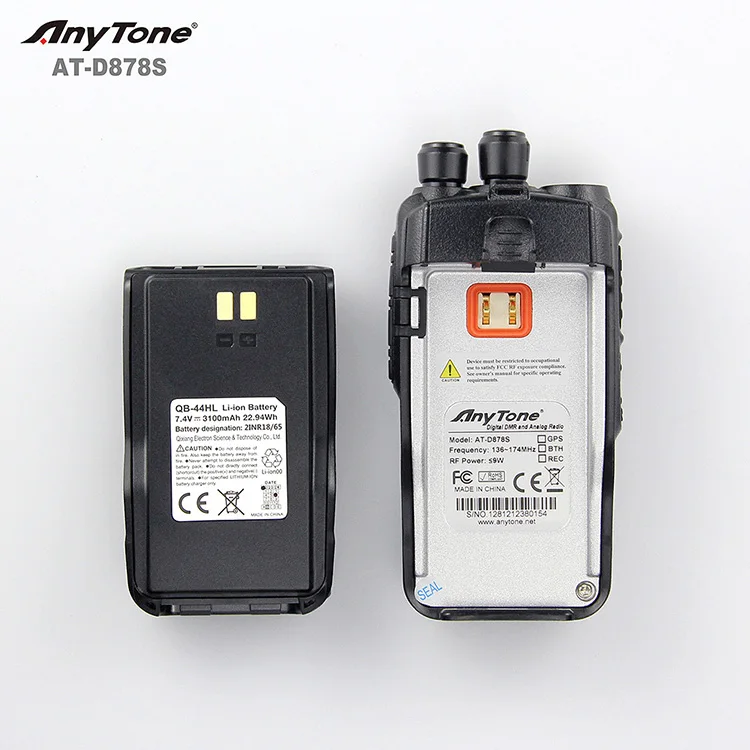

#Battery: 3100mAh Li-ion thick battery 2100mAh Polymer filmy battery(optional)
#Emergency alarm (with GPS data transmission)
#Either Voice Recording 500 hours(optional) or BT (optional)
#GPS (optional)
#AES256 Digital encrytion
#Earphone: KENWOOD connector; Waterproof: IP54
#Battery: 3100mAh Li-ion thick battery 2100mAh Polymer filmy battery(optional)
Specification
General | value | |||
Frequency Range | UHF radio: 400-480MHz VHF radio: 136-174MHz | |||
Channel Capacity | 4000 channels | |||
Channel Spacing | 25KHz (Wide Band) ,12.5KHz (Narrow Band) | |||
Phase-locked Step | 5KHz, 6.25KHz | |||
Operating Voltage | 7.4V DC ±20% /(2100mAh/3100mAh) | |||
Frequency Stability | ±2.5ppm | |||
Operating Temperature | -20℃~ +55℃ | |||

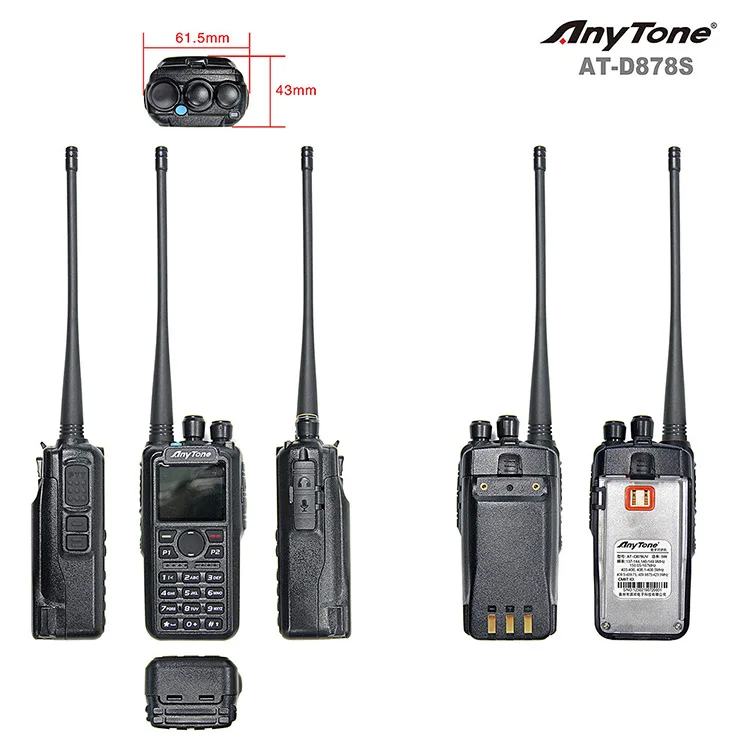

Size | 129×61×39mm (with battery pack) | |||
Weight | 282g (with battery pack, antenna) | |||
Receiving Part | ||||
Wide band | Narrow band | |||
Sensitivity(12dB SINAD) | ≤0.25μV | ≤0.35μV | ||
Digital Sensitivity | 0.3uV/-117.4dBm (BER 5%) 0.7uV/-110dBm (BER 1%) | |||
Adjacent Channel Selectivity | ≥70dB | ≥60dB | ||
Spurious Emission | ≤-57dB | ≤-57dB | ||
Spurious Rejection | ≥70dB | ≥70dB | ||
Blocking | 84db | |||
Hum & Noise | ≥45dB | ≥40dB | ||
Audio Distortion | ≤5% | |||
Audio Power Output | 1000mW/16Ω | |||
Transmitting Part | ||||
Wide band | Narrow band | |||
Power Output | UHF radio: 9/5/2.5/1W VHF radio: 10/5/2.5/1W | |||
Modulation | ±5.0KHz@25KHz | ±2.5KHz@12.5KHz | ||
Adjacent Channel Power | ≥70dB | ≥60dB | ||
Hum & Noise | ≥40dB | ≥36dB | ||
Spurious Emission | ≤-36dBm | ≤-36dBm | ||
4FSK Digital Modulation | 12.5KHz（data）7K60FXD 12.5KHz（data+voice）7K60FXE | |||
Audio Distortion | ≤5% | |||
Error rate | ≤3% | |||
Details Images
Recommend Products
Packing & Delivery

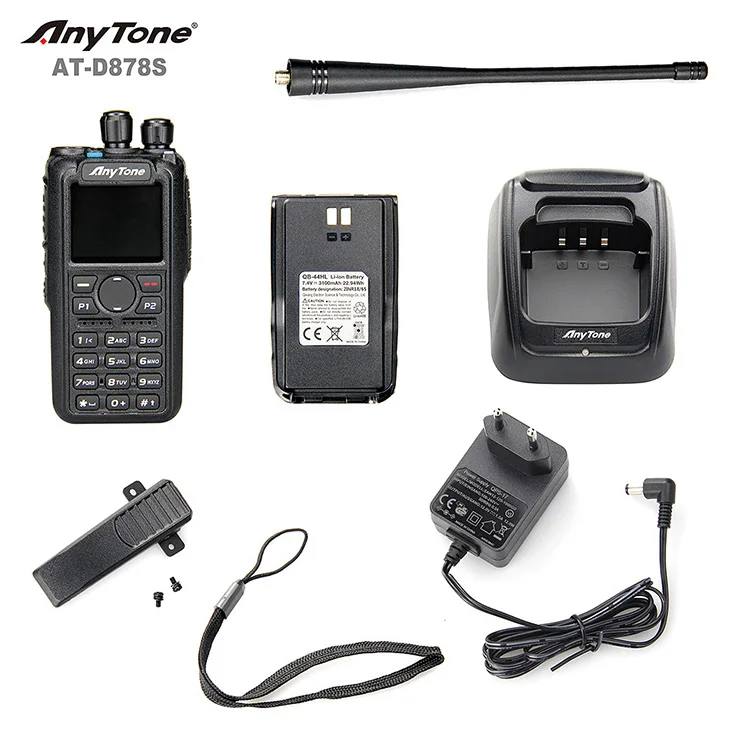

Package Includes:
Single band VHF/UHF Radio
3100 mAh extended life lithium ion battery
Desk charger w/ AC adapter
Dual-band antenna
Belt clip
Free USB Programming cable and downloadable software
User manual.
Single band VHF/UHF Radio
3100 mAh extended life lithium ion battery
Desk charger w/ AC adapter
Dual-band antenna
Belt clip
Free USB Programming cable and downloadable software
User manual.
Program cable (optional)
