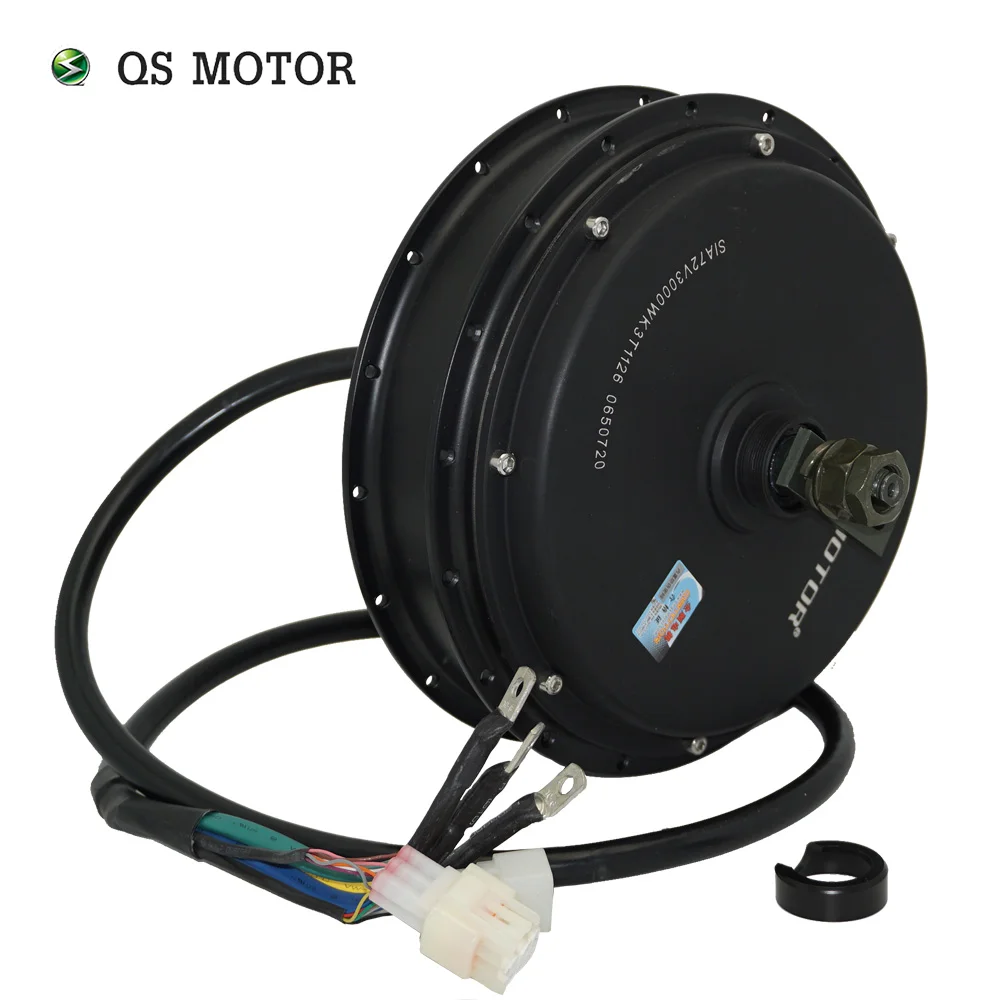

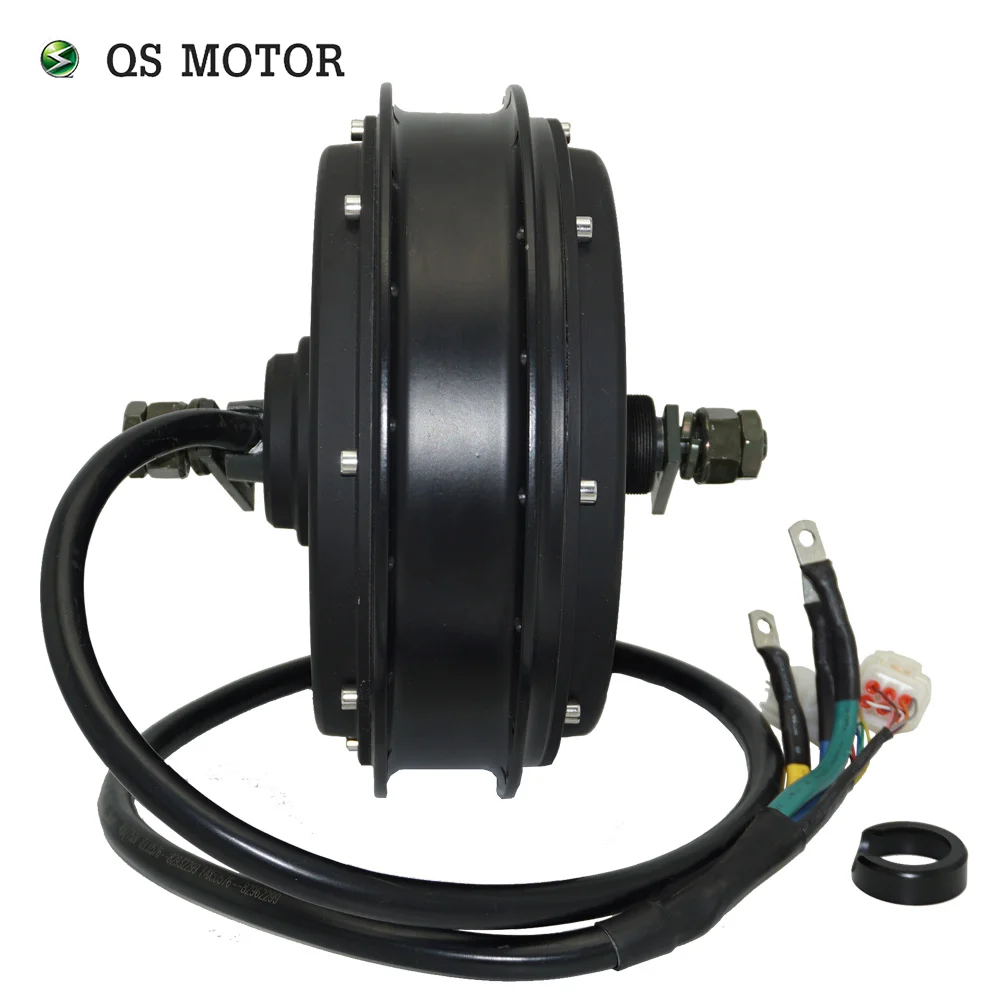

QSMOTOR Hot Sale E-bike 5000W QS 205 V3Tl 48/60/72V 70/80kph Electric High Power Bicycle Spoke Wheel Hub Motor

For QS motor 5000w 205 50H V3TI electric motor, it’s new design and especially upgrades for high powere-bike. It could be 72V 70KPH, available in a variety of sizes, such as 24inch, 26inch E-Bike Wheel, 17inch, 18inch, 19inch moped wheel.

Key Features

1). Simplify to make a electric-bicycle. Gearbox, transmission shaft, clutch are no need. Which save space.

2). It could be installed in the rear to save more space for battery.

3). Support regenerative braking

4). High efficiency: 85~92%

Main difference between V3 and V3TI

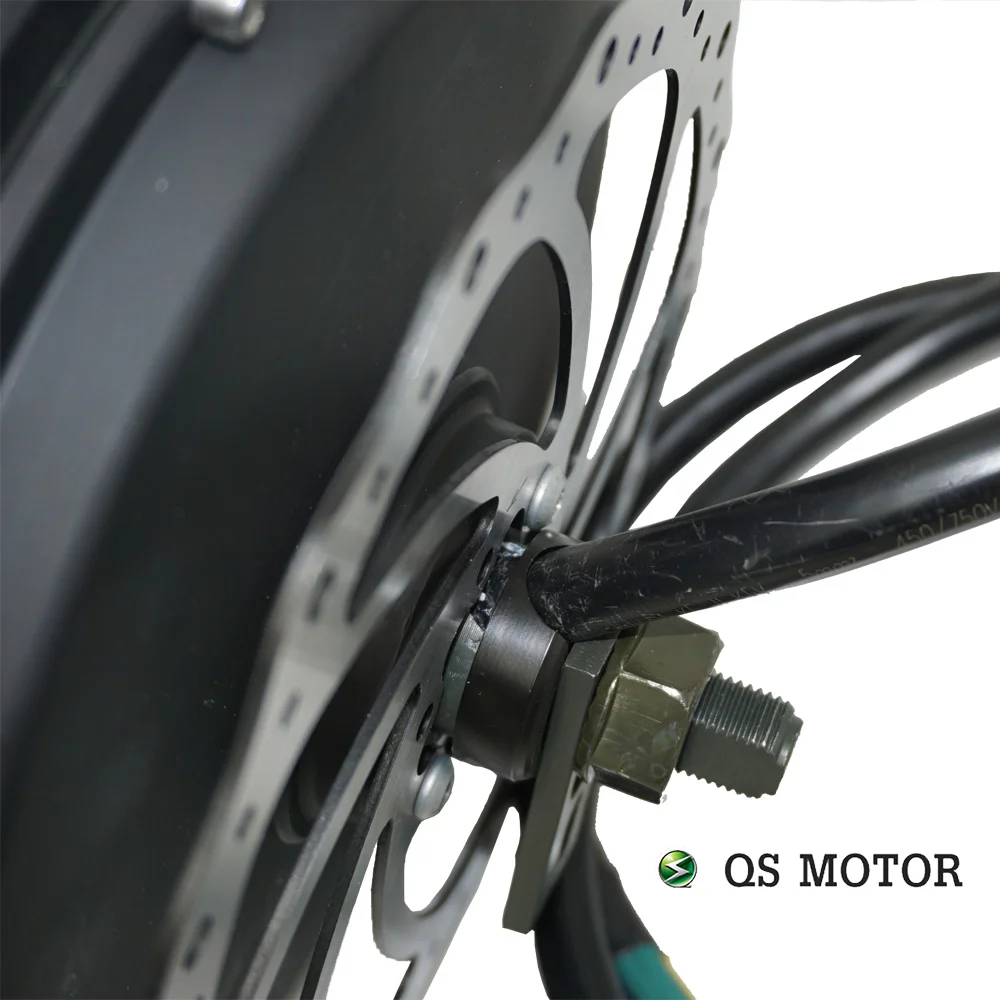

1. Phase wire exit from thread side, which is easier to mount on bike and it looks better.

2. Phase wire change to integrated one instead of standard loose one, which improved from IP54 to IP65.

3. Add brake spacer as default, which is thinner to avoid scratch phase wire by brake disc.

Product Description

Specification

·Motor Type: BLDC Permanent Magnet Outer Rotor In-Wheel Hub Motor With Hall Sensor

·Brand: QS Motor,QSMOTOR

·Motor Design: double axle without rim

·Matched Wheel: 24inch, 26inch E-Bike Wheel, 17inch, 18inch, 19inch moped wheel.

·Stator: Aluminum Core

·Rated Power: 5000W (10000kW peak in few seconds)

·Rated Voltage: 72V

·Speed: 3T, 4T, 5T, 6T

·Max Torque: approx 181N.m

·Max Efficiency: approx 91%

·Continuous Battery Current: 44A (72V)

·Peak Battery Current: 100-150A (48V)

·Suggest Peak Phase Current: /A

·Thermal Probe: KTY83/122 (as default, optional)

·Working Temperature: 70-120℃ , peak 150 ℃

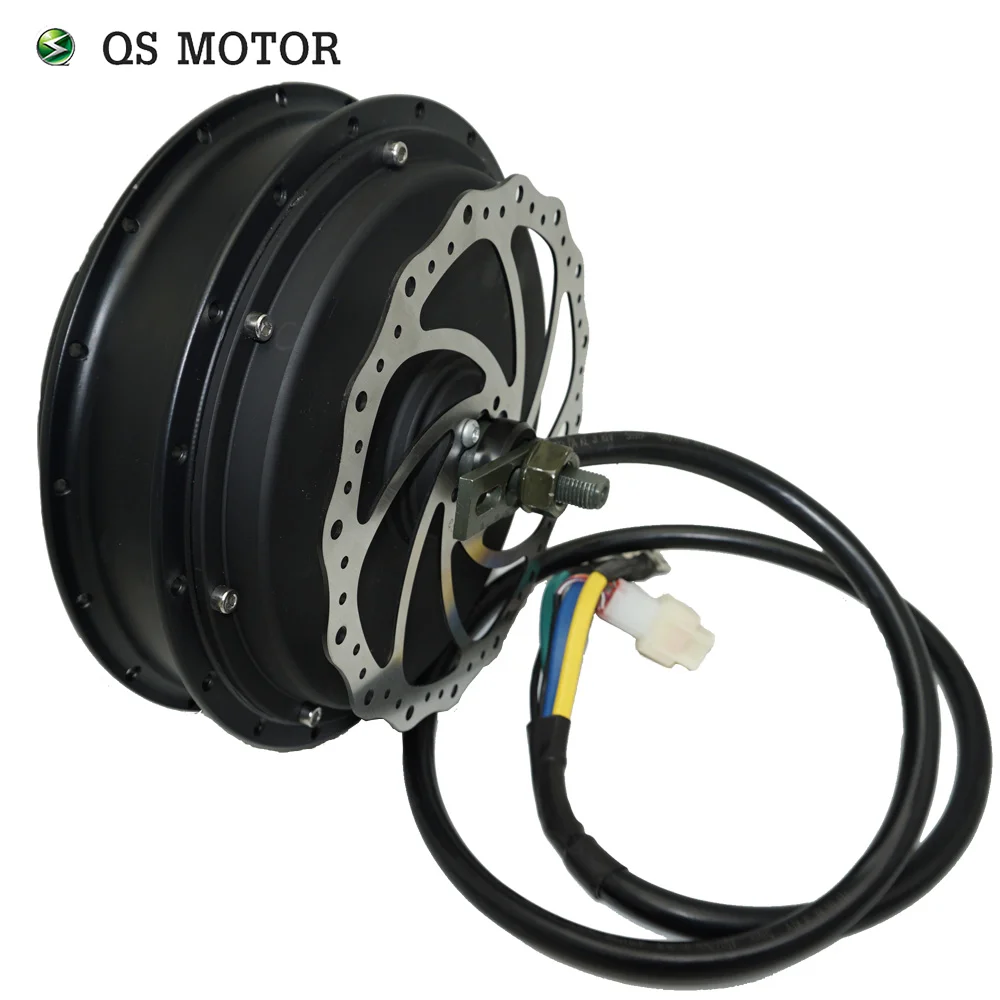

·Brake type: fit with bike disc brake, PCD 6*44mm(brake disc available as addtional option)

·Drop-outs/Rear Fork Width for installation: 150mm

·14mm English thread length for single/3 speed freewheel

·10mm axle flats

·Dual Hall Set with waterproof connectors

·2*5mm² Cross Section of new integrated Phase Wire (not include insulation layer), exit from thread side

·Hall Sensor Phasing angle: 120 degree

·Waterproof Grade: IP65

·Color: Black

·N.W./G.W.: approx 12.5/14.0kg (TBD)

·Package Dimension: 33.5cm*33.5cm*31.5cm/piece

PS. V3Ti short for V3 thread integrated, which mean phase wire exit from thread side of motor axle, we plan to replace V3 motor gradually.

Dimension

Refer to V3 drawing firstly.

Test report

Pls note:

Optional appearance, drawing, performance curve/test report are available.

If you need more technical information, please feel free to contact us.

We will give you reply in 12hours.

Conversion kits

We're able to supply Controller, display, dc-dc converter, disc brake system, twist throttle...etc.
