Hi-Link HLK-LD1125H 24 ГГц мм волна человеческих волос присутствие зондирования радарный датчик мониторинга модуль небольшого размера и низкое
- Категория: Sensors >>>
- Поставщик: Shenzhen,Hi-Link,Electronic,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-19-2025 | 12.17 $* | 13.13 $* |
| Aug-19-2025 | 12.80 $* | 13.72 $* |
| Jul-19-2025 | 10.11 $* | 11.94 $* |
| Jun-19-2025 | 12.96 $* | 13.90 $* |
| May-19-2025 | 10.71 $* | 11.47 $* |
| Apr-19-2025 | 11.62 $* | 12.15 $* |
| Mar-19-2025 | 11.38 $* | 12.64 $* |
| Feb-19-2025 | 11.35 $* | 12.30 $* |
| Jan-19-2025 | 11.14 $* | 12.19 $* |
Характеристики
Product Description
Specification
item | value |
Model Number | HLK-LD1125H |
Place of Origin | China |
Guangdong | |
Brand Name | Hi-Link |
Usage | sensing |
Theory | radar |
Voltage - Supply | 3.3-5V |
Current - Supply | 80mA |
Mounting Type | ceiling and wall mounting |
Frequency | 24GHz |
Output Configuration | 1-10v |
Current | 25mA |
Voltage Rating | 12V DC |
Size / Dimension | 30.83*16.28*1.3mm |
Interface | terminal |
Technology | radar |
Sensing Range | 4m meditate, 8m exercise |
Sensing Object | human body |
Sensing Light | daylight sensor |
Application | sensor |
Overview
HLK-LD1125H-24G is a high sensitivity 24GHz millimeter wave human presence detection radar module. Different from the traditional radar, which judges the existence of the human body by detecting the large-scale movements of the human body or the small-scale body movements, the main feature of this module is to judge the existence of the human body by detecting the accumulated human breathing and other small-scale movements. Therefore, the detection of human presence is more accurate than traditional mobile detection radars. Not easy to miss.

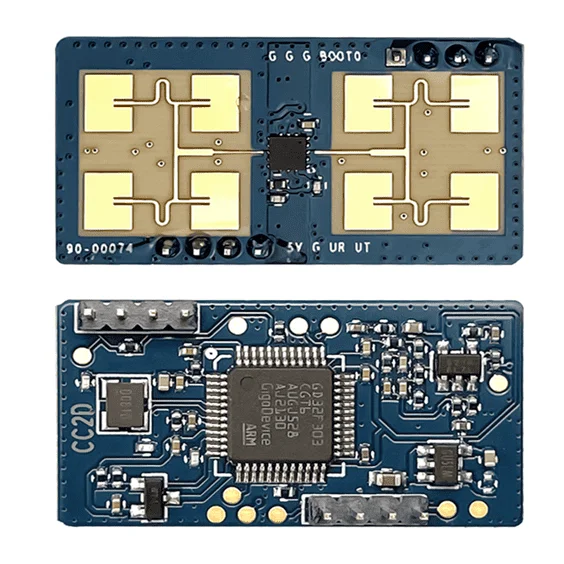

Pin interface definition:(2mmpitchpinheader connector isrecommendedfor theinterface
Pin | Name | Remark |
1 | VCC | Power supply 5V power supply |
2 | GND | Touchdown |
3 | URX | TTL serial port receive |
4 | UTX | TTL serial transmission |
Packing & Delivery
PP bag and foam inside, carton outside
Company Profile
Shenzhen Hi-Link Electronic Co., Ltd was founded in 2009. It is a high-tech enterprise focusing on WiFi module, Bluetooth module and power module, integrating R & D, production and sales services. On October 20th, 2016, it was listed in Qianhai equity center with stock code of 668537. Hi-Link is located in Shenzhen and partner factory in Dongguan. Hi-Link has strong R & D strength and a number of independent intellectual property rights. The core R & D personnel are from well-known listed companies with years of experience in IOT industry.
In the past 11 years, Hi-Link has provided more than one hundred thousand customers with WiFi module, Bluetooth module, power module and other OEM/ODM products exported to more than 80 countries. It provides professional and reliable IOT module products, strong technical support and intimate after-sales service guarantee and is widely used in the fields of smart home, intelligent medical treatment, intelligent office, automotive electronics and industrial control .
Hi-Link has been working as a "reliable partner"with customers, suppliers, contractors and employees to build long lasting mutual trust relationships based on the spirit of "good intentions" and always adhering to the product policy of "creating value, customer first, following the trend and striving for improvement". We are committed to making each intelligent product more convenient, faster and more reliable and providing customers with safe, high-quality and reliable products is our eternal pursuit.
In the past 11 years, Hi-Link has provided more than one hundred thousand customers with WiFi module, Bluetooth module, power module and other OEM/ODM products exported to more than 80 countries. It provides professional and reliable IOT module products, strong technical support and intimate after-sales service guarantee and is widely used in the fields of smart home, intelligent medical treatment, intelligent office, automotive electronics and industrial control .
Hi-Link has been working as a "reliable partner"with customers, suppliers, contractors and employees to build long lasting mutual trust relationships based on the spirit of "good intentions" and always adhering to the product policy of "creating value, customer first, following the trend and striving for improvement". We are committed to making each intelligent product more convenient, faster and more reliable and providing customers with safe, high-quality and reliable products is our eternal pursuit.
