Новый Huawei SmartAX EA5801 серии EA5801-GP08 EA5801E mini olt
US $389.00-$700.00
Прямая поставка с завода антенна Harxon GNSS высоким коэффициентом усиления высокоточная
- Категория: Telecommunications >>>
- Поставщик: Harxon,Corporation
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-19-2025 | 0.45 $* | 0.50 $* |
| Aug-19-2025 | 0.87 $* | 0.39 $* |
| Jul-19-2025 | 0.84 $* | 0.18 $* |
| Jun-19-2025 | 0.49 $* | 0.72 $* |
| May-19-2025 | 0.6 $* | 0.71 $* |
| Apr-19-2025 | 0.33 $* | 0.97 $* |
| Mar-19-2025 | 0.52 $* | 0.94 $* |
| Feb-19-2025 | 0.42 $* | 0.62 $* |
| Jan-19-2025 | 0.30 $* | 0.90 $* |
Характеристики
Product Description
Specification
PERFORMANCE | |
Signal Received | GPS L1/L2 GLONASS L1/L2 BDS B1/B2/B3 GALILEO E1 QZSS L1/L2 SBAS L1 |
Nominal Impedance | 50Ω |
Polarization | RHCP |
Axial Ratio | ≤3dB |
Gain at Zenith (90°) | 1205-1278MHz 5.5dBi (maximum) 1559-1615MHz 5.5dBi (maximum) |
LNA | |
LNA Gain | 40dB (typical) |
Noise Figure | ≤2dB |
Output/Input VSWR | ≤2.0 |
Operation Voltage | +3.3VDC to +12VDC |
Operation Current | 45mA (maximum) |
Group Delay Ripple | ＜5ns |
MECHANICAL | |

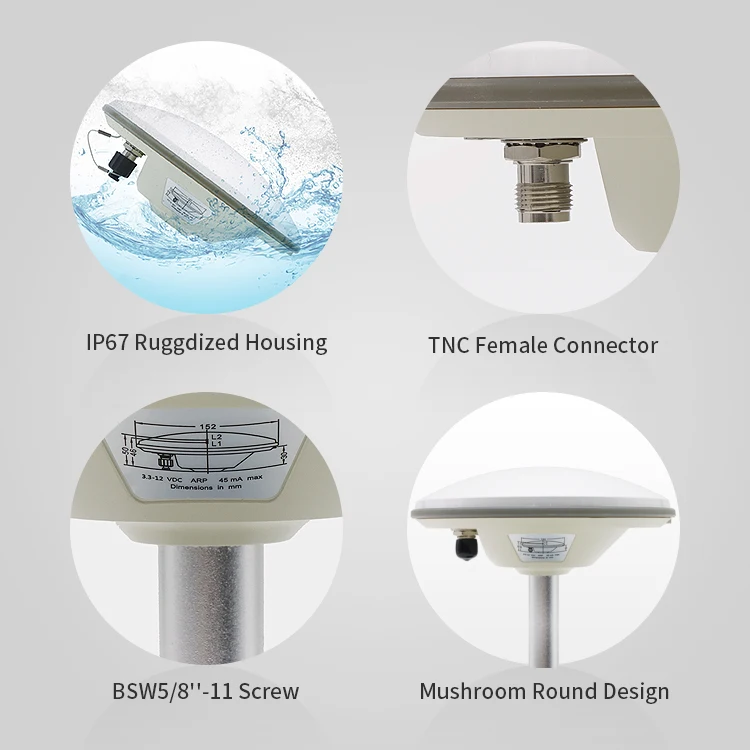

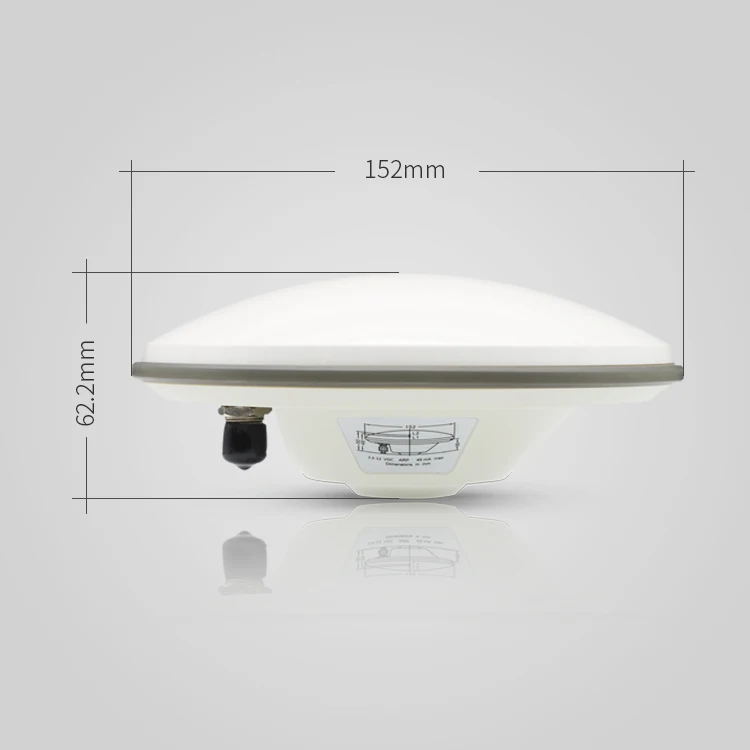

Dimensions | ¢152*62.2mm |

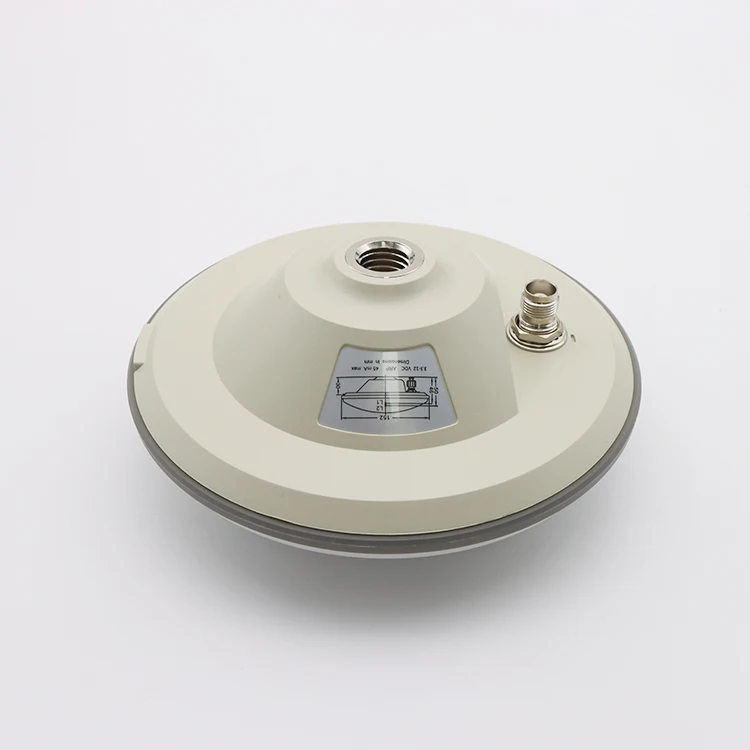

Connector | TNC female |
Weight | ≤500g |
Mounting | BSW5/8''-11 screw, 12-14mm |
ENVIRONMENTAL | |
Operating Temperature | -40℃ to +85℃ |
Storage Temperature | -55℃ to +85℃ |
Humidity | 95% non-condensing |
Water/Dust Resistance | IP67 |
Regulatory Compliance | FCC CE RoHS |
FAQ
Q: Are you a manufacturer or a trading company?
A: We have been professional GNSS antenna manufacturer for 14 years.
Q: What can I buy from Harxon on alibaba?
GNSS antenna, vehicle antenna, communication antenna and wireless data radio.
Q: Can I get free sample?
A: No, we do not offer free samples.
Q: What is the minimum order (MOQ)?
A: For automotive antennas and communication antennas, the MOQ is 500; for other products, the MOQ is 1.
Q: What's the delivery time?
A: The delivery time depends on the product category, please consult customer service.
Q: Could I use my own LOGO or design on products?
A: Please contact our sales manager via sales@harxon.com if you have customization requirements.
Q: What is the payment term?
A: T/T, MoneyGram and Western Union.
Q: Does your product have warranty?
A: Yes, we offer 1-year warranty for our products. After-sales service is also available.
A: We have been professional GNSS antenna manufacturer for 14 years.
Q: What can I buy from Harxon on alibaba?
GNSS antenna, vehicle antenna, communication antenna and wireless data radio.
Q: Can I get free sample?
A: No, we do not offer free samples.
Q: What is the minimum order (MOQ)?
A: For automotive antennas and communication antennas, the MOQ is 500; for other products, the MOQ is 1.
Q: What's the delivery time?
A: The delivery time depends on the product category, please consult customer service.
Q: Could I use my own LOGO or design on products?
A: Please contact our sales manager via sales@harxon.com if you have customization requirements.
Q: What is the payment term?
A: T/T, MoneyGram and Western Union.
Q: Does your product have warranty?
A: Yes, we offer 1-year warranty for our products. After-sales service is also available.
