Измеритель твердости на берегу HT-6510A используется для мягкой резины эластомеров изделий из натурального каучука неопрена смолы полиэстера
- Категория: Hardness Testers >>>
- Поставщик: Aik,Instruments,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-17-2025 | 0.14 $* | 0.31 $* |
| Aug-17-2025 | 0.48 $* | 0.4 $* |
| Jul-17-2025 | 0.26 $* | 0.27 $* |
| Jun-17-2025 | 0.4 $* | 0.86 $* |
| May-17-2025 | 0.83 $* | 0.67 $* |
| Apr-17-2025 | 0.38 $* | 0.65 $* |
| Mar-17-2025 | 0.88 $* | 0.66 $* |
| Feb-17-2025 | 0.50 $* | 0.41 $* |
| Jan-17-2025 | 0.38 $* | 0.28 $* |
Характеристики
Products Description

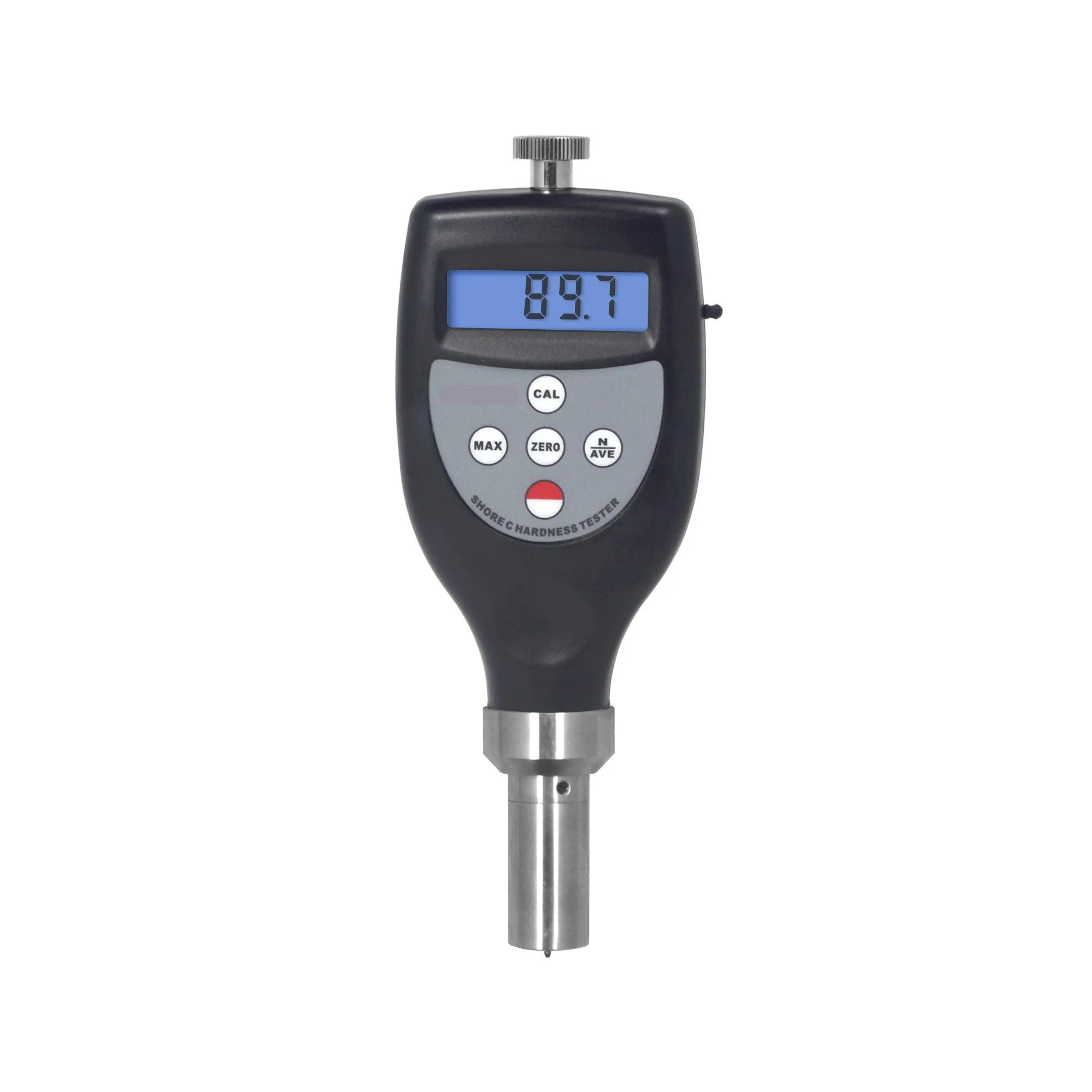

Shore Hardness Tester HT-6510A
Spec：Used to determine the indentation hardness of materials ranging from cellular products to rigid plastics.
Model：HT-6510A
Features
* It meets standards of DIN 53505, ISO 868, ISO 7619, ASTMD 2240, JISK7215.
* With average calculate function.
* Peak value deposit function.
* Under-voltage alarm function.
* Use USB data output to connect with PC. (Optional)
* Provide Blue tooth data output choice. (Optional)
* With average calculate function.
* Peak value deposit function.
* Under-voltage alarm function.
* Use USB data output to connect with PC. (Optional)
* Provide Blue tooth data output choice. (Optional)
Details Images
Models & Applications
Model | Indenter | Tested Materials | Hardness Value | Unit price (EXW) |
HT-6510A | 0.79 Truncated Cone | Soft Rubber, Elastomers, Natural Rubber Products, Neoprene, Resin, Polyester, Soft PVC, Lleather, etc. | 20 ~ 90 A | $155 |
HT-6510B | R 0.1 Cone | Middle Hard Rubber Materials, Typewriter Rollers, etc. | Above 90 A, Below 20 D | $220 |
HT-6510C | 0.79 Truncated (Frustum) Cone | Plastics and Middle Hard Rubber Materials | Above 90 B, Below 20 D | $160 |
HT-6510D | R 0.1 Cone | Fibre Plastics, Hard Rubber, Hard Plastic Materials, Plexiglas,Stiff Thermo Plastics, Formica, Print Roller, Vinyl-plate, Cellulose Acetate, etc. | Above 90 A | $165 |
HT-6510DO | R 1.2 Spherical Radius | Plastics and Middle Hard up to Hard Rubber Materials | Above 90 C, Below 20 D | $220 |
HT-6510O | R 1.2 Spherical Radius | Soft Elastic Materials, Print Rollers, Middle Firm Textile Fabrics, Nylon, Orlon, Perlon, Rayon | Below 20 DO | out of stock |
HT-6510OO | R 1.2 Spherical Radius | Sponge- and Cellular Rubber, Foam Rubber, Silicone, Gel-like Materials | Below 20 O | $220 |
HT-6510E | R 2.5 Spherical Radius | Hard Sponge, EVA | Above 90 DO, Below 20 D | $220 |
Specifications
Model | HT-6510(A/B/C/D/E/O/DO/OO) |
Parameters | Tested Result/Mean Value/Max.Value |
Unit | HA/HB/HC/HD/HE/HDO/HO/HOO |
Display Range | 0HA~100HA(HB/HC/HD/HE/HDO/HO/HOO) |
Measurement Range | 10HA~90HA(HB/HC/HD/HE/HDO/HO/HOO) |
Accuracy | ≤±1H |
Resolution | 0.1H |
Battery Indicator | Low Battery Indicator |
Auto Switch Off | √ |
Operating | Temperature:0ºC~50ºC Humidity:<80%RH |
Power Supply | 4x1.5V AAA(UM-4)Battery |
2x1.5V AAA(UM-4)Battery(Stand Available) | |
Dimensions | 162mmx65mmx28 mm |
Weight | 170g |
Standard Accessories | Main Unit |
Pin Length Teat Block | |
Carrying Case(B04) | |
Operation Manual | |
Optional Accessories | Shore Hardness Tester Measurement Stand |
Rubber Hardness Test Block(A/D Type) | |
USB Data Cable with Software | |
Blue tooth Data Adapter with Software |
Model & Hardness
Optional part
* Shore Hardness Tester Measurement Stand
* Rubber Hardness Test Block(A/D Type)
* USB Data Cable with Software
* Blue tooth Data Adapter with Software
