Китай новые роликовые машины маленький 8тонный двойной барабан тандемный ролик XD83 с
- Категория: Road Roller >>>
- Поставщик: Maxizm,Construction,Machinery,(Qingdao),Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-19-2025 | 40460.76 $* | 42483.39 $* |
| Aug-19-2025 | 40120.7 $* | 42126.41 $* |
| Jul-19-2025 | 33660.79 $* | 35343.31 $* |
| Jun-19-2025 | 39440.51 $* | 41412.62 $* |
| May-19-2025 | 34340.51 $* | 36057.33 $* |
| Apr-19-2025 | 38760.24 $* | 40698.70 $* |
| Mar-19-2025 | 38420.36 $* | 40341.61 $* |
| Feb-19-2025 | 38080.69 $* | 39984.39 $* |
| Jan-19-2025 | 37740.54 $* | 39627.17 $* |
Характеристики
Contact
Tio Zhao
Phone Number/Wechat/Whatsapp: (+86) 17860480552
Our Website:www.maxizm.com
ins:(+86) 17860480552
E-mail:tio@maxizm.com
Company:Maxizm Construction Machinery (Qingdao) Co., Ltd.
Company Web:http://www.maxizm.com
Products Description

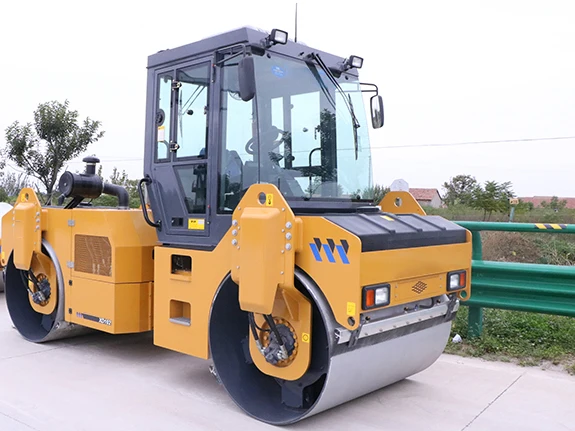

New Roller Machinery Small 8ton Double Drum Tandem Roller XD83 Maxizm
The front and rear frame of the XD83 full hydraulic double steel wheel vibratory roller adopts the current mainstream frameless structure, which increases the approach angle and departure angle of the vehicle, and effectively improves the welt compaction performance of the whole machine. The vibrating wheel adopts the traditional cylindrical four-support structure and has a long service life. In addition, the vibrating wheel uses our company's original pressure equalization technology to control the amplitude difference between the left and right vibrating wheels within 3%, effectively ensuring the smoothness of the road. The standard configuration of the power system rated power is 111kW. It adopts full hydraulic transmission and full electro-hydraulic control technology, and all adopts electrical switch control, which makes the operation extremely simple and convenient.
Product Paramenters
Model | XD83 | XD103 | XD123 |
Operating weight(kg) | 8500 | 10000 | 12300 |
Axle load, front(kg) | 4250 | 5000 | 6150 |
Axle load, rear(kg) | 4250 | 5000 | 6150 |
Static linear load(N/cm) | 248 | 280 | 283 |
Engine Model | BF4M2012-10T3R | BF4M2012-10T3R | QSB4.5 (C160-30) |
Rated Power(kW/rpm) | 74.9/2300 | 74.9/2300 | 119/2200 |
Speed range | |||
Speed（1）(km/h) | 0-6 | 0-6 | 0-6 |
Speed（2）(km/h) | 0-12 | 0-12 | 0-12 |
Speed（3）(km/h) | - | - | - |
Vibration frequency(Hz) | 55/45 | 55/45 | 45/55 |
Vibration amplitude(mm) | 0.35/0.60 | 0.35/0.60 | 0.75/0.30 |
Centrifugal force(kN) | 60/75 | 90/100 | 85/140 |
Working width(mm) | 1680 | 1750 | 2130 |
Max. gradeability(%) | 35 | 35 | 35 |
Track radius, out(mm) | 4100/5780 | 4070/5280 | 4800/6930 |
Overall dimensions(mm) | 4900×1960×3087 | 4900×1960×3087 | 5146×2336×3076 |
Details Images
