Неэкранированный модульный разъем категории 5e Cat6 для кабельной передачи данных позолоченные контакты 50U 180 градусов лицевой
- Категория: Telecom Parts >>>
- Поставщик: Shenzhen,Sinet,Industrial,Co.,Ltd
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 0.61 $* | 0.49 $* |
| Aug-16-2025 | 0.85 $* | 0.19 $* |
| Jul-16-2025 | 0.87 $* | 0.41 $* |
| Jun-16-2025 | 0.87 $* | 0.60 $* |
| May-16-2025 | 0.36 $* | 0.94 $* |
| Apr-16-2025 | 0.90 $* | 0.96 $* |
| Mar-16-2025 | 0.31 $* | 0.14 $* |
| Feb-16-2025 | 0.15 $* | 0.8 $* |
| Jan-16-2025 | 0.44 $* | 0.14 $* |
Характеристики
Product Description

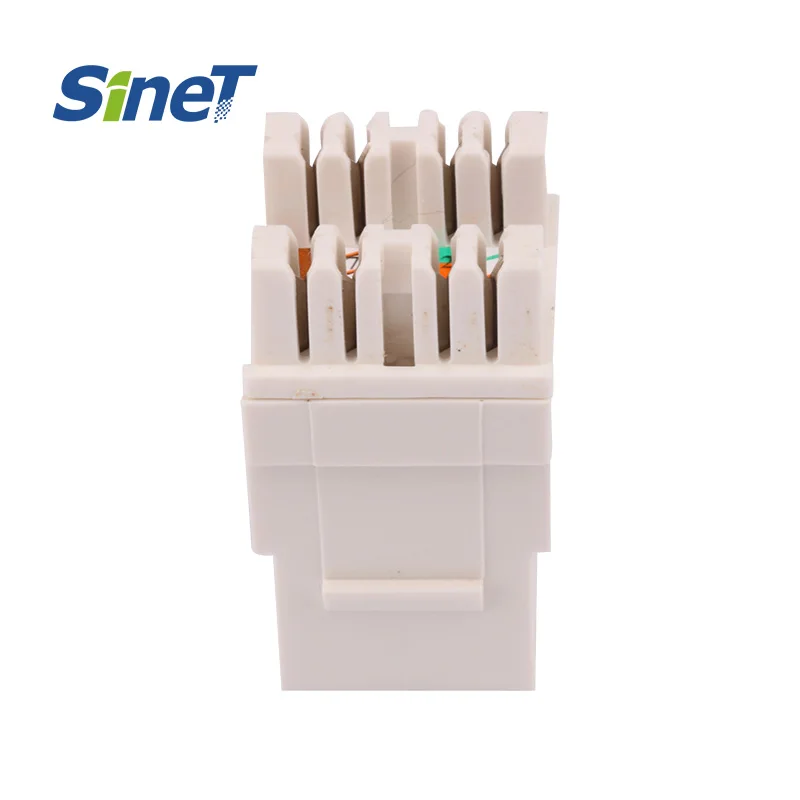

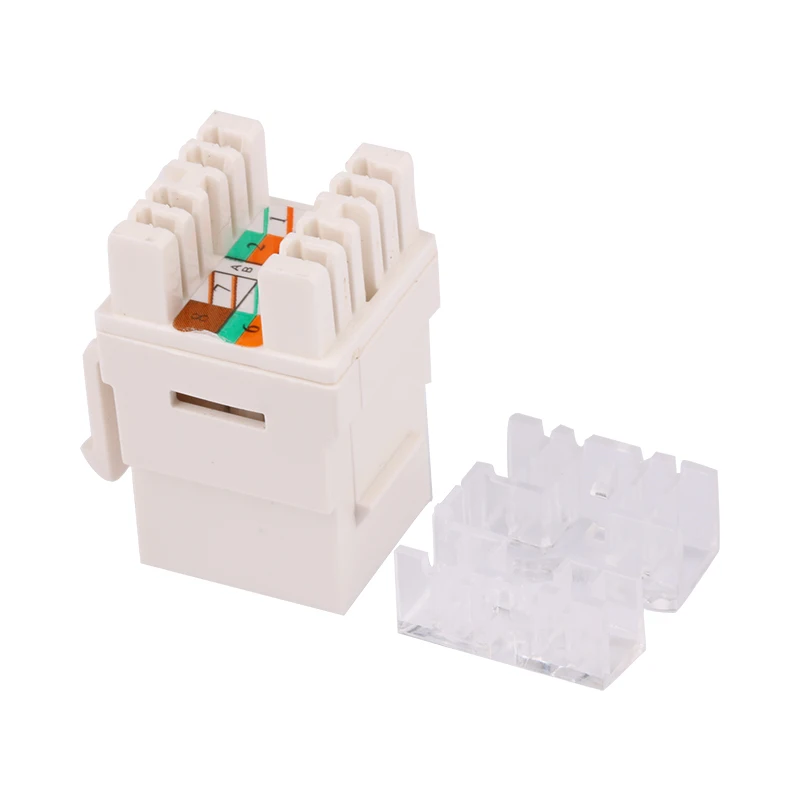

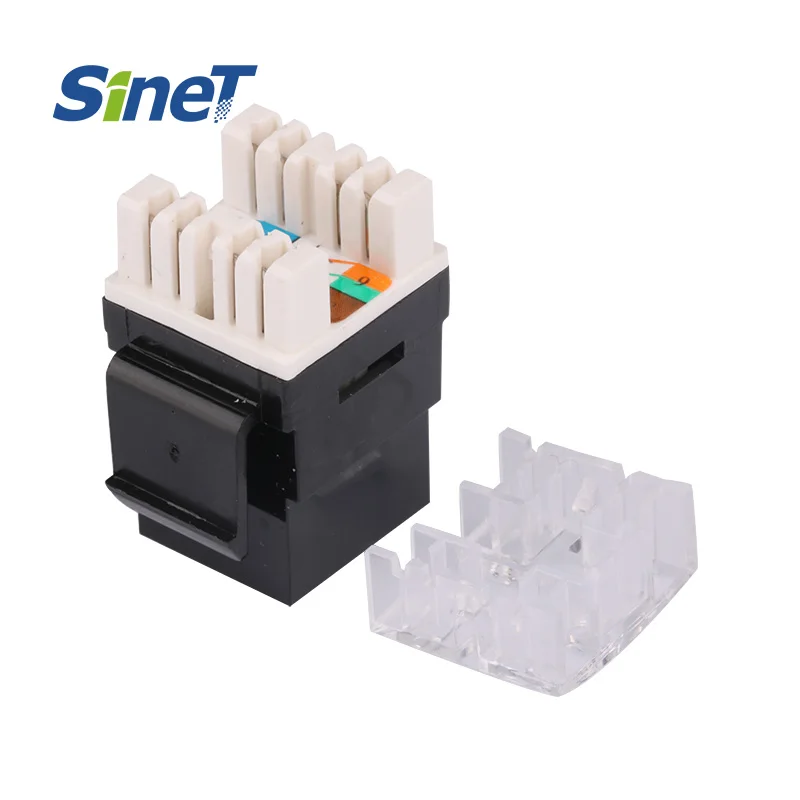

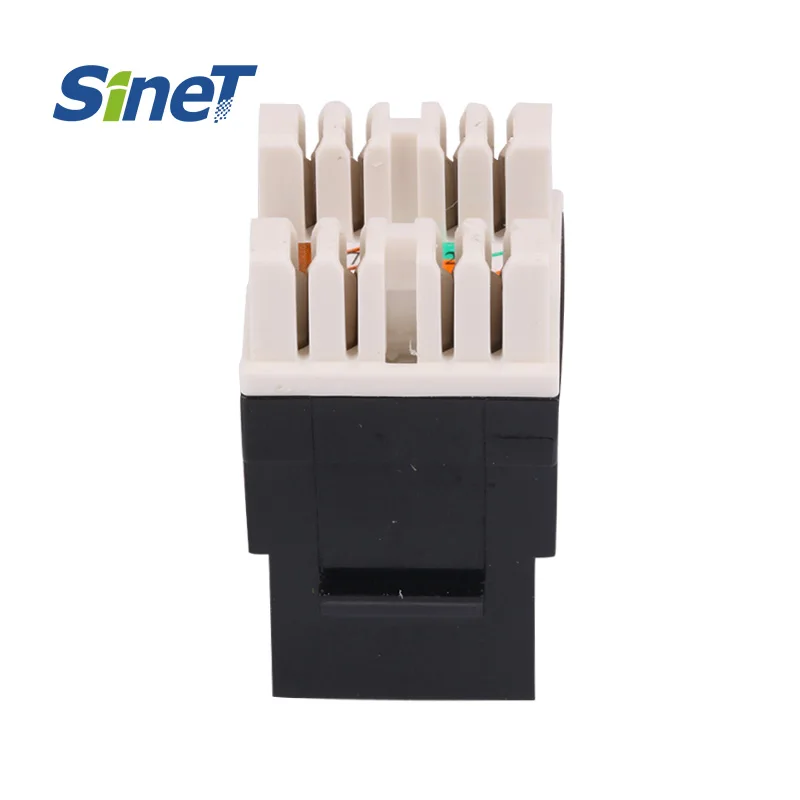

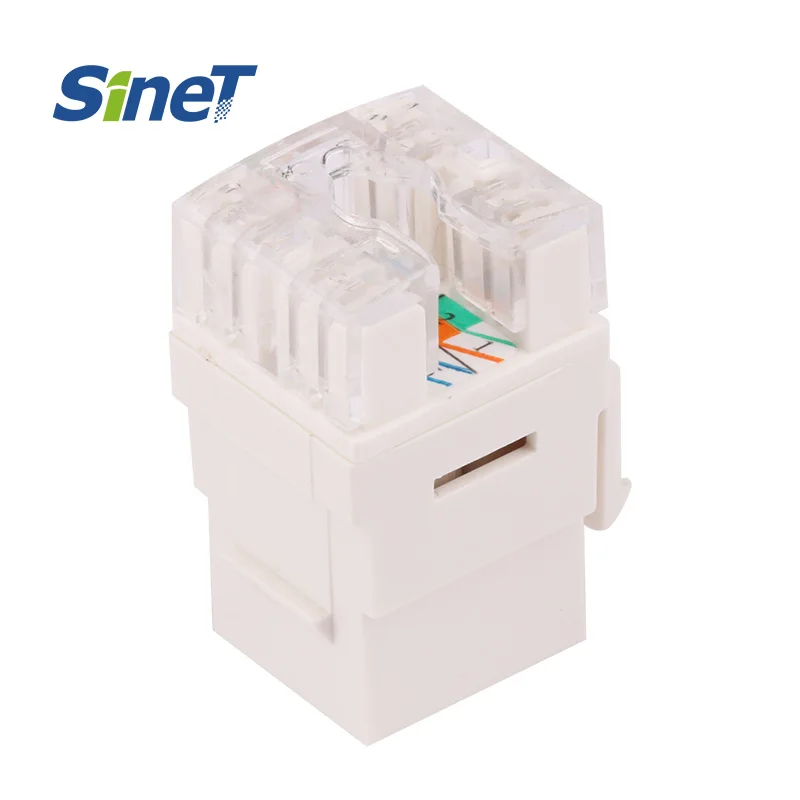

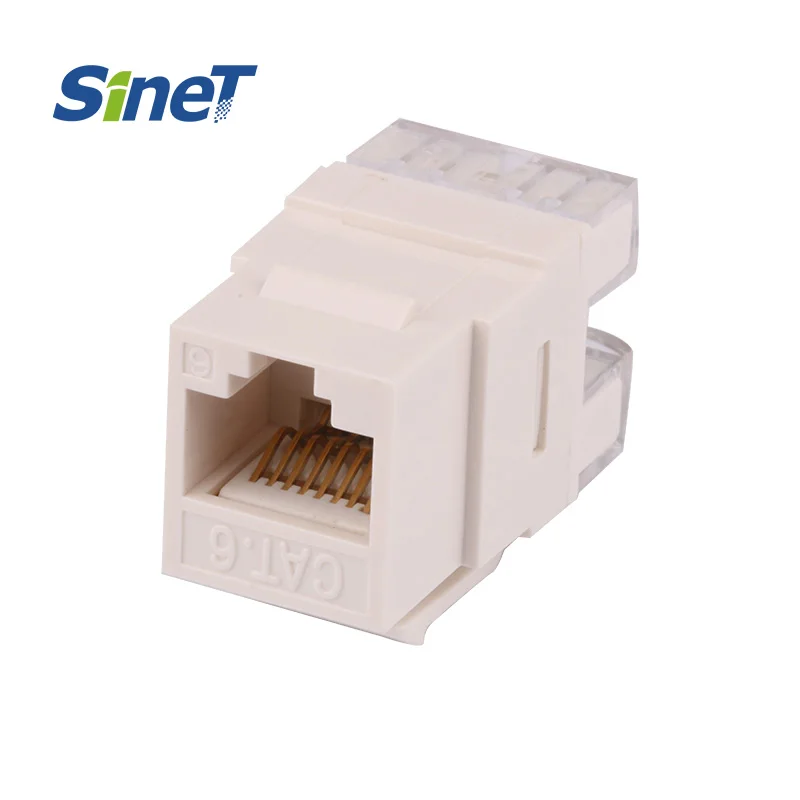

RJ45 KEYSTONE MODULAR JACK CAT5E CAT6 CAT6A
1. Suitable for communication socket connection between devices and workspace to realize signal transmission, meeting EIA/TIA 568A/B transmission standard.
2. The IDC end is marked according to the marked color mark, which is convenient for fast and accurate wiring.
3. Equipped with dustproof cover to protect module, shield dust and dirt from entering
4. Eight-core needle: phosphorus bronze gold plating: 3-50μm
5. Contact Resistance: Contact Resistance under Normal Atmospheric Pressure < 2.5MΩ
6. Insulation Resistance: Insulation Resistance (> 1000MΩ) under Normal Atmospheric Pressure
7. High Voltage Resistance: AV 750V1 Minute No Breakdown and Flying Arc Phenomena
8. Plastic raw materials: PC PBT fire protection grade 94-V0
9. Terminal raw materials: phosphorus bronze nickel plating, connecting wire through 22-26AWG, clamping repeatable times (> 1000 times)
10. Over FLUKE Testing
2. The IDC end is marked according to the marked color mark, which is convenient for fast and accurate wiring.
3. Equipped with dustproof cover to protect module, shield dust and dirt from entering
4. Eight-core needle: phosphorus bronze gold plating: 3-50μm
5. Contact Resistance: Contact Resistance under Normal Atmospheric Pressure < 2.5MΩ
6. Insulation Resistance: Insulation Resistance (> 1000MΩ) under Normal Atmospheric Pressure
7. High Voltage Resistance: AV 750V1 Minute No Breakdown and Flying Arc Phenomena
8. Plastic raw materials: PC PBT fire protection grade 94-V0
9. Terminal raw materials: phosphorus bronze nickel plating, connecting wire through 22-26AWG, clamping repeatable times (> 1000 times)
10. Over FLUKE Testing
Application | *Certification: ISO9001,ETL,CE,RoHS |
*Standard: ISO/IEC-11801; ANSI/TIA-568-C.2; EN50173-1 ;ANSI/TIA–1096-A (FCC Part 68); IEC 60603-7 | |
*Application: 1000BASE-T,100BASE-Tx,10BASE-T,155M ATM,4/16MB Token Ring,100Mbps TP-PMD,ISDN,ADSL,Analog & Digital Voice (VoIP) / Video,Power over Ethernet (PoE),Control Signal |
Specification | *Voltage rating: 125VCA RMS |
*Current rating: 1.5Amp | |
*Contact resistance: 100 MILLIOHMS MAX | |
*Insulation Resistance: 1000 MEGOHMS MIN@500VDC | |
*Dielectric strength: 750 VAC RMS, 60Hz 1min |
Feature | *Category：Cat5e Cat6 Cat6a optional |
*CONTACT PLATING: 50u Gold Plated | |
*Wiring Scheme：T568A/T568B | |
*QC: 100% testing | |
*Wroking Humidity: 10% ~ 90%RH | |
*Working Temperature: -20℃~ 60℃ | |
*OEM /ODM: Available |
Product Details
Packing&Shipping
Production Flow
Company Profile
Certifications
Exhibition
FAQ
Q1: Are you a factory or trading company?
A1: We are a manufacturer. From raw materials' preparation to final packing, there is a strict rule controled in every process of the mass production.
Q2: How can i get samples from you?
A2: We can provide a few pcs free sample for your test. You can contact our sales and confirm which color you prefer.
Q3: What is your Warranty?
A3: All the products will have 12 months Warranty.
Q4: Can you put my brand name (logo) on these products?
A4: Yes! The professional OEM services is welcome. Our factory accepts to make the logo free for bulk orders.
Q5: How about the payment terms?
A5: We accept 30% initial deposit and 70% against the photos of finished products. For sea shipment, we can support balance while arriving port before BL released.
Q6: What's delivery time?
A6: Lead time depends on the quantities of the mass order. If you need the products in hurry, contact our sales and they will give solution accordingly.
