Стеганая машина с перемещением головки/простота в эксплуатации стеганая вышивальная машина/непрерывная для

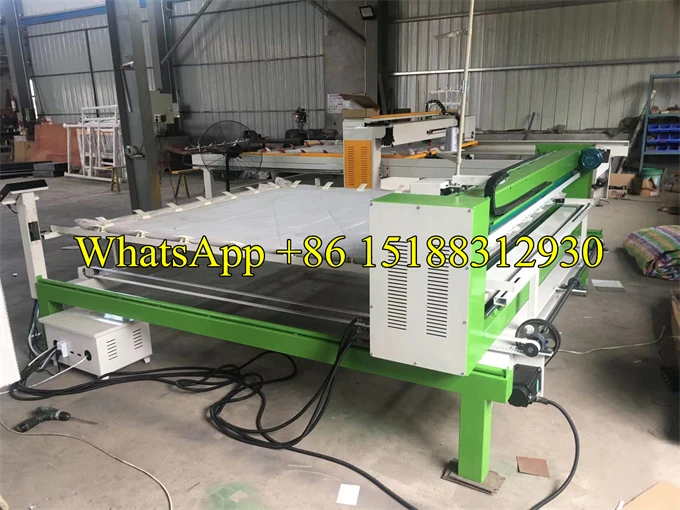

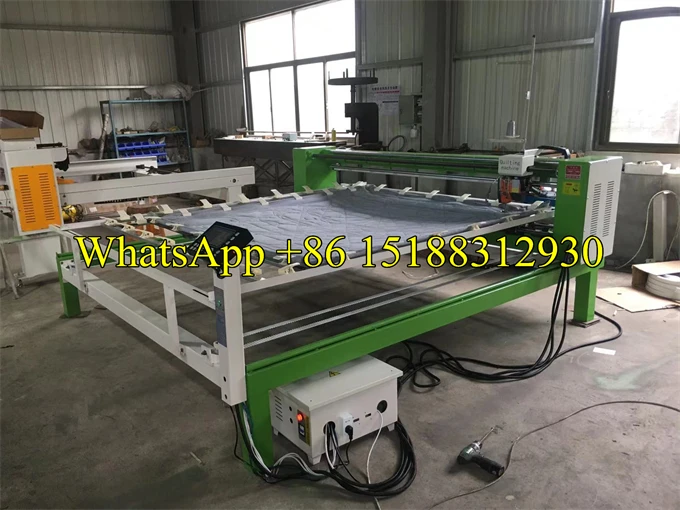

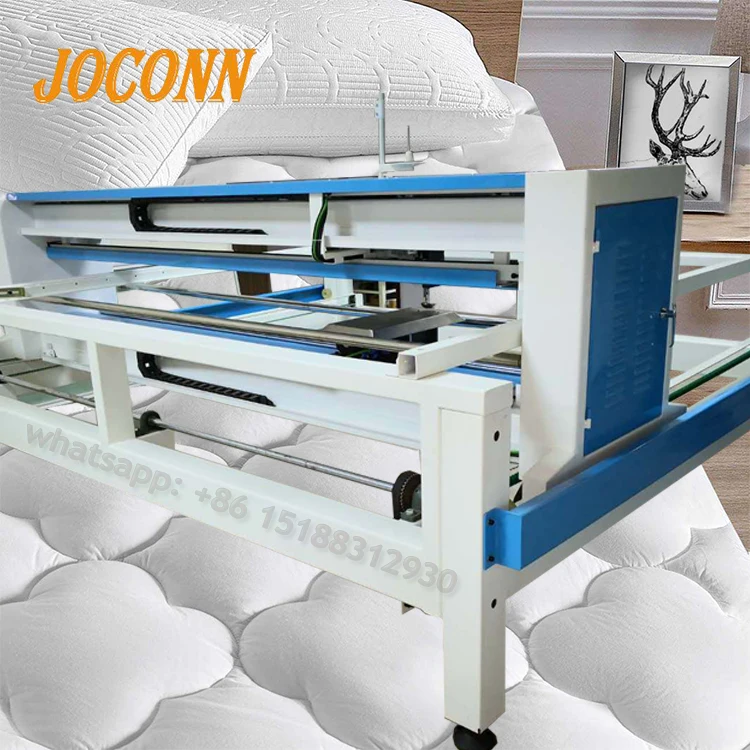

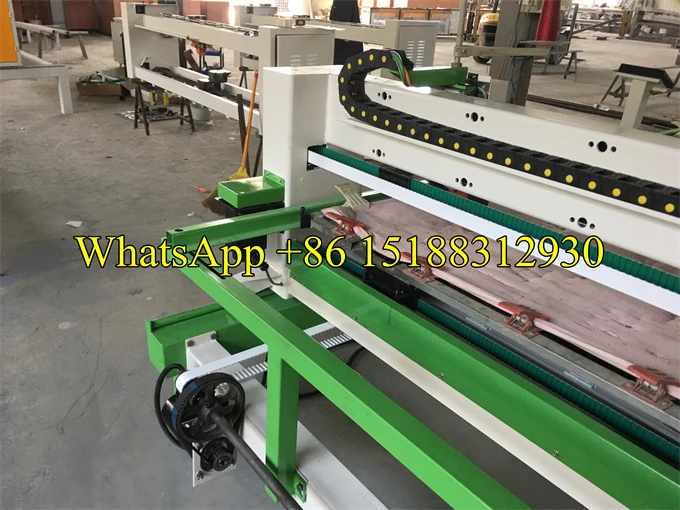

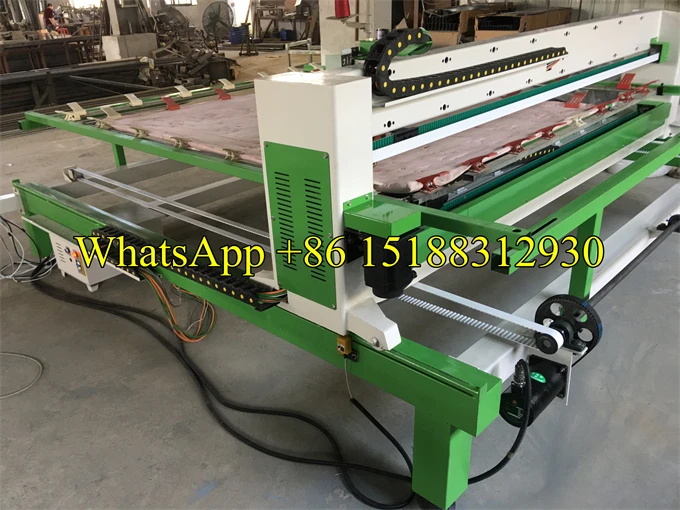

This machine is mainly used for quilt making .It can be widely used in the quilting of various quilts, sleeping bags, bedspreads and curtains.

Its characteristics as: all servo transmission structure on the head, high speed . Display of working speed, reasons for stop, stitch, coordinates and design file directory, etc. Edit embroidery design, edit design online. The machine has the function of thread break detection with high sensitivity. Automatic adjust design size and the position of sewing bed. X/Y use servomotors to start with the high precision and flexible credible characteristics. The machine-head is controlled by double servomotors; the running noisy of machine is low.

1

The Chinese and English versions of the computer are easy to operate.

2

Needle speed, needle distance, pattern, etc. can be adjusted at will.

3

Using disconnection detection, automatic return, automatic repair and other functions.

4

The working status of the computer screen can be tracked and displayed with discoloration, and the output can be automatically accumulated.

5

Various sizes can be customized according to user needs.

Item

LCD Quilting machine

Model

JC-2224

JC-2426

JC-2628

JC-2830

Machine size

2.8*2.8*1.4

3.0*3.0*1.4

3.2*3.2*1.4m

3.4*3.4*1.4m

Max quilting size

2.2*2.4

2.4*2.6

2.6*2.8m

2.8*3.0m

Type of quilting

Double wire

Thickness

1500g/sqm

Max needle speed

1300/min

Needles distance

2-10mm

Power

220v 50-60hz

Weight

500kg

550kg

600kg

650kg

Item

New Servo Self Trimming Quilting Machine

Model

JC-SFJX2224

JC-SFJX2426

JC-SFJX2628

JC-SFJX2830

Machine size

2.8*2.9*1.4

3.0*3.1*1.4

3.2*3.3*1.4m

3.4*3.5*1.4m

Max quilting size

2.2*2.4

2.4*2.6

2.6*2.8m

2.8*3.0m

Type of quilting

Double wire

Thickness

1500g/sqm

Max needle speed

2400/min

Needles distance

2-8mm

Power

220v 50-60hz

Weight

650kg

700kg

750kg

800kg

Function

1: The cam circular knife is used for cutting, and the cutting speed is fast. 2: Direct drive nose and direct drive bottom seat. 3: The maximum speed is 2400, so that no deceleration is achieved when cornering. 4: Using 8-inch QC800 full touch screen, Chinese and English can be switched at any time.

Note: More models and optional configuration please contact whatsapp/wechat +86 15188312930
