Измельчитель бутылок для отходов пива на заказ бытовая маленькая дробилка
- Категория: Plastic Recycling Machinery >>>
- Поставщик: Jiangxi,Province,County,Mining,Machinery,Factory
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-19-2025 | 1190.97 $* | 1250.34 $* |
| Aug-19-2025 | 1180.64 $* | 1239.45 $* |
| Jul-19-2025 | 990.85 $* | 1040.96 $* |
| Jun-19-2025 | 1160.32 $* | 1218.35 $* |
| May-19-2025 | 1010.42 $* | 1061.26 $* |
| Apr-19-2025 | 1140.45 $* | 1197.94 $* |
| Mar-19-2025 | 1130.18 $* | 1187.85 $* |
| Feb-19-2025 | 1120.32 $* | 1176.17 $* |
| Jan-19-2025 | 1110.7 $* | 1166.96 $* |
Характеристики
Product Description
We can produce all kinds of Glass Bottle Crusher
The Glass Bottle Crusher GB series are special design for shredding glass bottle, which can reduce the volume of glass bottles by 75%, thus greatly saving storage space. Our glass bottle crusher is widely used in bars, restaurants, hotels, kitchens and supermarkets, on the ship/boat and other offshore installations and marine situation. We have glass bottle shreddr model GB101, GB201, GB301, GB401 and Hammer Crusher, please refer the information as below.
GB101
GB201
GB301
GB401
Hammer crusher

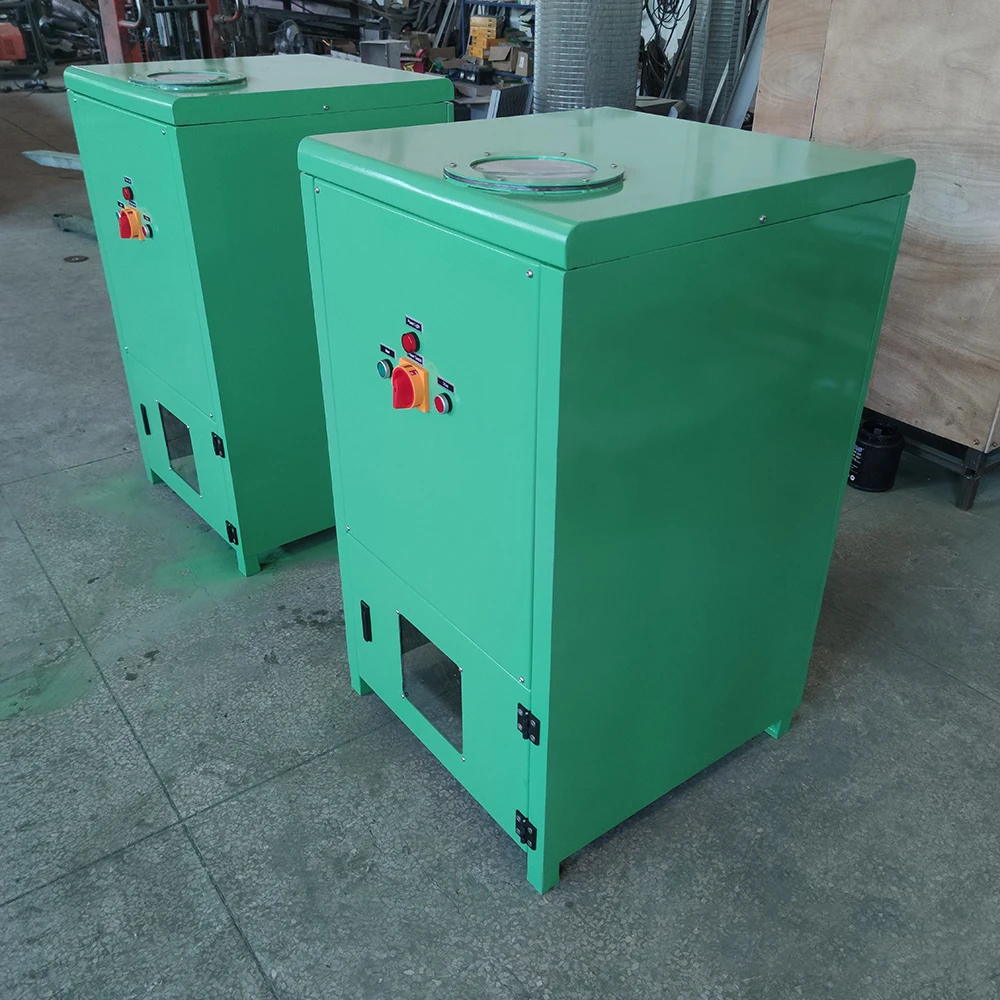

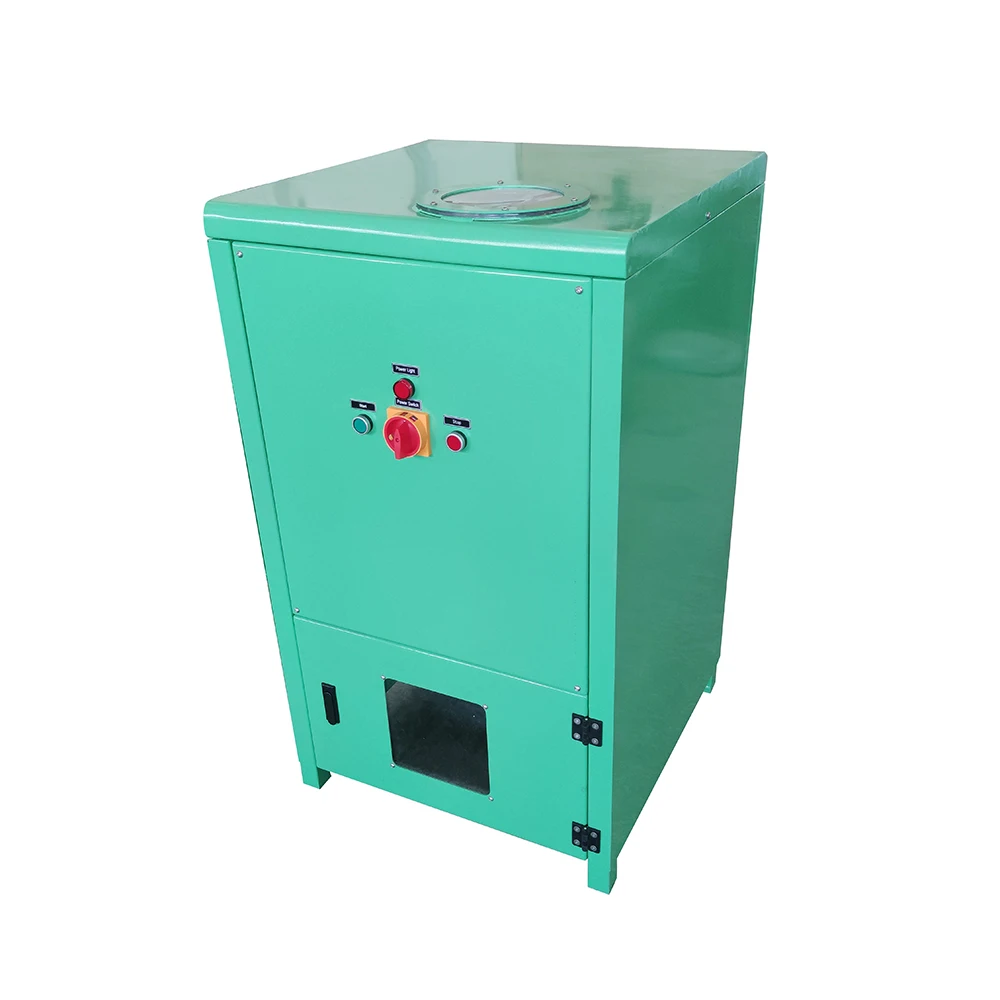

GB101 - Glass Bottle Crusher
Overview
1. Compact structure, good appearance
The Glass bottle crusher is a powerful crusher in a small package that safely crushes waste glass bottle into sand.
Features
1. Compact structure, good appearance
2. One by one feeding
3. 5-10 pcs bottles per minute
4. Completely maintain material’s physical status
5. Reduces the volume of glass bottles by 75%
6. Small size, easy to move
7. Safe and easy to operate
8. High efficiency
9. Easy to maintain
Technical data
Model | GB101 |
Power | 1.5KW |
Voltage | 220V/50Hz/Optional |
Method | Low speed shear type broken, high efficiency, low dust; |
Tool material | High quality alloy steel material; |
control box | All electrical components are CE certification, stable performance, long service life; |
Processing capacity | 150 ~ 200 kg / h; |
Machine material | The main body is made of carbon steel, the tool adopts high quality alloy steel; |
Discharge size | 5~15mm； |
Inlet size | 200mm*200mm |
Dimensions | 400*600*1200mm |

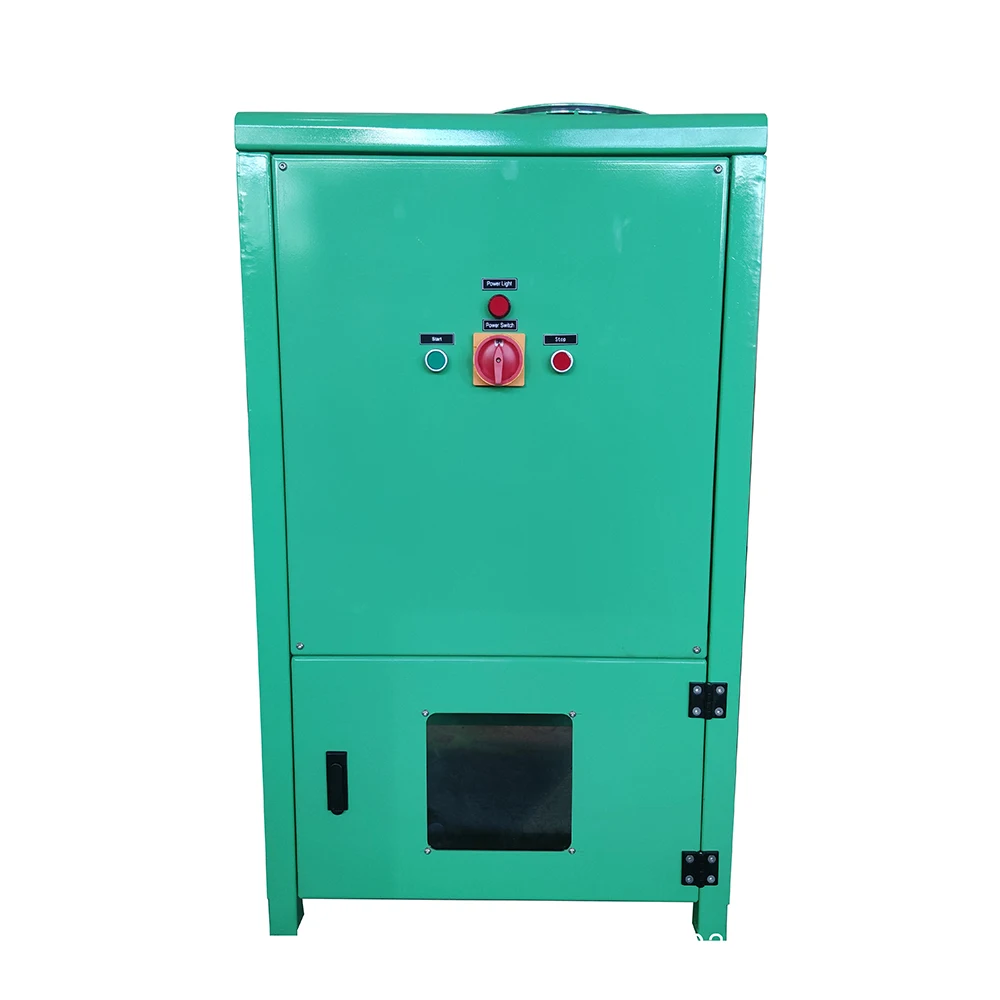

GB201 - Glass Bottle Crusher
Overview Glass bottle crusher model GB201 the ideal hand-fed quiet operation glass bottle crusher for small recycling and business
applications. Ranging from an under counter crusher for smaller boutique bars, hotels. GB201 install 1.5KW electrical motor and 160mm diameter feeding mouth, it is suitable for the glass bottle which has size as similar as beer bottle, the feeding mouth has thick plastic cover, not only effectively prevent glass flakes bound out, but also dust-proof. We can provide customized made screen to control the final flakes size up to 1mm, after crushing, the final glass flakes like the sand.
applications. Ranging from an under counter crusher for smaller boutique bars, hotels. GB201 install 1.5KW electrical motor and 160mm diameter feeding mouth, it is suitable for the glass bottle which has size as similar as beer bottle, the feeding mouth has thick plastic cover, not only effectively prevent glass flakes bound out, but also dust-proof. We can provide customized made screen to control the final flakes size up to 1mm, after crushing, the final glass flakes like the sand.
Technical data
Model | GB201 |
Power | 1.5KW |
Voltage | 220V/50Hz/Optional |
Crushing Form | High-speed rotary crushing |
Crushing speed | 1450 RPM |
Tool material | High quality alloy steel material; |
control box | All electrical components are CE certification, stable performance, long service life; |
Processing capacity | 150 ~ 200 pcs / h |
Machine material | The main body is made of carbon steel, the tool adopts high quality alloy steel; |
Discharge size | 8~20mm(Powder) |

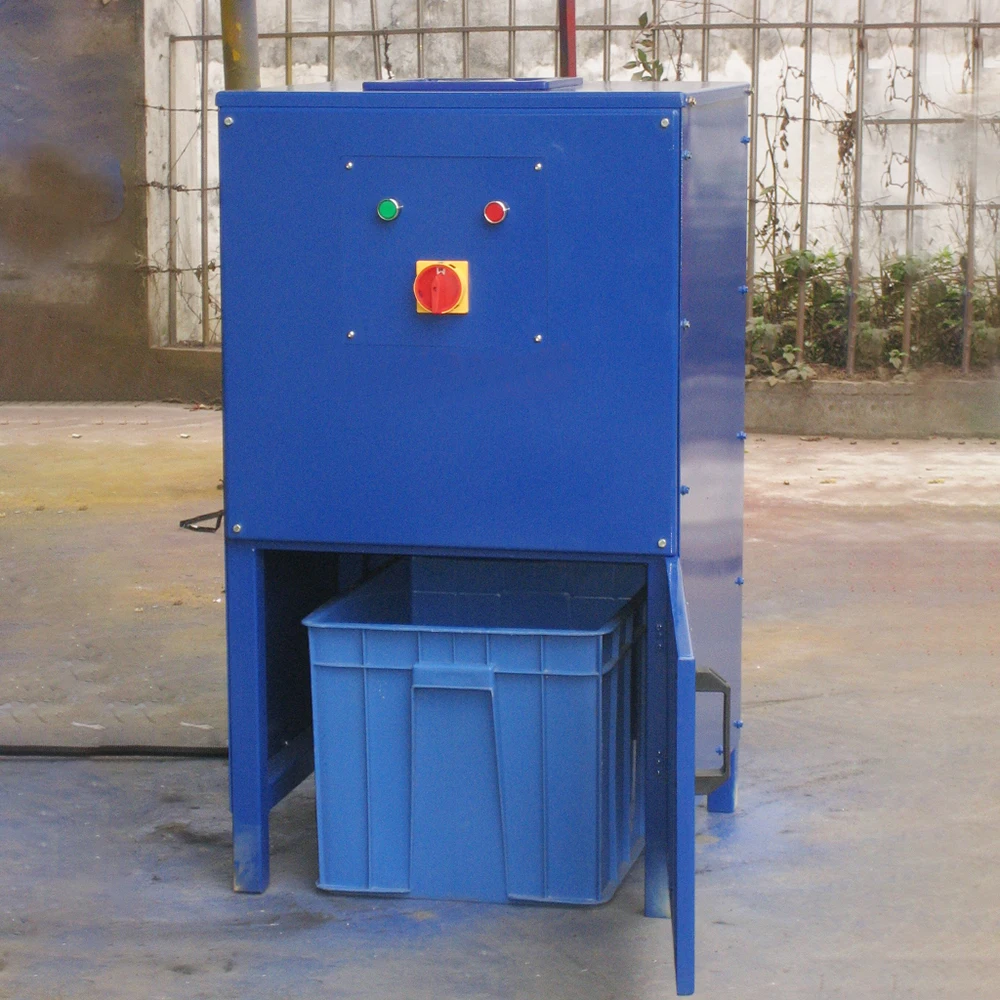

GB301 - Glass Bottle Crusher
Overview
Vaccines Glass Bottle Crusher model GB301 is special design for crushing Ampoule small glass bottle, Penicillin small glass bottle, Vaccines small glass bottle, the physical broken prevent the vaccines glass bottle to be reused. GB301 install 1.5KW electrical motor and 200×200 mm feeding mouth, “Z” type feeding chute not only prevent the small glass particles jump out but also well protect the operator hand. After crushing, the glass flakes size is about 10mm.
Technical data
Technical data
Model | GB301 |
Voltage | 1~220V/50Hz |
Power | 1.5KW |
Plastic Filling Box | 500mm*400mm*360mm |
Feeding port diameter | 220*220mm |
Dimensions | 600mm*600mm*1000mm |
Processing Capacity | 300KG/Hrs |
Discharge size | normally : 20~50mm,or customized |
Machine Weight | 130KG |

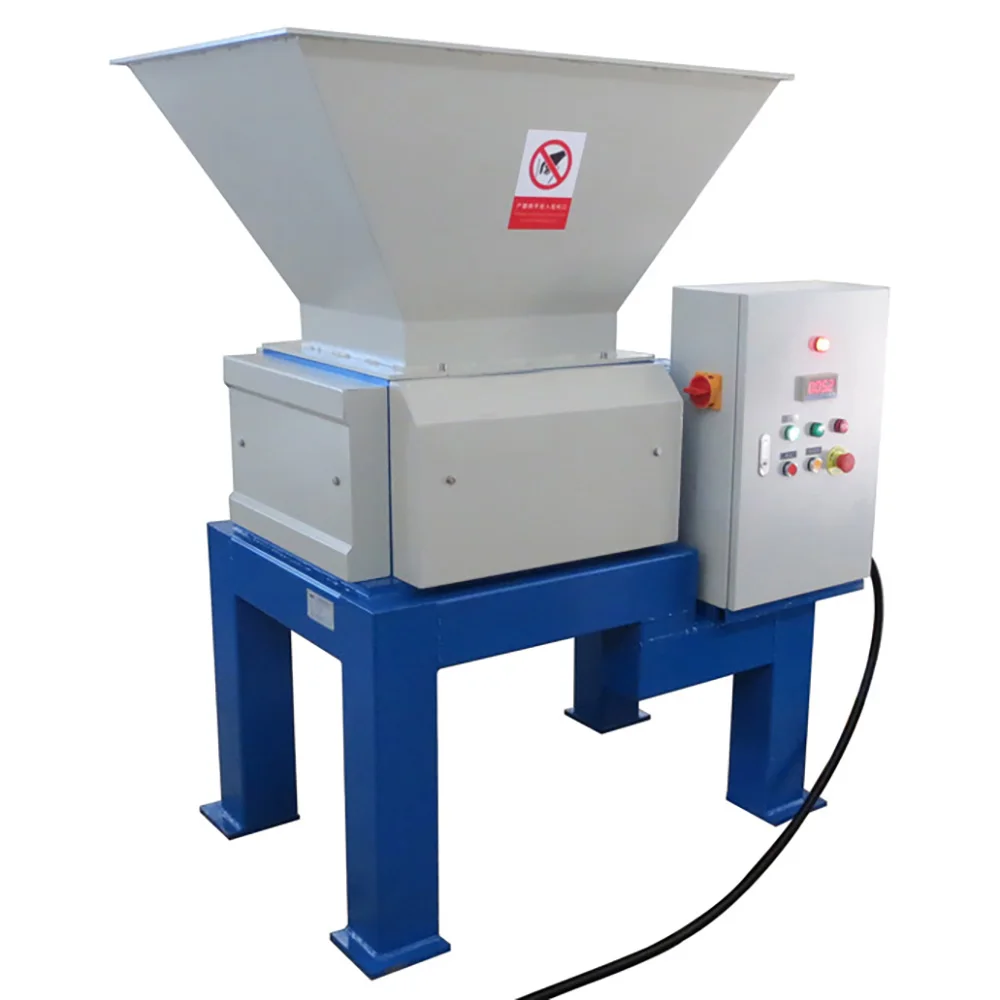

GB401 - Glass Bottle Crusher
Overview
Glass Bottle Crusher Model GB401 can accept big quantity glass bottles feeding, bath by bath, GB401 install electrial motor 7.5KW and it can crush 50-100 pieces glass bottles in 1 minutes, we customized made cutter and spacer in order to cut the glass bottles efficiently but with little wearing. After crushing, the glass bottle flakes is about 10-50mm.
Technical data
Technical data
Model | GB401 |
Power | 7.5kw |
Voltage | 380V/50Hz/3 phase or customized |
Method | Low speed shear crushing, high efficiency and low dust; |
Tool material | High quality alloy steel material; |
control box | All electrical components are CE certification, stable performance, long service life; |
Processing capacity | 1000~1500 pcs/h; |
Machine material | The main body is made of carbon steel, the tool adopts high quality alloy steel; |
Discharge size | 30~50mm； |
Capacity | 1000~1500 pcs/h； |
Knife box size | 380mm*360mm |
Total Weight | 750 kg |
Dimensions | 1100*960*1600mm |
Hammer Crusher
Overview
Hammer crusher is a crusher which can directly crush the materials with the maximum particle size of 600-1800 mm to 25 or below 25mm. Hammer crusher is a powerful crusher in a small package that safely crushes waste glass bottle into sand.
Technical data
Technical data
Model | Input size(mm) | Output size(mm) | Capacity(t/h) | Power(kw) | Weight(t) |
PC400*300 | <100 | <10 | 5-10 | 11 | 0.8 |
PC600*400 | <120 | <15 | 10-25 | 18.5 | 1.5 |
PC800*600 | <120 | <15 | 20-35 | 55 | 3.10 |
PC1000*800 | <200 | <13 | 20-40 | 110 | 7.90 |
PC1000*1000 | <200 | <15 | 30-80 | 132 | 8.65 |
PC1300*1200 | <250 | <19 | 80-200 | 240 | 13.60 |
Packing and Delivery
◆ Ways of packing
1.Small parts packed in the wooden cases
2.Big parts packed by plastic membrane
3.The whole big machine is loaded in the container
3.The whole big machine is loaded in the container
◆ Shiping by sea/air freight
1. Usually our mining machines are shipped in 40'HQ or Flat Containers by sea.
2. Our mining equipments can be also shipped by air if customers request.
2. Our mining equipments can be also shipped by air if customers request.
