Titanhi Самый дешевый мини-экскаватор TL45E 4 5 t rc гидравлический экскаватор землеройная машина
- Категория: Excavators >>>
- Поставщик: Weihai,Titan,Heavy,Machinery,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-17-2025 | 32725.47 $* | 34361.35 $* |
| Aug-17-2025 | 32450.48 $* | 34073.0 $* |
| Jul-17-2025 | 27225.52 $* | 28586.82 $* |
| Jun-17-2025 | 31900.71 $* | 33495.10 $* |
| May-17-2025 | 27775.54 $* | 29164.7 $* |
| Apr-17-2025 | 31350.46 $* | 32918.2 $* |
| Mar-17-2025 | 31075.78 $* | 32629.13 $* |
| Feb-17-2025 | 30800.65 $* | 32340.28 $* |
| Jan-17-2025 | 30525.30 $* | 32051.55 $* |
Характеристики
Product Description

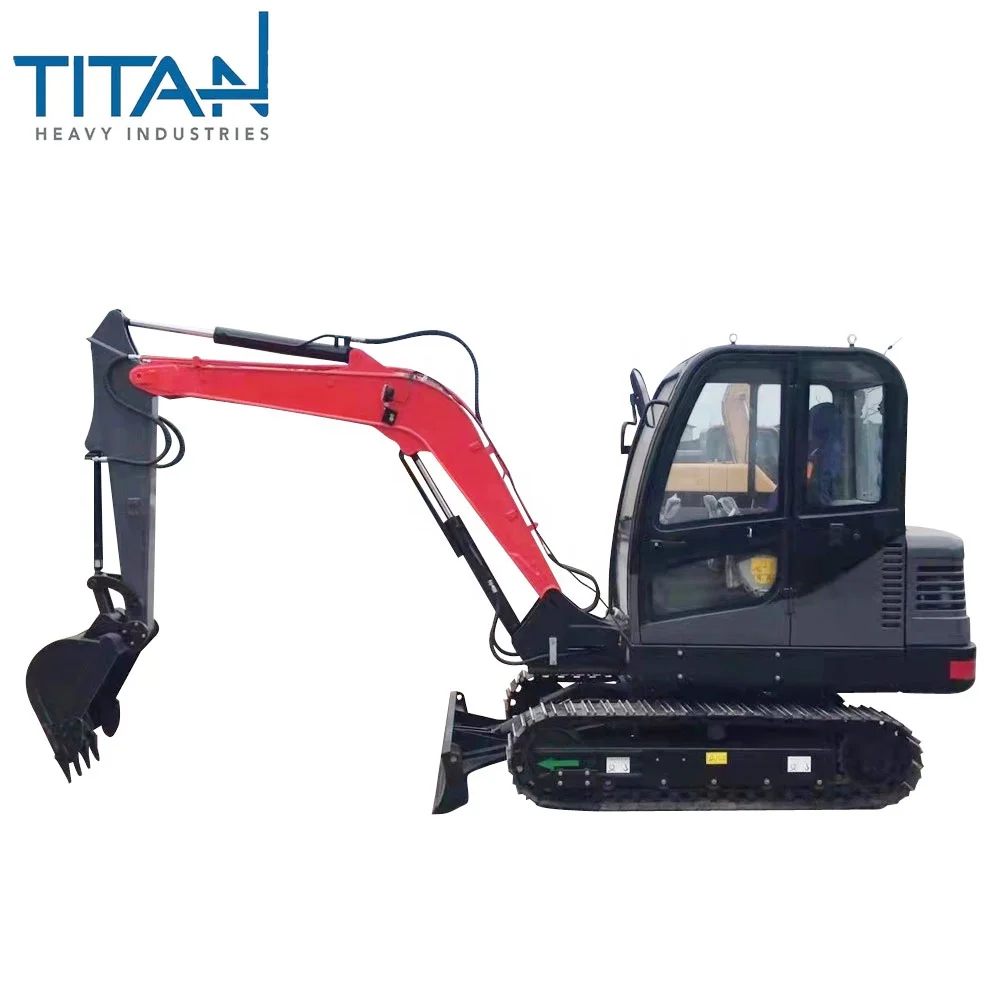

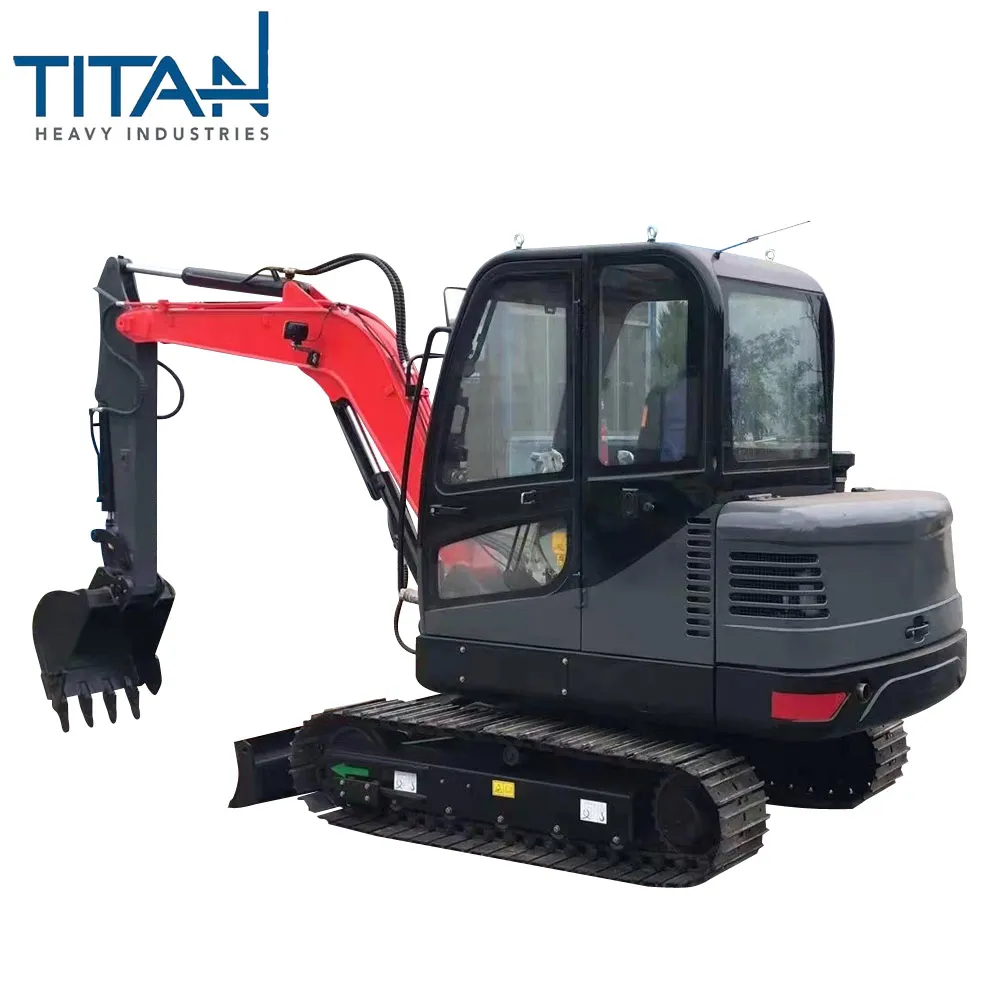

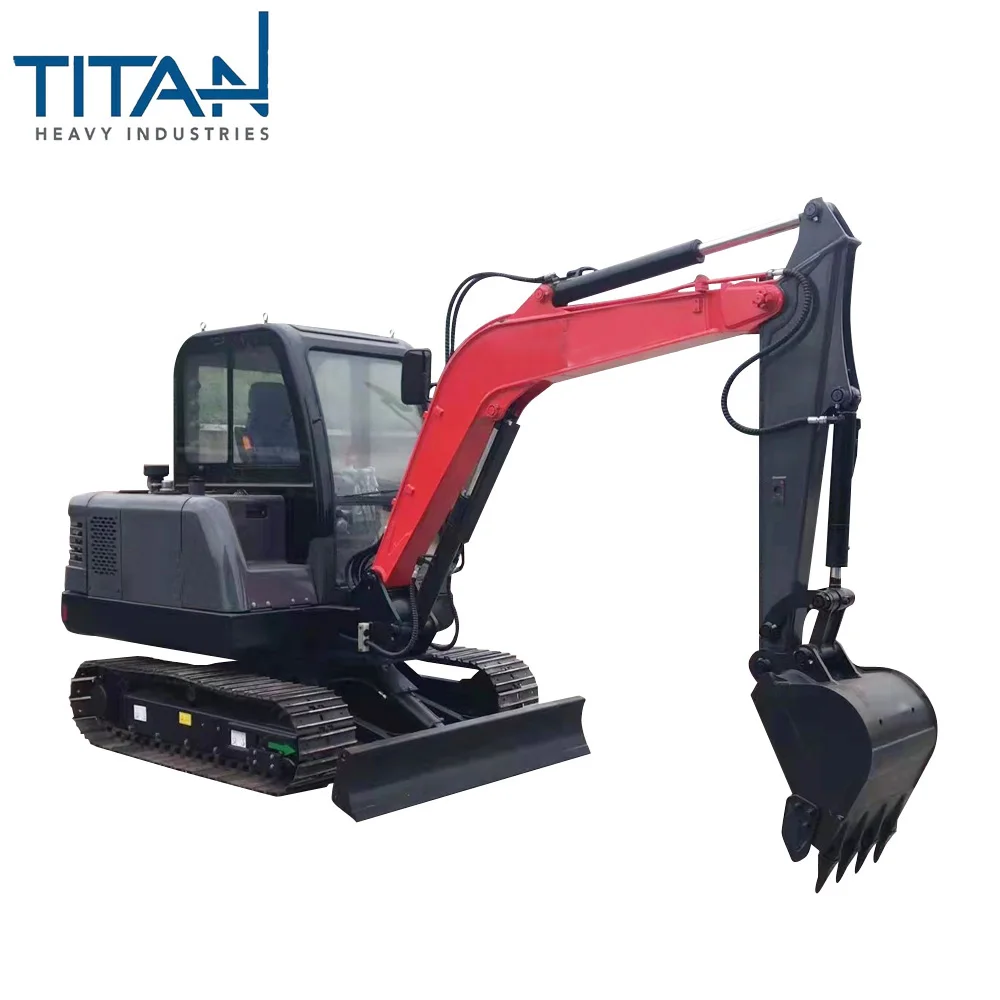

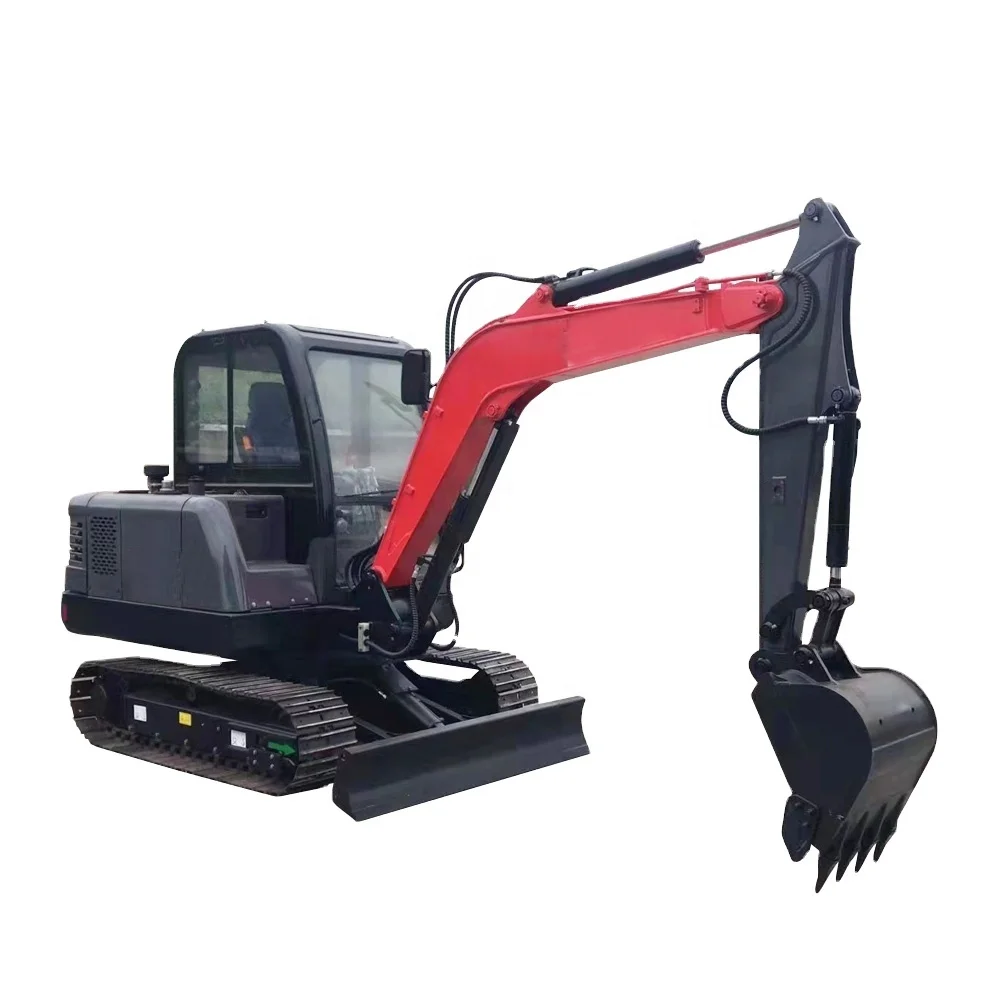

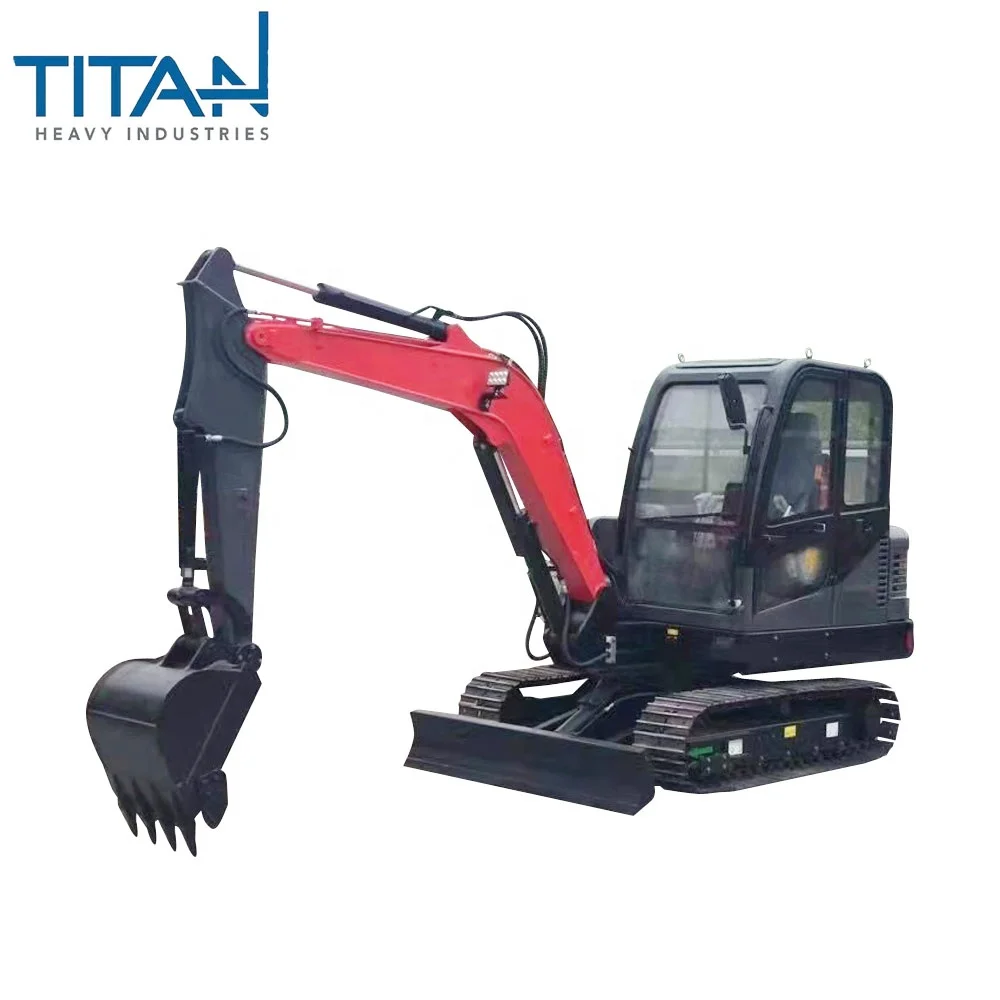

Titanhi cheapest mini excavator Excavator TL45E 4.5t rc hydraulic excavator digger Bulldozer for sale
Titan 4.5ton excavator owns beautiful appearance, high configuration, superior performance, low fuel consumption, wide operating range. It is suitable for loosing soil of vegetable green house, campus greening of municipal departments, digging the hole for tree planting of Fruit-land Nurseries, concrete pavement crushing, sand-gravel material mixing, construction work on the narrow place and so on. Use the quick hitch can add the attachment tools like auger, hydraulic hammer, loading bucket, gripper and so on. It can reduce maintenance and operating costs. Liberate the workforce, improve the mechanization, low investment, high return.
Specification
Engine | ||
Model | Yanmar 4TNV88 | |
Type | Direct injection, water cooled, natural intake | |
No. of cylinder | 4 | |
Bore and stroke | 88X90(mm) | |
Displacement | 2.19L | |
Power output | 25.2kw/2200rpm | |
Max. torque | 142N.m/1200rpm | |
Travel System | ||
Support roller quantities | 2*5 | |
Carrier roller quantities | 2*1 | |
Travel shoes | 2*35 | |
Travel speed | 2.7/4.4(km/h) | |
Drawbar pulling force | 35kN | |
Gradeability | 58%(30°) | |
Track shoes thickness | 6mm | |
Hydraulic System | ||
Pump | KYB, Japan | |
Type | Axial-piston pump+gear pump | |
Max. discharge flow | 128 (L/min) | |
Cab | All-weather, sound-suppressed Cab and equipped with a heavy, insulated Floor Mat， Front Window can be opened and slided; adjustable Seat; LED display, Automatic monitoring, display | |
Voltage | 12v | |
Batteries | 1*12v | |
Battery capacity | 80Ah | |
Max. Discharge Pressure | ||
Boom, arm and bucket | 24.5MPa | |
Travel circuit | 15.7MPa | |
Swing circuit | 15.7MPa | |
Control circuit | 3.9MPa | |
Pilot control pump | Gear Type | |
Main control valves | KYB, Japan | |
Oil cooler | Air cooled type | |
Boom, arm and bucket | ||
Boom cylinder | Φ90xΦ50xS552-L915 | |
Arm cylinder | Φ85xΦ50xS580-L920 | |
Bucket cylinder | Φ55xΦ30xS300-L560 | |
Refilling Capacity & lubrication | ||
Fuel tank | 82L | |
Cooling system | 12L | |
Engine oil | 6L | |
Hydraulic oil tank | 59L Tank Oil Level | |
85L Hydraulic System | ||
Swing System | ||
Swing motor | KYB, Japan | |
Swing motor type | Axial-piston motor | |
Brake | Hydraulic oil released | |
Parking brake | Hydraulic disc brake | |
Swing speed | 12 r/min | |
Bucket | ||
Bucket capacity | 0.17m3 (SAE) | |
Bucket capacity scope | 0.069-0.24m3 | |
Number of bucket teeth | 4 | |
Bucket width | 640mm | |
Boom length | 2650mm | |
Max. digging height | 5030mm | |
Max. dumping height | 3390mm | |
Max. digging depth | 3390mm | |
Max. vertical digging depth | 2545mm | |
Max. digging distance | 5523mm | |
Max. digging radius at ground level | 5413mm | |
Min swing radius of work equipment | 2406mm | |
Overall length | 5385mm | |
Ground contact length | 3512mm | |
Overall width | 1750mm | |
Overall height(to top of boom) | 1783mm | |
Overall height(to top of cab) | 2455mm | |
Counter weight ground clearance | 600mm | |
Track grounding length | 1710mm | |
Track length | 2190mm | |
Track gauge | 1400mm | |
Track width | 1750mm | |
Track Shoe width | 350mm | |
Counter weight height | 850mm | |
Min Ground clearance | 350mm | |
Tail swing radius | 1561mm | |
Revolving frame width | 1600mm | |
Distance from swing center to tail | 1561mm | |
Operating Weight and Ground Pressure | ||
Operating weight(includes basic machine) | 4200kg | |
Ground pressure | 36 KPa | |
Certifications
Detailed Images
Packing & Delivery
Recommend Products
Our team won the strength business award for its excellent performance in the compettion.Selling well in all cities and provinces around China, our products are also exported to clients in such countries and regions as Australia, European East and South Asia, North and South America, etc. We also welcome OEM and ODM orders.
Weihai Titan Heavy Machinery Co. Ltd
Weihai Titan Heavy Machinery Co. Ltd is a professional manufacturer engaged in the research, development, production, sale and service of wheel loader, excavator and forklift.
In addition, we have obtained many kinds of certificates SGS, ISO CE etc. Whether selecting a current product from our catalog orseeking engineering assistance for your application, you can talk to our customer service center about your sourcing requirements.
We sincerely thank all the friend’s support at home andabroad, look forward to establish development business cooperation with you, hand in hand advances boldly, create prosperity.
Our agent is interviewed by local TV station,give you a reason why choose titan.we provide our agents with technical support,service suport,exhibition support,price support,quality support and help them to open the local market and establish long-term cooperation.
FAQ
Q: Why choose Titan?We sell every machine at a fair price.As our production increases,we are getting much support from the purchase source of raw
meterial.
We leave the maximum profit to customer.
1) Titan: an experienced loader manufacturer with over 11 years.
2) Titan team: customers-focused,you'll get reply within 5 minutes.
3)Titan: premium quality with reasonable price.
4) Titan: CE,BV,SGS,ROPS and FOPS,ISO9001:2008 varified.
The quality control is not an empty word in TITAN.Our products are tested and granted CE cetificate.
Q: What is Titan warranty?
TITAN has a professional sales and after-service team.We are trying our best to make a good service for every customer.
1) Titan after-sales: life-long, meantime offer one year and one month warranty.
2) Titan proposal: order some wearing parts with loader for easy maintenance.
Q:What about Titan delivery term?
TITAN Transport packsging team helps our customer to transport their machine in safe and secure way without any damage.
10-20 days after down payment received.
Q:What about the payment term?
30% advance payment,70% balance T/T
