FSAN H.265 2MP IMX307 CMOS датчик системы камеры безопасности печатная
- Категория: PCB & PCBA >>>
- Поставщик: Shenzhen,Fsan,Intelligent,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Aug-18-2025 | 17.80 $* | 17.39 $* |
| Jul-18-2025 | 13.30 $* | 13.47 $* |
| Jun-18-2025 | 16.9 $* | 16.67 $* |
| May-18-2025 | 16.30 $* | 16.13 $* |
| Apr-18-2025 | 13.4 $* | 13.59 $* |
| Mar-18-2025 | 16.24 $* | 16.27 $* |
| Feb-18-2025 | 16.86 $* | 16.95 $* |
| Jan-18-2025 | 16.23 $* | 16.0 $* |
Характеристики

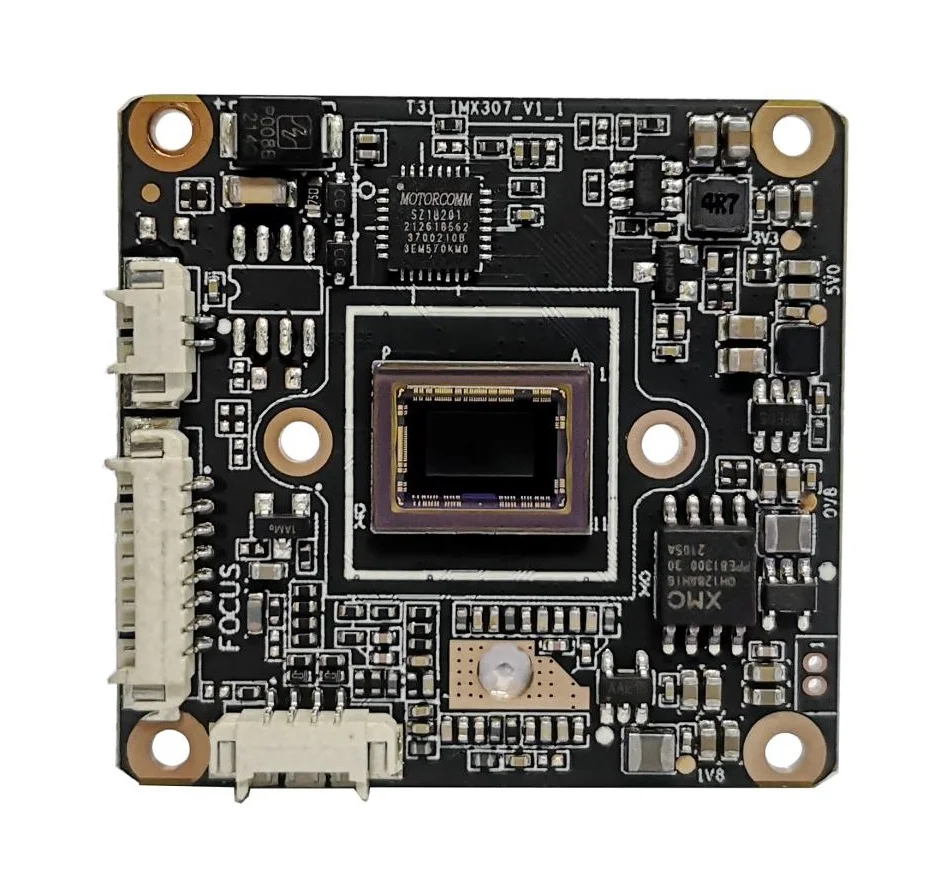

H.265 2.0MP Low Illumination Humanoid Detection 38*38 Single Board IP Camera Module
Product Description
Ø Resolution 3mp(2304x1296@25fps) 2mp(1920*1080@25fps)
Ø Built-in Humanoid Detection algorithm;
Ø Detection frame 5fps, detect 5 people at the same time;
Ø Low consumption, low code stream, low delay;
Ø H.265 compression format, save bandwidth and storage space;
Ø Support Smart IR to avoid Infrared over-exposure at night;
Ø Support ICR auto switch, achieve best result for D&N video;
Ø Support PoE (option)
Ø Support 3D DNR and digital WDR;
Ø Support to extend IO board,TF card(512G)(option)
Ø Support to extend full function IO board:WIFI, RS485, Alarm, Reset(option)
Ø Support auto-electronic shuttle to suit different surveillance environment
Ø Support two-way audio intercom
Ø Change the password during initial use to ensure the security of the password
Product Parameter
Camera Module-W613D-M | |
Sensor | Color 1/2.8" 3MP Low Illumination CMOS Sensor |
Lens | Support motorized lens |
D&N | ICR Switch, Auto/Color/B&W/CDS Trigger |
D-WDR | WDR (off/low/middle/high) |
IR Led Control | IR/warm/dual light, Auto/Manual/Off |
3D DNR | Off/Low/Middle/High/Higher |
Defog | Off/Low/Middle/High |
Mirror | Off/ Horizontal Mirror/Vertical Mirror/180-degree flip |
Image Setting | Brightness, Contrast, Sharpness, Saturation, Chroma |
Humanoid Detection | |
Detection Quantity | ≤5 people humanoid |
Humanoid Size | Humanoid Pixel ≥ 40*40 |
Detection Ratio | ≥99% (meet above requirement) |
Capture Corresponding Speed | ≤1s |
Max Detection Frame | 5fps/s |
Fault Detection Ratio | ≤2% |
Detection Part | People with any posture including half body, head, hand, shoulder |
Track People | Support |
Detection Mode | Support static and dynamic humanoid detection |
Detection method | Image detection during day time or night time with lights or IR LEDs |
Detection Area | Appointed area, default full-screen |
Upload Method | Upload it under private protocol |
Trigger Method | Video trigger |
Audio & Video Encoding | |
Video Encode Standard | H.265/H.264 |
Encoding Feature | Main stream: 3MP 2304*1296@25fps, 2MP 1920x1080@25fps Sub-stream: D1(720*576), VGA (640*360) |
Max resolution | 3MP 2304*1296@25fps |
Video Code Rate | Fixed code rate, variable code rate (Main stream: 160Kbps-4000kbps) |
Video Type | Composited stream/video stream |
Audio Standard | G.711u / 64Kbps |
Network Function | |
Protocol | TCP/IP, UDP, HTTP, HTTPS, DHCP, RTSP, DDNS, NTP, PPPOE, UPNP, SMTP |
Security Mode | Authorized user name and password, HTTPS encryption, AES connecting encryption, RTSP verification |
Motion Detection | Set detection area, can set multi-level sensitivity |
Privacy Mask Alarm | Support 1 area |
Privacy Mask | Support 4 areas |
Schedule Linkage | Snapshot, email |
Device abnormal Inspection | Support network broken alarm, IP conflict alarm, illegal visiting alarm |
Character Overlay (OSD) | Title, time and date overlay, multi-line, and color of characters optional |
Port | |
Network Port | RJ45 10M/100M network self-adaptation |
Audio | MIC Input/ Output |
| IO Port | TF card, 1 input and 2 output alarm,reset,RS485 |
USB Port | Support USB WIFI/4G module to connect |
General | |
Power Supply | DC12V /PoE (option) |
Size | 38*38mm |
Working Temperature | -10°C ~ 50°C |
Working Humidity | 0%~90% |
