Промышленный регулятор давления Huatian CYBK0105 цифровой датчик воды с
- Категория: Pressure Switches >>>
- Поставщик: Tianshui,Huatian,Sensor,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-15-2025 | 0.84 $* | 0.46 $* |
| Aug-15-2025 | 0.6 $* | 0.46 $* |
| Jul-15-2025 | 0.21 $* | 0.33 $* |
| Jun-15-2025 | 0.66 $* | 0.18 $* |
| May-15-2025 | 0.5 $* | 0.36 $* |
| Apr-15-2025 | 0.30 $* | 0.20 $* |
| Mar-15-2025 | 0.37 $* | 0.86 $* |
| Feb-15-2025 | 0.69 $* | 0.11 $* |
| Jan-15-2025 | 0.86 $* | 0.42 $* |
Характеристики
Huatian Industrial Pressure Controller CYBK0105 Digital Water Pressure Gauge Switch With Ce Certificate
Products Description
CYBK0100 SERIES PRESSURE STWICH

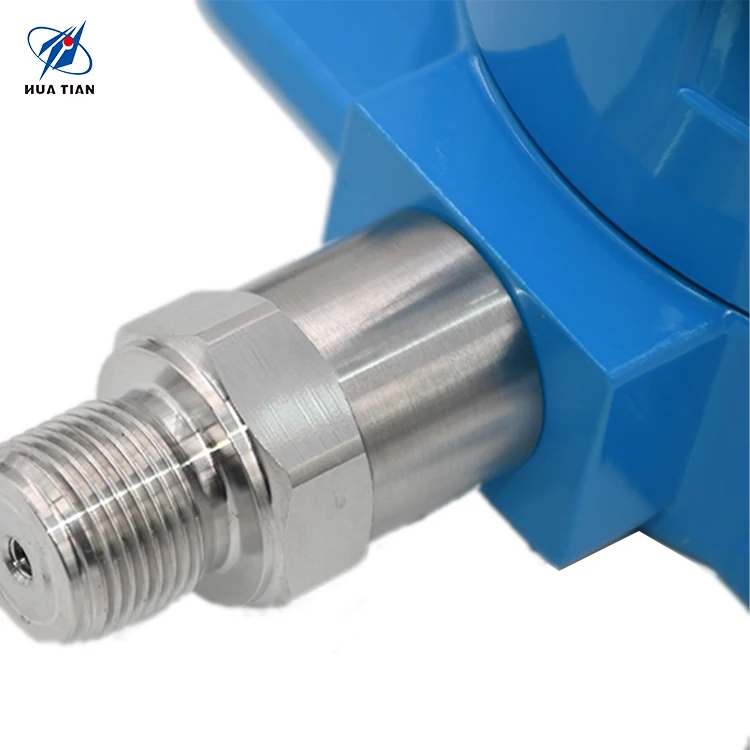

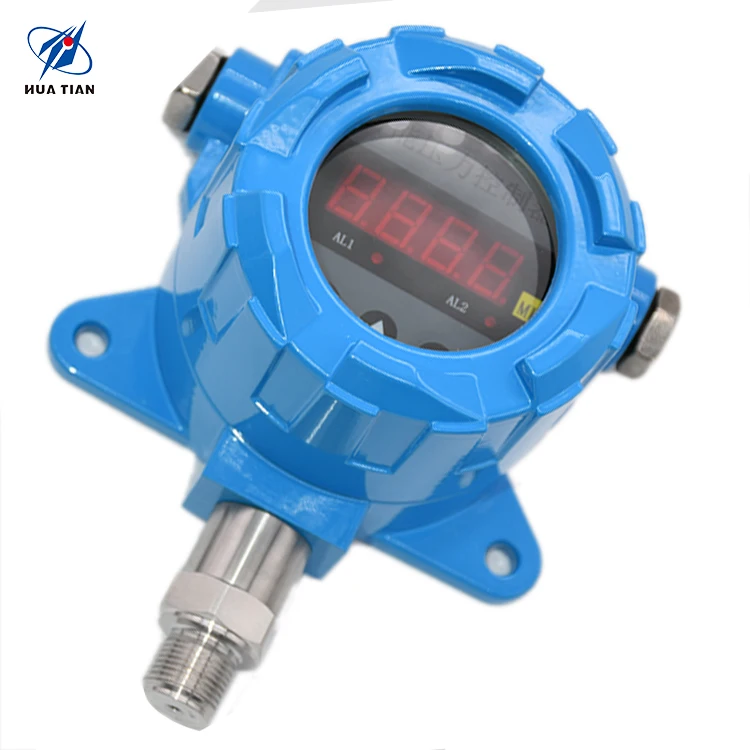

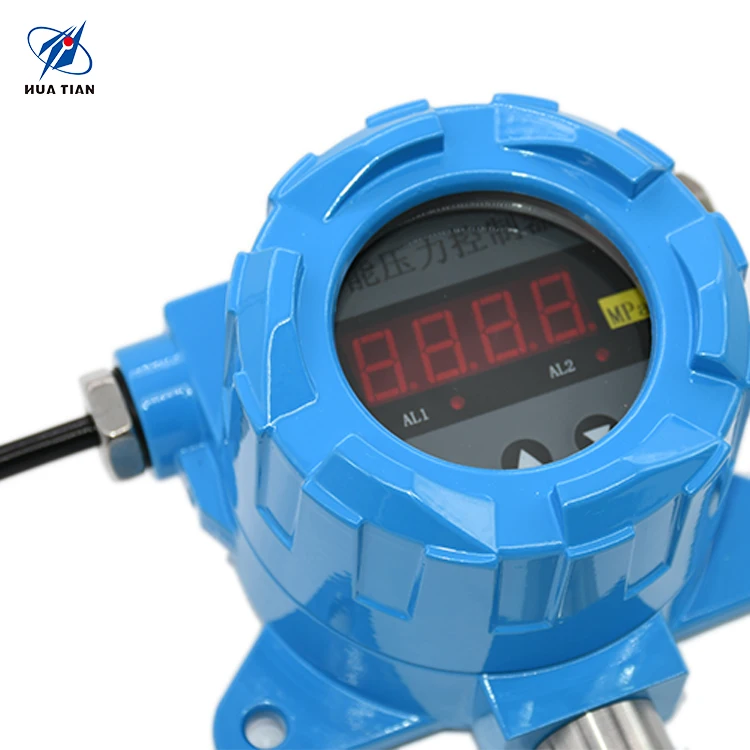

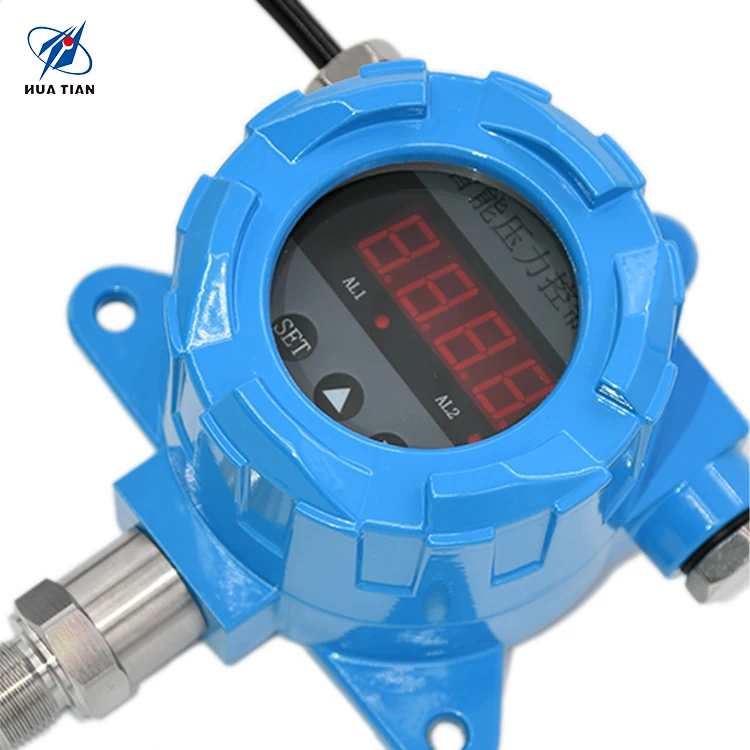

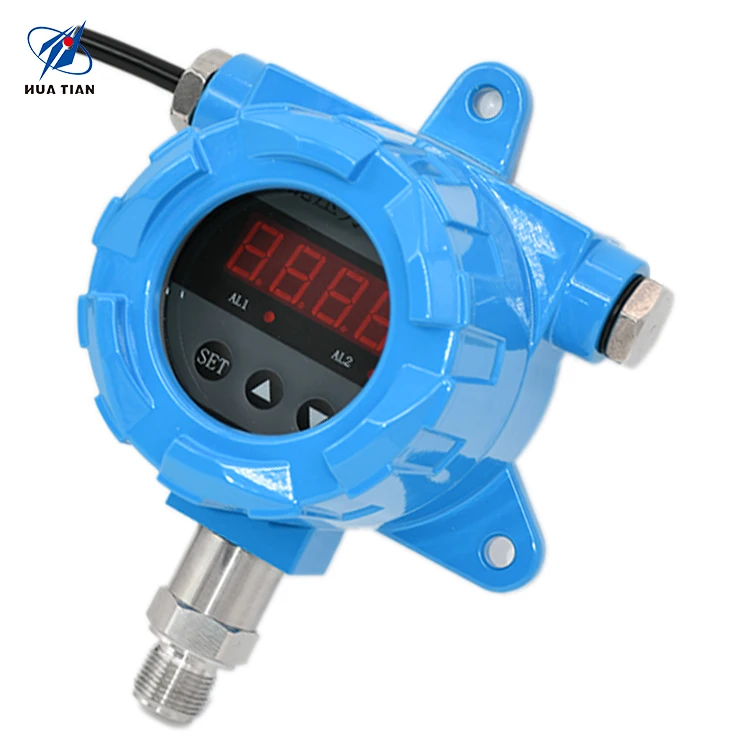

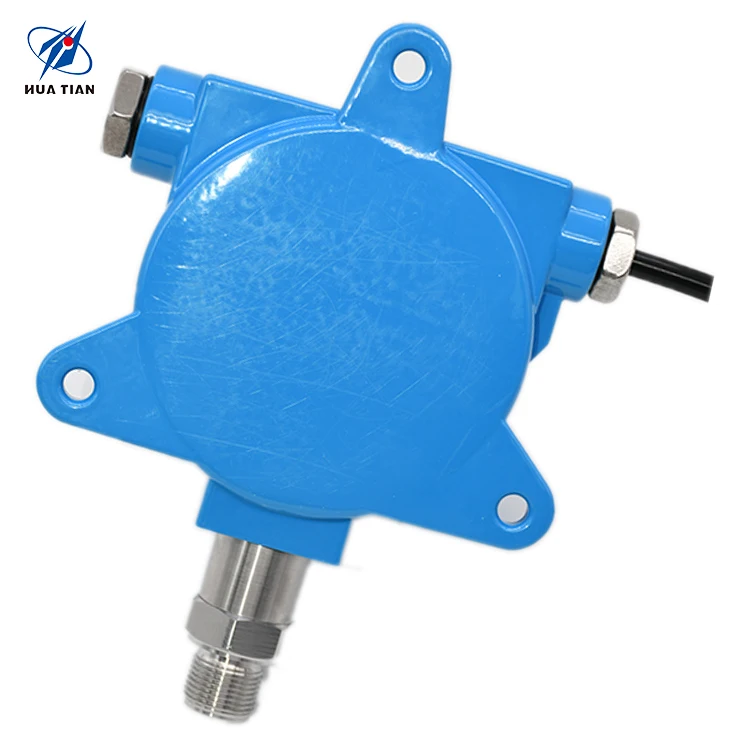

Details Images
Features And Application
◆ The meter key can be adjusted and set freely
◆ Adjust without dead zone
◆ Full range optional
◆ High stability and reliability
◆ Adjust without dead zone
◆ Full range optional
◆ High stability and reliability
Product Paramenters
Range | -0.1MPa…0kPa～10kPa…100MPa | ||||||
Overload pressure | Below 10MPa ≤ 2 times full scale | 10MPa and above ≤ 1.5 times full scale | |||||
Pressure type | G（Gage）、A（Absolute）、S（Seal gauge） | ||||||
Accuracy level | 0.1（Customized） | 0.25（Typical） | 0.5（Maximum） | ||||
Long term stability | ±0.1%FS/year（Typical） | ±0.2%FS/year（Maximum） | |||||
Zero temperature drift | ±0.03%FS/℃（≤100kPa） | ±0.02%FS/℃（＞100kPa） | |||||
Sensitivity temperature drift | ±0.03%FS/℃（≤100kPa） | ±0.02%FS/℃（＞100kPa） | |||||
Compensation temperature | 0℃～50℃（≤100kPa） | -10℃～70℃（＞100kPa） | |||||
Medium temperature | -40℃～80℃ | ||||||
Suppply Voltage | 15VDC～30VDC | ||||||
Output signal | Relay output | Relay output +4mA～20mA | High and low level output | ||||
Load resistance | Current type：≤（U-12）/0.02(Ω) | ||||||
Protection level | IP65 | ||||||
Application
The products are widely used in coal, petroleum, medicine, civil explosive, chemical, electric power, metallurgy, light industry, food, water conservancy, military industry and other fields.
● liquid level measurement
● gas and liquid pressure measurement
● gas and liquid pressure measurement
● pressure detection and calibration instrument
● pressure switch and hydraulic system
● pressure switch and hydraulic system
● well monitoring
● refrigeration equipment and air conditioning system
● refrigeration equipment and air conditioning system
● fire Internet of things
