Характеристики
Products Description

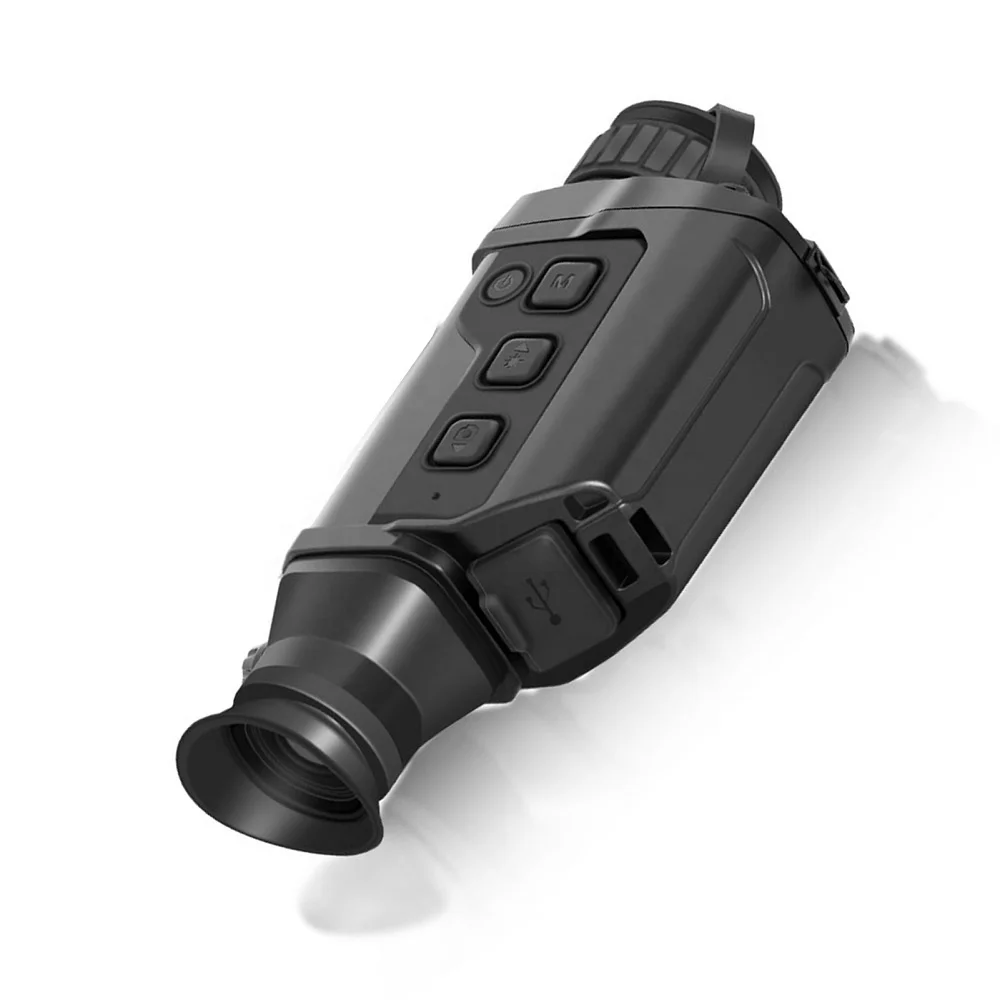

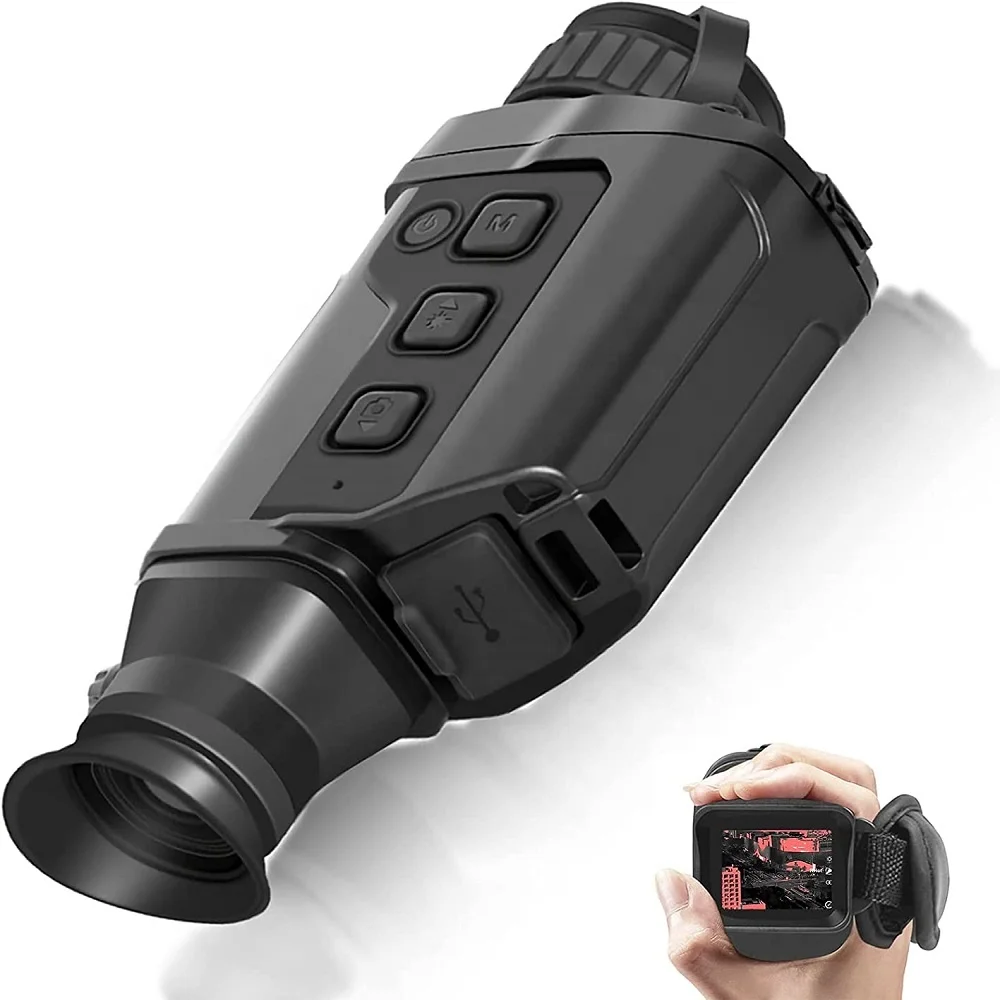

1000M IP66 Outdoor Hunting Night Vision 35mm Infrared Thermal Imager Monoculars Thermal Imaging Rifle Sopes
Feature
● Takes advanced uncooled focal plane infrared detector and high-quality optical lens;
● 1280x960 HD pixels
● Laser distance measurement
● 6 hours working time, IP66 Protection level
● Provide 4 palettes: Black Hot, White Hot, Red Hot, Pseudo-Color● Support Picture-in-Picture, Laser Ranging, Machine Photo Video, Cross Cursor, Hotspot Tracking, Laser Pointing
● Used for wild animal observation, search and rescue, police enforcement investigation, night patrol, outdoor sports,
personal safety;
personal safety;
Product Paramenters
ltem | CS-325G(25mm) | CS-325G(35mm) | CS-325G(35mm with laser) | ||
Detector type | VOx Uncooled FPA | ||||
Pixel | 384X 288 | 384X 288 | 640X512 | ||
Array size | 12um | ||||
Wavelength | 8-14um | ||||
FOV | 10.5*X7.9"(+5%) | 7.5*X5.7*(+ 5%) | 12.5"X 10"(士5%) | ||
Lens focallength | 25mm | 35mm | 35mm | ||
Magiftation | 2.3x-9.2x | 3.25x-13x | 1.95x-7.8x | ||
Focus distance | 1m~∞ | ||||
NETD | 40mk@F1.0 | ||||
Frame rate | 50Hz | ||||
Focus | Manual focus | ||||
Digital zoom | 1.0-4.0X continuously | ||||
Picture in picture | Enlarged display of centralarea(2x) | ||||
Distance dispaly | Yes | ||||
LRF | 10~1000m(±1m) | ||||
Laser pointer | Yes | ||||
GPS | Optional | ||||
Electronic compass | Yes | ||||
Image transmission | WIFI real-time image transmission, support mobile APP image browsing, taking pictures. video and other functions | ||||
Cross cursor | Yes (multiple cross divisions are optional) | ||||
Hot spottracking | Yes | ||||
Storage | Build in, 32GB (max support 256G) | ||||
Photo | Take more than 10,000 pictures | ||||
Recording | More than 5 hours recording time | ||||
Display | Color LCOS, 1280X 960 (eyepiece diopter adjustable) | ||||
Pseudo | Black hot, white hot, red hot, pseudo-color fusion | ||||
Diopter adjustment | Adjust by knob | ||||
Battery | Lithium battery (removable battery)， > 6h working time | ||||
Charging type | Support USB charging, can be powered by an external portable battery | ||||
External power supply | DC5V/2A( Type-C interface) | ||||
EMC | Comply with CE/FCC requirements | ||||
Control of Hazardous Substances | Comply with RoHS /PAHS requirements | ||||
Weight | < 580g | ||||
Dimension | < 220 X 97 X 60mm | ||||
Interface | USB Type C interface( supports charging, data transmission and real-time analog video output) | ||||
Target distance | a, people: detection distance: 1600m, recognition distance: 650m b, wild boar: detection distance: 1400m, recognition distance: 430m c, vehicles: detection distance: 1800m, recognition distance: 900m | ||||
Compare with other models
CS-325G | ||||||
Resolution | 384x288 | 384x288 | 384x288 | 384x288 | 384x288 | 384x288 |
Field of view (H × X) | 24.9°×18.7° (+5%) | 14°×10.5° | 10.7°×8.0° | 14.9°x11.2°; 10.7°x8.0°; 6.9°x5.2°; 5.0°x3.7 | 10.7°×8.0° | 10.5°×7.9° |
Lens (focal length) | 15mm | 25mm | 35mm | 25mm 35mm 54mm 75mm | 35mm | 25mm |
Digital zoom | 1.0~4.0X | 1.0~4.0X(Continuous zoom) | 1.0~4.0X(Continuous zoom) | 1.0~4.0X (16×Continuous zoom) | 1.9X , 2.7X continuous zoom | 1.0~4.0X |
DEM/PIP | X | ✓ | ✓ | ✓ | ✓ | ✓ |
Photo&video REC | ✓ | × | × | ✓ | ✓ | ✓ |
Display | Color LCD 720*540 | LCOS 1280*960 | LCOS 1280*960 | LCOS 1024*768 | LCOS 1024*768 | LCOS 1280*960 |
Power Interface | Type-C External charging | ✓ | ✓ | ✓ | ✓ | ✓ |
NETD | <40mk@30C | <60mk@30C | <60mk@30C | <50MK | <50MK | <40MK |
WIFI | ✓ | ✓ | ✓ | × | ✓ | ✓ |
