Автоматическая стационарная упаковочная машина для цемента с 3 насадками емкостью 50 кг
- Категория: Cement Making Machinery >>>
- Поставщик: Tangshan,Zhongyi,Machinery,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-17-2025 | 0.52 $* | 0.85 $* |
| Aug-17-2025 | 0.15 $* | 0.98 $* |
| Jul-17-2025 | 0.60 $* | 0.66 $* |
| Jun-17-2025 | 0.44 $* | 0.92 $* |
| May-17-2025 | 0.86 $* | 0.29 $* |
| Apr-17-2025 | 0.59 $* | 0.64 $* |
| Mar-17-2025 | 0.53 $* | 0.35 $* |
| Feb-17-2025 | 0.12 $* | 0.18 $* |
| Jan-17-2025 | 0.30 $* | 0.93 $* |
Характеристики

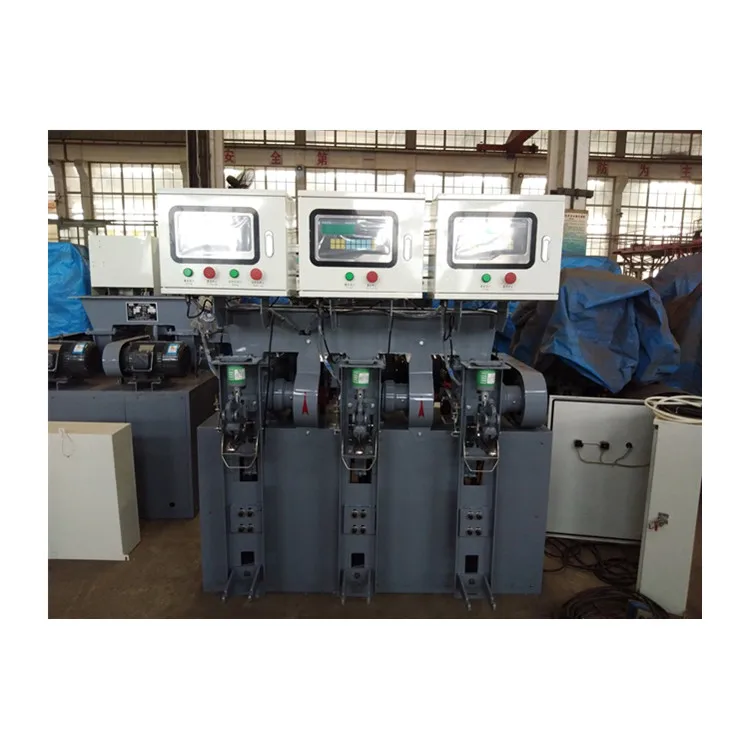

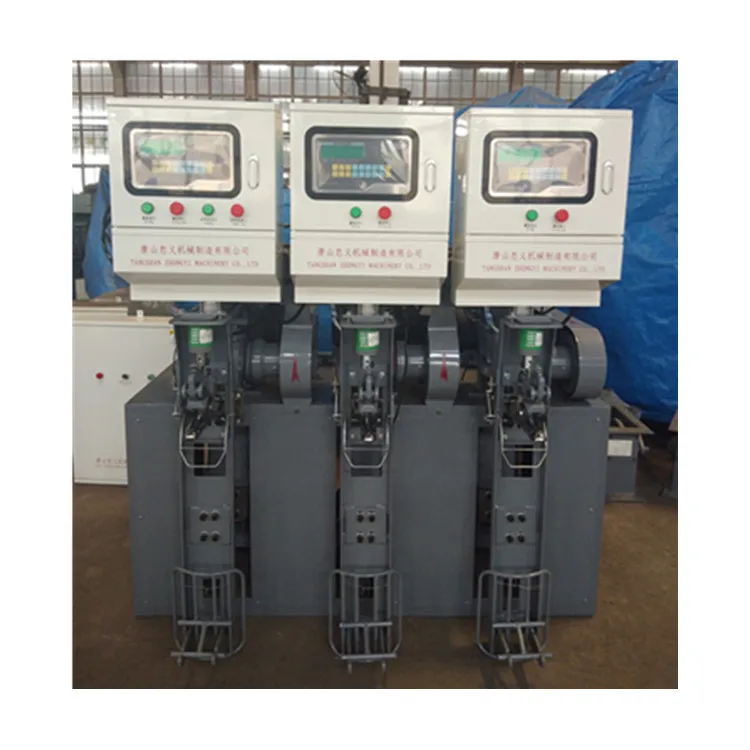

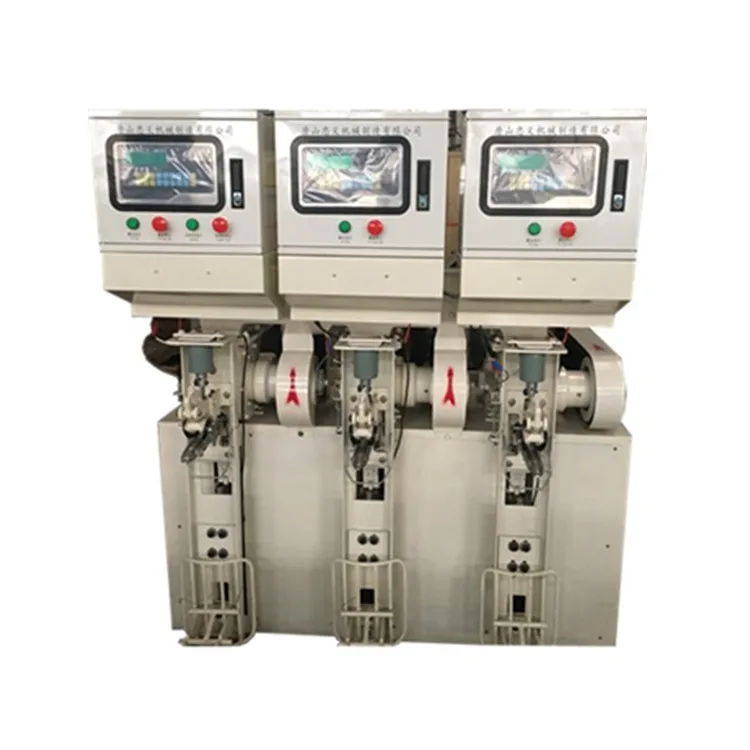

Automatic 50kg bag 45t/h capacity 3 nozzle stationary cement packing machine
Advantage:
high efficiency and energy saving
- measuring accuracy and stable performance
- good sealing, easy to operate and convenient maintenance
New technology:
- It has two kinds of weighing system: mechanical and computerized, the two systems can be used in turn or be chosen by user.
- Sealing: there are 4 layers sealing between main shaft and cement outlet device: labyrinthine sealing, Polytetrafluoroethylene sealing strip
- Control system: it is a interlocked device
- Filling device with automatic fall off function
Technical data:
No | Name | Unit | Data | Remark | |
| BGYW3QZ fixed cement packing machine |
|
| ||
1 | Type |
| BGYW3QZ |
| |
2 | Filling style |
| Impeller |
| |
3 | Qty of nozzles | pc | 3 |
| |
4 | Capacity | t/h | 45 |
| |
5 | Height of discharging spout | mm | 790 |
| |
6 | Weighing precision | Single bag weight | kg | 50 |
|
Single bag weight tolerance of 95% bags | kg | +0.35 -0.35 |
| ||
Total weight of successive 10 bags | kg | +0.24 -0.08 |
| ||
7 | Open and close shutter | Model |
| MBB63-30+25Z-XC11 |
|
Eletromagnetic valve |
| 4V310 10A |
| ||
Air pressure | MPa | 0.6 |
| ||
8 | Discharging motor type |
| Y112M-4 |
| |
9 | Supply voltage | V | 380 |
| |
10 | Total weight | kg | 1100 |
| |
11 | Size(L×W×H) | mm | 1626×1236×1770 |
| |

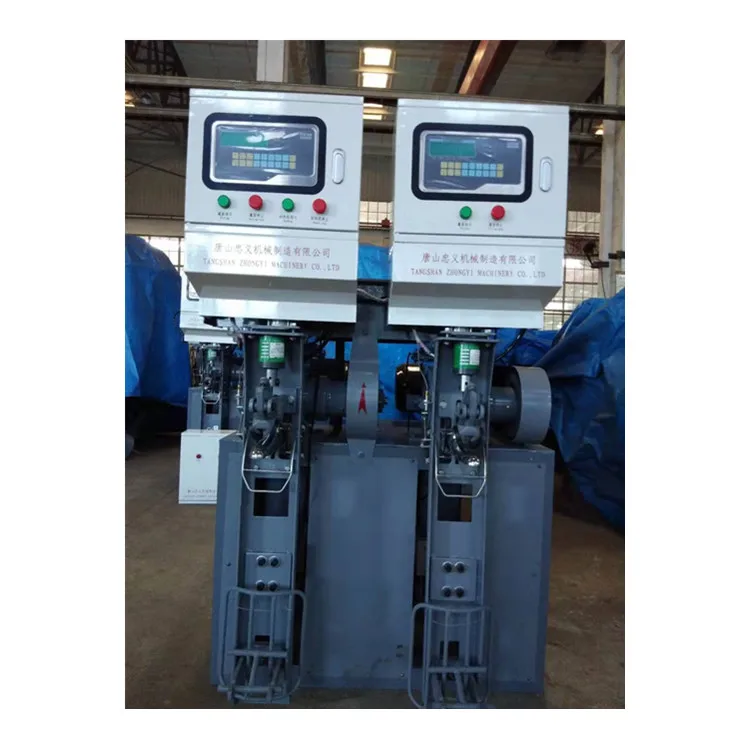

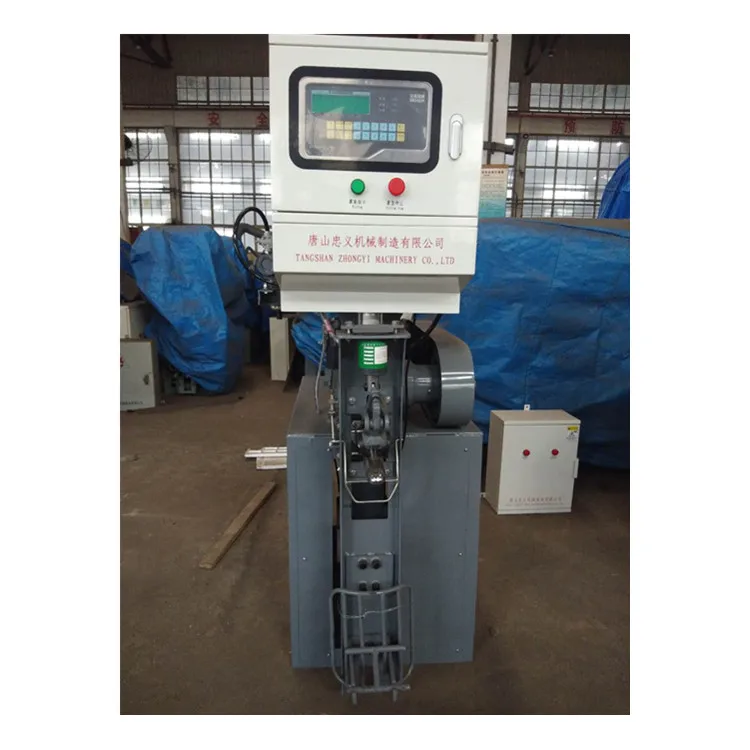

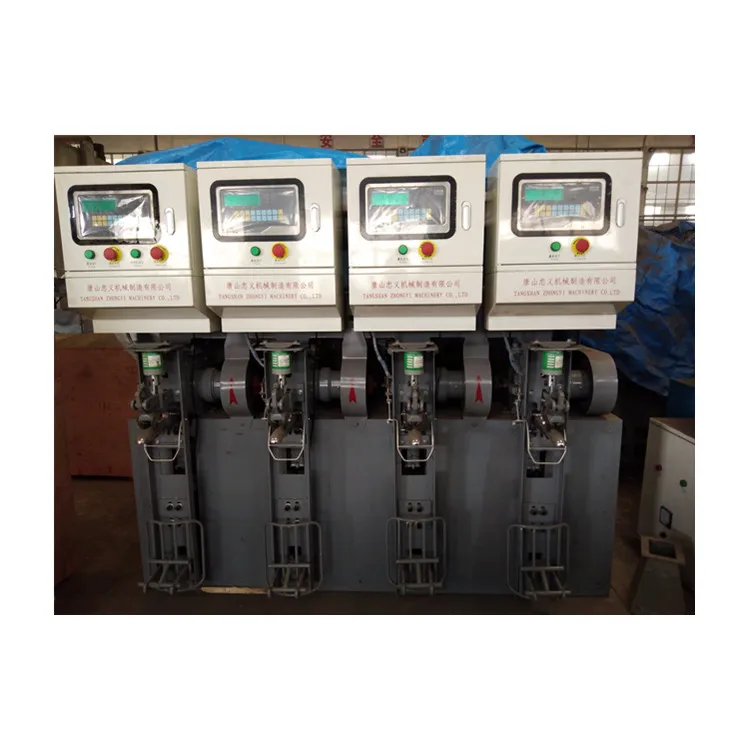

Other types of cement packing machine:
FAQ
1. What is the usage of this machine?
-- This machine mainly used for packing good mobility material like cement, gypsum powder and others powder, granule less than 7mm.
2. What is the voltage/phase for this machine?
-- We normally make voltage into 220V / 50HZ / Single phase or 380V / 50HZ / Three Phase. But it can be made according to clients' demand, like 415V / 50HZ / Three phase and so on.
3. What kind of packing box is?
-- We pack machines in a standard exporting plywood case, no vermin, germs. It can help to protect the machine while transporting.
4. How long is the guarantee?
-- For non-human damage factor, within 12 months after commissioning or within 18 months from the date of B/L, whichever comes first.
5. How should I do if meet some trouble while using?
-- Don't worry about that. We are always be pleased to provide using support to clients. We can take a video for showing how to resolve the problem, and write detail resolution to you.
6. What's the payment mode?
-- T/T, L/C.
Hope to cooperate with you!!!
