JBD Smart Bms 24 в 36 48 60 8S 12S 16S 20S 21S Lifepo4 120A с переключателем и ЖК-портом
- Категория: >>>
- Поставщик: Shenzhen,Yizhi,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-17-2025 | 0.19 $* | 0.38 $* |
| Aug-17-2025 | 0.84 $* | 0.49 $* |
| Jul-17-2025 | 0.87 $* | 0.44 $* |
| Jun-17-2025 | 0.66 $* | 0.18 $* |
| May-17-2025 | 0.4 $* | 0.77 $* |
| Apr-17-2025 | 0.5 $* | 0.97 $* |
| Mar-17-2025 | 0.93 $* | 0.35 $* |
| Feb-17-2025 | 0.42 $* | 0.41 $* |
| Jan-17-2025 | 0.23 $* | 0.85 $* |
Характеристики
Product Description
JBD-AP21S001
①Toepasselijk Batterij: Li-Ion

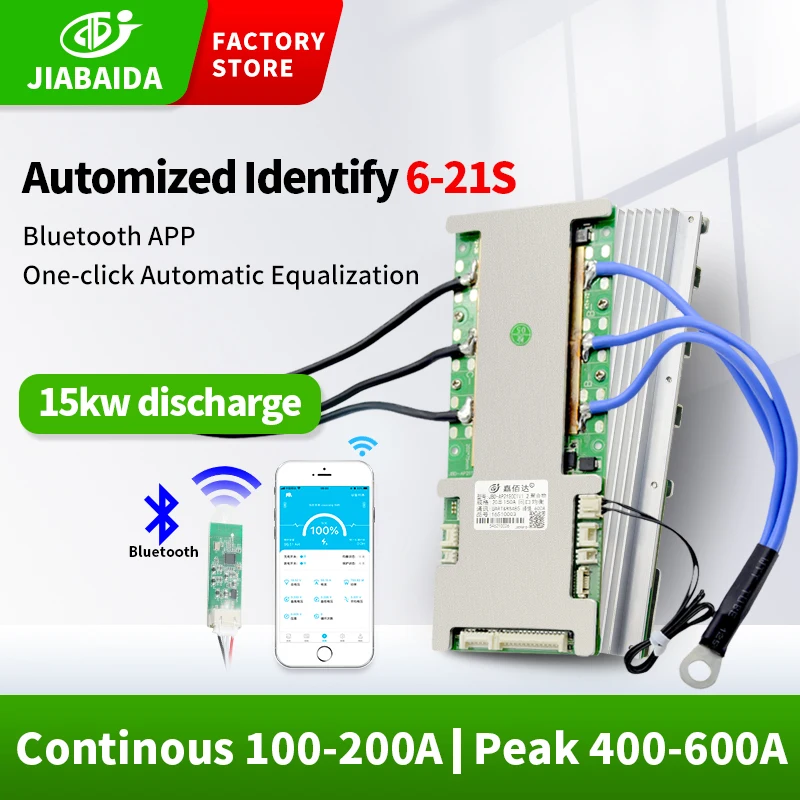

②Automatisch Herkennen 6-21S
③Functie Introductie

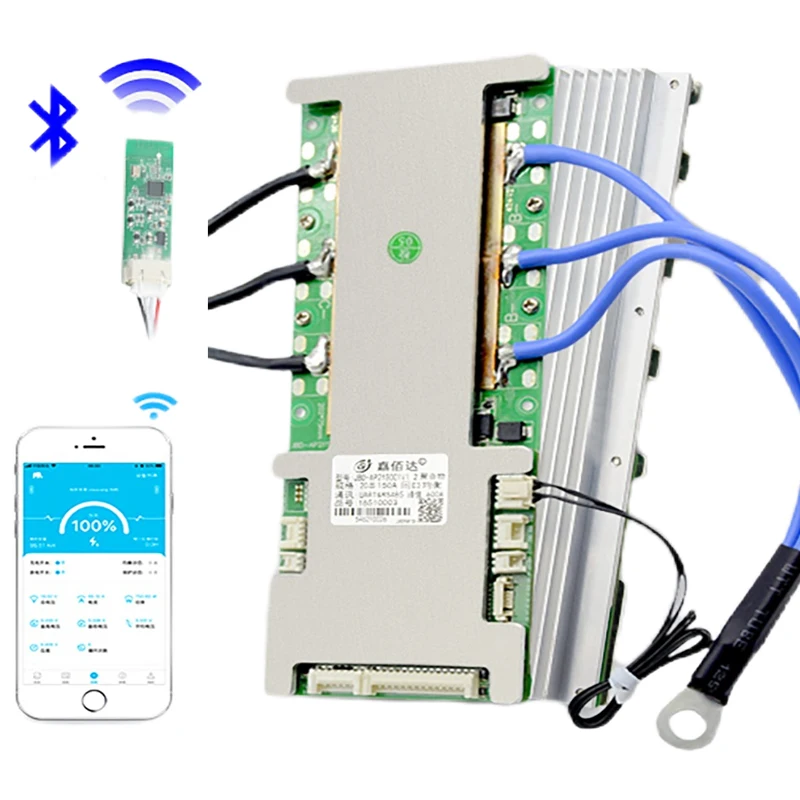

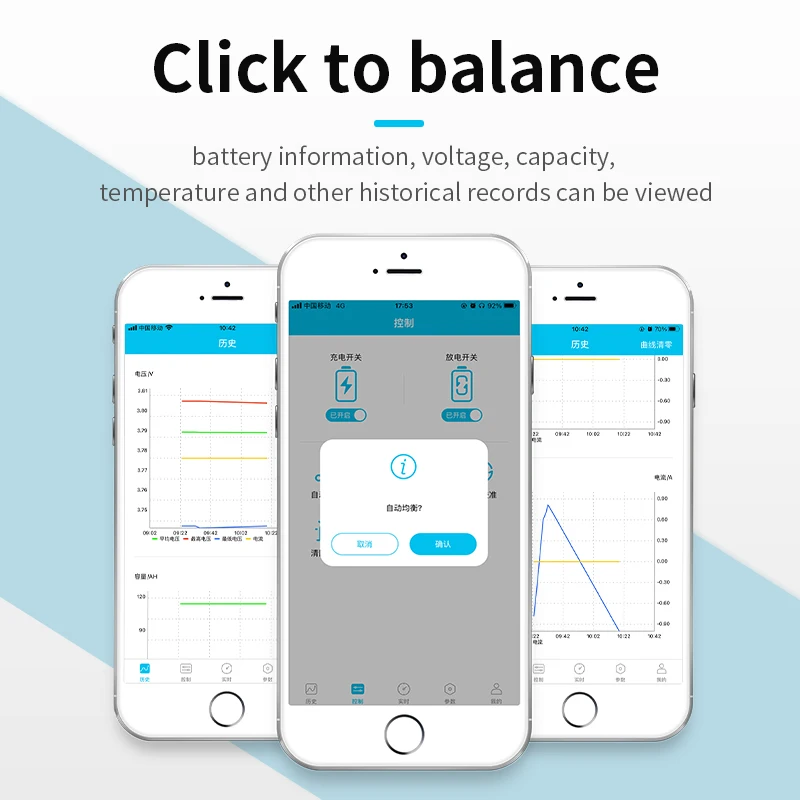

1) Bt-Telefoon
IOS versie moet betalen om de parameters (moeten worden binnen het opgegeven bereik)
Android versie kan veranderen de parameter instellingen
2) UART - Computer (Set parameters)
3) RS485 - Computer(Set parameters en programma)
4) UART en bt zijn hetzelfde poorten, kan niet worden gebruikt tegelijkertijd
5) Uart /Bt en RS485 canbe gebruikt op hetzelfde moment
6) alle smart bms heeft bt en UART functie
Name | JIABAIDA Smart BMS - AP21S001 | ||||||
Applicable Battery | Li-Ion | ||||||
Automatic detection | 6-21S | ||||||
Aandacht | Clock /BT and RS485 canbe used at the same time | ||||||

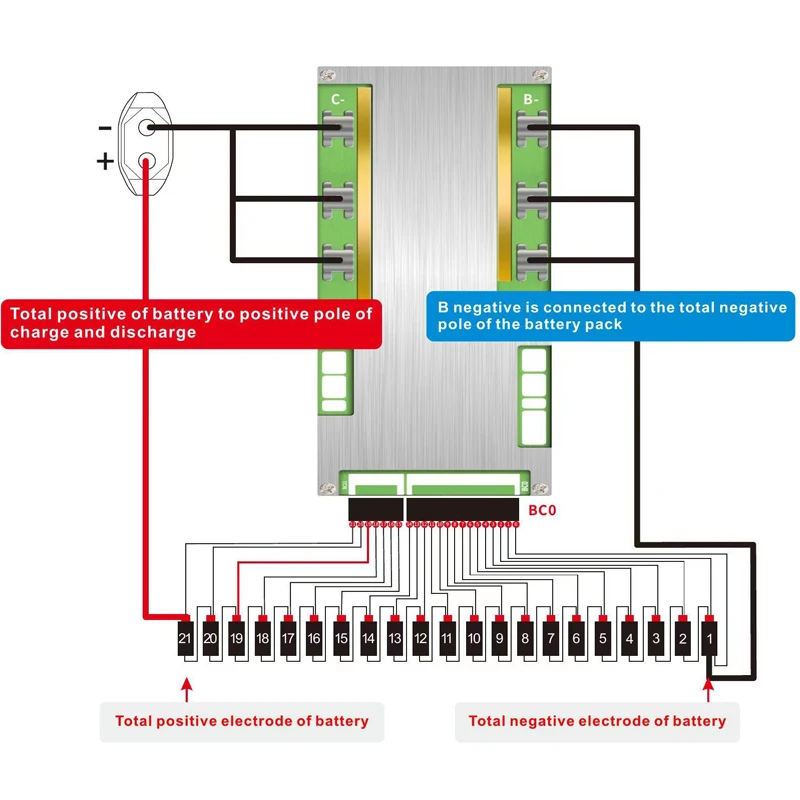

Wiring diagram
matters need attention.
Please note:When assembling the wiring, weld the cable and the cell correctly, connect the B- of the PCM with the total negative
pole of the cell, and then insert the cable into the needle base on the PCM. (Note: different connection modes for different
strings, and different connection modes for the same port)
pole of the cell, and then insert the cable into the needle base on the PCM. (Note: different connection modes for different
strings, and different connection modes for the same port)
Company Profile
Certifications
Package
FAQ
1. What type of charger should I choose?
Lithium battery must choose specific charger, do not use Charger for Leadacid battery, for leadacid charger may have MOS with high pressure breakdown protection, which will not protect of BMS over charge. LifePo4 battery charger voltage=battery string No.X3.6V, while Li-ion battery charger voltage=Battery string No.X4.2V.
2.The relationship between Battery capacity and BMS current?
There is no direct relationship between Battery capacity and BMS current, big capacity doesn`t mean a big battery, but rely on continue current, that is to say if your engine is powerful, your should choose high current of BMS, it is not relied on batterycapacity.
3.Whether my BMS damaged?
If you want to judge if the BMS is damaged, please take the folowing steps, to test if each cell voltage is the same with voltmeter? if the cell voltage difference is over 1.0V, the fault is displayed that it cannot run far, no power supply at the start range, short charge time, all these issues are almost caused by battery cells, if BMS damaged is displyed as no charge, no discharge, no discharge while the battery has voltage.
4. Do you produce Hardware BMS or Smart BMS?
We produce both Hardware bms and smart bms.
5. What accessories should i buy for smart BMS？

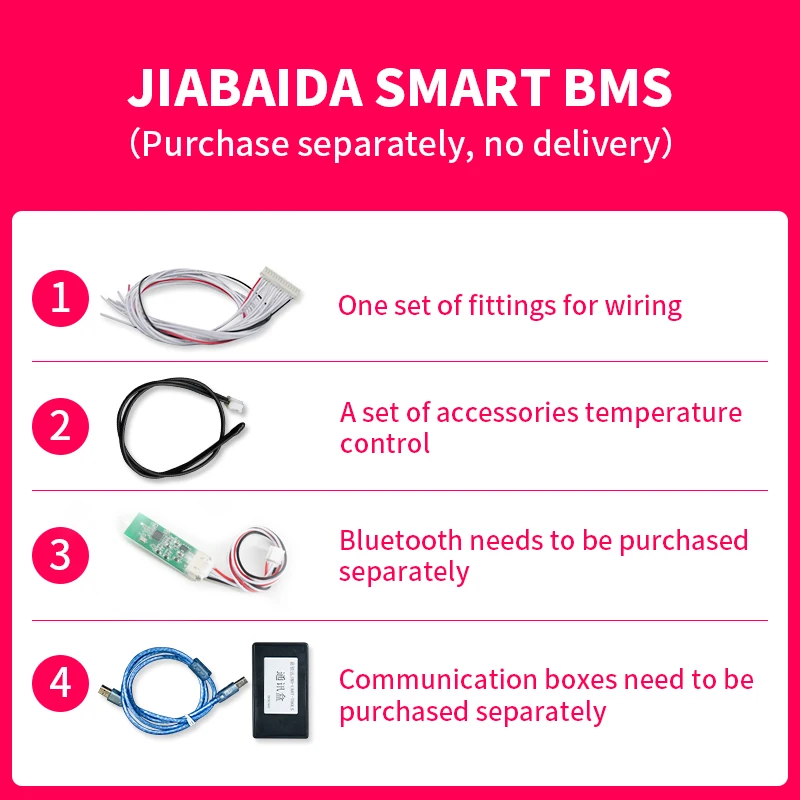

We have bluetooth module for App use, and communication box tool(UART/RS485) for PC use.
And LCD display (UART/RS485) available too. Further question, please contact our customer service.
