Характеристики
Products Description

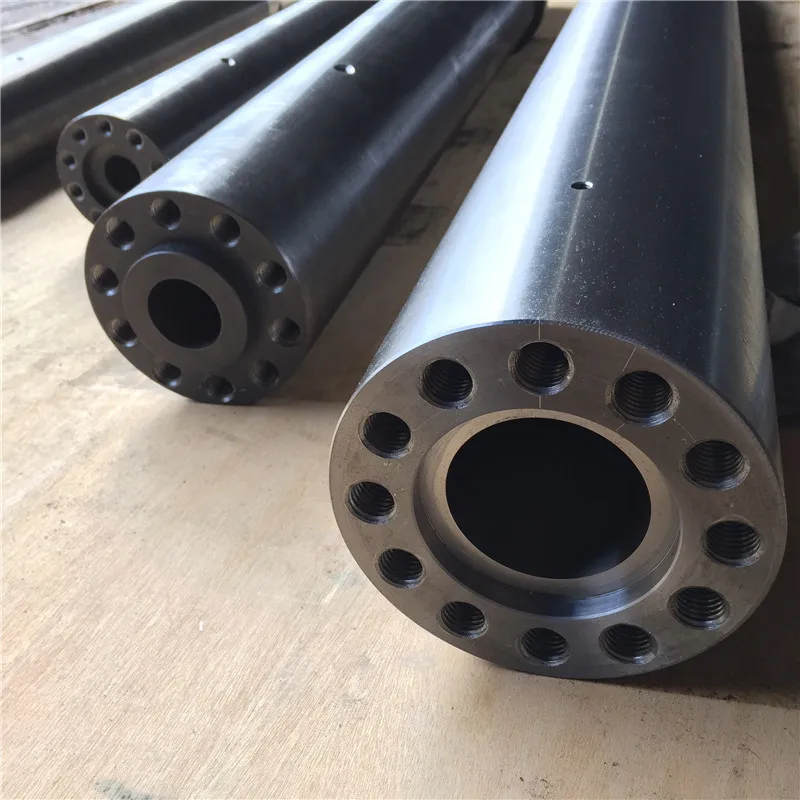

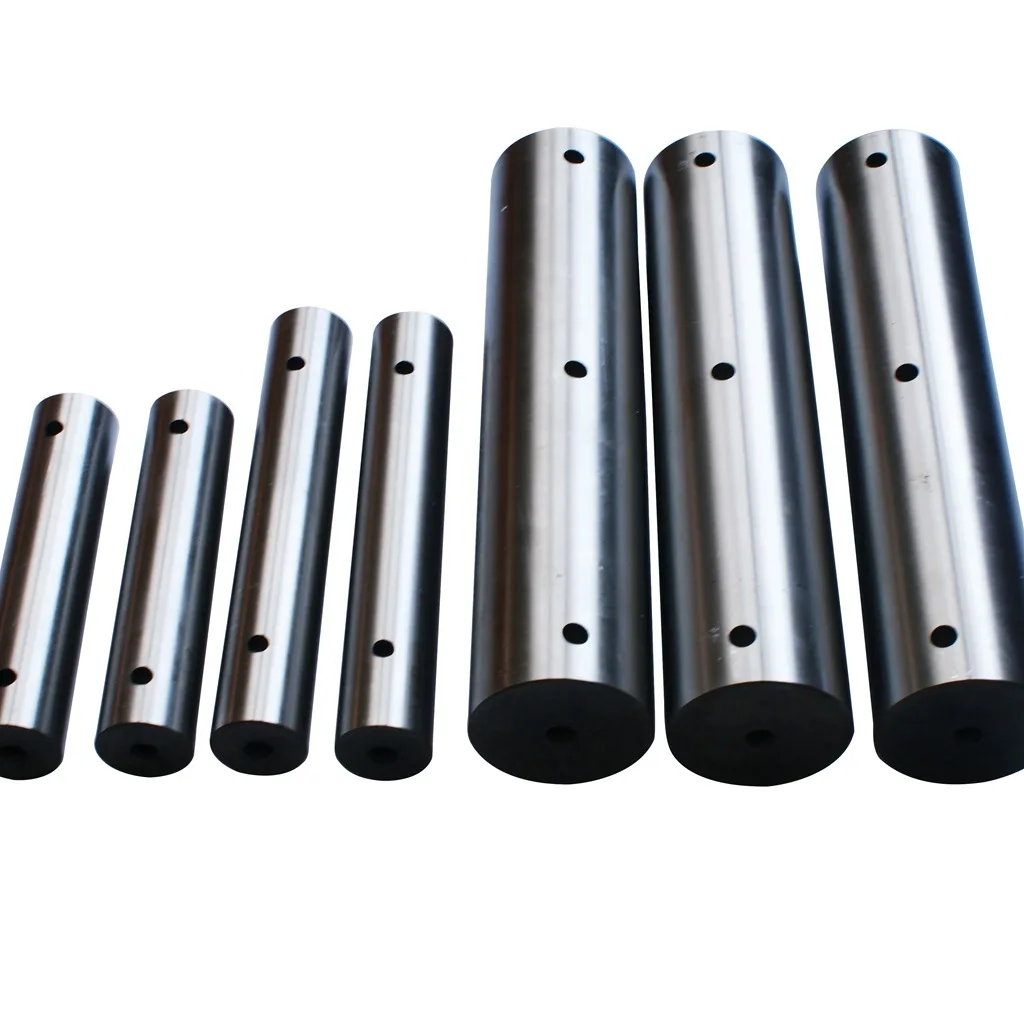

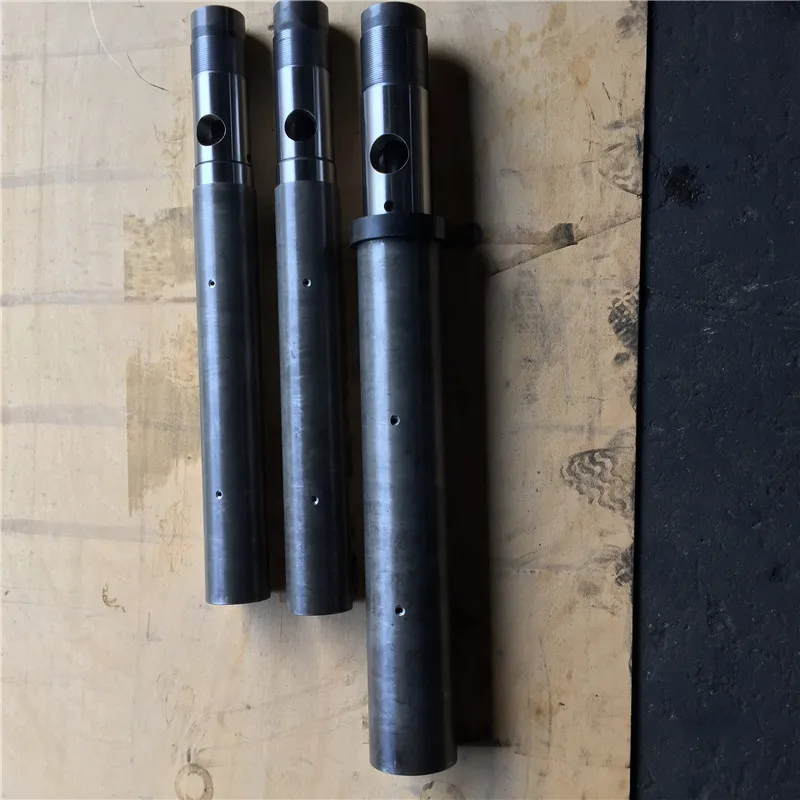

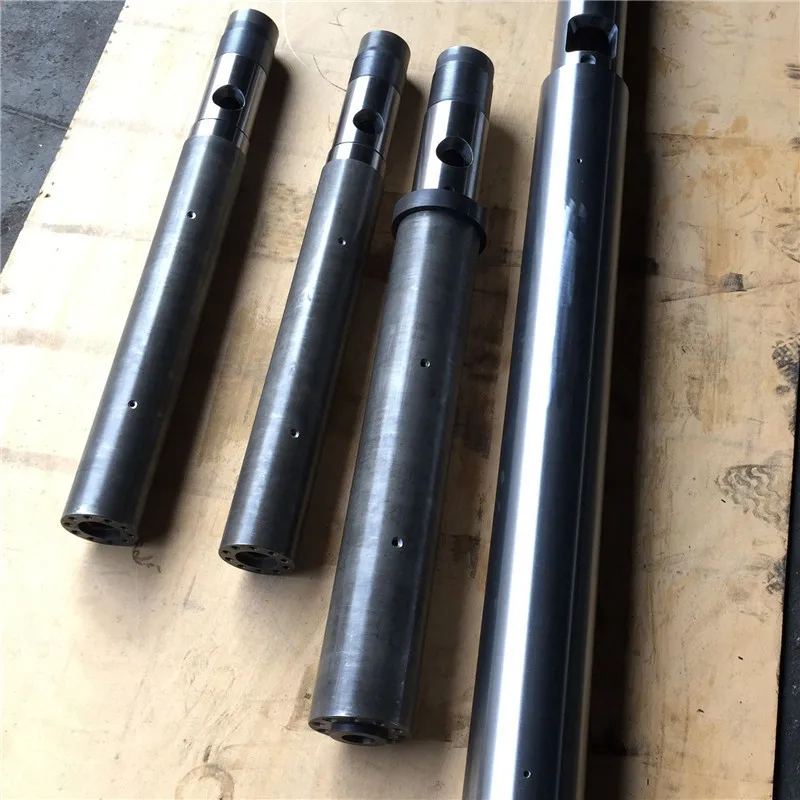

Gun Barrel Material Tub
Scope of Application: Injection Molding Machine
Material: 38CrMoAlA
Category: Injection Molding Machine Parts
Surface Hardness: 950-1020HV
Surface Roughness: Ra0.4
Effective Length: 12000mm
Nitriding Depth: 0.4mm-0.7mm
Processing range: 5000mm
Straightness Accuracy: 0.015mm-1000mm
WE SELL
Nitriding screw, double alloy screw( A, B and C type), single or double screw, screw head, non-return valve, sealing resin ring, nozzle and flange, screw and barrel for different brands of injection molding machine, extruder and rubber machine. Different brands of injection molding machine accessories can be customized:
FANUC, TOSHIBA, NIIGATA, KAWAGUCHI, MEIKI, SODICK, DEMAG, YIZUMI, Haitian, L.K, KraussMaffel, BORCHE, Sumitomo, ENGEL, WELLTEC, Husky, FCS, Tederic, etc.
Applicable Plastic:
A large amount of plastic can be used for screw and barrel of injection molding machine, such as PA, PP, PE, POM, PBT, ABS, PS, PVC, PEI, PC, PEEK, etc.
Guangdong Juguangheng Automation Equipment Co., Ltd. provides customized screw, barrel and other products according customer's demand.
Nitriding screw, double alloy screw( A, B and C type), single or double screw, screw head, non-return valve, sealing resin ring, nozzle and flange, screw and barrel for different brands of injection molding machine, extruder and rubber machine. Different brands of injection molding machine accessories can be customized:
FANUC, TOSHIBA, NIIGATA, KAWAGUCHI, MEIKI, SODICK, DEMAG, YIZUMI, Haitian, L.K, KraussMaffel, BORCHE, Sumitomo, ENGEL, WELLTEC, Husky, FCS, Tederic, etc.
Applicable Plastic:
A large amount of plastic can be used for screw and barrel of injection molding machine, such as PA, PP, PE, POM, PBT, ABS, PS, PVC, PEI, PC, PEEK, etc.
Guangdong Juguangheng Automation Equipment Co., Ltd. provides customized screw, barrel and other products according customer's demand.
You may also like
Product Paramenters
Screw Diameter | Screw Length | Outside Diameter of Barrel Wall | Barrel Wall Length |
∅14-∅16 | 450mm-650mm | ∅65-∅75 | 450mm-650mm |
∅18-∅22 | 450mm-650mm | ∅65-∅75 | 450mm-650mm |
∅24-∅28 | 450mm-700mm | ∅65-∅88 | 450mm-700mm |
∅24-∅28 | 650mm-650mm | ∅90-∅98 | 650mm-820mm |
∅30 | 850mm-900mm | ∅85-∅98 | 750mm-820mm |
∅30-∅32 | 1000mm-1200mm | ∅98-∅108 | 950mm-1150mm |
∅34 | 1000mm-1200mm | ∅98-∅108 | 950mm-1150mm |
∅36 | 850mm | ∅110 | 950mm |
∅36 | 1050mm-1200mm | ∅110 | 1050mm-1250mm |
∅38 | 950mm-1200mm | ∅98-∅118 | 950mm-1150mm |
∅40 | 1050mm-1250mm | ∅105-∅118 | 1050mm-1200mm |
∅42 | 1050mm-1250mm | ∅105-∅118 | 1050mm-1200mm |
∅44 | 1050mm-1250mm | ∅105-∅118 | 1050mm-1200mm |
∅46 | 1050mm-1250mm | ∅105-∅118 | 1050mm-1200mm |
∅48 | 1050mm-1250mm | ∅105-∅118 | 1050mm-1200mm |
Model | L/D | Output Capacity (kg/h) | Screw Rotation Speed (rpm) | Driving Motor (kw) | Center Height (mm) |
JGH | 20:1 | 3-5 | 10-60 | 1.1/1.5/2.2 | 1000-1400 |
JGH | 25:1 | 5-8 | 10-60 | 2.2/3.0/4.0 | 1000-1400 |
JGH | 25:1 | 5-10 | 10-60 | 2.2/3.0/4.0 | 1000-1400 |
JGH | 25-36:1 | 10-120 | 10-150 | 5.5-22 | 1000-1400 |
JGH | 25-36:1 | 60-300 | 20-150 | 22-75 | 1000 |
JGH | 25-36:1 | 200-450 | 20-150 | 30-132 | 1000 |
JGH | 25-36:1 | 180-600 | 20-110 | 30-185 | 1000-1100 |
JGH | 25-36:1 | 320-1000 | 20-90 | 75-280 | 1000-1250 |
Manufacturing Technique
Technical Information | ||||||
Main Base Materials | 1. 38CrMoAlA (SACM645) | Main Alloy Materials | 1. Ni-based alloy/ Deloro alloy | |||
2. SKD-61(Special Tool Steel) | 2.Tungsten carbide/Wolfram carbide | |||||
3. 42CrMo(Ultrahigh Strength Steel) | 3.NiCo-based alloy | |||||
4. DC53(Cold Workdie Steel) | 4.Fe-based alloy | |||||
5. W6Mo5Cr4V2 (High-speed Tool Steel) | 5. Co-based alloy | |||||
Processing Technics | 1.Heat treatment | Technical Parameters | Nitriding layer depth: 0.5-0.8mm | |||
2. Quenching | Nitrided hardness: 900-1000HV | |||||
3. Nitriding treatment | Bimetallic layer depth: 3mm | |||||
4. Bimetallic alloy welding for screw | Bimetallic hardness: 57~69HRC | |||||
5. Bimetallic alloy centrifugal casting for barrel | Hard-chrome plating hardness after nitriding: ≥950 HV | |||||
6. Hard-chrome electroplating | Chrome-plating layer depth: 0.03~0.09mm | |||||
Surface roughness: Ra 0.4 | ||||||
Linearity of screw: 0.015mm | ||||||
Choose Juguangheng Company
More services for you
Screw and parts for injection molding machine, one to one program customization, proofing quickly, high efficiency
APPLICABLE MACHINE
Juguangheng sells screw and barrel for injection molding machine, extruder, blow molding machine, crusher, film blowing machine and other machines.
Company Profile
COMPANY PROFILE
Guangdong Juguangheng Automation Equipment Co., Ltd. was established in 2016, which is a national high-tech enterprise and the production base is located in Chang' an Town, Dongguan City, Guangdong Province. We are a research and development, production and sales integration of science and technology enterprises. We have more than 30 utility model patents, appearance patents, invention patents, etc. We focus on injection molding machine screw, halogen-free fully covered screw, double alloy screw, nitride screw, optical screw, A screw, B screw, C screw, injection machine barrel, three pieces of screw head for injection molding machine, flange, nozzle and other injection molding machine accessories.
Our production facilities include CNC screw processing center, 10m deep hole drilling machine, special purpose grinder for large inner hole, computer controlled modulation nitriding furnace, multi-function constant temperature quenching furnace and double alloy PTA injection, teeming and other special equipment. As for the product material, we choose high quality alloy steel(38CRMOALA), chrome molybdenum alloy steel black cross, SKD61, wolfram carbide, 9CR18MOV, etc. They are refined by tempering, shaping, forming, fine grinding, surface nitriding or spray welding alloy (bimetal), polishing and other processes. It has the advantages of high wear resistance and corrosion resistance. We also provide nitriding, chrome plating, stainless steel, bimetal surfacing, tungsten carbide surface spraying, etc., to meet the needs of different uses.
Our production facilities include CNC screw processing center, 10m deep hole drilling machine, special purpose grinder for large inner hole, computer controlled modulation nitriding furnace, multi-function constant temperature quenching furnace and double alloy PTA injection, teeming and other special equipment. As for the product material, we choose high quality alloy steel(38CRMOALA), chrome molybdenum alloy steel black cross, SKD61, wolfram carbide, 9CR18MOV, etc. They are refined by tempering, shaping, forming, fine grinding, surface nitriding or spray welding alloy (bimetal), polishing and other processes. It has the advantages of high wear resistance and corrosion resistance. We also provide nitriding, chrome plating, stainless steel, bimetal surfacing, tungsten carbide surface spraying, etc., to meet the needs of different uses.
Our Advantages
STRENGTH SHOW
We have 3 advantages - advanced production equipment, professional technology and strict quality management.
PRODUCTION PROCESS
Every link from material selection to delivery, we all strive for excellence, and strive to provide customers with high-quality products.
NON-STANDARD CUSTOMIZED
According to the product quantity and pressure demand, non-standard design to customize special screw and barrel
Certifications
CERTIFICATE DISPLAY
Quality Assurance
APPLICABLE BRANDS
FAQ
1. Who are we?
We are based in Guangdong, China, start from 2016, sell to Southeast Asia(50.00%), North America(10.00%), Northern Europe(2.00%).
There are total about 51-100 people in our office.
2. How can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3. What can you buy from us?
special injection molding machine screw, double alloy screw, bimetal screw, screw barrel and other injection molding machine accessories. We also can customize screw and barrel for different bands of injection molding machine.
4. Why should you buy from us not from other suppliers?
1) Specializes in automation equipments.
2) More than 10 years of industry experience, control each production link.
3) With a sales team of more than 50 people, products are sold all over the world.
5. What services can we provide?
Accepted Delivery Terms: FOB;
Accepted Payment Currency: USD;
Accepted Payment Type: T/T;
Language Spoken: English, Chinese.
We are based in Guangdong, China, start from 2016, sell to Southeast Asia(50.00%), North America(10.00%), Northern Europe(2.00%).
There are total about 51-100 people in our office.
2. How can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3. What can you buy from us?
special injection molding machine screw, double alloy screw, bimetal screw, screw barrel and other injection molding machine accessories. We also can customize screw and barrel for different bands of injection molding machine.
4. Why should you buy from us not from other suppliers?
1) Specializes in automation equipments.
2) More than 10 years of industry experience, control each production link.
3) With a sales team of more than 50 people, products are sold all over the world.
5. What services can we provide?
Accepted Delivery Terms: FOB;
Accepted Payment Currency: USD;
Accepted Payment Type: T/T;
Language Spoken: English, Chinese.
