JB- 500 машина для испытания ударной прочности
- Категория: Testing Equipment >>>
- Поставщик: Jinan,Chenda,Testing,Machine,Manufacturing,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-18-2025 | 0.97 $* | 0.21 $* |
| Aug-18-2025 | 0.79 $* | 0.16 $* |
| Jul-18-2025 | 0.14 $* | 0.70 $* |
| Jun-18-2025 | 0.51 $* | 0.40 $* |
| May-18-2025 | 0.47 $* | 0.81 $* |
| Apr-18-2025 | 0.52 $* | 0.73 $* |
| Mar-18-2025 | 0.89 $* | 0.75 $* |
| Feb-18-2025 | 0.19 $* | 0.76 $* |
| Jan-18-2025 | 0.96 $* | 0.28 $* |
Характеристики
Product Description

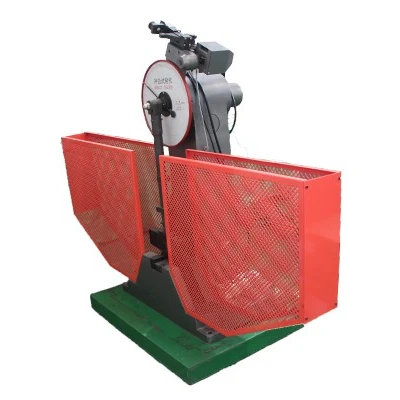

JB-500 Semi-Automatic Metal Charpy low Temperature Impact Testing Machine 500 j

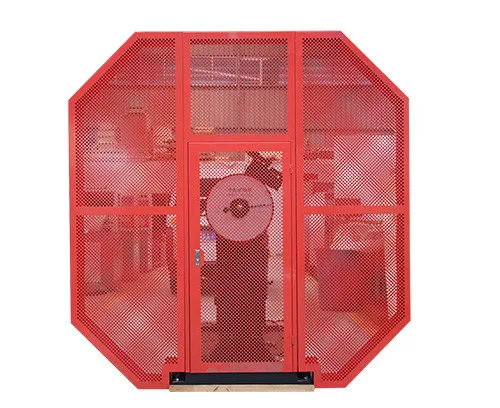

With Full Protect Cover
Brief Introduction
It mainly used to determine the anti-impact capability of ferrous metal materials with high toughness, especially for steel and iron and their alloy, under dynamic load. This machine can be operated semi-automatically. The pendulum of the machine can be raised or released automatically. Be applicable for continuing testing in different kinds of laboratories and other metallurgy industrial manufactures .
Technical Parameter:
Specification | JB-500 | ||||
Impact energy | 300J 500J | ||||
Each small scale | 2J 1J | ||||
Pendulum moment | 0-300J M=160.7695N.m 0-150J M=80.3848N.m | ||||
Impact velocity | 5.2 m/s | ||||
Raising angle | 150° | ||||
Standard span | 40mm | ||||
Round angle radius of grips | R1-1.5mm | ||||
Round angle radius of striking edge | R2-2.5mm | ||||
ower supply | 3phase,380V,50HZ,180WP | ||||
Dimension (mm) | 2124X600X1340 | ||||
Net Weight | 450kgs | ||||
Size of specimen | 10mm x 10mm x 55mm (U,V 2mm Notches) | ||||
Standard delivery:
1> big pendulum (300J): 1 pc
2> Small pendulum (150J): 1 pc
3> Span specimen plate (L=40mm) : 1 pc
4> Specimen centering plate (L=40mm) : 1pc
5> Detaching device: 1 pc
6> Simple-head spanner (S=30mm): 1pc
7> Inner-hexagon spanner (S=12mm): 1pc
8> Anchor bolts M16*30mm: 4pc
9> Jaws (including bracket): 1 set. Notes, has been installed on the host
Machine In Factory
Other Equipment

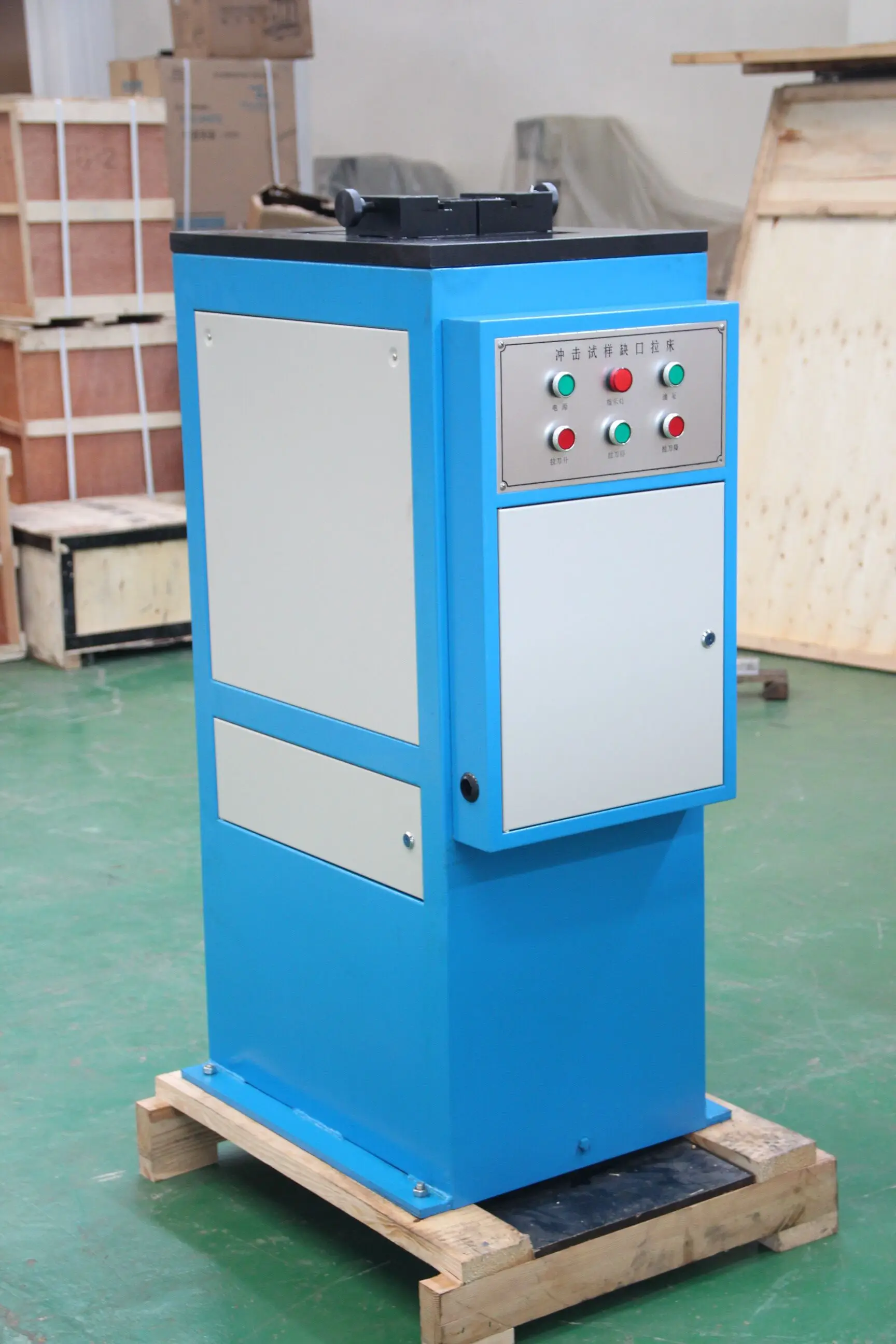

Charpy gap projector
Projection screen: 200mm
magnification:50 X
Power:220V 50Hz 150W
Dimension: 515*224*60
magnification:50 X
Power:220V 50Hz 150W
Dimension: 515*224*60
Certifications
CE Certificate
Certificate No.: CE HR20210329-1
SGS Certificate
Certificate No.:QIP-ASI145774
Business License
License No.:91370104553713668R
Cooperation Customer
Our Compony
Jinan Chenda Testing Machine Manufacturing Co., Ltd. was established in 2003, and is a professional comprehensive company which integrates research and development, production, marketing and service. Our products are applied widely in many fields such as scientific institutions, colleges, metallurgical, construction materials, railway trains, highway traffic, rubber plastic, wire and cable, and fire facilities.
Our company is located in the beautiful spring city - Jinan, which is the center for developing testing machines in China as well as the largest testing machines producing base at home.
We are specialized in providing:
1. Hydraulic universal testing machines
2. Electronic universal testing machines
3. Friction and wear testing machines
4. Complete impact testing equipment and bending testing machines
Other Model Machine
HB 3000B Hardness Tester
Electronic Universal Testing Machine
JB 300 Impact Testing Machine
