Характеристики
Product Description

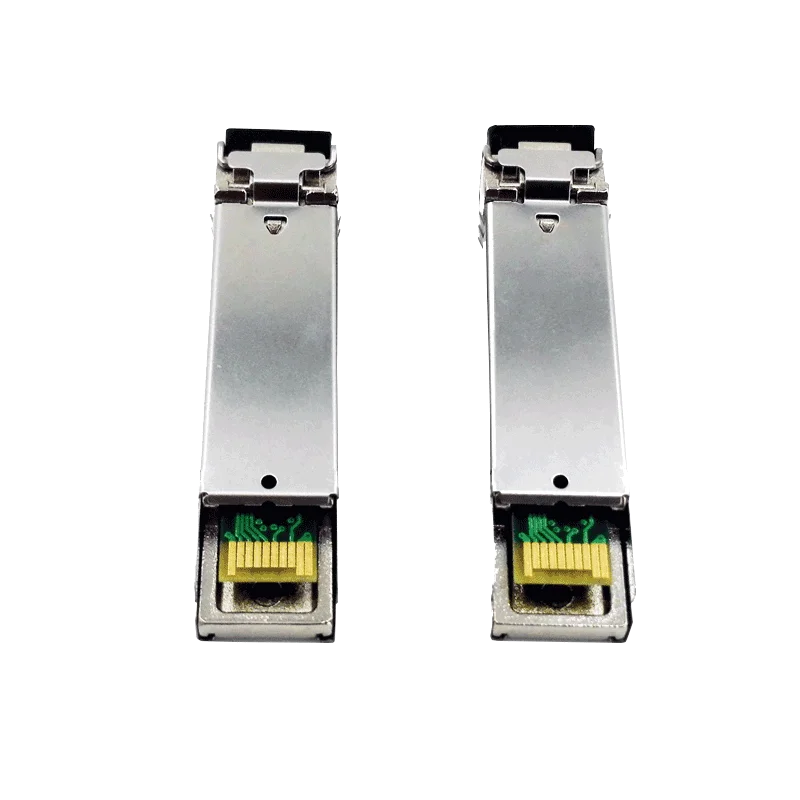

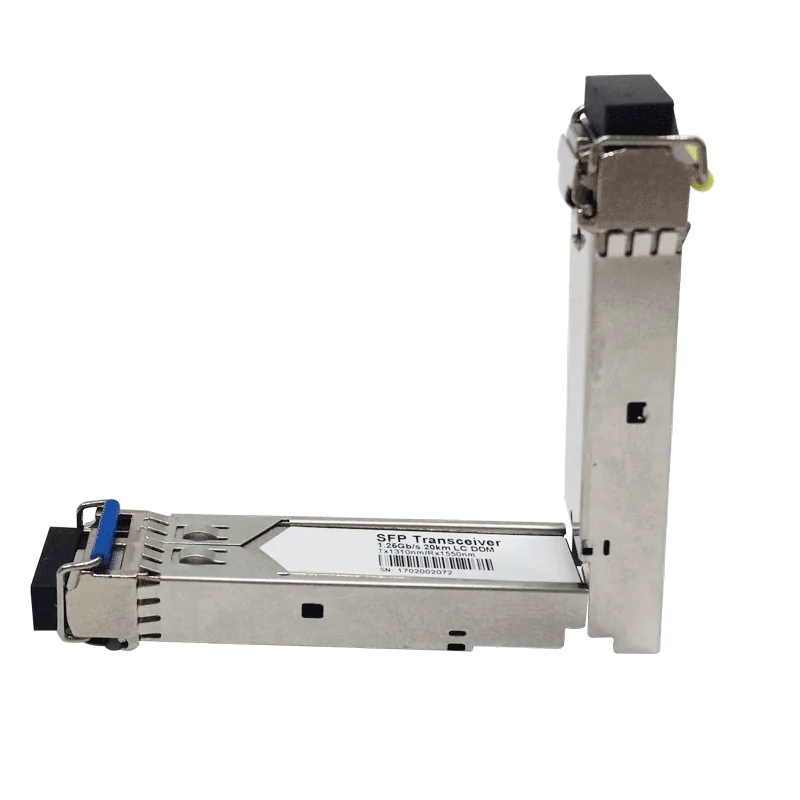

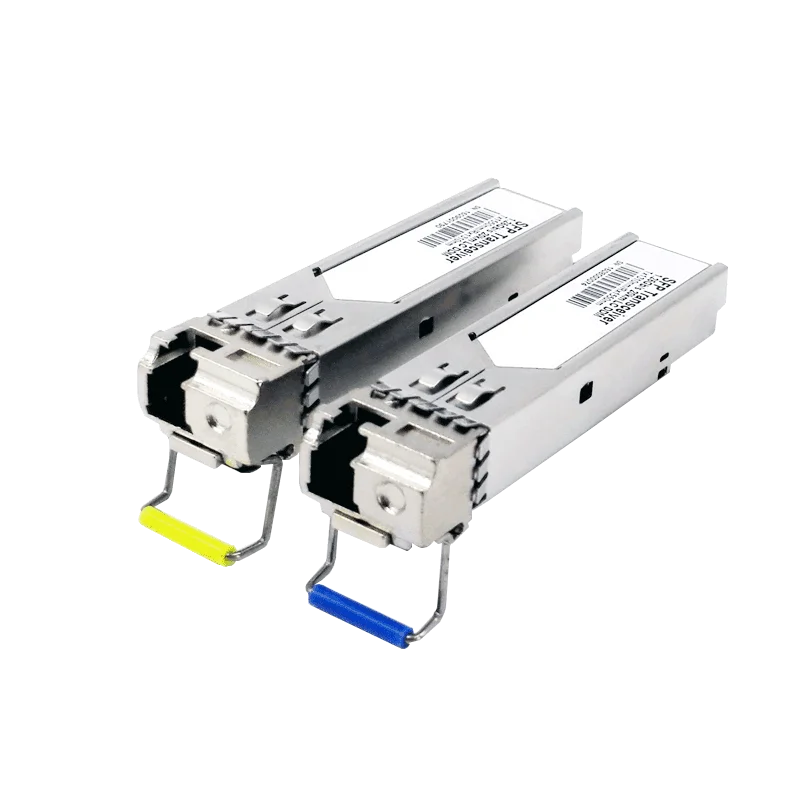

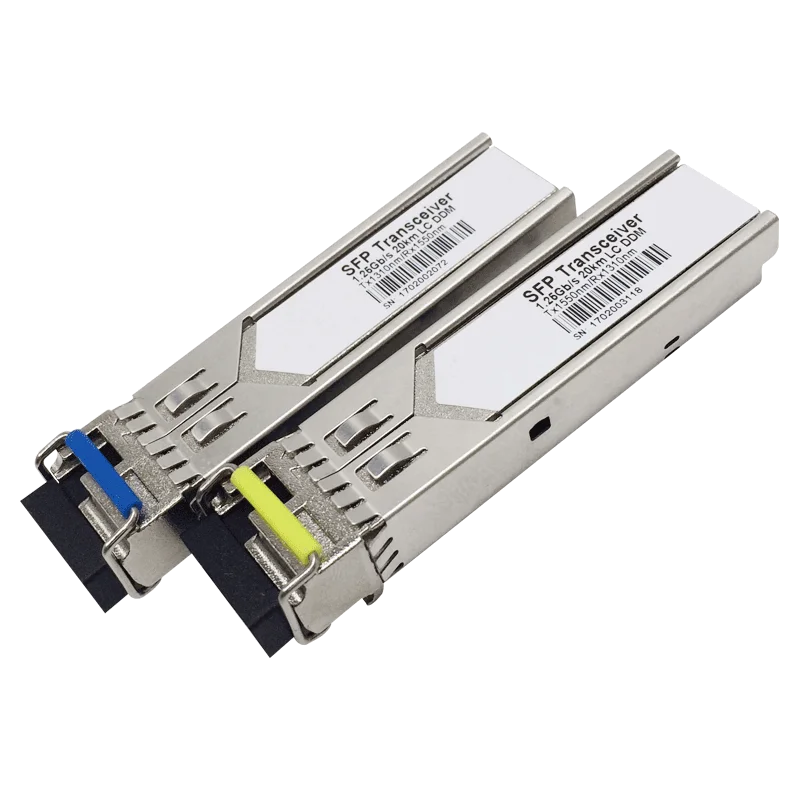

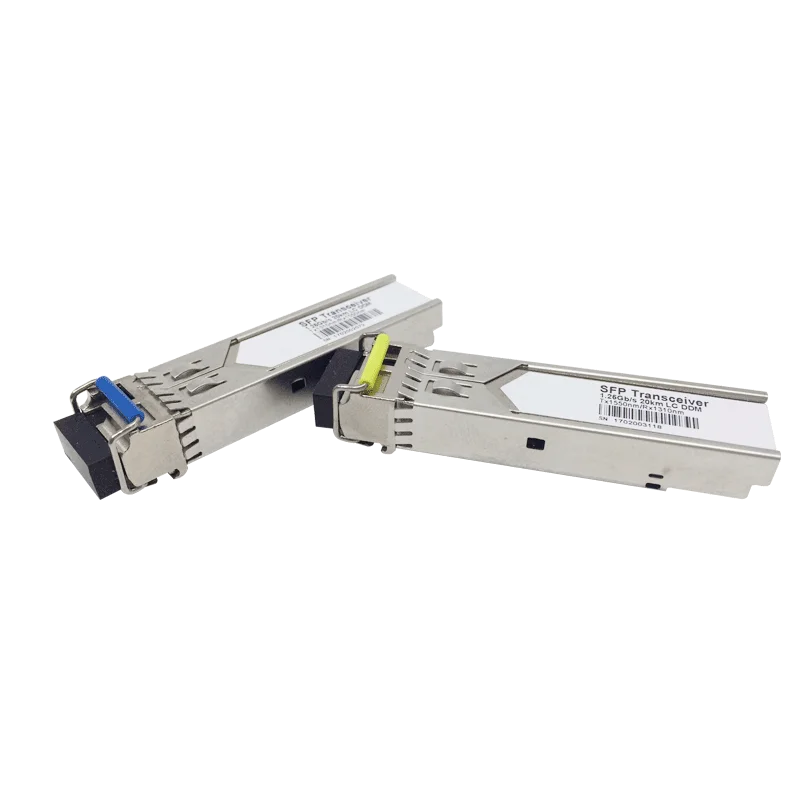

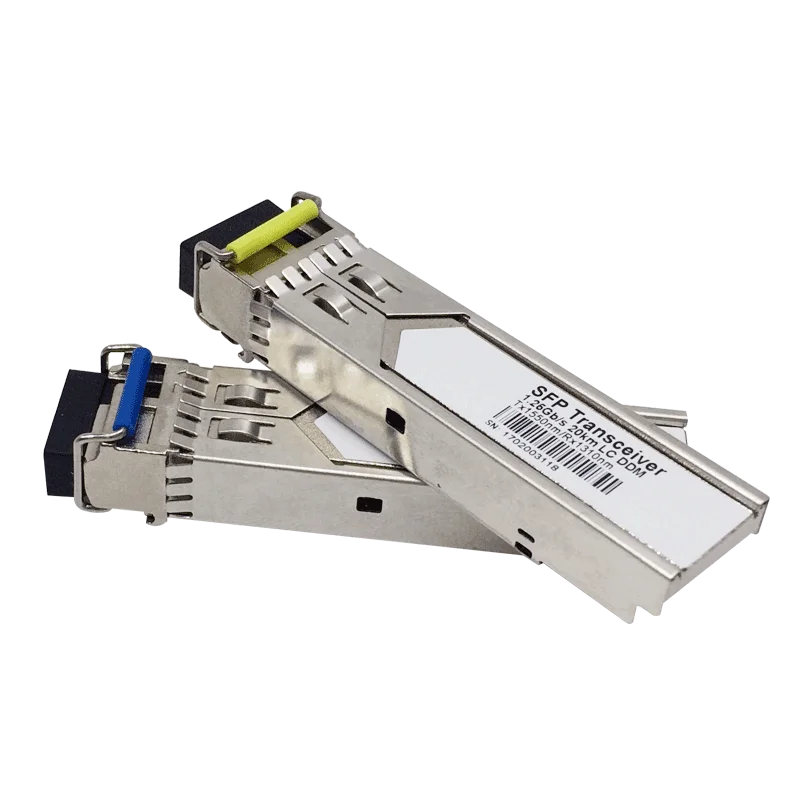

1310nm 1550nm 1.25G SFP module Single mode Single fiber 1Gb 3KM 20KM fiber optic transceiver
Small Form-Factor Pluggable (SFP) Gigabit Interface Converter is a hot-swappable input/output device that plugs into a Gigabit Ethernet port or slot, linking the port with the network. SFPs can be used and interchanged on a wide variety of switches and routers, can be intermixed in combinations of 1000BASE-T, 1000BASE-SX, 1000BASE-LX/LH, 1000BASE-EX, 1000BASE-ZX, or 1000BASE-BX10-D/U on a port-by-port basis. There are also many other advantages such as isolation protection, good data security,working stability and easy maintenance.Product Features
* 1250Mbps Typical Data Rate and compliant to 1000Base BX20 IEEE802.3ah
* 1310nm FP laser transmitter for UCFP-135
* 1550nm DFB laser transmitter for UCFP-153
* PIN photo-detector
* Up to 20km on 9/125µm SMF
* Hot-pluggable CSFP footprint
* LC/UPC type pluggable optical interface
* Achieve operational compatibility with conventional SFP
* Metal enclosure, for lower EMI
* RoHS compliant and lead-free
* Single +3.3V power supply
* Support Digital Diagnostic Monitoring interface
* Compliant with SFF-8472
* Case operating temperature: Industrial / Commercial optional, 0°C to +70°C / -40°C to +85°C
* 1310nm FP laser transmitter for UCFP-135
* 1550nm DFB laser transmitter for UCFP-153
* PIN photo-detector
* Up to 20km on 9/125µm SMF
* Hot-pluggable CSFP footprint
* LC/UPC type pluggable optical interface
* Achieve operational compatibility with conventional SFP
* Metal enclosure, for lower EMI
* RoHS compliant and lead-free
* Single +3.3V power supply
* Support Digital Diagnostic Monitoring interface
* Compliant with SFF-8472
* Case operating temperature: Industrial / Commercial optional, 0°C to +70°C / -40°C to +85°C
Specification
Parameter | Symbol | Min. | Typ. | Max. | unit | |||||||
Transmitter Section | ||||||||||||
Input Differential Impendence | Zin | 90 | 100 | 110 | Ohm | |||||||
Data Input Swing Differential | Vin | 500 | 2400 | mV | ||||||||
TX Disable | Disable | 2.0 | Vcc | V | ||||||||
Enable | 0 | 0.8 | V | |||||||||
TX Fault | Assert | 2.0 | Vcc | V | ||||||||
Deassert | 0 | 0.8 | V | |||||||||
Receiver Section | ||||||||||||
Output differential impendence | Zout | 100 | Ohm | |||||||||
Data Input Swing Differential | Vout | 370 | 2000 | mV | ||||||||
Rx_LOS | Assert | 2.0 | Vcc | V | ||||||||
Deassert | 0 | 0.8 | V | |||||||||
