Лабораторная шлифовальная машина для порошковых образцов 2 л вертикальная Планетарная шаровая мельница с 4
- Категория: Chemical Machinery & Equipment >>>
- Поставщик: Changsha,Samy,Instrument,&,Equipment,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Aug-15-2025 | 1886.78 $* | 1924.25 $* |
| Jul-15-2025 | 1530.61 $* | 1561.39 $* |
| Jun-15-2025 | 1856.98 $* | 1893.26 $* |
| May-15-2025 | 1841.25 $* | 1878.45 $* |
| Apr-15-2025 | 1470.8 $* | 1499.74 $* |
| Mar-15-2025 | 1812.3 $* | 1848.46 $* |
| Feb-15-2025 | 1797.15 $* | 1833.88 $* |
| Jan-15-2025 | 1782.4 $* | 1818.11 $* |
Характеристики
Installation Instructions
Contact
Tel/Skype/wechat/whatsapp: +86 156 1610 8292
E-mail address: sales003@samycs.com
Product Description

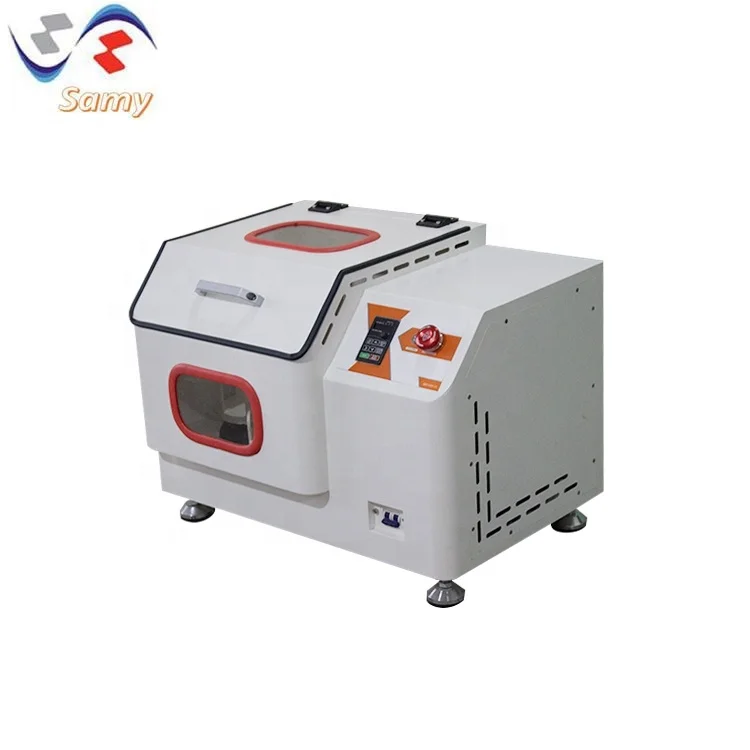

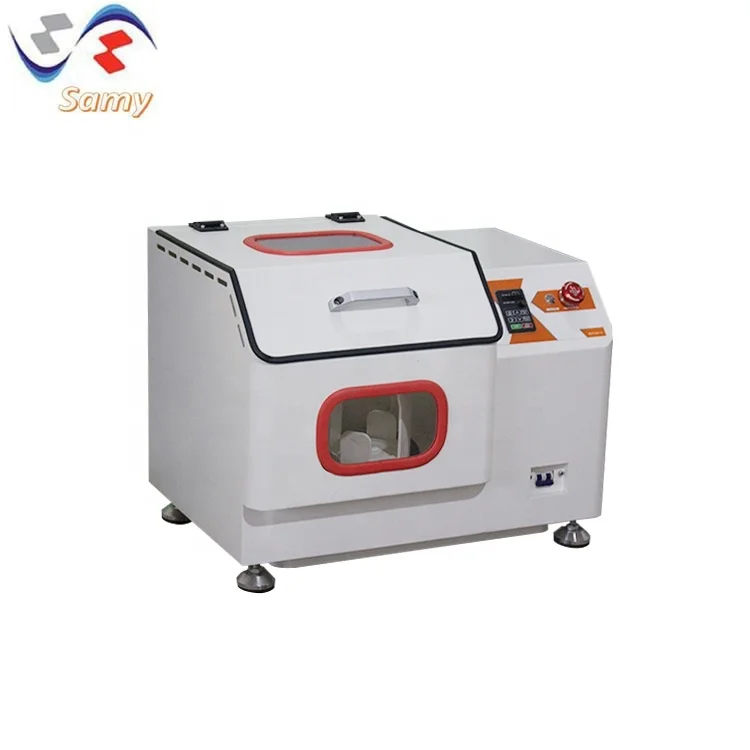

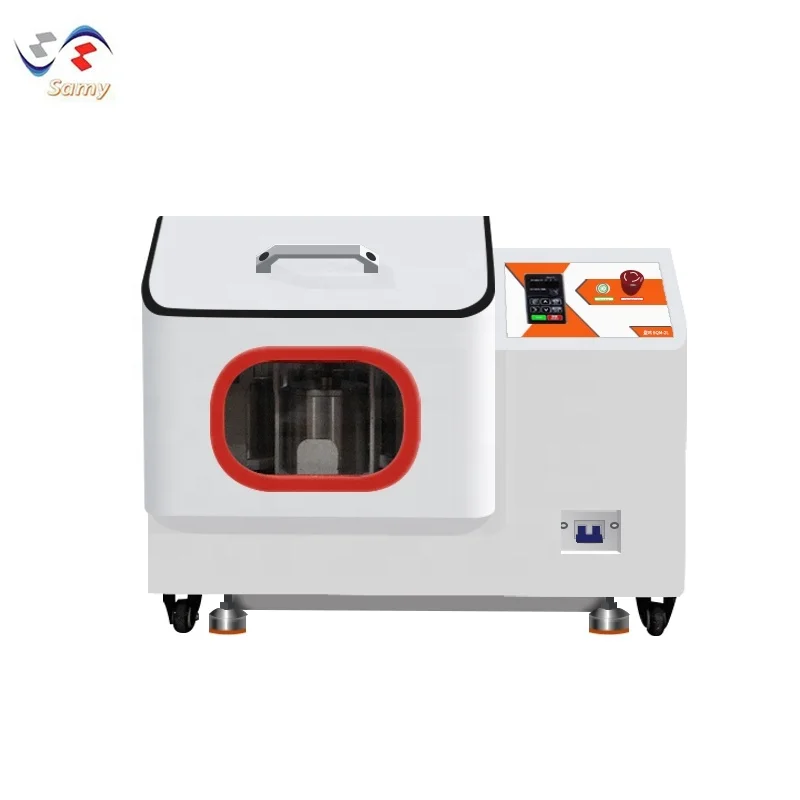

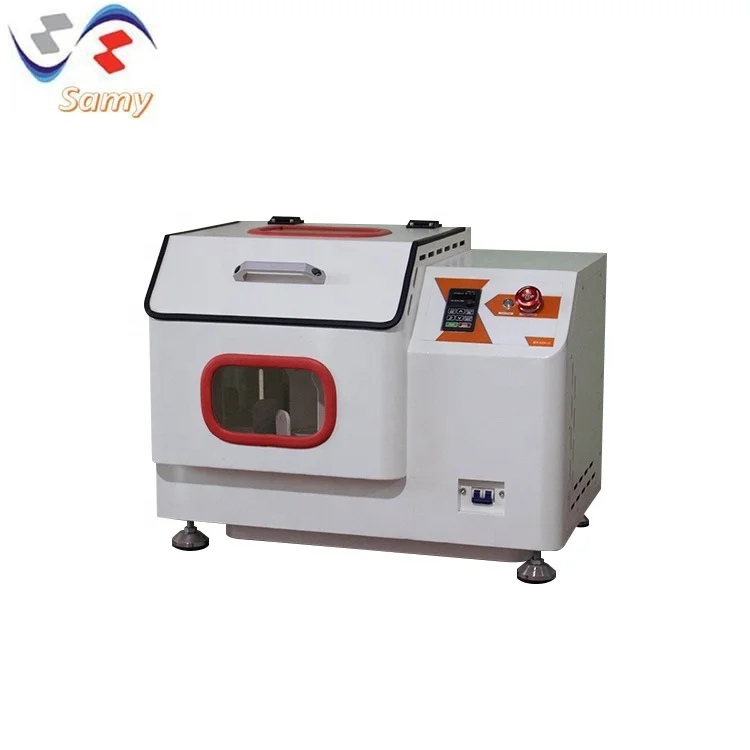

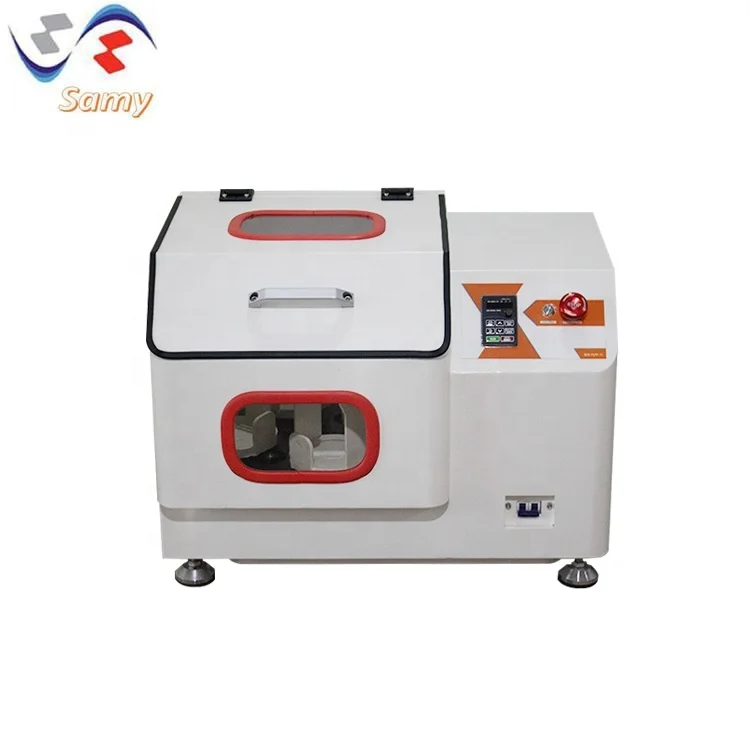

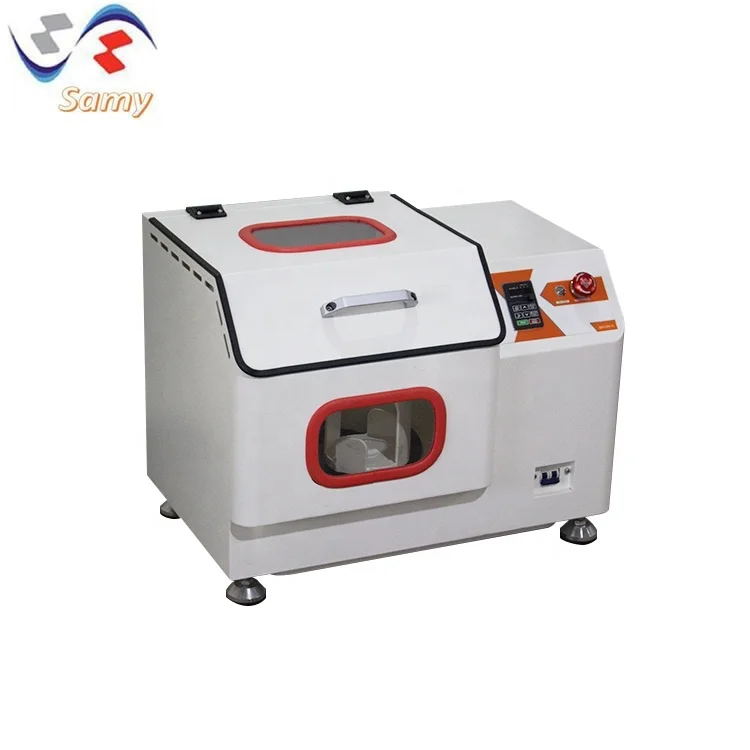

2L Lab Small Scale Powder Sample Grinding Machine Vertical Planetary Ball Mill
Introduction
The SQM-2L oil-sealed planetary ball mill is equipped with four ball milling tanks on the same turntable. When the turntable rotates, the ball milling tanks revolve around the turntable axis and rotate around their own axis, making planetary motion. Grinding balls in the tank collide with each other in high-speed motion, grinding and mixing samples. This product can grind and mix products with different particle sizes and materials by dry and wet methods. The minimum particle size of ground products can reach 0.1 micron (i.e. 1.0 × 10 mm-4).
Working mode: two or four ball milling tanks work at the same time Maximum sample loading: two-thirds of the volume of ball milling tanks. Feed tension: soil material ≤10 mm. Other materials ≤3 mm. Discharge particle size: the minimum can reach 0.1 um (i.e. 1.0 x 10 mm-4).
The grinding jars for your optional, we have stainless steel jars, zirconium jars, agate jars, ceramic jars, Nylon jars, Tungsten Carbide jars, PU jars, etc.. The SQM-4L planetary ball mill jars suitable for the capacity from 100 ml to 500 ml, so you can select the correct jars capacity before confirm the order.
We have many different jars material for your selection:
Stainless steel jars and balls.
Zirconia jars and balls.
Agate jars and balls.
Tunguest carbide jars and balls.
Nylon jars and balls.
PTFE jars etc...
you can go through our link as
https://samy.en.alibaba.com/productgrouplist-911025636/Accessory.html?spm=a2700.pc-decorate.0.0.24703333oZPoYr
Manufacturing Technique
Name | Laboratory Planetary Ball Mill machine | ||||||
Model | SQM-2L Planetary ball mill grinding machine | ||||||
Capacity | 500ml (each jar capacity ) * 4 (jars )=2L | ||||||
Style | Planetary | ||||||
Grinding ways | Dry grinding /wet grinding/High energy alloyed grinding/vacuum grinding for optional | ||||||
Loading and unloading method | Intermittent type | ||||||
Speed rate（r/min） | 2:1 | ||||||
The revolution speed(r/min) | 5-400 | ||||||
Rotation speed(r/min) | 10-800 | ||||||
Rated voltage（V） | 220 | ||||||
Rated power(W) | 750 | ||||||
Frequency（Hz） | 50 | ||||||
Long run time(h) | 100 | ||||||
Run time(h) | 0-9999 | ||||||
Feed particle size（mm） | <15mm,Hard material <3mm | ||||||
Grain size(μm) | 0.1μm，or 100nm | ||||||
Ball material ratio | (2~10):1 | ||||||
Net Weight | 75KG without grinding jars and wooden box | ||||||
Dimension | 66*44*52cm Export wooden package | ||||||
Sample Grinding Results
Product Features
Exhibition
Packing and Delivery
Our service
Warranty
12 months for the whole machine. Within 12 months under normal use and maintenance, if something is wrong with the machine, you will get spare part for free. Out of 12 months, you will get spare parts at cost price. You will also get technical support and service all the lifetime.
Technical Support
1. Technical support by phone, email or WhatsApp or Wechat or Skype around the clock.
2. Friendly English version manual and operation video.
After sales services
Normal machine is properly adjusted before dispatch. You will be able to use the machines immediately. You will be able to get free training advice towards our machine in our factory. You will also get free suggestion and consultation, technical support and service by email/fax/tel and lifetime technical support.
FAQ
Q:What's the zirconium ball used for?
A: Samy zirconium balls work with zirconium jar or others raw material jar for grinding,the grinding jars and grinding balls used for ball mill machine.
Q:What's the zirconium balls main features?
A: The inner wall has high smoothness and not easy to be stained.Has strong oxidation resistance,acid resistance and excellent corrosion resistance
Q:Do you have MOQ request?
A: we are accept MOQ as 1 kgs.
Q:What's kind of package for the balls?
A:We have special bubble bags for inside package base for on 1-5 kgs,and then with carton box for outside packed bulk qty like more than 10 kgs,we will use plastic tank or wooden box.
Q:How many days will be delivery?
A:The common size like 3-15 mm we have enough stock in warehouse,the delivery time around 3-10 days after we get the payment.
