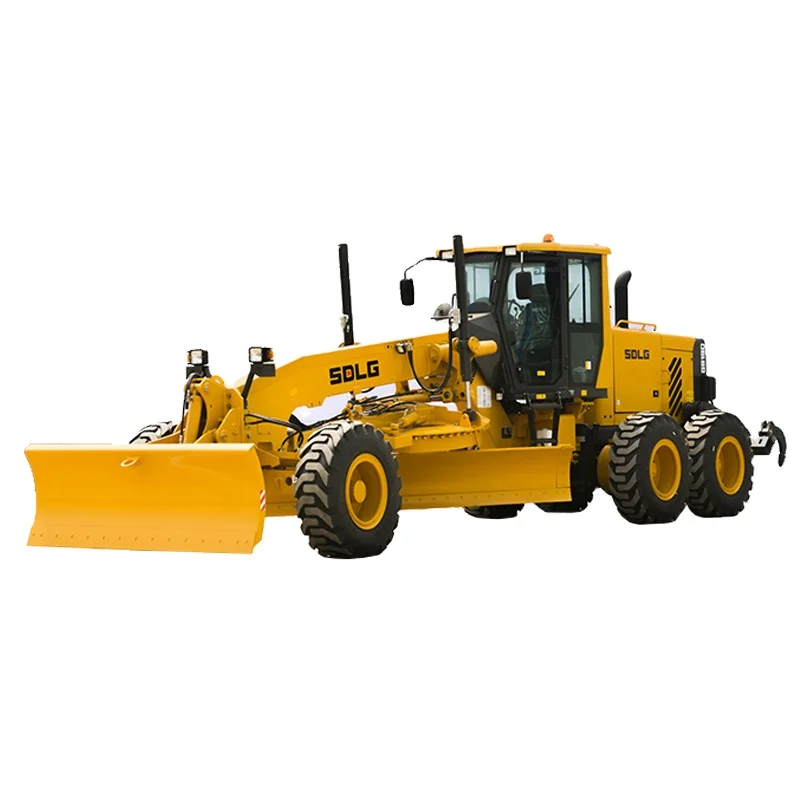

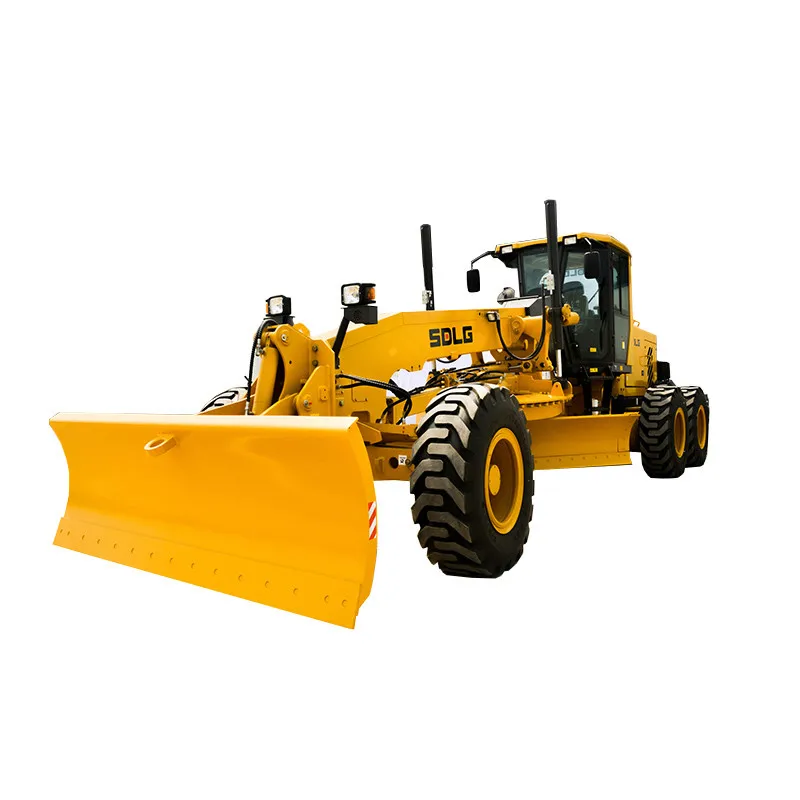

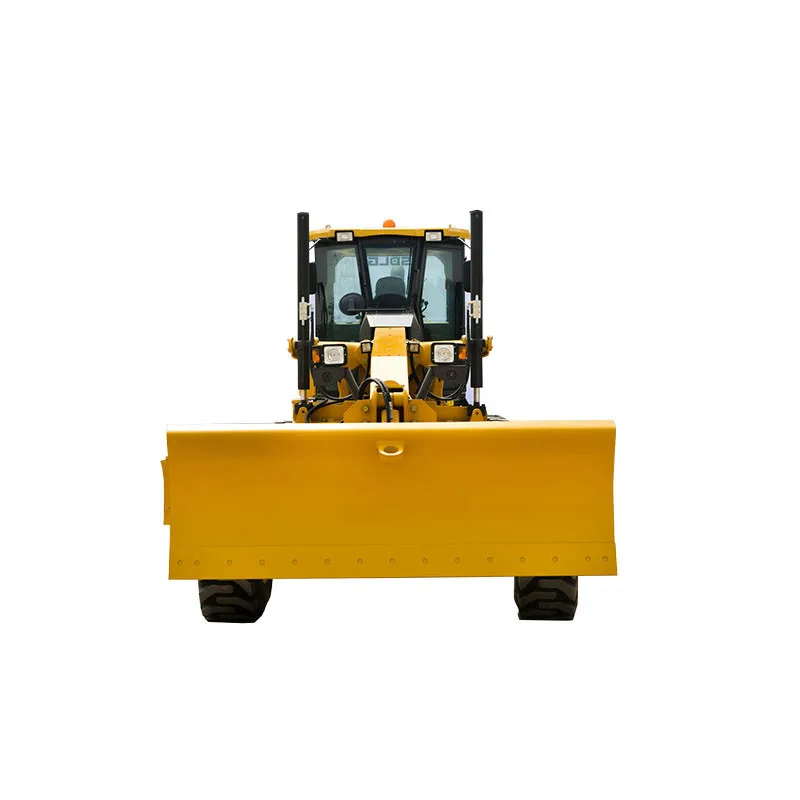

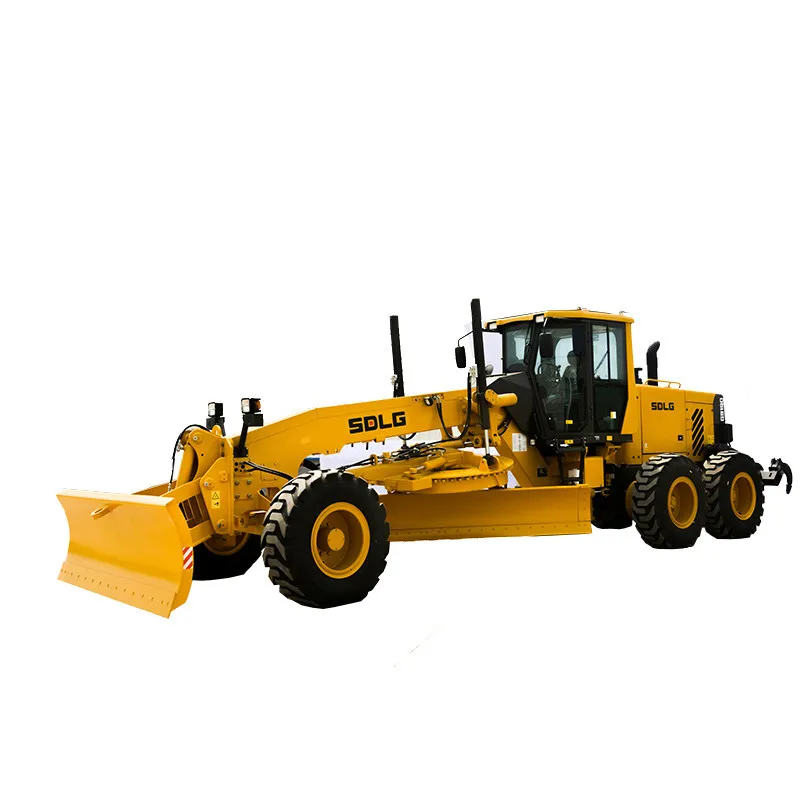

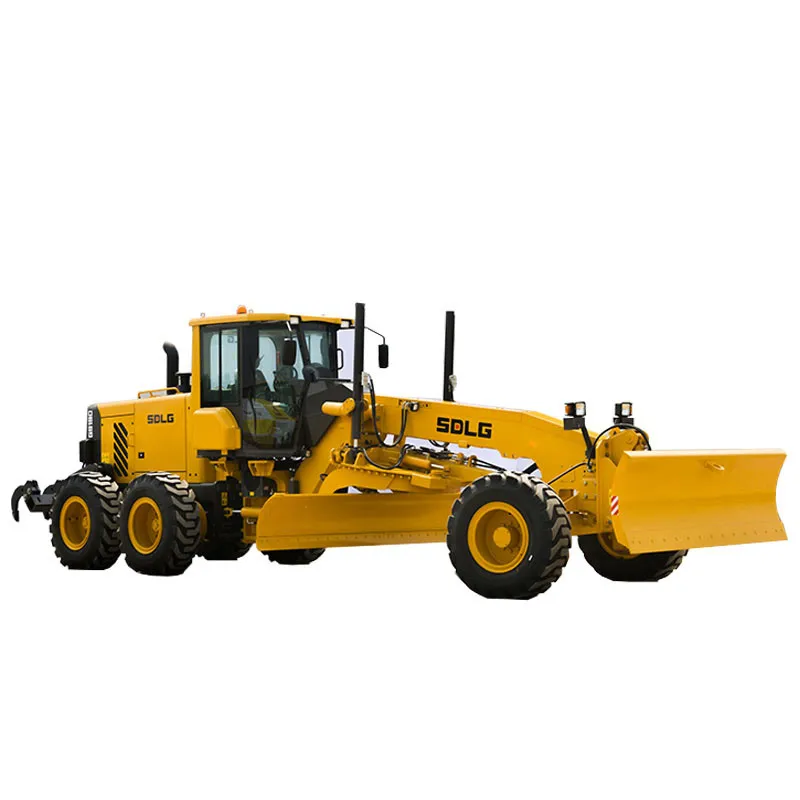

Китай SDLG дорожное оборудование G9200 200hp автогрейдер

Цена:57 777,00 $ - 69 999,00 $*

Количество:

Specification

Base operating standard	8975 x 2710 x 3240 mm
Base operating weight	15 800 kg
Blade height	635 mm
Blade length	3 962 mm
Blade thickness	22 mm
Blade tilt backward	5
Blade tilt forward	47
Drive	Hydraulic torque converter
Drive tanderm total oscillation	15
Engine make & model	BF6M1013EC
Front axle oscillation	16
Front wheel lean	18 on each side
Fuel tank capacity	270 L
Full height cab including ROPS	3 240 mm
Maximum blade lift above the ground	445 mm
Maximum speed (km/hour)	38 fwd / 23 rev
Maximum steering range	50 left / right
Maximum torque (VT - variable torque)	710 Nm @ 1 500 rpm
Minimum turning radius	7 600 mm
Net flywheel power (SAE J1349)	146 kW @ 2 200 tr/min
No. of gears	6 fwd / 3 rev
Operating weight including standard front dozer	16 800 kg
Operating weight including standard middle ripper	16 630 kg
Operating weight including standard rear ripper (including front block counter weight)	17 550 kg
Overall length with ripper & push plate	10 350 x 2 710 x 3 240 mm
Shoulder reach outside wheels straight frame (left/right) maximum to right	2 172 / 2 162 mm
Transmission type	Fixed shaft power shift
