4000 в 8000 двойной высоковольтный источник питания для фильтра ESP Электростатическая система осаждения очиститель воздуха часть
- Категория: Air Purifier Parts >>>
- Поставщик: Shenzhen,Kinyo,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-17-2025 | 26.15 $* | 27.80 $* |
| Aug-17-2025 | 26.11 $* | 27.94 $* |
| Jul-17-2025 | 22.41 $* | 23.16 $* |
| Jun-17-2025 | 26.21 $* | 27.4 $* |
| May-17-2025 | 22.8 $* | 23.77 $* |
| Apr-17-2025 | 25.12 $* | 26.74 $* |
| Mar-17-2025 | 25.51 $* | 26.10 $* |
| Feb-17-2025 | 25.42 $* | 26.1 $* |
| Jan-17-2025 | 24.41 $* | 25.82 $* |
Характеристики
Product Description
Designed for home/commercial air purifiers, for air purifiers less than 1000m3/h
Using unique high-voltage voltage and current double closed-loop control patent technology to ensure consistent purification
efficiency and effective control of ozone concentration
Input voltage: 12VDC, 24VDC or 18VAC
Maximum output power: 5W
Single high voltage output: 6KVDC, -6KVDC
Double high voltage output: 8/4KVDC, -8/-4KVDC
Output current: 50~600μA adjustable
Output short circuit protection and under voltage protection
Has 2~5 seconds continuous arc protection
Automatically cut off the high voltage output when protection, and output the fault protection signal
Easy to install and small
Please attention:
This is only high voltage power supply link,if you want to buy our esp cells(cover from 20m3/h-5000m3/h),please leave message to us for details,thank you.
Image Details:
Using unique high-voltage voltage and current double closed-loop control patent technology to ensure consistent purification
efficiency and effective control of ozone concentration
Input voltage: 12VDC, 24VDC or 18VAC
Maximum output power: 5W
Single high voltage output: 6KVDC, -6KVDC
Double high voltage output: 8/4KVDC, -8/-4KVDC
Output current: 50~600μA adjustable
Output short circuit protection and under voltage protection
Has 2~5 seconds continuous arc protection
Automatically cut off the high voltage output when protection, and output the fault protection signal
Easy to install and small
Please attention:
This is only high voltage power supply link,if you want to buy our esp cells(cover from 20m3/h-5000m3/h),please leave message to us for details,thank you.
Image Details:
Type 1:
Input voltage:12VDC
Type 2:
Input voltage:24VDC
Type 3:
Input voltage:220VAC

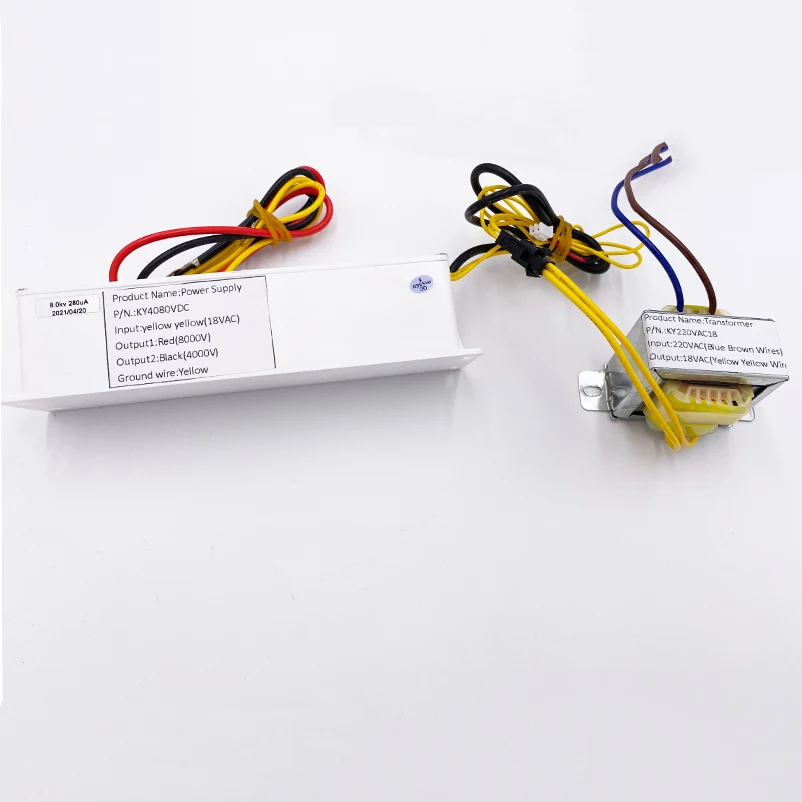

With a transformer
Transformer
Input Voltage:220VAC
Output:16/18VAC

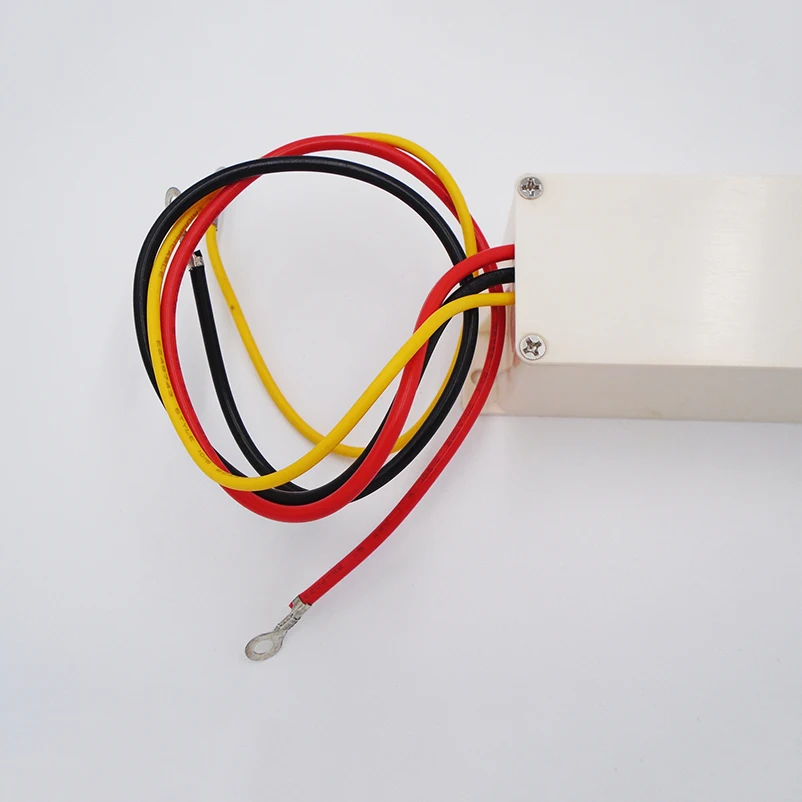

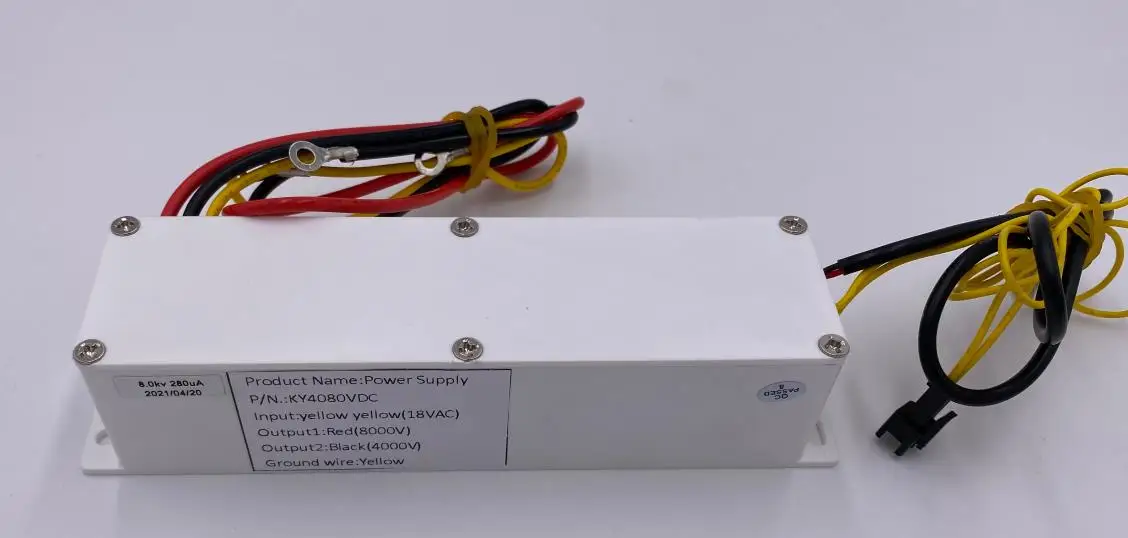

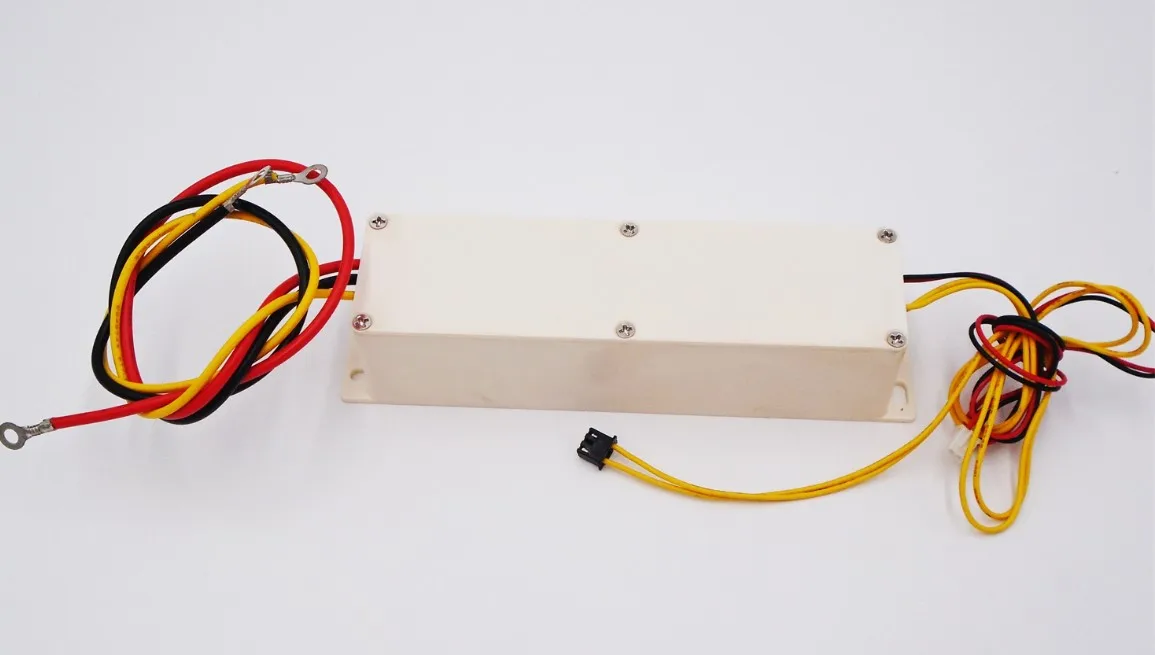

Wires details:

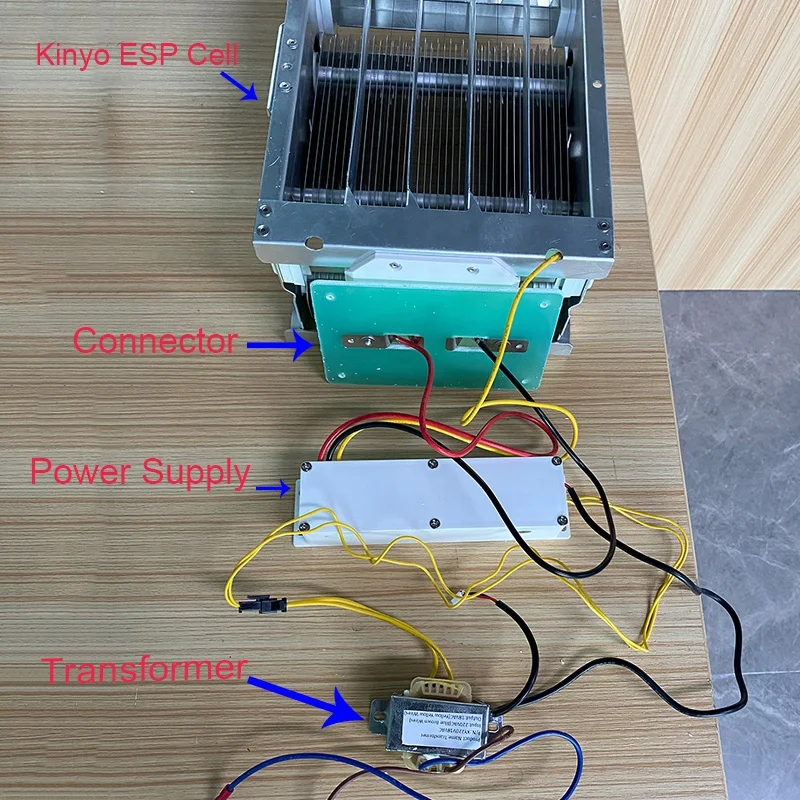

Connect details
ESP Connector
ESP Cell + Connector
Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine
PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.
PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.
Title goes here.
Installation size:165mm×41mm×37mm
Specification
item | value |
After-sales Service Provided | Free spare parts, Onsite Installation, Return and Replacement |
Warranty | 5 years |
Type | Air Purifier Parts |
Application | Car, Hotel, Garage, Commercial, Household |
Power Source | Electric |
Private Mold | Yes |
Place of Origin | China |
Guangdong | |
Brand Name | Kinyo |
Model Number | KYOG12V05 |
Product Name | High Voltage Power Supply |
Input Voltage | 12VDC/24VDC/220VAC |
Output Voltage | 4000V/8000V |
Output Current | 50-600uA adjustable |
Power | 5W |
Control method | High-voltage voltage and current double closed-loop control |
Protection 1 | Output short circuit protection |
Protection 2 | Overload protection |
Protection 3 | Arcing protection |
Fault signal output | Working normally: 0VDC,Fault: 4.5VDC |
