Редуктор разных размеров под заказ hdpe микро-канал

Редуктор разных размеров под заказ hdpe микро-канал

Категория: Telecom Parts >>>
Поставщик: Yueqing,Reepure,Telecom,Technology,Co.,Ltd.

Цена:0,78 $*

Количество:

Описание и отзывы

Трекер стоимости

Месяц	Минимальная цена	Макс. стоимость
Sep-18-2025	0.1 $*	0.13 $*
Aug-18-2025	0.49 $*	0.36 $*
Jul-18-2025	0.88 $*	0.15 $*
Jun-18-2025	0.33 $*	0.76 $*
May-18-2025	0.81 $*	0.87 $*
Apr-18-2025	0.1 $*	0.62 $*
Mar-18-2025	0.46 $*	0.7 $*
Feb-18-2025	0.45 $*	0.56 $*
Jan-18-2025	0.98 $*	0.50 $*

Характеристики

Banner

1 (1).png

Product Description

1 (2).png

Product Description

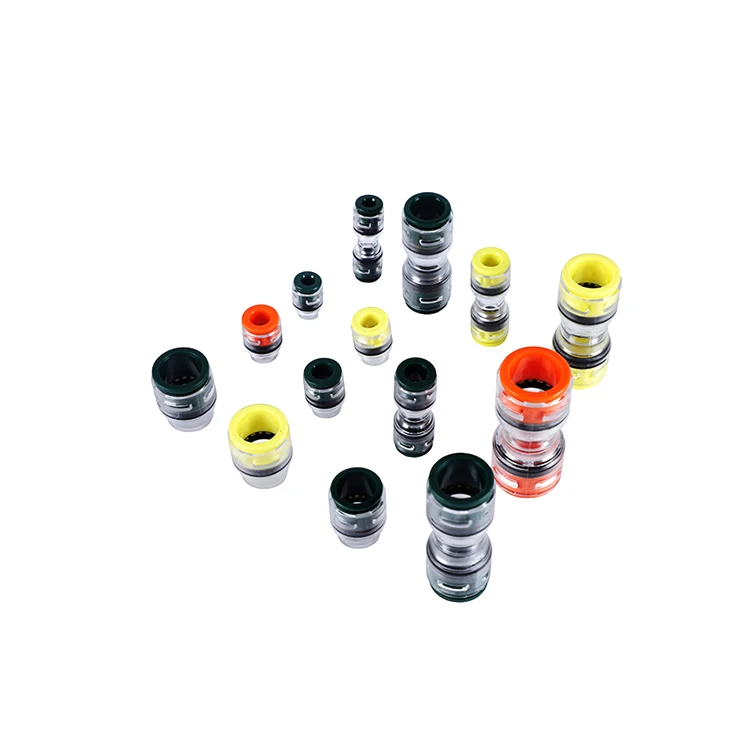

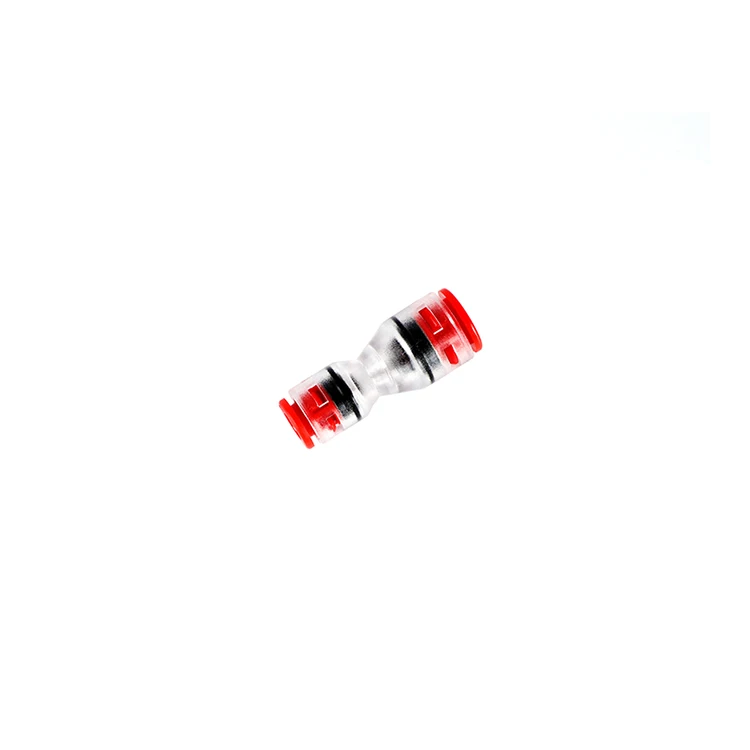

Micro duct reduction connector

Micro duct reduction connectors make splicing MicroDuct fast and easy. Simply push the Micro Ducts into the center of the micro duct reduction connector. No tools are required. The micro duct reduction connectors can be connected and disconnected 10 times and still maintain the high performance requirements for air blown installation systems.

Micro duct reduction connectors operate at 15 BAR (218 psi) with a maximum permissible leakage rate of 1cc/min. This is equivalent to 1 bubble every 3 seconds. Higher pressures have been used in the field with no increase in leakage rate. Quick Burst rating is 25 BARS (363 psi).

Micro duct reduction connector Feature:

Body Material:	PC, impact resistant
Collect Material:	POM, stainless steel teeth
O-rings Material:	Nitrile rubber
Blowing Pressure:	16 bar
Burst Pressure:	25 bar
Temperature Range:	-10 ~ 60°C
Insertion force:	50N max (5kg)

Micro duct reduction connector Specification:

Reepure code	Description
MRC-5/3.5-3/2.1	5-3mm straight connector, bore 2.1mm
MRC-7/5.5-3/2.1	7-3mm straight connector, bore 2.1mm
MRC-7/5.5-5/3.5	7-5mm straight connector, bore 3.5mm
MRC-8/6-3/2.1	8-3mm straight connector, bore 2.1mm
MRC-8/6-5/3.5	8-5mm straight connector, bore 3.5mm
MRC-10/8-7/5.5	10-7mm straight connector, bore 5.5mm
MRC-10/8-8/6	10-8mm straight connector, bore 6mm
MRC-12/10-7/5.5	12-7mm straight connector, bore 5.5mm
MRC-12/10-8/6	12-8mm straight connector, bore 6mm
MRC-12/10-10/8	12-10mm straight connector, bore 8mm
MRC-12.7/10-10/8	12.7-10mm straight connector, bore 8mm
MRC-14/12-10/8	14-10mm straight connector, bore 8mm
MRC-14/12-12/10	14-12mm straight connector, bore 10mm
MRC-16/12-12/10	16-12mm straight connector, bore 10mm
MRC-16/12-14/10	16-1414mm straight connector, bore 10mm
MRC-18/14-14/10	18-14mm straight connector, bore 10mm
