Новый Huawei SmartAX EA5801 серии EA5801-GP08 EA5801E mini olt
US $389.00-$700.00
6s с соединением внакрой сведение по сердцевине машина соединения fusionadora de оптоволокно волоконно-оптический сварочный
- Категория: Telecommunications >>>
- Поставщик: Abalone,Technology,Group,(Wuhan),Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 0.68 $* | 0.33 $* |
| Aug-16-2025 | 0.83 $* | 0.57 $* |
| Jul-16-2025 | 0.61 $* | 0.62 $* |
| Jun-16-2025 | 0.63 $* | 0.86 $* |
| May-16-2025 | 0.13 $* | 0.68 $* |
| Apr-16-2025 | 0.30 $* | 0.1 $* |
| Mar-16-2025 | 0.97 $* | 0.82 $* |
| Feb-16-2025 | 0.78 $* | 0.20 $* |
| Jan-16-2025 | 0.34 $* | 0.55 $* |
Характеристики
Products Description
* 9s splicing time, 26s tube heating time
* 4 motors alignment
* Chinese and English versions can be switched freely
* Fast splicing speed and low losses
* 5 inches TFT color LCD display
* Fast welding, four motors alignment
* The charging time is ≥3 hours, and the full charge can be welded for 200 times
* Rubber coating protects the fuselage in all aspects to prevent damage
* 4800mAh high capacity battery, pluggable battery
* 4 motors alignment
* Chinese and English versions can be switched freely
* Fast splicing speed and low losses
* 5 inches TFT color LCD display
* Fast welding, four motors alignment
* The charging time is ≥3 hours, and the full charge can be welded for 200 times
* Rubber coating protects the fuselage in all aspects to prevent damage
* 4800mAh high capacity battery, pluggable battery

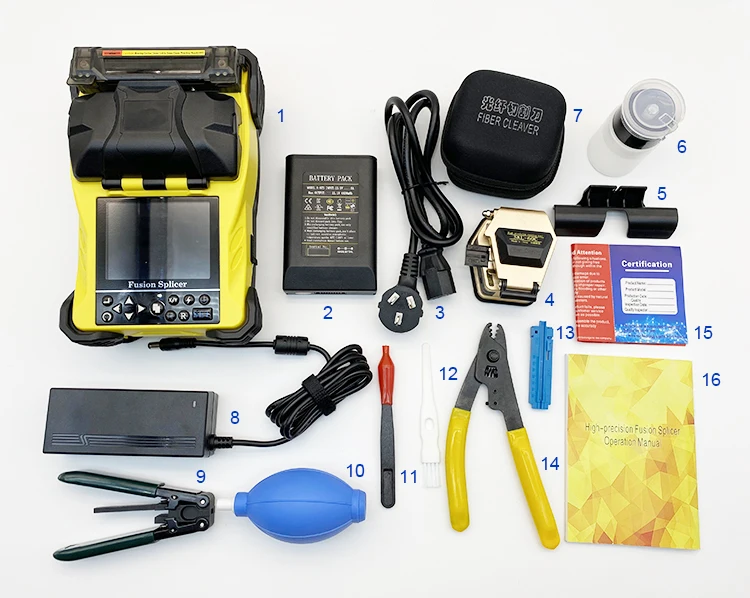

No | Name | Qty |
1 | Fusion Splicer (A-87S ) with 1 pair eletrodes | 1 set |
2 | Li Battery | 1 pc |
3 | power cord | |
4 | Fiber Cleaver | 1 pc |
5 | Cooling Tray | 1 pc |
6 | Alcohol Bottle | 1 pc |
7 | Fiber Cleaver Bag with hex wrenches | |
8 | AC Adaptor | 1 pc |
9 | Fiber Stripper | 1 pc |
10 | Blowing Balloons | 1 pc |
11 | Tweezers | 1 pc |
12 | Brush | 1 pc |
13 | Fixed-length device | 1 pc |
14 | Miller Pliers | 1 pc |
15 | Certificate of Quality | 1 pc |
16 | Manual | 1 pc |
Details Images
Product Paramenters
Applicable optical fiber | SM(G.652&G.657)、MM(G.651)、DS(G.653)、NZDS(G.655) and self-defined optical fiber typesand self-defined optical fiber types |
Splicing loss | 0. 02dB (SM) 、 0. 01dB (MM) 0. 04dB (DS/NZDS) |
Return loss | Over60dB |
Typical splicing duration | 9 seconds |
Typical heating duration | 26 seconds (configurable heating time and adjustable heating temperature ） |
Optical fiber alignment | Precise alignment, fiber core alignment, cladding alignment |
Optical fiber diameter | Cladding diameter 80~150μm, coating layer diameter 100~1000μm |
Cutting length | Coating layer below 250μm：8~16mm；coating layer 250~1000μm：16mm |
Tension test | Standard 2N（optional） |
Optical fiber clamp | Multi-function clamp for bare fiber, tail fiber, jumpers, leather line; changing clamp applicable for SC and other connectors for a variety of FTTx optical fiber and cable. |
Amplification factor | 400 times（X axis or Y axis） |
Heat shrink bush | 60mm、40mm and a series of miniature bush |
Display | 3.5 inches TFT color LCD displayReversible, convenient for bi-directional operation |
External interface | USB interface, convenient for data download and software upgrade |
Splicing mode | 17 groups of operation modes |
Heating mode | 9 groups of operation modes |
Splicing loss storage | 5000 latest splicing results are stored in the built-in storage. |
Built-in battery | Supports continuous splicing and heating for not less than 200 times |
Power supply | The built-in lithium battery 11.8V supplies the power, charging time≤3.5h; External adapter, input AC100-240V50/60HZ, output DC13.5V/4.81A |
Power saving | 15% of the power of the lithium battery can be savedin a typical environment. |
Working environment | Temperature: -10~+50℃, Humidity：<95%RH（no condensation）, Working altitude: 0~5000m, Max. wind speed: 15m/s |
Outer dimension | 214mm（long）×136mm（wide）×109 .5 mm（high） |
Lighting | Convenient for optical fiber installation in the evening |
Weight | 1.21Kg（excl. battery）1.5Kg（incl. battery） |
Packaging & Shipping
Application
Fusion Splicer Application
→ FTTX
→ Data center
→ LAN/WAN network
→ Industries
→ Telecom network
→ Ethernet network
→ Data center
→ LAN/WAN network
→ Industries
→ Telecom network
→ Ethernet network
FAQ
1. How do I contact you?
Please directly send message to us by Alibaba.com. We will reply you no later than 24 hours
2. Are you a factory or a trading company?
We are manufacturer, factory is in Wuhan, welcome to visit us or arrange a video meeting.
3. Our project is complex and it has a lot strict requirements, Are you helpful?
Please be assured us. We have 25 years industry experience, and we have professional development & technology department. When we
have the video meeting, our engineer will standby and directly answer your tech question.
4. How could you guarantee the product quality?
All product we will send TDS to you for confirmation. We guarantee the goods will be 100% same with the TDS. We have been
cooperated with many west EU customer. Such as Germany/ Switzerland, they has very very strict request on product quality, but we
keep cooperation over 10 years.
5. What lead time you could offer?
If product have in stock, we can ship anytime.
If product run out of stock, usually lead time is in 2 weeks.
6. What payment method do you offer?
For large orders: T/T, L/C at sight
For small orders: T/T, Western Union and Paypal are acceptable.
7. Are your price competitive?
20 years industry experience, we are confidence to say we know very well about raw material, industry supplier chain and
competitor information and their product details.
Our own IE engineer improve the production process.to increase production efficient.
So our price is very competitive.
Please directly send message to us by Alibaba.com. We will reply you no later than 24 hours
2. Are you a factory or a trading company?
We are manufacturer, factory is in Wuhan, welcome to visit us or arrange a video meeting.
3. Our project is complex and it has a lot strict requirements, Are you helpful?
Please be assured us. We have 25 years industry experience, and we have professional development & technology department. When we
have the video meeting, our engineer will standby and directly answer your tech question.
4. How could you guarantee the product quality?
All product we will send TDS to you for confirmation. We guarantee the goods will be 100% same with the TDS. We have been
cooperated with many west EU customer. Such as Germany/ Switzerland, they has very very strict request on product quality, but we
keep cooperation over 10 years.
5. What lead time you could offer?
If product have in stock, we can ship anytime.
If product run out of stock, usually lead time is in 2 weeks.
6. What payment method do you offer?
For large orders: T/T, L/C at sight
For small orders: T/T, Western Union and Paypal are acceptable.
7. Are your price competitive?
20 years industry experience, we are confidence to say we know very well about raw material, industry supplier chain and
competitor information and their product details.
Our own IE engineer improve the production process.to increase production efficient.
So our price is very competitive.
