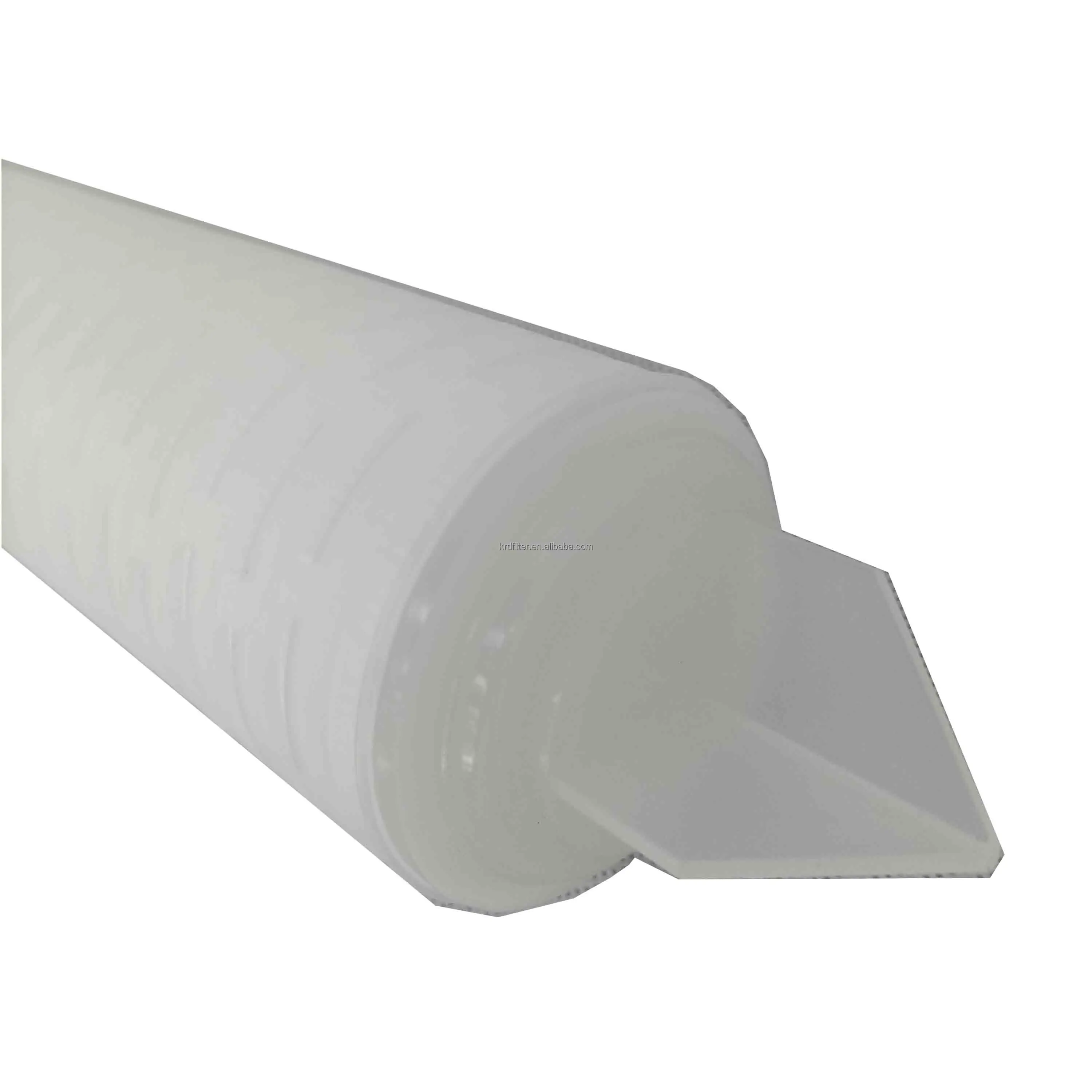

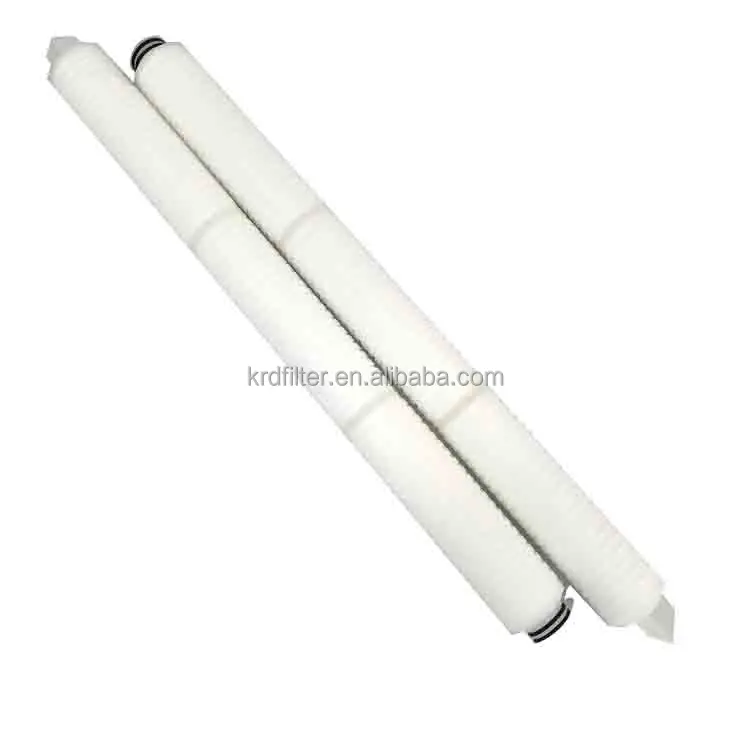

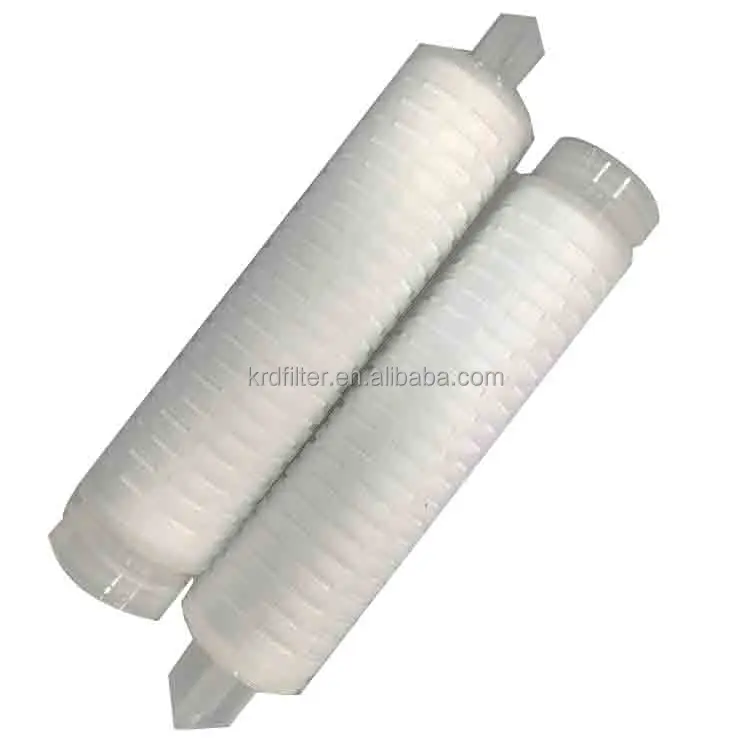

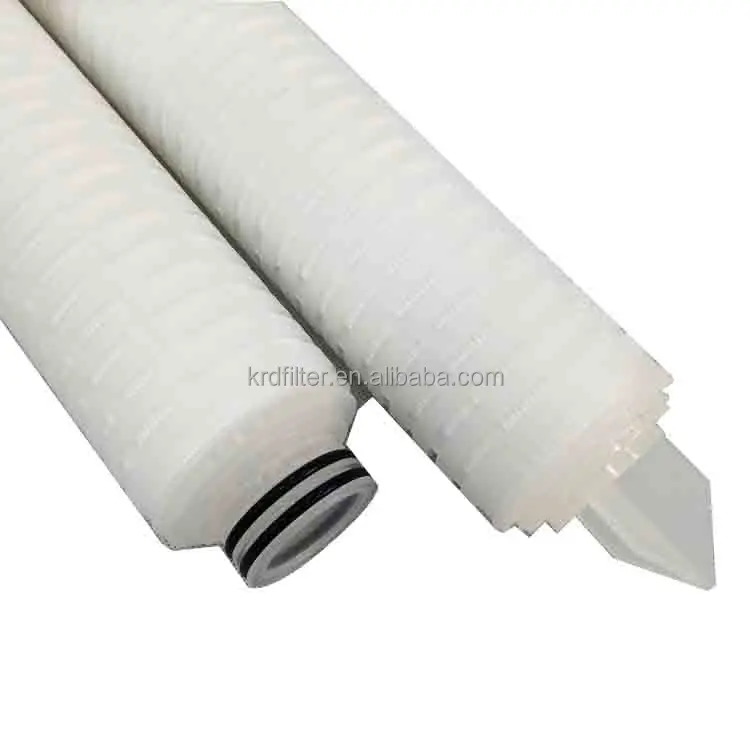

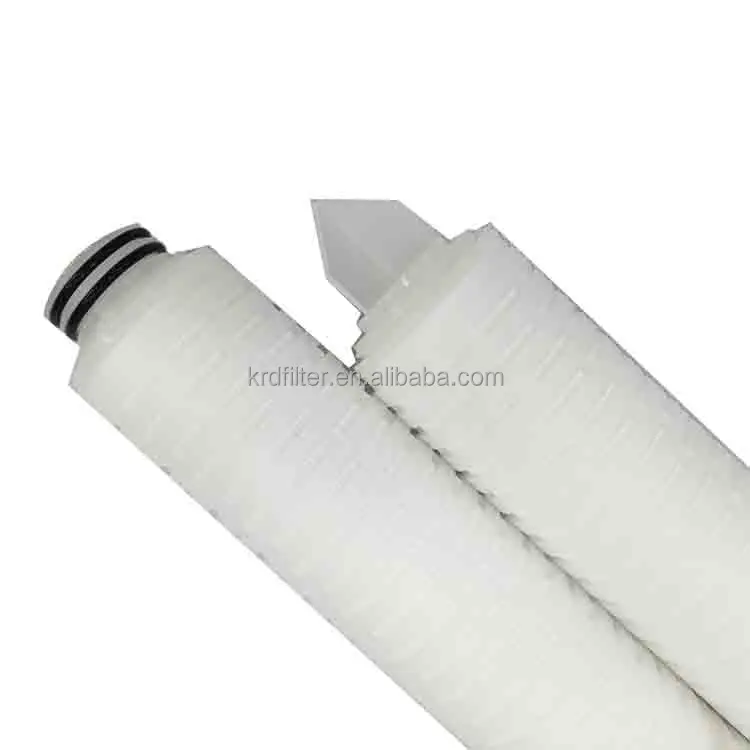

Оригинальный производитель 66 мм 69 20/30/40 дюйма полипропиленовые складные фильтры картриджи для пищевой и напитковой промышленности AB3FD3EH1 0 05um
- Категория: Other Filter Supplies >>>
- Поставщик: Xinxiang,Keruida,Filtration,And,Purification,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-15-2025 | 12.44 $* | 13.88 $* |
| Aug-15-2025 | 12.97 $* | 13.25 $* |
| Jul-15-2025 | 10.86 $* | 11.84 $* |
| Jun-15-2025 | 12.88 $* | 13.82 $* |
| May-15-2025 | 10.41 $* | 11.73 $* |
| Apr-15-2025 | 11.59 $* | 12.12 $* |
| Mar-15-2025 | 11.11 $* | 12.6 $* |
| Feb-15-2025 | 11.51 $* | 12.61 $* |
| Jan-15-2025 | 11.31 $* | 12.42 $* |
Характеристики
Specification
item | 10 inches 254 mm 0.2 micron Competitive Price PP Filter Cartridge for Water Treatment AB1FR8EH1 |
Operating Conditions | • Maximum Operating Temperature: 194°F / 90°C • Maximum Forward Differential Pressure: 80 psid @ 120°F / 5.5 bar @ 50°C; 50 psid @ 121° - 195°F / 3.5 bar @ 51°- 90°C |
Materials | • Medium: PTFE • Core, cage, and end caps: Polypropylene • Support and drainage: Polypropylene • O-ring options: Viton1 and Teflon encapsulated Viton |
Removal Ratings | 5.0 µm, 1.0 µm, 0.2 µm, 0.1 µm, 0.05 µm |
Integrity Test Values2 | Per 10" / 254 mm segment • 0.05 µm: < 45 mL / min @ 35 psig / 2.4 bar • 0.1 µm: < 64 mL / min @ 19 psig / 1.3 bar • 0.2 µm: < 32 mL / min @ 11 psig / 0.76 bar |
Filter Areas | • 10" / 254 mm: 9.45 ft2 / 0.88 m2 • 20" / 508 mm: 18.90 ft2 / 1.76 m2 • 30" / 762 mm: 28.35 ft2 / 2.64 m2 • 40" / 1016 mm: 37.80 ft2 / 3.52 m2 |
Configurations | •Nominal length: 10" / 254 mm, 20" / 508 mm, 30" / 762 mm, and 40" / 1016 mm • Diameter: 2.75" / 70 mm • O-ring size / end caps: Code 3 (222 double O-ring / flat end) Code 8 (222 double O-ring / finned end) Code 7 (226 double O-ring bayonet lock / finned end) |
Description | The Emflon filter is recommended for chemicals which are compatible with PTFE and polypropylene. • Wide range of configurations • Five removal ratings • High flow rates • Integrity testable • Low extractables • Optimized design • Manufactured in a cleanroom environment • 100% integrity tested |
Packing & Delivery
1.Plastic bags inside; carton outside ;wooden cases for transport.
2.Transshipment by sea and air and other you can request.
3 Ports of shipment as your requirements.
2.Transshipment by sea and air and other you can request.
3 Ports of shipment as your requirements.
Shipping Methods | Time | Cost | Tracing | ||||
By Air | 4-7 Days | Average | Not traceable | ||||
By Sea | 1-2 Months | Cheap | |||||
International Express | DHL | 2-5 Days | Expensive | Tracking ID available | |||
FedEx | 2-5 Days | Expensive | |||||
TNT | 4-7 Days | Expensive | |||||
China Post | 7-14 Days | Cheap | |||||
Others | Depends | Depends | |||||
Company Profile
KeRuiDa is a specialist manufacturer engaged in filters, filtration equipment, decontamination plant, oil and gas separation unit, water and gas separation device.
Our company brings together a large number of high-quality scientific research, management and technical personnel, who are specialized in the research and development of filtration and purification technique. Our company is equipped with advanced production equipment and self-contained testing instrument. Our products are widely used in various fields such as petroleum, chemical, chemical fiber, energy, metallurgy, electric power, construction machinery, transportation and so on.
Our company brings together a large number of high-quality scientific research, management and technical personnel, who are specialized in the research and development of filtration and purification technique. Our company is equipped with advanced production equipment and self-contained testing instrument. Our products are widely used in various fields such as petroleum, chemical, chemical fiber, energy, metallurgy, electric power, construction machinery, transportation and so on.
Application Fields
Medical industry: filtration for medical liquid, cell debris, biologicals
Chemical industry: filtration for organic solvent, chemical reagent, electroplate liquid, ink.Food industry: drinking water,
mineral water, beverage, beer, wine
Electronic industry: pre-filtration on water system both for counter infiltration, deionized water
Gas filtration: compressed air, nitrogen, carbon dioxide
Others: photoresist, magnetic media
Pure water flow rate reference table: the initial value of 10" cartridge L/min (△P=0.01MPa, 1cP, 25℃)
Chemical industry: filtration for organic solvent, chemical reagent, electroplate liquid, ink.Food industry: drinking water,
mineral water, beverage, beer, wine
Electronic industry: pre-filtration on water system both for counter infiltration, deionized water
Gas filtration: compressed air, nitrogen, carbon dioxide
Others: photoresist, magnetic media
Pure water flow rate reference table: the initial value of 10" cartridge L/min (△P=0.01MPa, 1cP, 25℃)
FAQ
QQ1. WQ1. What is your product range?hat is your product range?1. What is your product range?Q1. What is your product
A: Our products cover replacement hydraulic oil filters, heavy truck oil/air filters, vacuum pump exhaust filters, water filter cartridge, air compressor filter elements and some spare parts for compressors.
Q2. Is customized filter or OEM available?
A: Yes,just offer your required sepcifications and drawings.
Q3. Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings. We can build the new molds.
Q4. What's your terms of packing?
A: Generally,we pack our goods in neutral boxes,outside brown carton cases. If you have legally registered patent, we can pack the goods in your branded boxes after getting your
authorization letters.
Q5. What's the terms of payment?
A: T/T 30% as deposit, and 70% before delivery.
We'll show you the photos of the products and packages before you pay the balancing.
Q6. What's your terms of delivery?
A: (1)FOB (2)CFR (3)CIF.
Q7. How about your delivery time?
A: Generally, under MOQ quantity take 5-7 working days after receiving your advance payment.
The specific delivery time depends on models and the quantity of your order.
Q1. What is your product range?
A: Our products cover replacement hydraulic oil filters, heavy truck oil/air filters, vacuum pump exhaust filters, water filter cartridge, air compressor filter elements and some spare parts for compressors.
Q2. Is customized filter or OEM available?
A: Yes,just offer your required sepcifications and drawings.
Q3. Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings. We can build the new molds.
Q4. What's your terms of packing?
A: Generally,we pack our goods in neutral boxes,outside brown carton cases. If you have legally registered patent, we can pack the goods in your branded boxes after getting your
authorization letters.
Q5. What's the terms of payment?
A: T/T 30% as deposit, and 70% before delivery.
We'll show you the photos of the products and packages before you pay the balancing.
Q6. What's your terms of delivery?
A: (1)FOB (2)CFR (3)CIF.
Q7. How about your delivery time?
A: Generally, under MOQ quantity take 5-7 working days after receiving your advance payment.
The specific delivery time depends on models and the quantity of your order.
Why Choose Us
15+ years experiecne | ||||||||
D&B certificate | ||||||||
R&D team OEM/ODM service | ||||||||
Best beofre and after customer service | ||||||||
24 hours online service | ||||||||
100% Made in China | ||||||||
Service Provide:
OEM ODM & OBM service, printing or logo information is acceptable.
Quality Guarantee:
All products have to pass strict inspection before they go out. If any problems caused by the product itself, we will supply you the new replaced ones .
After-sales Service:
Any problems caused by using our products:
1) Keep the problem products and timely contact with us for better feedbacks.
2) Please do not damage problem products, if necessary, Send the
products and the attached oil and the coolant sample together to us for better analyzing
3) Attached with repair document, parts list, labor costs and any other materials which
can support a claim for compensation.
OEM ODM & OBM service, printing or logo information is acceptable.
Quality Guarantee:
All products have to pass strict inspection before they go out. If any problems caused by the product itself, we will supply you the new replaced ones .
After-sales Service:
Any problems caused by using our products:
1) Keep the problem products and timely contact with us for better feedbacks.
2) Please do not damage problem products, if necessary, Send the
products and the attached oil and the coolant sample together to us for better analyzing
3) Attached with repair document, parts list, labor costs and any other materials which
can support a claim for compensation.
1. inquiry from customers
2. offer proforma quotation to customers
3. recieve Proforma order from customer
4. start production
5. quality control after production completed
6. packing
7. shipping
8. delivery to customers
2. offer proforma quotation to customers
3. recieve Proforma order from customer
4. start production
5. quality control after production completed
6. packing
7. shipping
8. delivery to customers
Contact Us
