Вешалка для гальванического покрытия Feiyide
US $50.00-$400.00
Высокочастотный однофазный модульный блок питания переменного тока гальванический
- Категория: Metal Electroplating Machinery >>>
- Поставщик: Ningbo,Yinzhou,Jinshunyi,Electric,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Aug-16-2025 | 476.86 $* | 486.55 $* |
| Jul-16-2025 | 386.70 $* | 394.50 $* |
| Jun-16-2025 | 469.90 $* | 478.67 $* |
| May-16-2025 | 465.15 $* | 474.71 $* |
| Apr-16-2025 | 371.3 $* | 378.49 $* |
| Mar-16-2025 | 458.86 $* | 467.37 $* |
| Feb-16-2025 | 454.22 $* | 463.73 $* |
| Jan-16-2025 | 450.25 $* | 459.60 $* |
Характеристики
Products Description
Parameter items | Typical values | range | remark | ||||
AC input voltage | 220VAC | 220VAC±10% | It can be customized according to AC voltage | ||||
frequency | 50Hz | 45～55 Hz | |||||
Rated output voltage | 12VDC | 0-12V(±1%) | |||||
Rated output current | 1000mA | 0-1000mA(±1%) | |||||
Voltage regulation accuracy | ≤1%*Vout-max | Vout≥10%*Vout-max Iout≥10%*Iout-max | |||||
Steady current accuracy | ≤1%*Iout-max | Vout≥10%*Vout-max Iout≥10%*Iout-max | |||||
Output ripple rms Vrms | ≤3%*Vout-max | ||||||

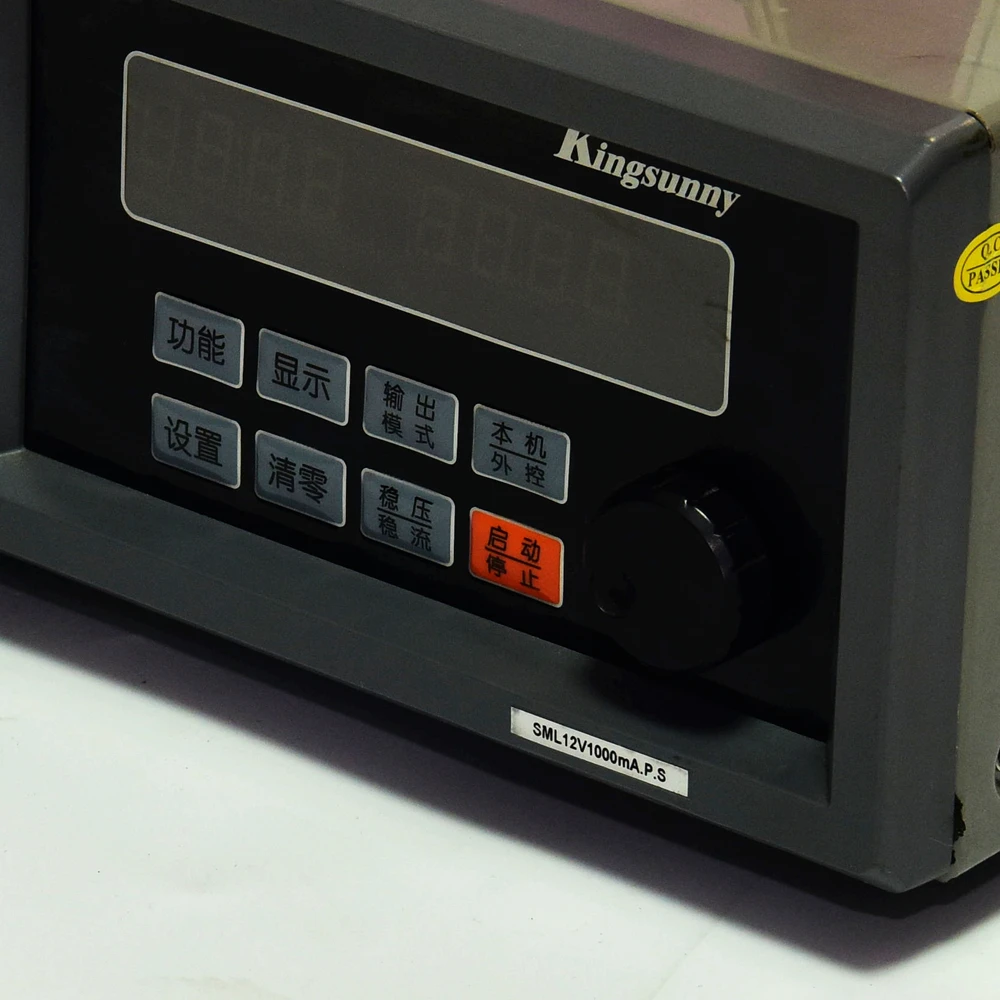

Control mode | Panel controls | ||||||
Constant voltage output control | |||||||
Constant current output control | |||||||
Protection features | Short circuit, overcurrent, overheating | Output short-circuit automatic current limiting | |||||
Pressure resistant | 1500VAC/5mA for one minute without arcing or breakdown | Input to output; input to housing. | |||||
500VDC/5mA for one minute without arcing or breakdown | Output to the housing | ||||||
Insulation resistance | ≥2MΩ | Input to output, input to enclosure, output to enclosure applied 500VDC | |||||
Weight(kg) | Approximately 8.5kG | ±2kG | |||||
Volume(mm3) | 250(D)× 430 (W) × 156 (H) | Tolerance: ±3mm | |||||
Cooling mode | Self-cooling | ||||||
noise | ≤20dB | ||||||
Place of use | Indoors, not exposed to direct sunlight | ||||||
Ambient temperature | -10℃ -40℃ | ||||||
humidity | 5-95% (non-icing) | ||||||
Adapt to plating | Precision plating: gold, silver, tin, nickel, alloy, etc | ||||||
Recommend Products
Why Choose Us
Company Profile
Product packaging
FAQ
Q: What is the role of your rectifier?
A: When used for electroplating operations, dc power is provided to metal parts
Q: I want to buy your product, which one to choose ?
A: I will recommend you the right rectifier according to your situation
Q: How long isthe warranty? A: One year. Excluding the artificial damage?
Q: Do you offer offline repair services? A: Sorry, temporarily do not
provide offline services, we will give maintenance videos to teach you how to repair the equipment Q:Where are the advantages of
your equipment A:Our equipment adopts the principle of high-frequency switching, which is more efficient and more accurate
provide offline services, we will give maintenance videos to teach you how to repair the equipment Q:Where are the advantages of
your equipment A:Our equipment adopts the principle of high-frequency switching, which is more efficient and more accurate
