Домашний офисный кухонный Настольный кулер для воды допустимый OEM горячий и холодный нормальный детский безопасный замок RO
- Категория: Water Dispensers >>>
- Поставщик: Ningbo,Good,Water,Source,Environmental,Protection,Electrical,Appliance,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 0.3 $* | 0.74 $* |
| Aug-16-2025 | 0.72 $* | 0.78 $* |
| Jul-16-2025 | 0.14 $* | 0.70 $* |
| Jun-16-2025 | 0.50 $* | 0.9 $* |
| May-16-2025 | 0.39 $* | 0.88 $* |
| Apr-16-2025 | 0.35 $* | 0.34 $* |
| Mar-16-2025 | 0.41 $* | 0.46 $* |
| Feb-16-2025 | 0.64 $* | 0.10 $* |
| Jan-16-2025 | 0.43 $* | 0.9 $* |
Характеристики
Product Overview
Products quick details as following:

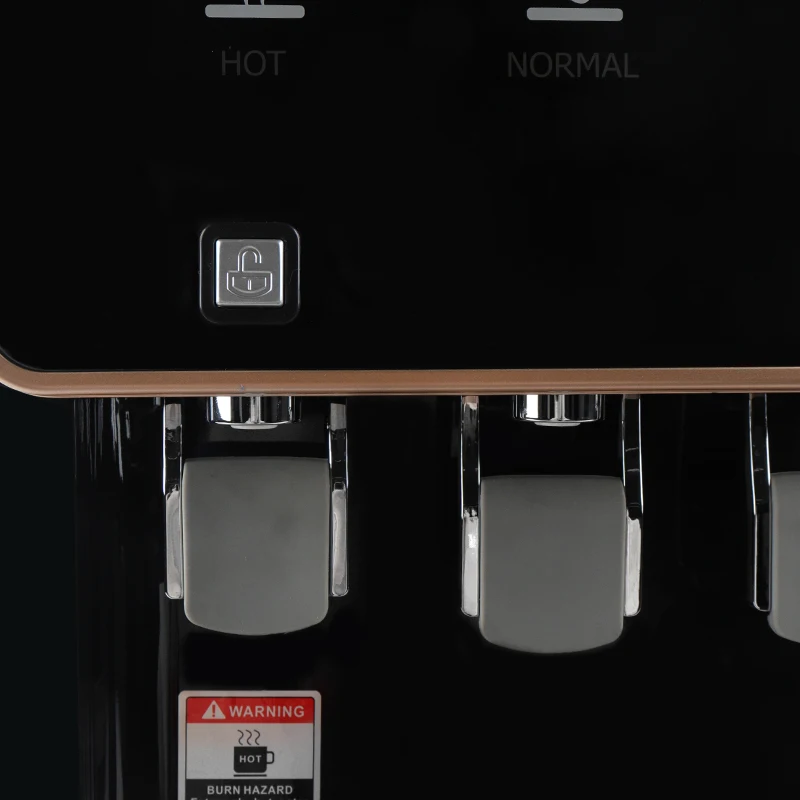

POU table top water dispenser With Child lock
-Product model: GWS-L02A
-Products dimension: L 480 x W 295 x H 520(mm)
＿Function: Hot&Cold&Warm,
＿Heating Power/Capacity: 420W/5L/h,85-95 ℃
＿Compressor Cooling power/Capacity: 90W/2L/h,6-10 ℃
＿Related Voltage/Frequence: 220-240V~50/60hz
＿Packing(mm)L*W*H: 505*325*550mm
＿Logo printing: OEM
＿Product Color: Goldern and Black
＿Body material: top front panel is glass material, top silver plating frame, painting goldern drip tray, the other front panel with brand new ABS painting black
＿Side plates: Galvanized iron sheet
＿Compressor brand: ARNOLDAN
＿Water tank: SS304 Welding tank with food grade silicone tube
＿Water tank volume: Hot/Cold 1.5/3.2L
＿Function: Hot&Cold&Warm,
＿Heating Power/Capacity: 420W/5L/h,85-95 ℃
＿Compressor Cooling power/Capacity: 90W/2L/h,6-10 ℃
＿Related Voltage/Frequence: 220-240V~50/60hz
＿Packing(mm)L*W*H: 505*325*550mm
＿Logo printing: OEM
＿Product Color: Goldern and Black
＿Body material: top front panel is glass material, top silver plating frame, painting goldern drip tray, the other front panel with brand new ABS painting black
＿Side plates: Galvanized iron sheet
＿Compressor brand: ARNOLDAN
＿Water tank: SS304 Welding tank with food grade silicone tube
＿Water tank volume: Hot/Cold 1.5/3.2L
-Pipe in system
Table Top Water dispenser with RO system With Child lock
-Product model No:GWS-L03A
-Products dimension: L 480 x W 295 x H 520(mm)
＿Function: Hot&Cold&Warm, No display screen
＿Heating Power/Capacity: 420W/5L/h,85-95 ℃
＿Compressor Cooling power/Capacity: 90W/2L/h,6-10 ℃
＿Related Voltage/Frequence: 220-240V~50/60hz
＿Packing(mm)L*W*H: 505*325*550mm
＿Logo printing: OEM
＿Product Color: Goldern and Black
＿Body material: top front panel is glass material, top silver plating frame, painting goldern drip tray, the other front panel with brand new ABS painting black
＿Side plates: Galvanized iron sheet
＿Compressor brand: ARNOLDAN
＿Water tank: SS304 Welding tank with food grade silicone tube
＿Water tank volume: Hot/Cold 1.5/3.2L
＿Filtration system: PP+CTO+RO+T33
＿RO membrane & Booster pump: 75GPD
＿Function: Hot&Cold&Warm, No display screen
＿Heating Power/Capacity: 420W/5L/h,85-95 ℃
＿Compressor Cooling power/Capacity: 90W/2L/h,6-10 ℃
＿Related Voltage/Frequence: 220-240V~50/60hz
＿Packing(mm)L*W*H: 505*325*550mm
＿Logo printing: OEM
＿Product Color: Goldern and Black
＿Body material: top front panel is glass material, top silver plating frame, painting goldern drip tray, the other front panel with brand new ABS painting black
＿Side plates: Galvanized iron sheet
＿Compressor brand: ARNOLDAN
＿Water tank: SS304 Welding tank with food grade silicone tube
＿Water tank volume: Hot/Cold 1.5/3.2L
＿Filtration system: PP+CTO+RO+T33
＿RO membrane & Booster pump: 75GPD
-Pipe in system
Table Top Water dispenser with UF system With Child lock
Product model No: GWS-L04A
-Products dimension: L 480 x W 295 x H 520(mm)
＿Function: Hot&Cold&Warm,
＿Heating Power/Capacity: 420W/5L/h,85-95 ℃
＿Compressor Cooling power/Capacity: 90W/2L/h,6-10 ℃
＿Related Voltage/Frequence: 220-240V~50/60hz
＿Packing(mm)L*W*H: 47*38.5*55cm
＿Logo printing: OEM
＿Product Color: Goldern and Black
＿Body material: top front panel is glass material, top silver plating frame, painting goldern drip tray, the other front panel with brand new ABS painting black
＿Side plates: Galvanized iron sheet
＿Compressor brand: ARNOLDAN
＿Water tank: SS304 Welding tank with food grade silicone tube
＿Water tank volume: Hot/Cold 1.5/3.2L
＿Filtration system: PP+CTO+UF+T33
＿Function: Hot&Cold&Warm,
＿Heating Power/Capacity: 420W/5L/h,85-95 ℃
＿Compressor Cooling power/Capacity: 90W/2L/h,6-10 ℃
＿Related Voltage/Frequence: 220-240V~50/60hz
＿Packing(mm)L*W*H: 47*38.5*55cm
＿Logo printing: OEM
＿Product Color: Goldern and Black
＿Body material: top front panel is glass material, top silver plating frame, painting goldern drip tray, the other front panel with brand new ABS painting black
＿Side plates: Galvanized iron sheet
＿Compressor brand: ARNOLDAN
＿Water tank: SS304 Welding tank with food grade silicone tube
＿Water tank volume: Hot/Cold 1.5/3.2L
＿Filtration system: PP+CTO+UF+T33
-Pipe in system

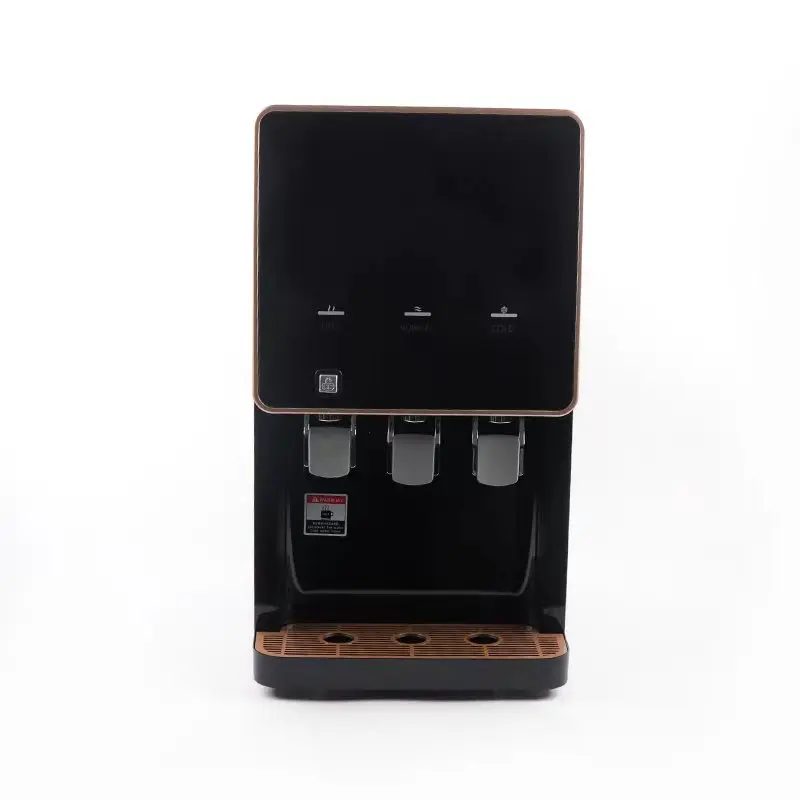

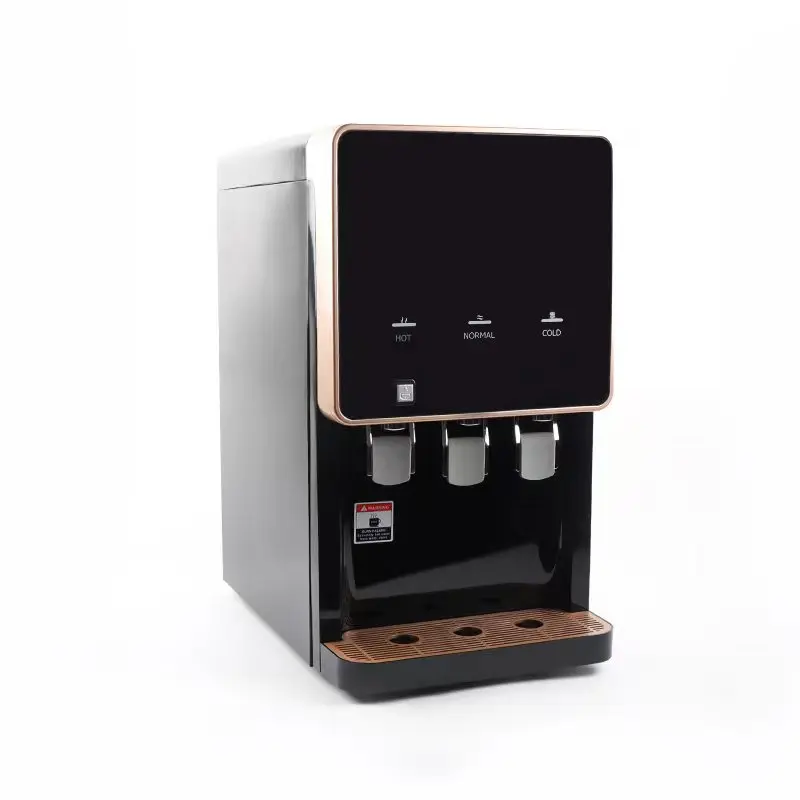

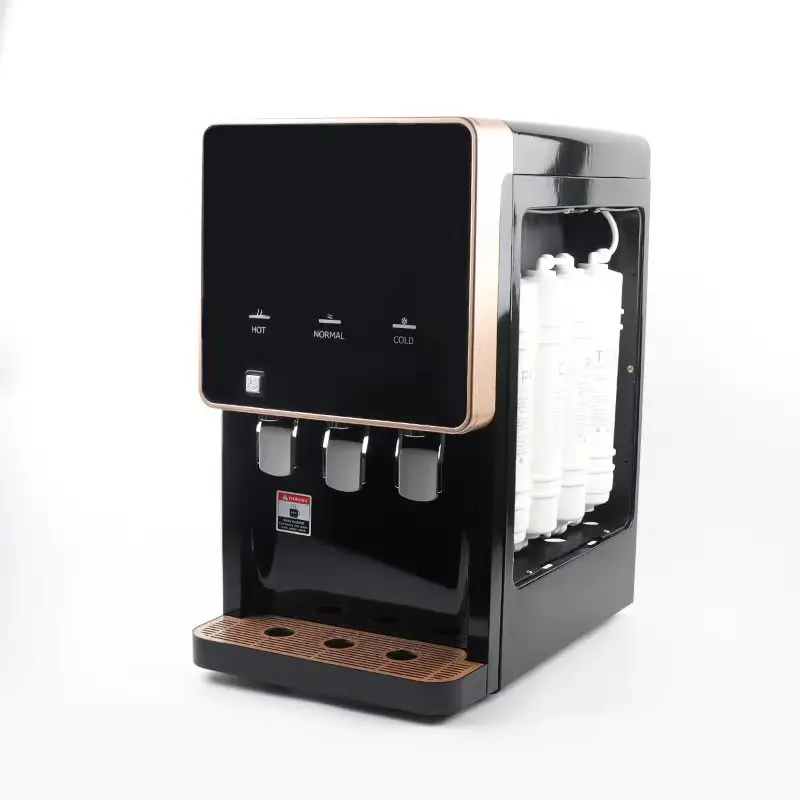

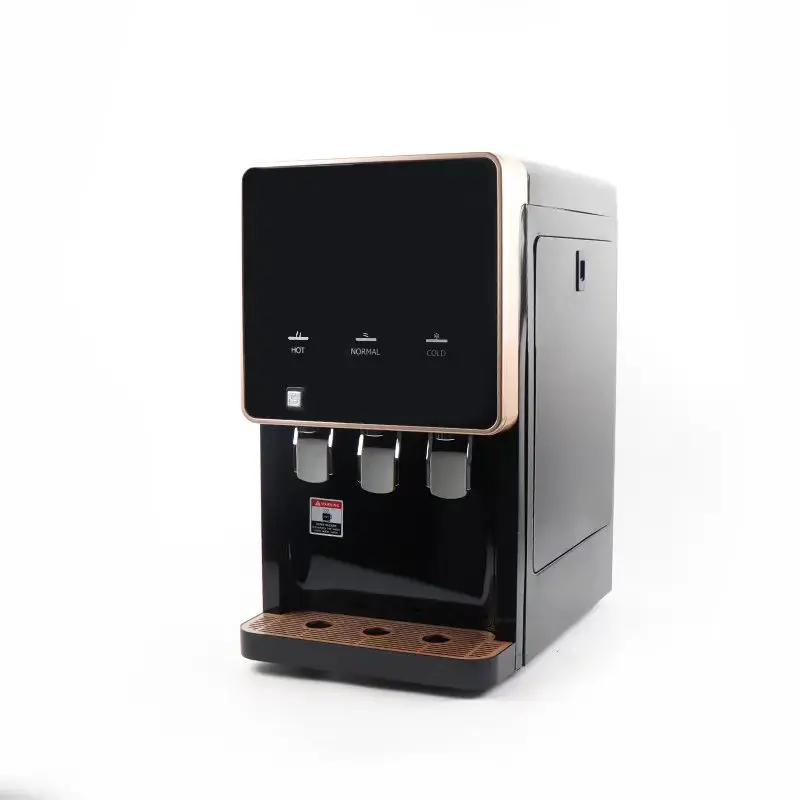

Products appearance shown

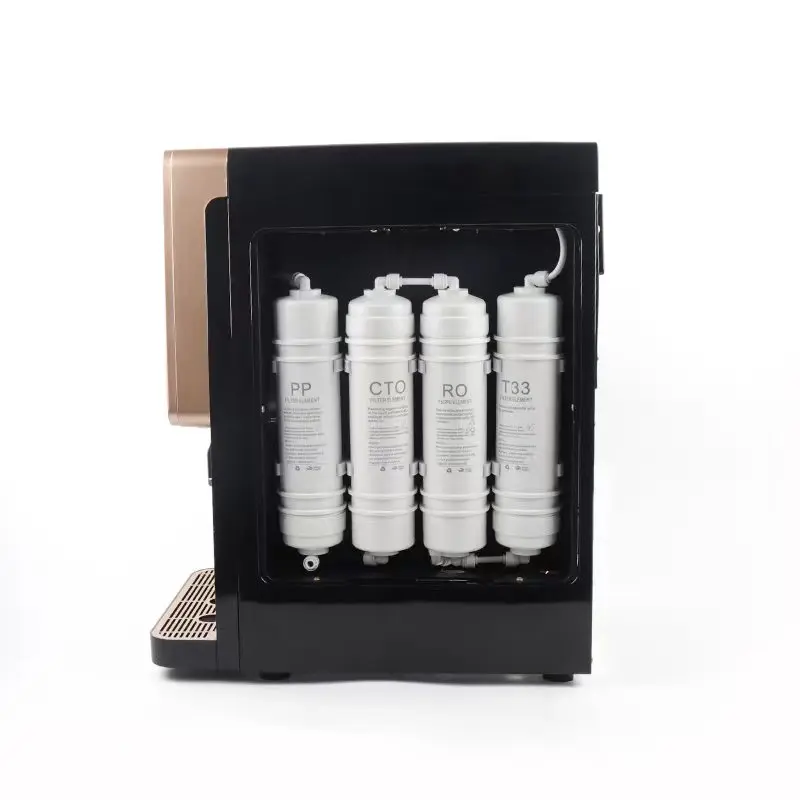

4 stages filtration system inside shown
Products features
This machine is a fully automatic drinking water machine. After installation, the user only needs to open
the water source switch to realize the automatic water production function. Pls make sure that there is
pure water source supply before installation.
the water source switch to realize the automatic water production function. Pls make sure that there is
pure water source supply before installation.
Main Technical Parameters
Rated Voltage /frequency：220-240 V～50/60 Hz Electric shock resistance：Ⅰ
Rated Power：510 W Rated Heating Power：420 W
Rated Cooling Power：90 W Inlet Water Pressure：0.1—0.4 Mpa
Cooling Capacity：≤10℃，2L/h Heating Capacity：≥90℃, 5L/h
Proper temperature：10℃—43℃ Power consumption：1.5kW·h/24h
Freezing Medium：R134a/32g Climate Type：T
Water/Temperature：Municipal water /5—38℃ Relative humidity ：≤90％
Rated Power：510 W Rated Heating Power：420 W
Rated Cooling Power：90 W Inlet Water Pressure：0.1—0.4 Mpa
Cooling Capacity：≤10℃，2L/h Heating Capacity：≥90℃, 5L/h
Proper temperature：10℃—43℃ Power consumption：1.5kW·h/24h
Freezing Medium：R134a/32g Climate Type：T
Water/Temperature：Municipal water /5—38℃ Relative humidity ：≤90％
Electrical Schematic
Installation, Commissioning and Use
.The installation method of this machine should be selected according to the actual situation in your
kitchen. The host can be placed around the wall about 15cm, as shown in the figure below (pictured); the
installed room should have floor drain. ★Installation
1. First check the inlet water pressure. If the inlet pressure is greater than 0.4Mpa, a pressure reducing
valve must be installed at the pipeline position.
kitchen. The host can be placed around the wall about 15cm, as shown in the figure below (pictured); the
installed room should have floor drain. ★Installation
1. First check the inlet water pressure. If the inlet pressure is greater than 0.4Mpa, a pressure reducing
valve must be installed at the pipeline position.
2. Prepare the necessary installation tools and installed accessories, determine the installation location;
install the three way valve, and the main unit. 3. Install the PE pipe in the following parts according to the process flow: (Figure 3)
★Commissioning and Use
1. Pipeline inspection: After the machine has been producing water for 30 minutes, check the parts and
pipelines for water leakage and water seepage.
install the three way valve, and the main unit. 3. Install the PE pipe in the following parts according to the process flow: (Figure 3)
★Commissioning and Use
1. Pipeline inspection: After the machine has been producing water for 30 minutes, check the parts and
pipelines for water leakage and water seepage.
2. Finish the pipeline: organize and fix the various installation pipelines, and then clean the installation
site.
site.
3. This machine is controlled by the opening and closing of the mechanical float valve. Normal use is as
convenient and safe as using tap water.
convenient and safe as using tap water.
4. Open the water ball valve, the straight drink machine starts to produce water, plug the plug into the
220V ~ 50/ 60Hz power supply, at this time the power light is on, and the hot water tap can release the
water before the heating switch and the refrigeration switch can be turned on. After the heating switch is
turned on, the red light is on and the heating starts. When the red light is off, the heating is completed. At
this time, the water temperature is above 90 °C, and hot water is available. Turn on the cooling switch, the
blue light is on, and the cooling water starts. When the water temperature is less than 8 °C, the blue light
is off to indicate that the cooling is completed and the cold water is available.
220V ~ 50/ 60Hz power supply, at this time the power light is on, and the hot water tap can release the
water before the heating switch and the refrigeration switch can be turned on. After the heating switch is
turned on, the red light is on and the heating starts. When the red light is off, the heating is completed. At
this time, the water temperature is above 90 °C, and hot water is available. Turn on the cooling switch, the
blue light is on, and the cooling water starts. When the water temperature is less than 8 °C, the blue light
is off to indicate that the cooling is completed and the cold water is available.
Maintenance
Precautions
▲The inlet pressure must be tested before installation. If the water pressure is higher than 0.4Mpa, the
pressure relief valve must be installed at the inlet end.
pressure relief valve must be installed at the inlet end.
▲The inlet pipe must be installed on the cold water pipe, and the inlet water temperature should not
exceed 38 °C.
exceed 38 °C.
▲Do not fold or fold the water inlet and outlet pipes, so as not to affect the water flux, resulting in the
machine not working properly.
machine not working properly.
▲Do not disassemble the parts on the machine to prevent leakage or damage to the machine.
▲ Close the inlet ball valve before going to bed at night or when leaving for a long time during the day.
▲This machine is forbidden when the inlet water temperature is below 5 degrees Celsius.
▲Close the water valve when you are not using it for a long time.
▲When no one is in the house, please turn off the water source and power supply. This product is for
indoor use only.
indoor use only.
▲The power cord of this product is connected to the Y-type connection. The power cord can only be
replaced by a professional. Do not replace it yourself.
replaced by a professional. Do not replace it yourself.
Warning ！！！
1. Never let infants and children approach or operate the unit! ! In case of any accident!
2. The water ball valve must be closed before going to bed at night or when leaving home during the day!
Water hammer is used to impact the filter element to cause damage and water leakage.
2. The water ball valve must be closed before going to bed at night or when leaving home during the day!
Water hammer is used to impact the filter element to cause damage and water leakage.
3. When the machine fails, you must quickly turn off the water source and power supply, and notify the
dealer to assign a professional to troubleshoot.
dealer to assign a professional to troubleshoot.
4. Do not replace the filter elements at all levels, and should be carried out by professionals to avoid
water leakage.
water leakage.
packing list
1. Main unit 1 piece 2. Three way valve 1 piece 3. Expansion screw 5 sets
4. User manual 1 copy 5. Warranty card 1copy 6. PE pipe 5 meters
※ The following conditions are not covered by the free warranty, but the company still provides repair
services for customers.
4. User manual 1 copy 5. Warranty card 1copy 6. PE pipe 5 meters
※ The following conditions are not covered by the free warranty, but the company still provides repair
services for customers.
----- Damaged by improper handling, installation, use, maintenance, storage, and disassembly of the
user; -
user; -
---- No valid purchase invoice；
----- Failure to follow the instructions in the product instruction manual；
----- Damaged due to force majeure；
----- More than the warranty period；
----- Due to the environmental conditions of the water purifier, such as power supply voltage, water
quality, raw water temperature, ambient temperature, relative humidity, etc., all losses and damages
caused by factors not controlled by the company, or not in compliance with relevant national
standards, are not free. Within the warranty
----- Failure to follow the instructions in the product instruction manual；
----- Damaged due to force majeure；
----- More than the warranty period；
----- Due to the environmental conditions of the water purifier, such as power supply voltage, water
quality, raw water temperature, ambient temperature, relative humidity, etc., all losses and damages
caused by factors not controlled by the company, or not in compliance with relevant national
standards, are not free. Within the warranty
FAQ
1. who are we?
We are based in Zhejiang, China, start from 2015,sell to Southeast Asia(50.00%),North America(30.00%),
We are based in Zhejiang, China, start from 2015,sell to Southeast Asia(50.00%),North America(30.00%),
Southern Europe(20.00%).
There are total about 51-100 people in our office.etc
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Water dispenser,Table water dispenser,nwater pitcher, water purifier bottle, etc
4. why should you buy from us not from other suppliers?
We are with almost 10 years products experiences, professional development products teams, strictly QC control, experiences
products workers assembly operation, etc
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,CIP,FCA,CPT,DEQ,DDP,DDU,Express Delivery,DAF,DES；
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Hindi,Italian
1. Q: What is the production time?
A: 25-30 days after deposit received.
2. Q: What is MOQ?
A: 120pcs for compressor cooling system, 280pcs for electronic cooling system.
3. Q: What is the guarantee term for product?
A: Compressor 3 years, Plastic parts 1 year and offer 1% of total order quantity spare parts for FREE CHARGE!
4. Q: What is the payment term?
A: 30-40% deposit and balance should be paid before container load.
5. Q: Can I put my own Logo on machine?
A: Yes, we are specializing in OEM order. Logo, carton design, color are all can be customizable.
6. Q; Which kind of voltage and frequeency is available?
A: 220V-240V 50/60Hz 110V-127V 50/60Hz
There are total about 51-100 people in our office.etc
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Water dispenser,Table water dispenser,nwater pitcher, water purifier bottle, etc
4. why should you buy from us not from other suppliers?
We are with almost 10 years products experiences, professional development products teams, strictly QC control, experiences
products workers assembly operation, etc
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,CIP,FCA,CPT,DEQ,DDP,DDU,Express Delivery,DAF,DES；
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Hindi,Italian
1. Q: What is the production time?
A: 25-30 days after deposit received.
2. Q: What is MOQ?
A: 120pcs for compressor cooling system, 280pcs for electronic cooling system.
3. Q: What is the guarantee term for product?
A: Compressor 3 years, Plastic parts 1 year and offer 1% of total order quantity spare parts for FREE CHARGE!
4. Q: What is the payment term?
A: 30-40% deposit and balance should be paid before container load.
5. Q: Can I put my own Logo on machine?
A: Yes, we are specializing in OEM order. Logo, carton design, color are all can be customizable.
6. Q; Which kind of voltage and frequeency is available?
A: 220V-240V 50/60Hz 110V-127V 50/60Hz
Contact information as following:
NINGBO GOOD WATER SOURCE ENVIRONMENTAL PROTECTION
ELECTRICAL APPLIANCE CO., LTD.
Add: 2/F,Building 2,No 147,DuShan,SanQiShi Village,SanQiShi Town,
YuYao City, NingBo,China
TEL: (86) 13884494576
Wechat: Jackliu8886
Whatsapple: (86) 13884494576
Email: jackliu_qingqing@vip.126.com
jackliu@miniwatercoolerdispenser.com
Website: https://www.miniwatercoolerdispenser.com
ELECTRICAL APPLIANCE CO., LTD.
Add: 2/F,Building 2,No 147,DuShan,SanQiShi Village,SanQiShi Town,
YuYao City, NingBo,China
TEL: (86) 13884494576
Wechat: Jackliu8886
Whatsapple: (86) 13884494576
Email: jackliu_qingqing@vip.126.com
jackliu@miniwatercoolerdispenser.com
Website: https://www.miniwatercoolerdispenser.com
Похожие товары
[Taiwan Buder] диспенсер для горячей воды с черной сенсорной панелью
US $450.00-$510.00
Настенный фонтан холодной питьевой воды с сертификатом се
US $550.00-$600.00
