TTGO T дисплей Esp32 WiFi BT модуль 1 14 дюйма ЖК макетная плата
- Категория: >>>
- Поставщик: Shenzhen,rongxingtong,Electronics,Co.,Ltd
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 0.50 $* | 0.49 $* |
| Aug-16-2025 | 0.25 $* | 0.51 $* |
| Jul-16-2025 | 0.92 $* | 0.70 $* |
| Jun-16-2025 | 0.66 $* | 0.26 $* |
| May-16-2025 | 0.8 $* | 0.43 $* |
| Apr-16-2025 | 0.43 $* | 0.55 $* |
| Mar-16-2025 | 0.65 $* | 0.26 $* |
| Feb-16-2025 | 0.19 $* | 0.21 $* |
| Jan-16-2025 | 0.59 $* | 0.44 $* |
Характеристики
Product Description

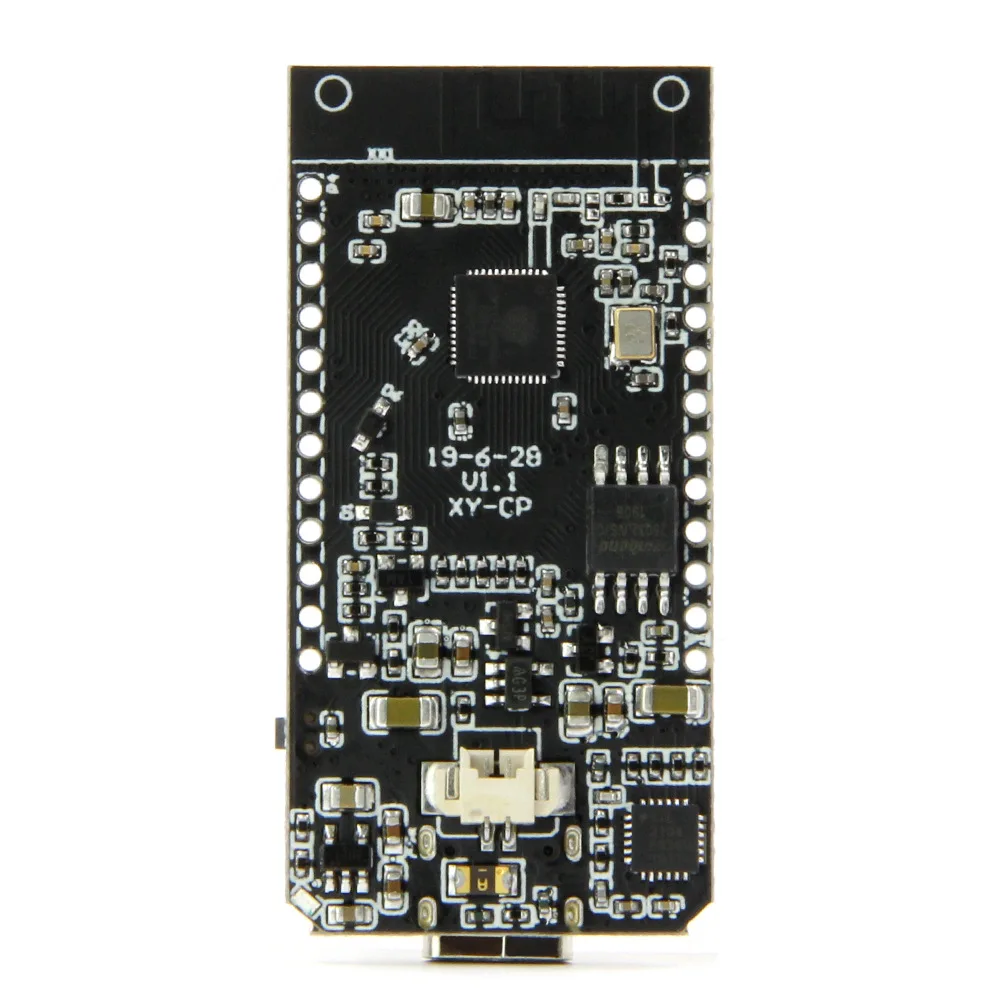

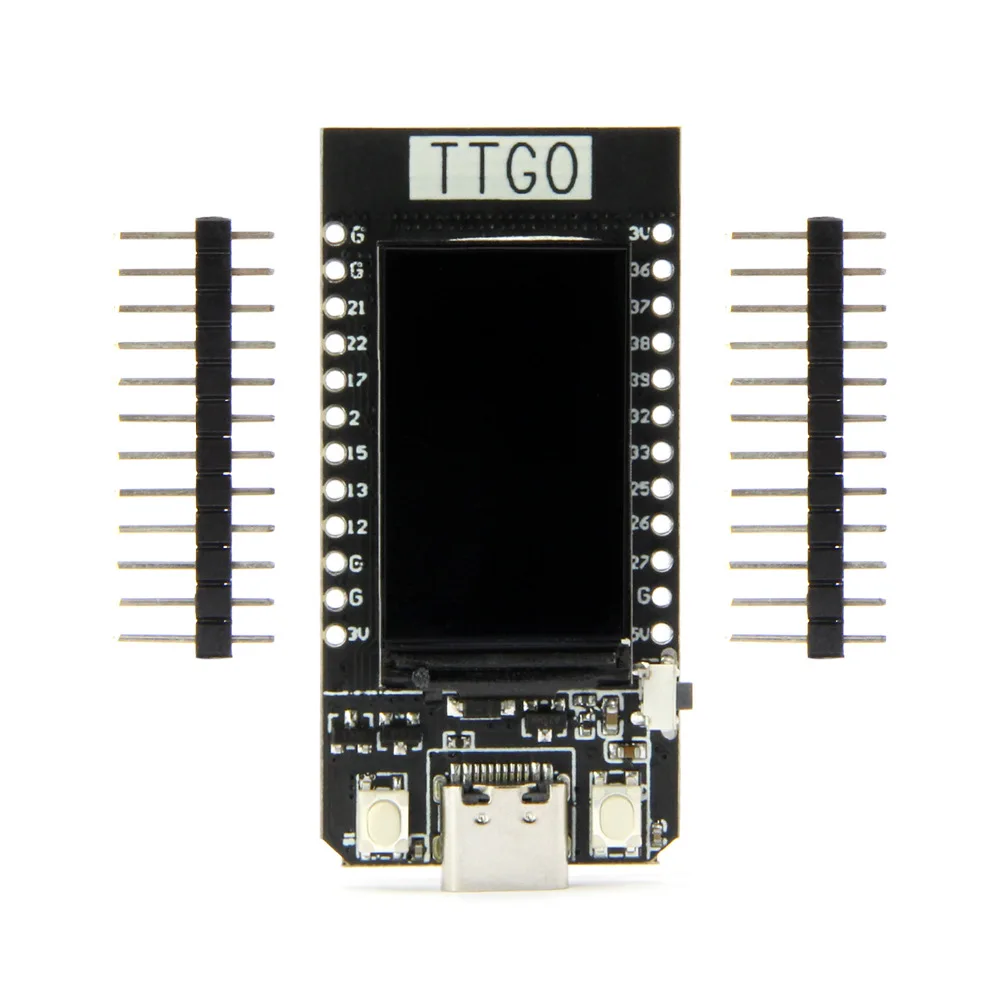

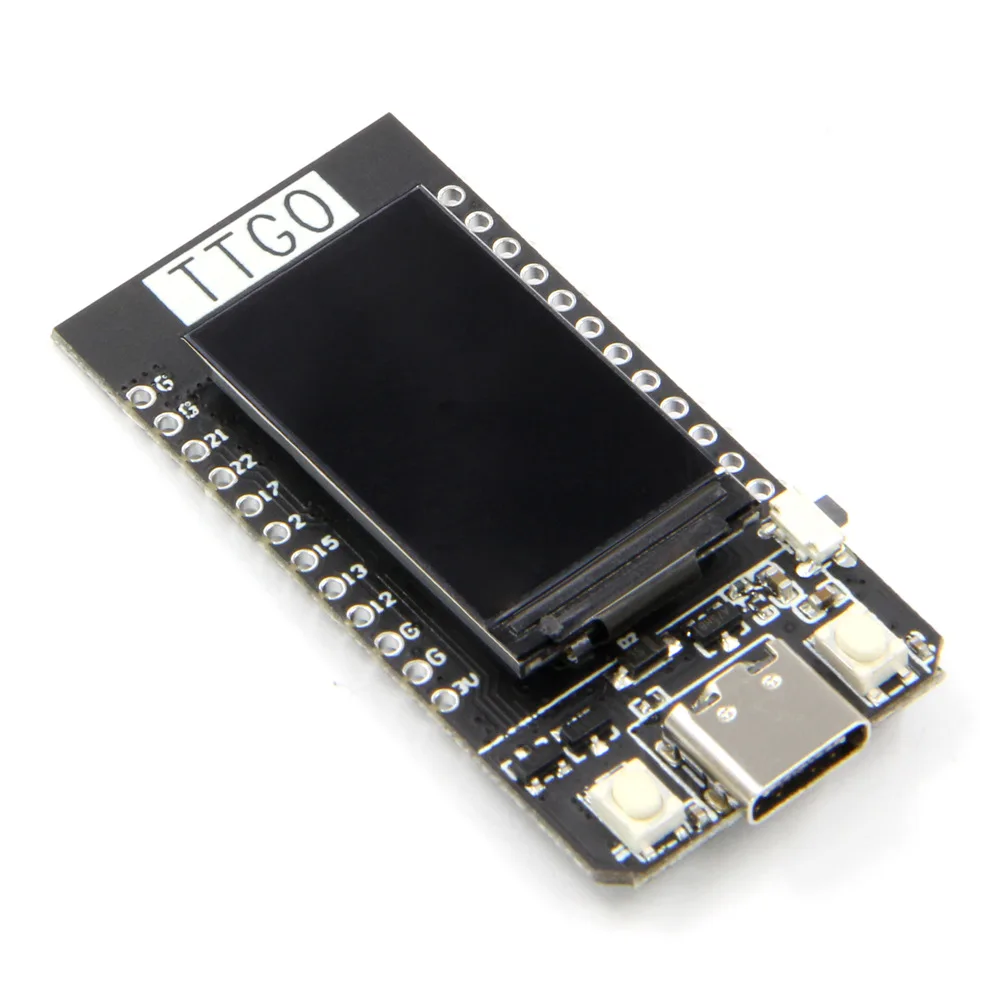

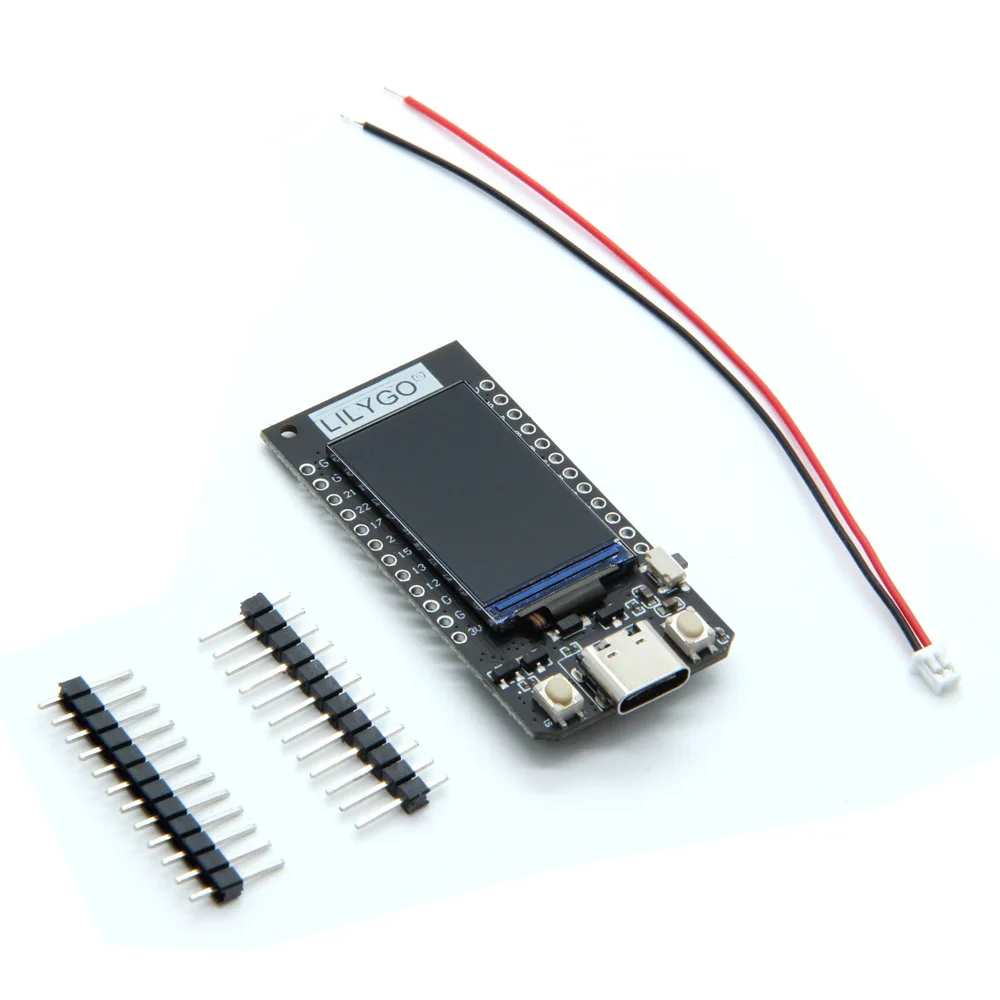

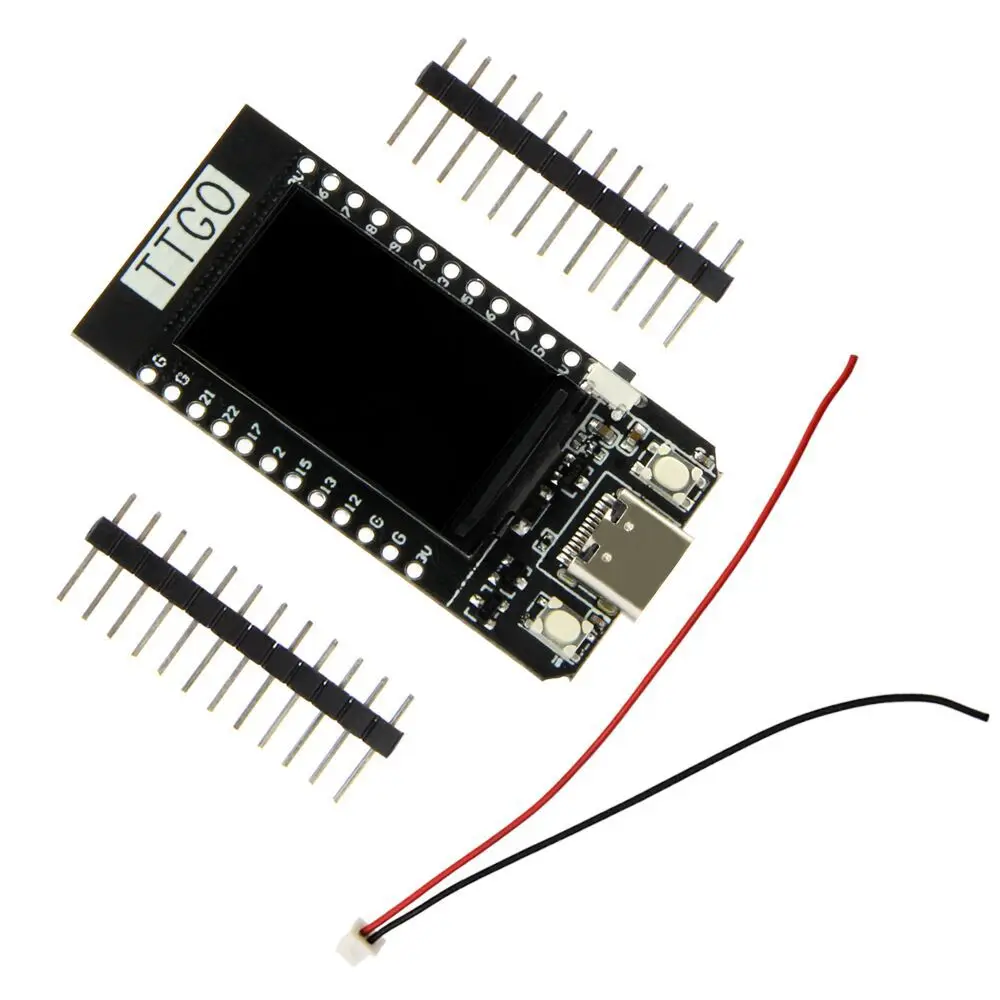

T-Display Specification Details
MCU: ESP32
Tensilia Xtensa dual core LX6 microprocessor wireless transmission.
support Wi Fi 802.11b/g/n, Bluetooth V4.2+BLE programming environment: Arduino IDE, Micropython, VS Code on-board functions.
double button (IOO+IO35), battery power detection version optional。
serial port chip: CH9102/CP2104, Flash: 4MB/16MB

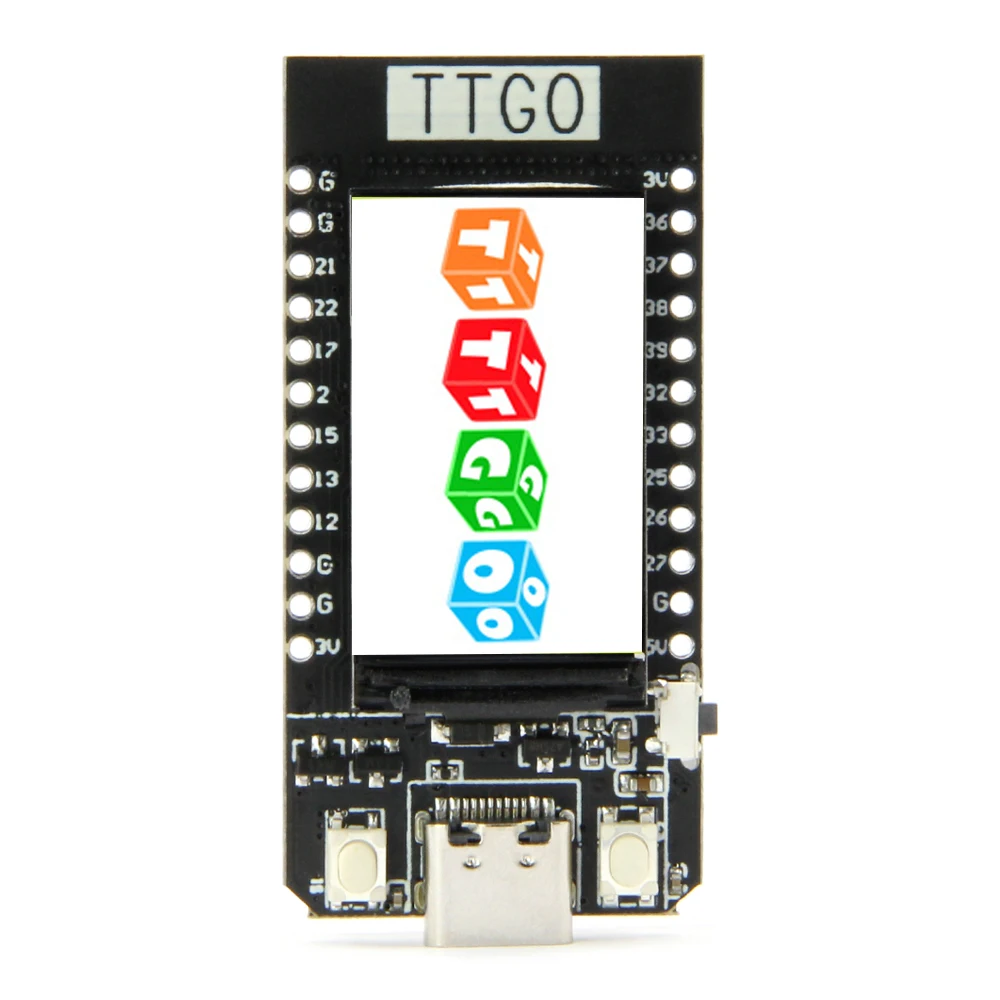

1.14-inch ST7789V high-definition LCD:
Resolution 135 × 240, 1.14 inch, high-density 260ppi, 4-wire SPI serial bus, full-color, full view IPS LCD
Driver IC: ST7789V, supporting arduino graphics library TFT_ ESPI.
Supports USB/lithium battery dual mode power supply
Specification of lithium battery seat: JST GH1.25mm
MCU: ESP32
Tensilia Xtensa dual core LX6 microprocessor wireless transmission.
support Wi Fi 802.11b/g/n, Bluetooth V4.2+BLE programming environment: Arduino IDE, Micropython, VS Code on-board functions.
double button (IOO+IO35), battery power detection version optional。
serial port chip: CH9102/CP2104, Flash: 4MB/16MB
1.14-inch ST7789V high-definition LCD:
Resolution 135 × 240, 1.14 inch, high-density 260ppi, 4-wire SPI serial bus, full-color, full view IPS LCD
Driver IC: ST7789V, supporting arduino graphics library TFT_ ESPI.
Supports USB/lithium battery dual mode power supply
Specification of lithium battery seat: JST GH1.25mm
Specification
item | value |
Model Number | TTGO T Display Esp32 |
Type | integrated circuit |
Place of Origin | Original |
Brand Name | RXT |
Description | TTGO T Display Esp32 |
Applications | Electronic products |
Product Name | T-display Esp32wifi Module |
Type | wifi |
Product details code link：
https://github.com/Xinyuan-LilyGO/TTGO-T-Display
T-Display Product features：
1 Color screen
2、low power consumption
3、Add battery powered charging circuit
4、New custom button
Low power color screenT-Display
https://github.com/Xinyuan-LilyGO/TTGO-T-Display
T-Display Product features：
1 Color screen
2、low power consumption
3、Add battery powered charging circuit
4、New custom button
Low power color screenT-Display
