Двухдиапазонный цифровой двухсторонняя радиоустановка Anytone AT-D878UV плюс с 200000 контакты DMR радиолюбителей
- Категория: Walkie Talkie >>>
- Поставщик: Qixiang,Electron,Science,&,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 0.40 $* | 0.59 $* |
| Aug-16-2025 | 0.90 $* | 0.40 $* |
| Jul-16-2025 | 0.74 $* | 0.20 $* |
| Jun-16-2025 | 0.31 $* | 0.76 $* |
| May-16-2025 | 0.90 $* | 0.44 $* |
| Apr-16-2025 | 0.37 $* | 0.47 $* |
| Mar-16-2025 | 0.39 $* | 0.2 $* |
| Feb-16-2025 | 0.41 $* | 0.86 $* |
| Jan-16-2025 | 0.55 $* | 0.79 $* |
Характеристики
Product Description

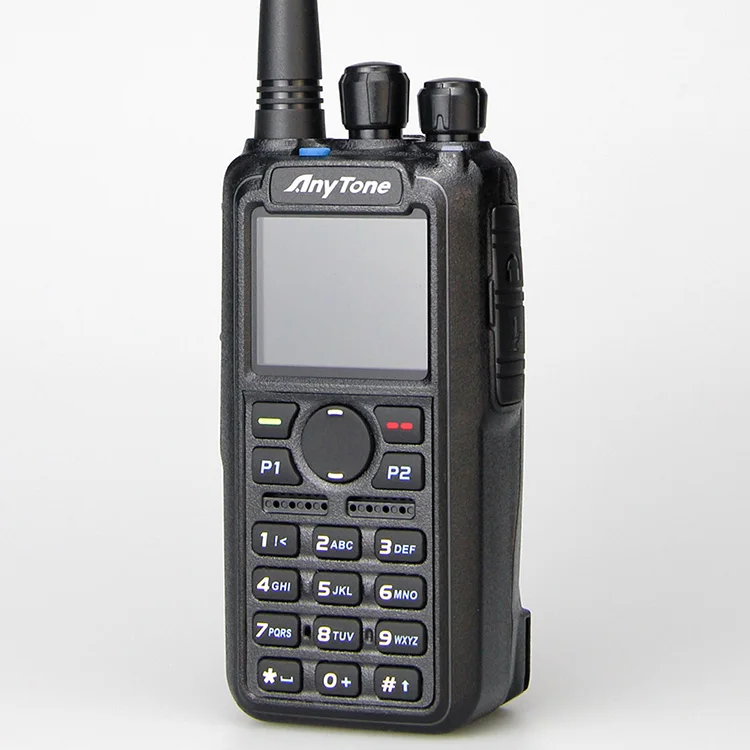

MODEL NO.: AT-D878UV PLUS
Functions:
#True-2-slot: Provide 2-slot communication which allows for 2 talk paths on 1 frequency; ETSI DMR Tier I and II compliant
#Power:VHF: 7/5/2.5/0.2W, UHF: 6/5/2.5/0.2W #Auto-senses digital or analog reception
#4000 channels + VFO; 10,000 talk groups with 200,000 digital contacts

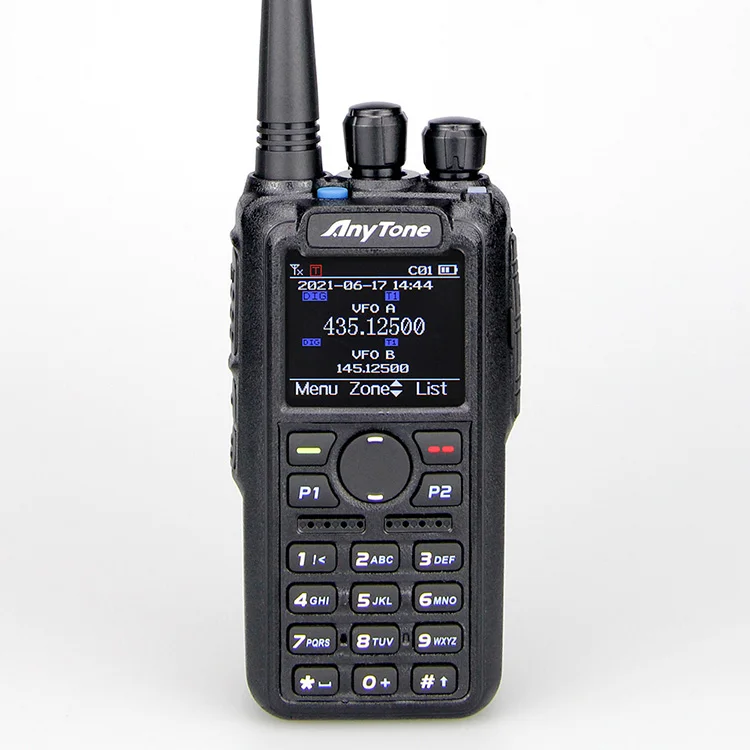

#Display: 1.77 inch TFT color LCD, dual display; dual standby; dual PA
#Bandwidth: 12.5K/25K (Analog); 12.5K (DMR) #Fixed and defined CTCSS/DCS encode and decode #DTMF/2TONE/5TONE encode and decode
#Four different Tone-pluse frequencies #Individual/Group/All call
#Support Contact Manager
#Display the Caller ID and name
#SMS via keyboard, One touch call/text
#Zone selection; Ranging function between radios with GPS
#ANI function and PTT ID; VOX; Digital Recording and Play
#Roaming function; Talker alias function #IP connect to Motorola Repeater
#Emergency alarm (with GPS data transmission)
#Either Voice Recording 500 hours(optional) or BT (optional)
#GPS (optional)
#AES256 Digital encrytion
#Earphone: KENWOOD connector; Waterproof: IP54

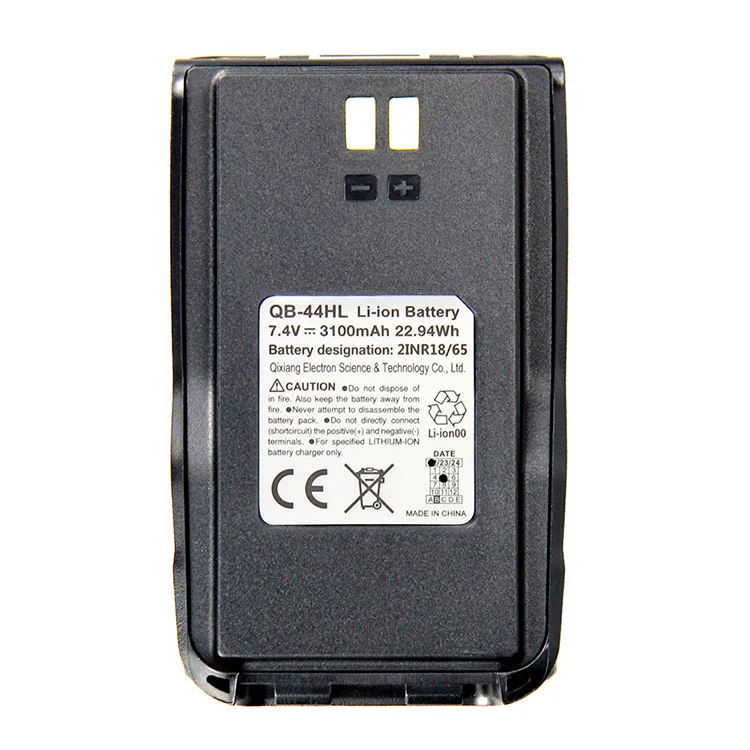

#Battery: 3100mAh Li-ion thick battery 2100mAh Polymer filmy battery(optional)
#Power:VHF: 7/5/2.5/0.2W, UHF: 6/5/2.5/0.2W #Auto-senses digital or analog reception
#4000 channels + VFO; 10,000 talk groups with 200,000 digital contacts
#Display: 1.77 inch TFT color LCD, dual display; dual standby; dual PA
#Bandwidth: 12.5K/25K (Analog); 12.5K (DMR) #Fixed and defined CTCSS/DCS encode and decode #DTMF/2TONE/5TONE encode and decode
#Four different Tone-pluse frequencies #Individual/Group/All call
#Support Contact Manager
#Display the Caller ID and name
#SMS via keyboard, One touch call/text
#Zone selection; Ranging function between radios with GPS
#ANI function and PTT ID; VOX; Digital Recording and Play
#Roaming function; Talker alias function #IP connect to Motorola Repeater
#Emergency alarm (with GPS data transmission)
#Either Voice Recording 500 hours(optional) or BT (optional)
#GPS (optional)
#AES256 Digital encrytion
#Earphone: KENWOOD connector; Waterproof: IP54
#Battery: 3100mAh Li-ion thick battery 2100mAh Polymer filmy battery(optional)
Specification
General | value | |||
Frequency Range | Europe: 144-146MHz(V),430-440MHz(U) United State: 136-174MHz(V),400-480MHz(U) Australia: 144-148MHz(V), 420-450MHz(U) India:144-146MHz(V), 436-438MHz(U) | |||
Channel Capacity | 4000 channels | |||
Channel Spacing | 25KHz (Wide Band) ,12.5KHz (Narrow Band) | |||
Phase-locked Step | 5KHz, 6.25KHz | |||
Operating Voltage | 7.4V DC ±20% /(2100mAh/3100mAh) | |||
Frequency Stability | ±2.5ppm | |||
Operating Temperature | -20℃~ +55℃ | |||

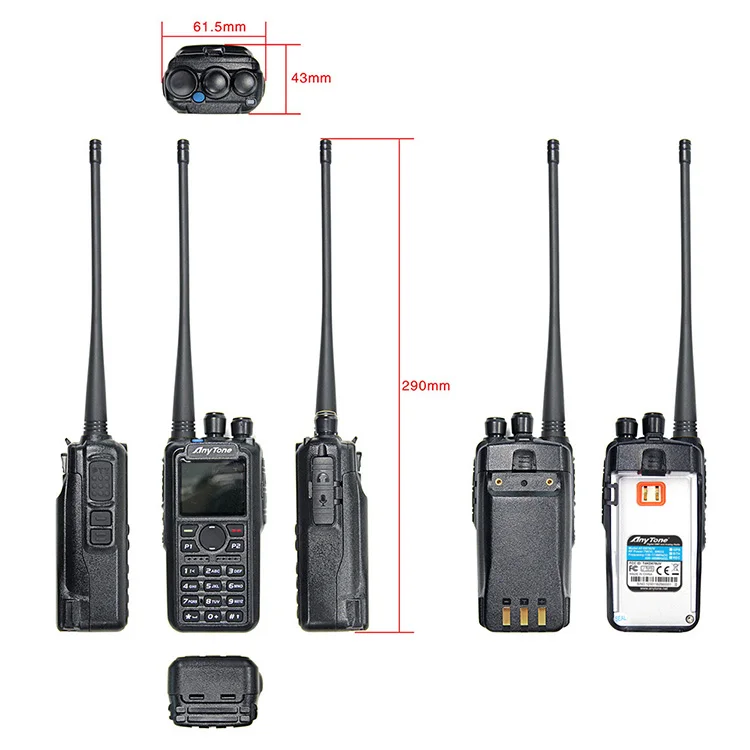

Size | 129×61×39mm (with battery pack) | |||
Weight | 282g (with battery pack, antenna) | |||
Receiving Part | ||||
Wide band | Narrow band | |||
Sensitivity(12dB SINAD) | ≤0.25μV | ≤0.35μV | ||
Digital Sensitivity | 0.3uV/-117.4dBm (BER 5%) 0.7uV/-110dBm (BER 1%) | |||
Adjacent Channel Selectivity | ≥70dB | ≥60dB | ||
Spurious Emission | ≤-57dB | ≤-57dB | ||
Spurious Rejection | ≥70dB | ≥70dB | ||
Blocking | 84db | |||
Hum & Noise | ≥45dB | ≥40dB | ||
Audio Distortion | ≤5% | |||
Audio Power Output | 1000mW/16Ω | |||
Transmitting Part | ||||
Wide band | Narrow band | |||
Power Output | VHF: 7/5/2.5/1W, UHF: 6/5/2.5/1W | |||
Modulation | ±5.0KHz@25KHz | ±2.5KHz@12.5KHz | ||
Adjacent Channel Power | ≥70dB | ≥60dB | ||
Hum & Noise | ≥40dB | ≥36dB | ||
Spurious Emission | ≤-36dBm | ≤-36dBm | ||
4FSK Digital Modulation | 12.5KHz（data）7K60FXD 12.5KHz（data+voice）7K60FXE | |||
Audio Distortion | ≤5% | |||
Error rate | ≤3% | |||
Details Images
Recommend Products
Packing & Delivery

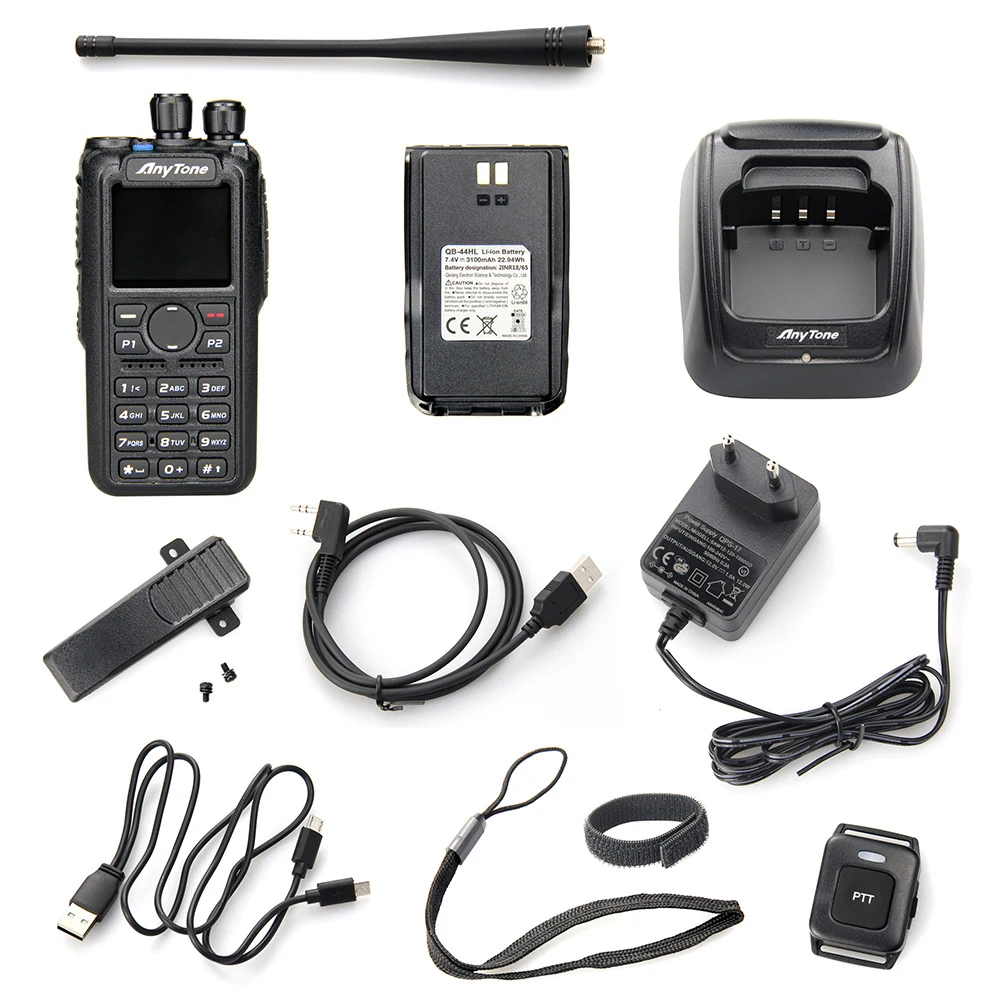

Package Includes:
Dual-band VHF/UHF Radio
3100 mAh extended life lithium ion battery

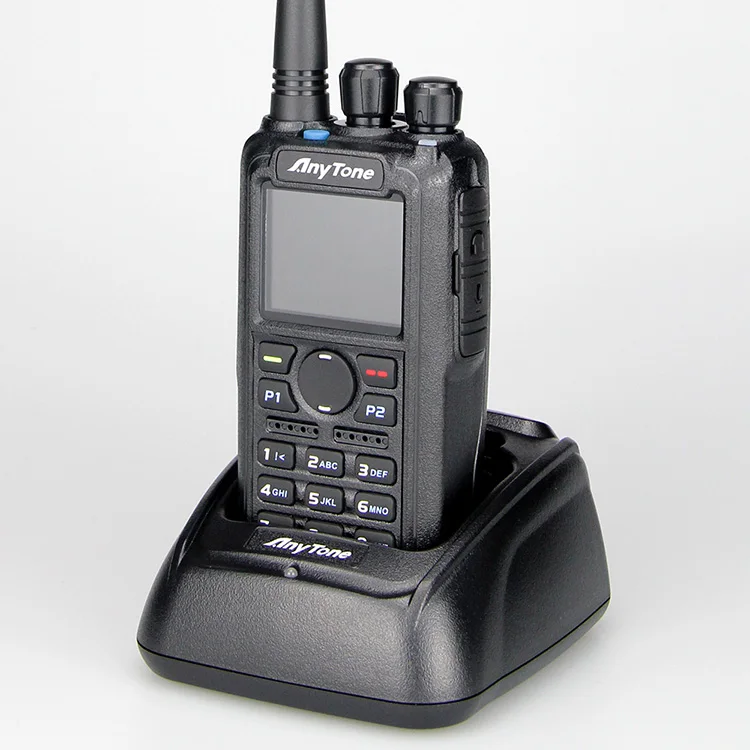

Desk charger w/ AC adapter
Dual-band antenna
Belt clip
Free USB Programming cable and downloadable software
User manual.
Dual-band VHF/UHF Radio
3100 mAh extended life lithium ion battery
Desk charger w/ AC adapter
Dual-band antenna
Belt clip
Free USB Programming cable and downloadable software
User manual.
BT PTT button
