Полный агрегат речного гравия 100 TPH камнедробильная установка для
Полный агрегат речного гравия 100 TPH камнедробильная установка для
Полный агрегат речного гравия 100 TPH камнедробильная установка для
Полный агрегат речного гравия 100 TPH камнедробильная установка для
Полный агрегат речного гравия 100 TPH камнедробильная установка для
Полный агрегат речного гравия 100 TPH камнедробильная установка для
Полный агрегат речного гравия 100 TPH камнедробильная установка для

Полный агрегат речного гравия 100 TPH камнедробильная установка для


Поделиться:


Цена:8 000,00 $ - 15 000,00 $*

Количество:



Описание и отзывы


Трекер стоимости

Месяц Минимальная цена Макс. стоимость
Sep-19-2025 9520.51 $* 9996.61 $*
Aug-19-2025 9440.56 $* 9912.4 $*
Jul-19-2025 7920.60 $* 8316.89 $*
Jun-19-2025 9280.27 $* 9744.10 $*
May-19-2025 8080.77 $* 8484.3 $*
Apr-19-2025 9120.67 $* 9576.13 $*
Mar-19-2025 9040.20 $* 9492.53 $*
Feb-19-2025 8960.33 $* 9408.98 $*
Jan-19-2025 8880.29 $* 9324.19 $*

Характеристики



Product Introduction




Overview
The Stone Crushing Plant mainly consists of Vibrating Feeder, Jaw Crusher, Cone Crusher or Impact Crusher, Vibrating Screen, Belt Conveyor and Control System, etc. It is completely capable to crush and screen limestone, marble, granite, basalt, river gravel and other hard stone materials, and produce sand & gravels with various granularities for construction and building industry.

We can offer free flow chart design with most economical and best crushing and screening plants according to customer's requirement of capacity,output size,apllication and preference.We are able to design and manufacture complete crusher plants with capacity from 30tph to 500tph, and to provide optimum and most economical solutions according to customers' requirements on stone specifications, output, application, etc.


Advantages
1. Powerful feed grate function to minimize operating costs
2. Large-volume silo, full energy saving for Nissan
3. The mobile dedicated jaw breaker with advanced high-performance technology and cost-saving
4. Convenient installation of on-board hydraulic lubrication station
5. Convenient installation of vehicle belt conveyor
6. Dust-proof, dust-reducing seal, convenient maintenance of belt conveyor
7. Configure high-strength wear-resistant steel
8. New equipment, new technology, new patents, new concept platform advantages




200tph Aggregate making plant in Ghana
Material: granite
Input Size: 0-630mm
Output Sizes: 0-5mm, 5-15mm, 15-31.5mm

It is configured with hopper, vibrating feeder DN4911, primary jaw crusher PE-750*1060, cone crusher DN1400, vibrating screen 2YD2160, VSI DN9000, 3-layer vibrating screen 3YD2160, and belt conveyors.

Processing:
1. The truck unloads the stones into the hopper, the stone enters the vibrating feeder from the lower part of the
hopper;
2. The vibrating feeder feeds the stones evenly to the primary jaw crusher;
3. The crushed output materials from the primary jaw crusher will be transported to the secondary cone crusher by a belt conveyor;
4. The crushed output materials from the secondary cone crusher will be transported to the two-layer vibrating screen;
5. After screening by the two-layer vibrating screen, will get 0-5mm, 5-35mm, +35mm materials, 0-5mm materials will be transported out by a belt conveyor to stockpile, 5-35mm materials will be transported to VSI Crusher, +35 materials will be transported back to cone crusher for re-crushing. 6. 5-35mm materials will be crushed and shaped by VSI crusher, the output materials will be transported to the second vibrating screen;
7. After the screening, will get 0-5mm, 5-15mm, 15-31.5mm materials, the +31.5mm materials will be transported back to VSI crusher.

The role of VSI crusher in this setup for producing high standard output materials for mixing stations, asphalt stations, etc.

This crushing plant is suitable for processing many kinds of hard stones, like basalt, pebbles, granite, diabase, etc. The capacity for this crushing plant can be customized as per request such as 50tph, 100tph, 200tph, etc




500tph limestone crushing plant in Columbia
Material: limestone
Input Size: 0-850mm
Output Sizes: 0-5mm, 5-15mm, 15-30mm

It is configured with a hopper, 2 sets of vibrating feeder DN6013, primary jaw crusher PE-1000*1200, 2 sets of impact crusher PF1320, 2 sets vibrating screen 3YD2160, and belt conveyors.

Processing:
1. The truck unloads the stones into the hopper, the stone enters the vibrating feeder from the lower part of the
hopper;
2. The vibrating feeder feeds the stones evenly to the primary jaw crusher;
3. The crushed output materials 0-280mm from the primary jaw crusher will be transported to Transfer silo with a vibrating feeder DN6013 under it.
4. The crushed output materials 0-280mm in the transfer silo will be transported to the two sets of impact crusher PF1320
5. The crushed output size 0-30mm from the impact crusher PF1320 will be sent to the vibrating screen 3YD2160. 6. After screening by the three-layer Vibrating screen, will get 0-5mm, 5-15mm, 15-30mm, and +35mm materials. The 0-5mm, 5-15mm, 15-30mm final products will be transported out by belt conveyors to stockpiles, +35 materials will be transported to the transfer silo for re-crushing. This crushing plant is suitable for processing many kinds of soft stones, like limestone, plaster, etc. The capacity for this crushing plant can be customized as per request such as 200tph, 500tph,1000tph, etc




300 Tph Quarry Sand Making Processing Plant
Material: cobblestone, granite, basalt, hard rock quarry sand

This flow chart is suitable for processing cobblestone, granite, basalt, hard rock quarry sand making line .

For the 300tph sand making line, the truck transfer the original stone with input size under 700mm into vibrating feeder DN6013, and it transfer the stones to jaw crusher PE-9000*1200,after first crushing the material get 100mm size,and then it goes to a hopper to synchronize jaw crusher and cone crusher working at the same time,and second crushing cone crusher,the output (0-50mm) of cone crusher transfer to the first vibrating screen by belt conveyor.

The first vibrating screen is with 4 layers,mesh size 50mm,40mm.32mm.25mm, (capacity around 350tph),then get output 0-25mm, 25-32mm,32-40mm,40-50mm, the size over 50mm go back to cone crusher, and the size under 25mm go to another vibrating screen to get size 0-6mm,6-12mm,12-19mm,19-25mm, 0-6mm size material with
2 wheel sand washer.





We have professional engineers team to draw flowchart based on customer's stone site details.
We supplied full set stone crusehr plant: vibrating feeder, jaw crusehr, hammer crusehr, cone crusehr,sand making machien, vibrating screen, belt conveyor.






Technical data


Jaw Crusher
Max.Feeding Size
100-1000mm
Output Size
65-160mm
Capacity
50-180t/h
Motor Power
0-75kw


Cone Crusher
Max.Feeding Size
under 150mm
Output Size
13-38mm
Capacity
59-163t/h
Motor Power
0-75kw


Vibrating Feeder
Tough Size
960*3800mm
Capacity
90-200t/h
Motor Power
6-20kw


Vibrating Screen
Screen Size
600*1800mm
Number of Layer
1,2,3,4
Screen Mesh Size
6,15,25,45,ect.
Capacity
60-500t/h
Motor Power
0-22kw
Belt Conveyor
Belt Width
500,650.800mm

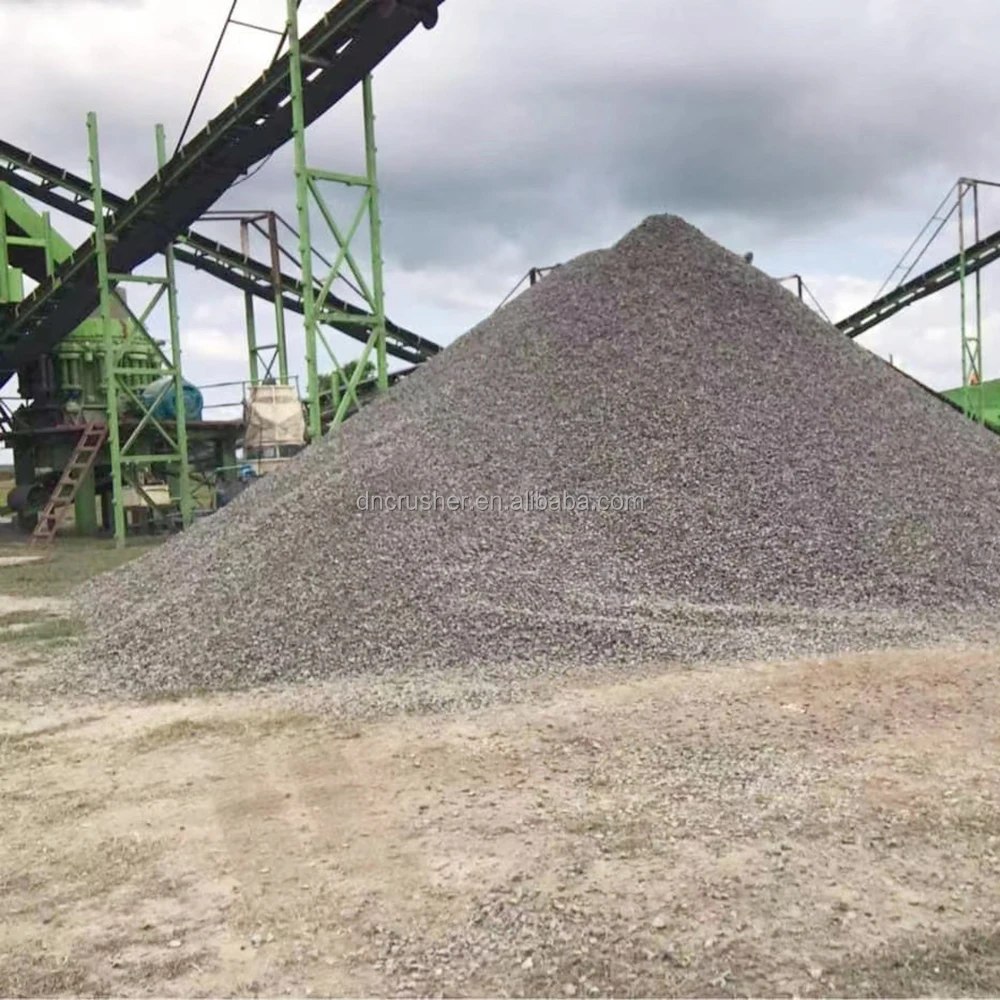

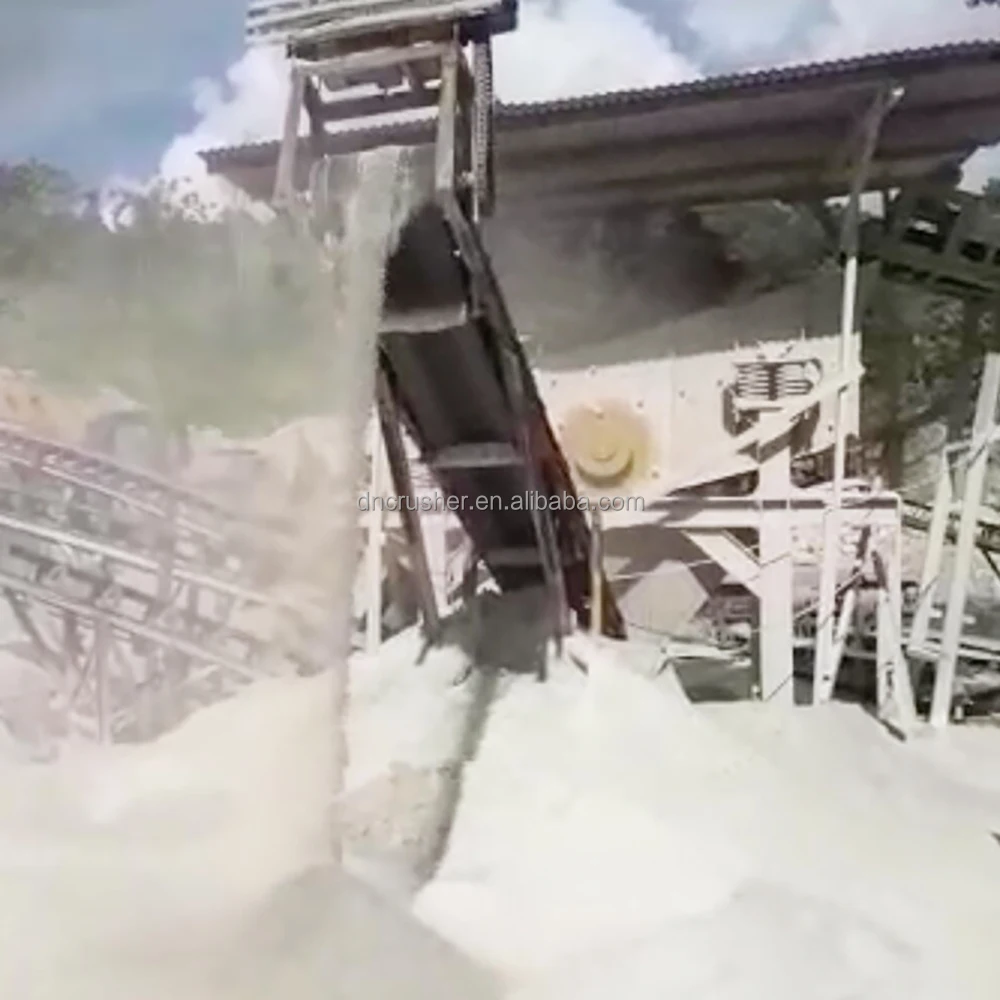

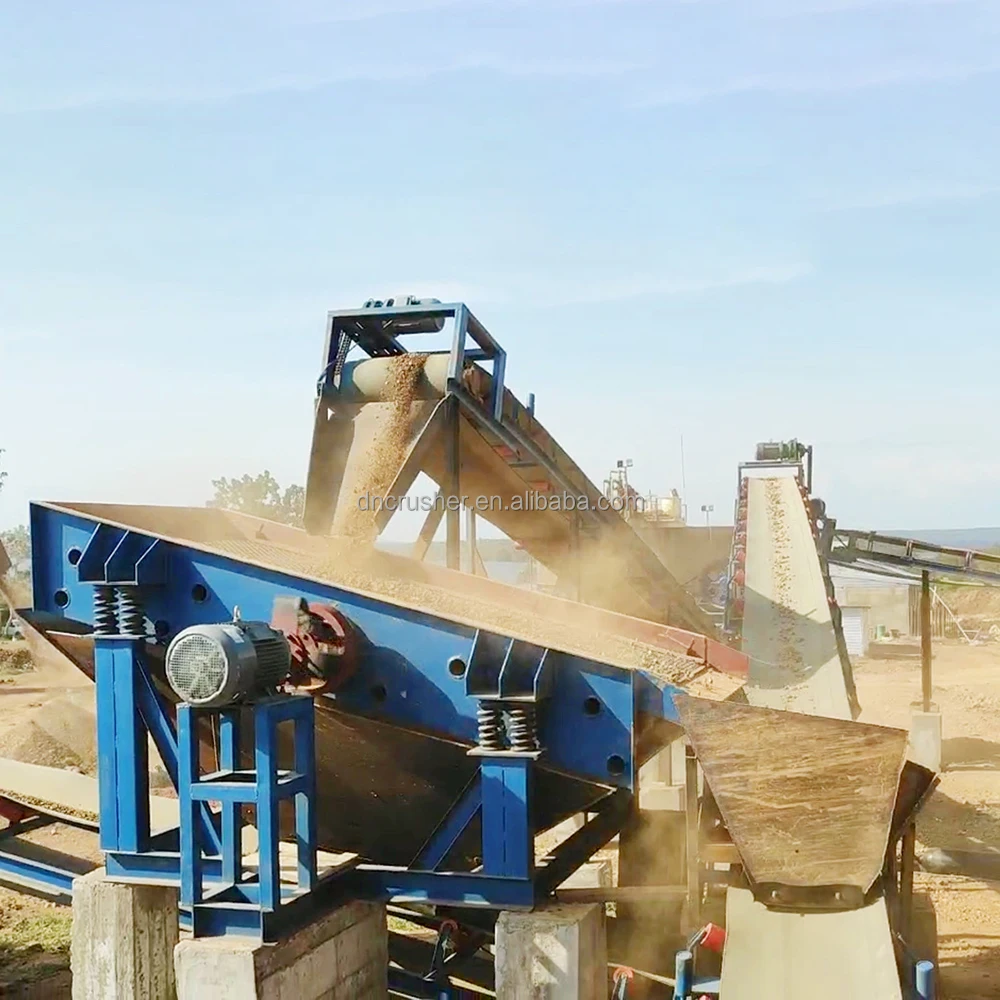

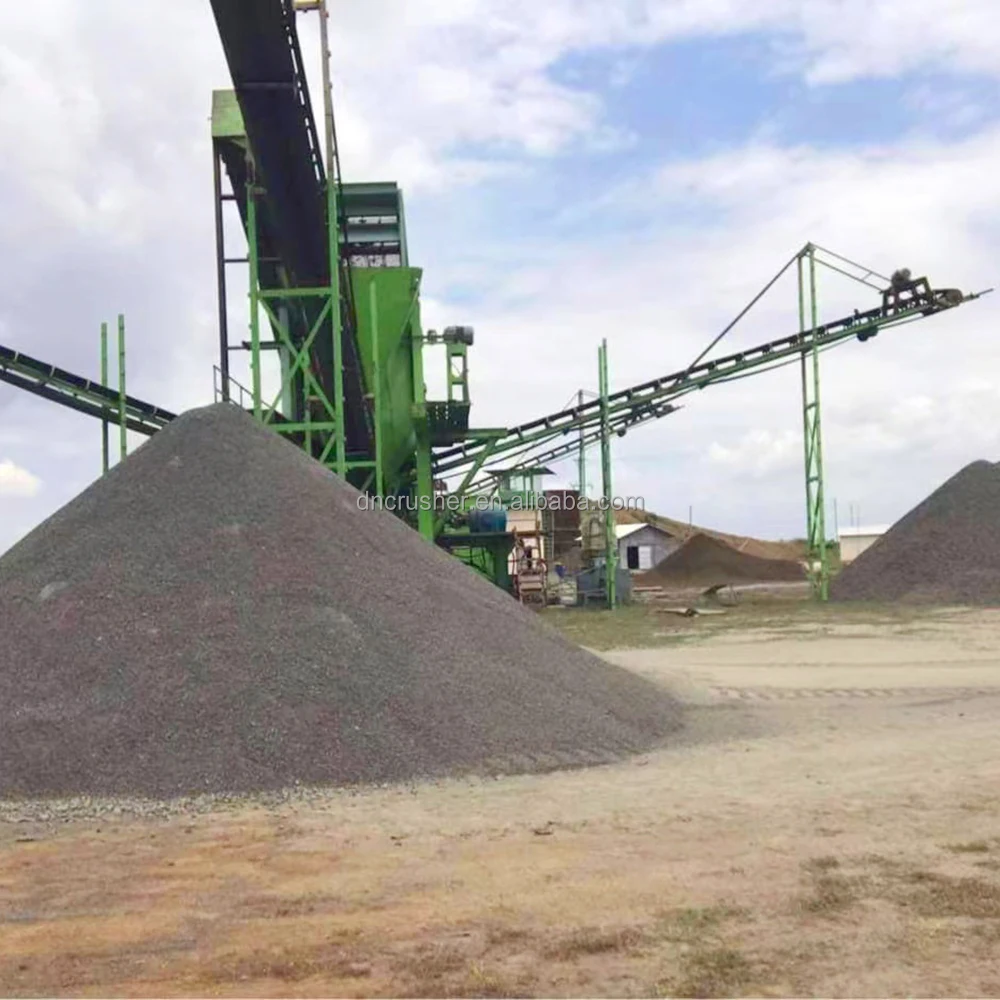

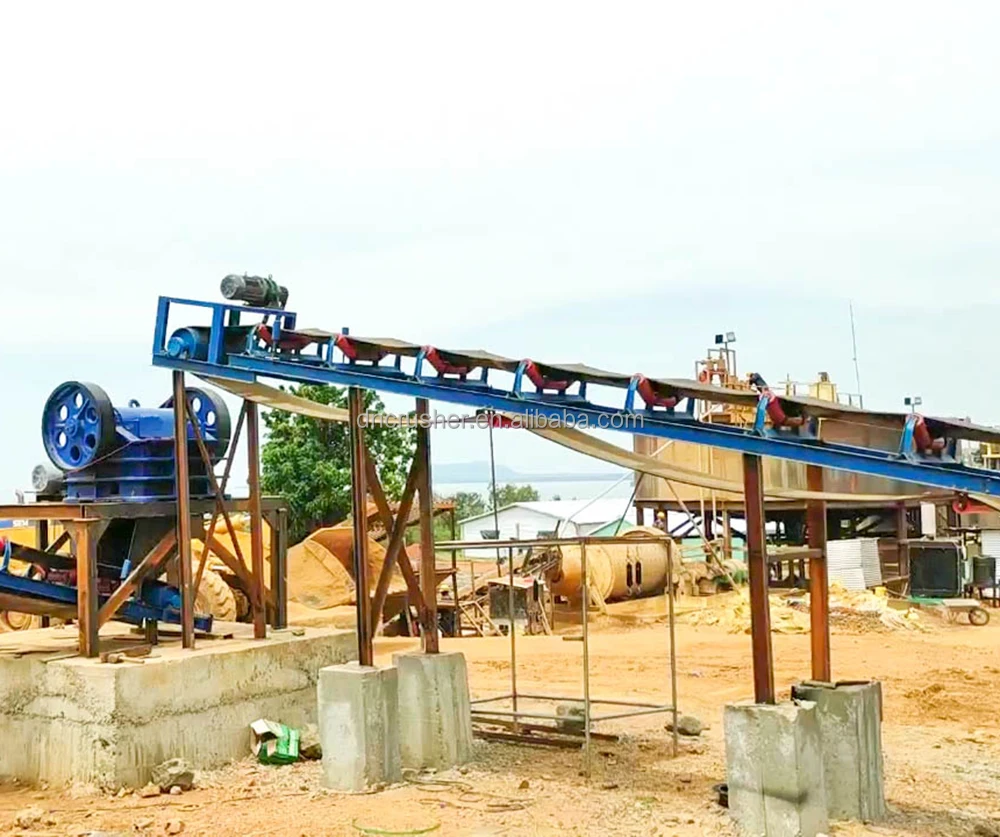

Successful cases












Packaging&Dilvery


●Ways Of Packing
● Shiping by sea/air freight



1.Small parts packed in the wooden cases.
 or any way the customer requires.
2.Big parts packed by plastic membrane.
3.The whole big machine is loaded in the container.




Our Company




1.Inquiry and consulting support.
2.Ore sample testing support.
3.View our Factory.
4.Design Flowchart.
1.Training how to instal the machine, training how to use the machine.
2. 1 year warranty .
3.Engineers available to service machinery overseas.




FAQ


1.How is the quality of your products?(mining equipment/machine)
Answer: Our products are manufactured strictly according to national and international standard, and we will do a test on every machine before delivery.

2.Guaranteed?
Answer: All of our products are guaranteed for one year. If products quality is not consistent with the description or promise we made before you place order, we promise 100% refund.

3.How about price?
Answer: For the complete same machine, we can promise our quality is the best when the price same as other competitors, and our price can be lowest when the quality at standard level.

4.Service and Payment Terms?
Answer: We can accept T/T and L/C; 30% deposit, 70% balance before factory delivery, which is international trade practice; Finished product pictures will be provided to customers before delivery.

Contacts
If you are interested in our products, please don't hesitate to contact us. Could you tell me the following questions, so that I can give you a complete solution, including best Exw-works Price Quotation!
1. Which machine do you need? like gold washing machine, spiral chute, vibrating screen, Jig separator, Shaking table, etc.
2. What is your raw ore that you plan to process? like gold ore, diamond ore, tantalite or silica sand, etc.
3. What is the capacity you need? Like 10 tones per hour.
4. What is the feeding size to the machine? and what is the discharging-material size that you require?

Sincerely welcome to send your inquiry,you can get best quotation and professional service.
