Защитная плата для литиевого аккумулятора Smart Hardware BMS 20s 16s 13s Lifepo4 NMC 200a 300a 72v 60v 48v 36v
- Категория: PCB & PCBA >>>
- Поставщик: Xiamen,Acey,New,Energy,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-15-2025 | 0.64 $* | 0.6 $* |
| Aug-15-2025 | 0.74 $* | 0.66 $* |
| Jul-15-2025 | 0.41 $* | 0.21 $* |
| Jun-15-2025 | 0.25 $* | 0.36 $* |
| May-15-2025 | 0.4 $* | 0.34 $* |
| Apr-15-2025 | 0.98 $* | 0.78 $* |
| Mar-15-2025 | 0.25 $* | 0.68 $* |
| Feb-15-2025 | 0.1 $* | 0.1 $* |
| Jan-15-2025 | 0.20 $* | 0.71 $* |
Характеристики

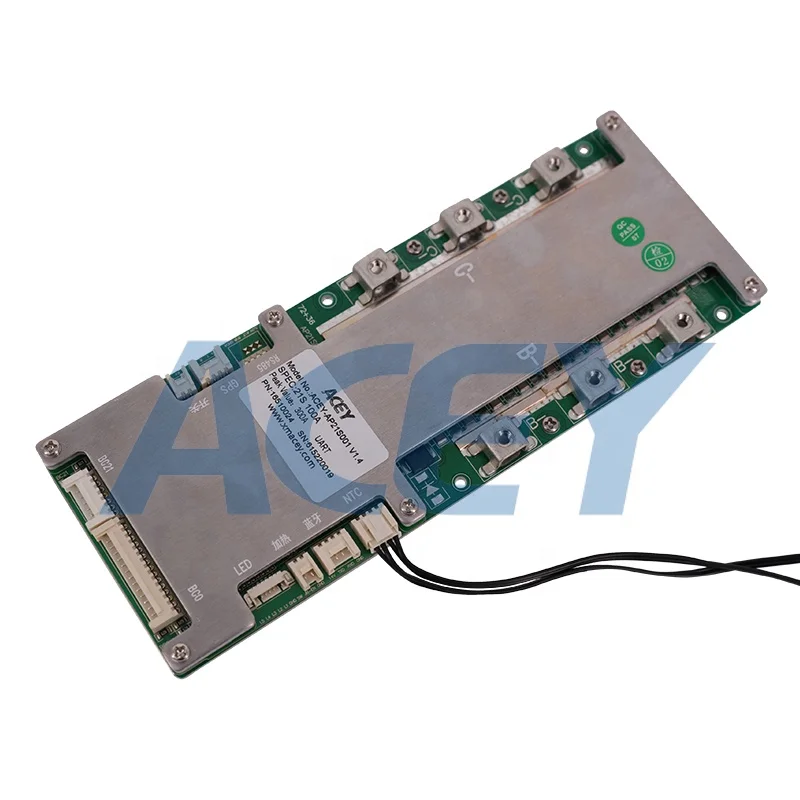

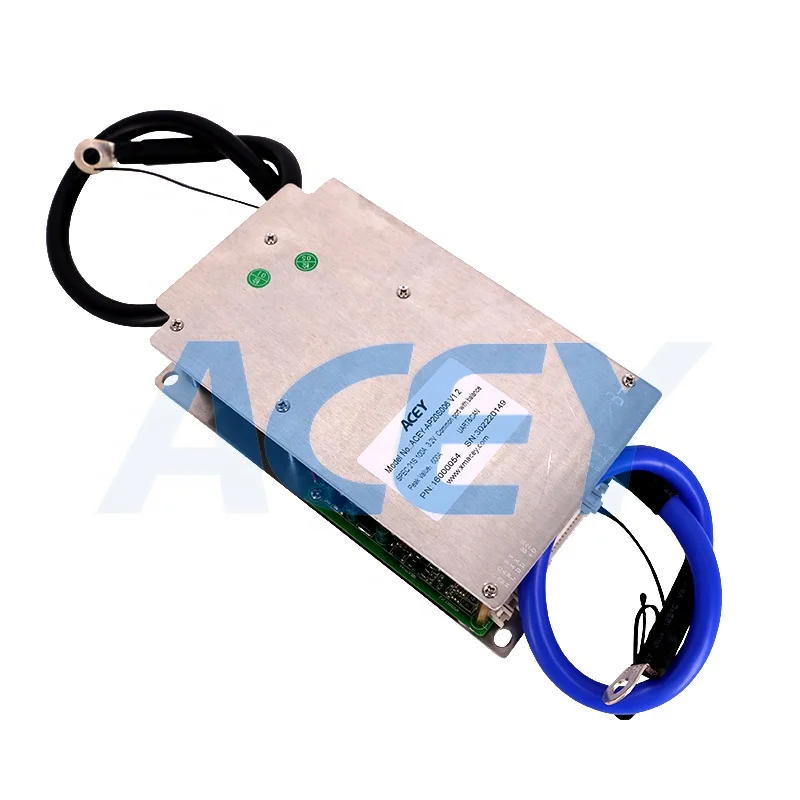

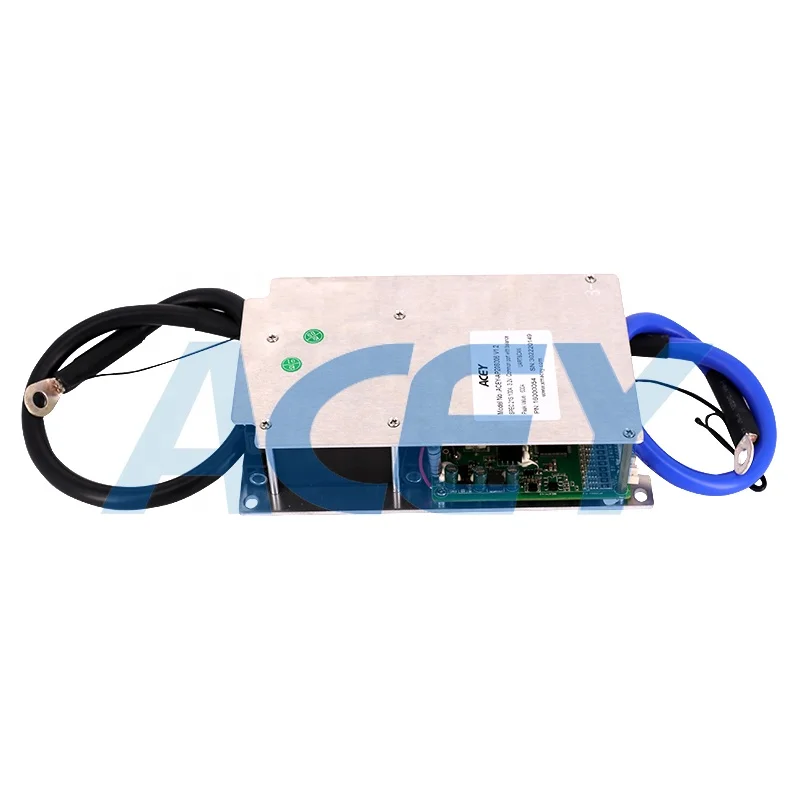

Lithium Battery Pack Protection Board Smart Hardware BMS 20s 16s 13s Lifepo4 NMC 200a 300a 72v 60v 48v 36v 24v BMS
Item Name: Lithium Battery Pack Protection Board Smart Hardware BMS 20s 16s 13s Lifepo4 NMC 200a 300a 72v 60v 48v 36v 24v BMS
Model No.: ACEY-AP20S006
Description: ACEY-AP20S006 is a software protection board scheme specially designed for 7~20 strings of lithium battery packs. The product adopts architecture of front-end acquisition chip + MCU, and some parameters can be flexibly adjusted through the host computer according to customer needs.
Basic parameter
Cell specifications | 7~20 strings of Lithium Iron Battery |
Interface type | Charge and discharge are both at the same port |
Charging voltage | 4.2V*Number of strings |
Cell voltage range | 2.8~4.25V |
Continuous charging current | 200A |
Continuous discharging current | 200A |
Consumption of running | ≤300mA |
Consumption of sleep | ≤1000uA |
Sleep conditions | Delay 65000s under no current \\ communication \\ protection state (settable) |
Circuit resistance | ≤10mR |
Operating temperature | -30℃~75℃ |
Structure size of pcb | |

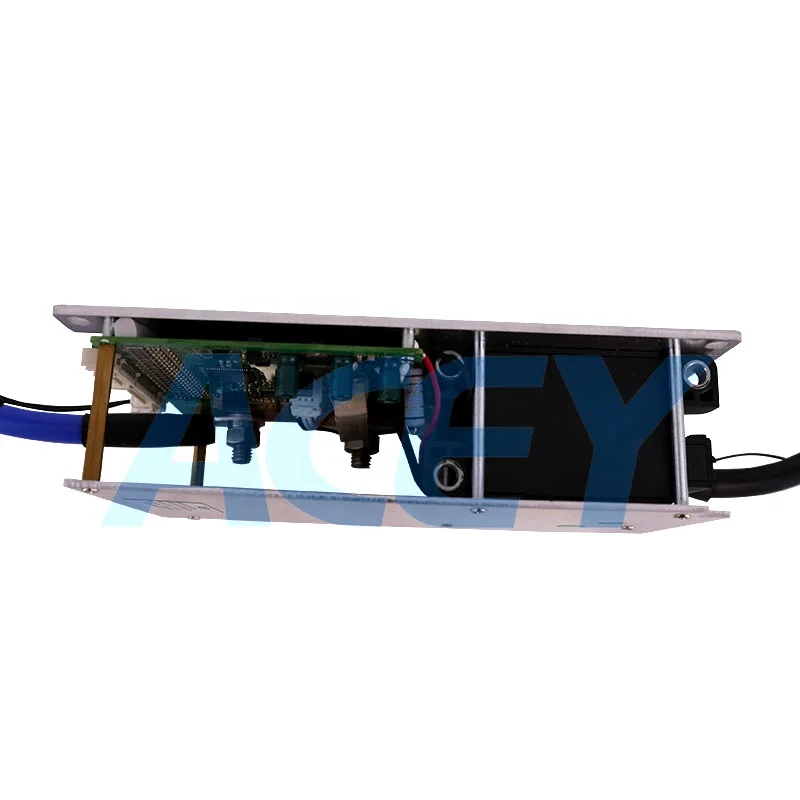

Size | 200±2mm * 114.5±0.5mm * 51±1mm Length*Width*Height |
Note: Test should be at temperature25±2°C, and relative humidity 65±20% of surroundings.
