CET PMC-53A-E Многофункциональный измерительный RS485 Modbus TCP/IP Ethernet измеритель мощности Анализатор качества электроэнергии регистратор данных
- Категория: Electrical Instruments >>>
- Поставщик: CET,Electric,Technology,Inc.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-18-2025 | 179.62 $* | 188.14 $* |
| Aug-18-2025 | 177.47 $* | 186.18 $* |
| Jul-18-2025 | 149.60 $* | 156.96 $* |
| Jun-18-2025 | 174.78 $* | 183.5 $* |
| May-18-2025 | 152.42 $* | 160.58 $* |
| Apr-18-2025 | 171.26 $* | 180.9 $* |
| Mar-18-2025 | 170.28 $* | 179.82 $* |
| Feb-18-2025 | 168.88 $* | 176.75 $* |
| Jan-18-2025 | 167.7 $* | 175.20 $* |
Характеристики
Product Introduction
PMC-53A-E
* Three-Phase Multifunction Meter
* IEC62053-22 Class 0.5S
* DIN96 (92x92mm Cutout)

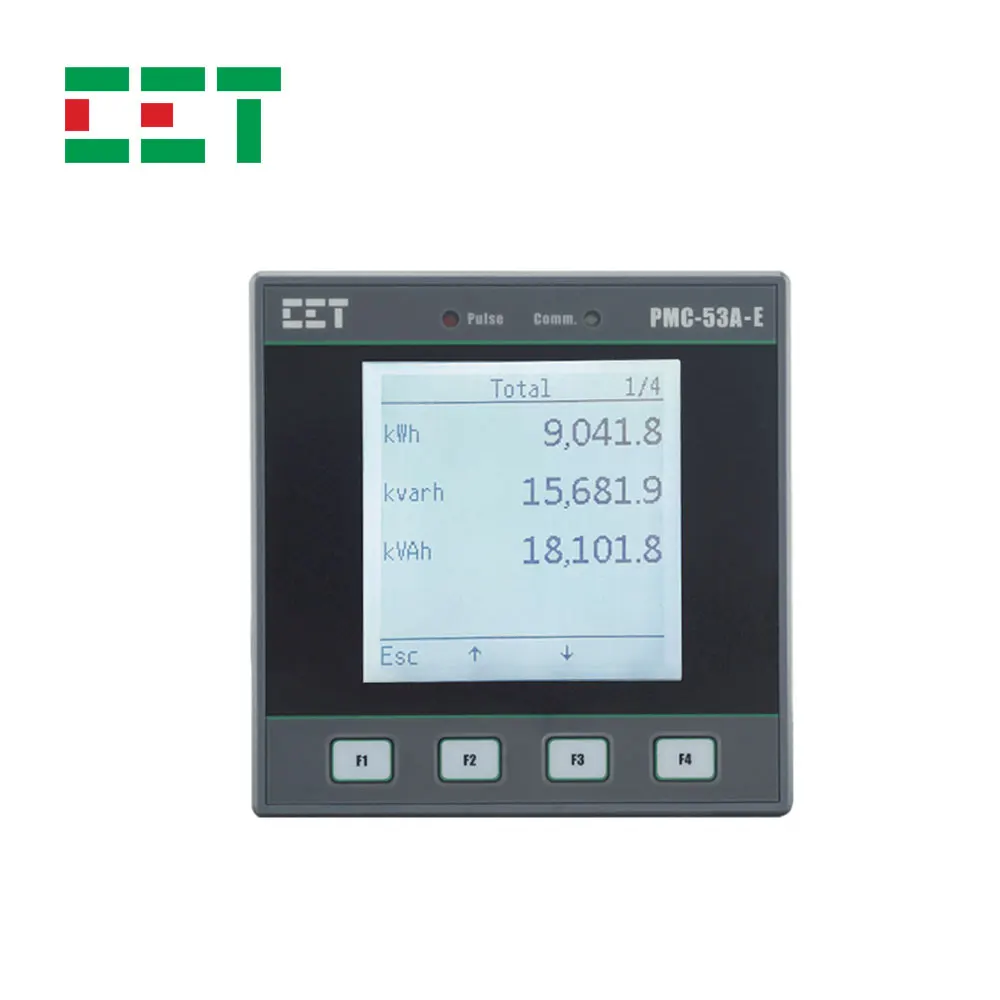

* Backlit Dot-Matrix LCD Display

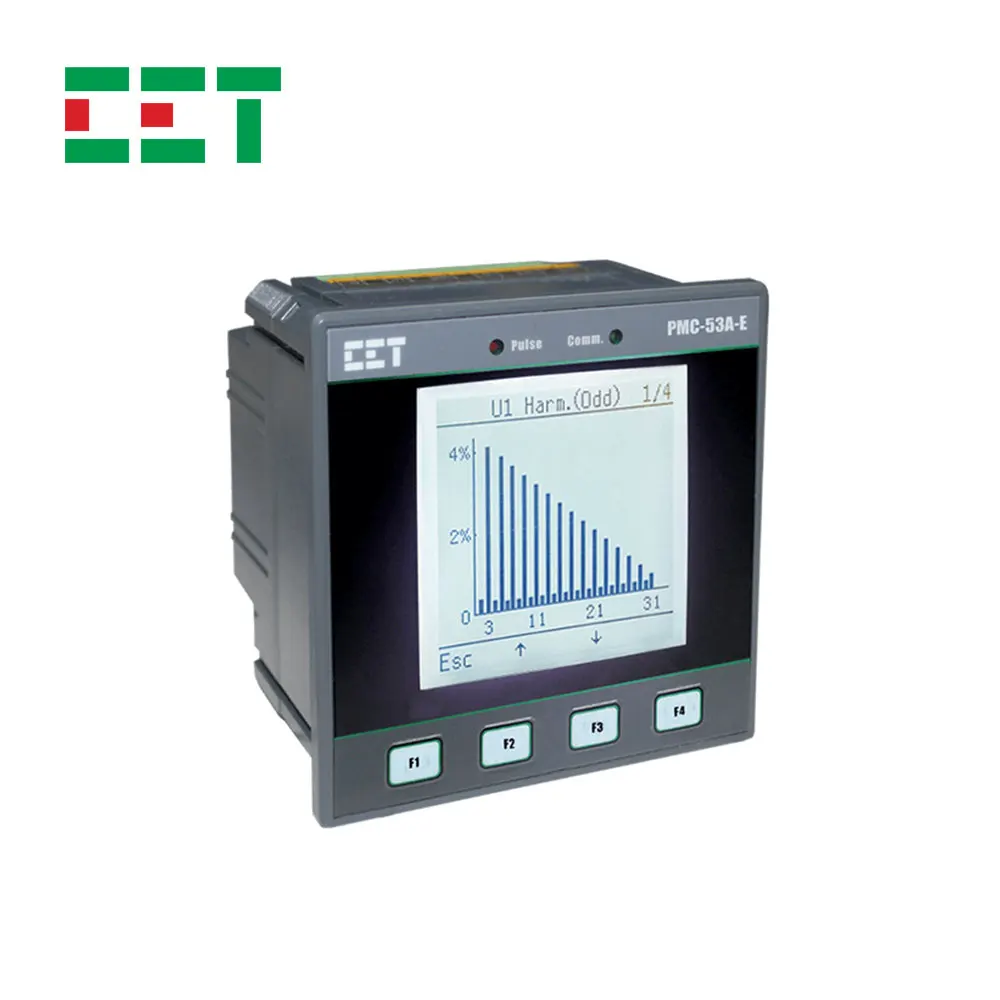

* Harmonics, Demands & TOU, Energy Log,
* IEC62053-22 Class 0.5S
* DIN96 (92x92mm Cutout)
* Backlit Dot-Matrix LCD Display
* Harmonics, Demands & TOU, Energy Log,
Max/Min Log and Event Log

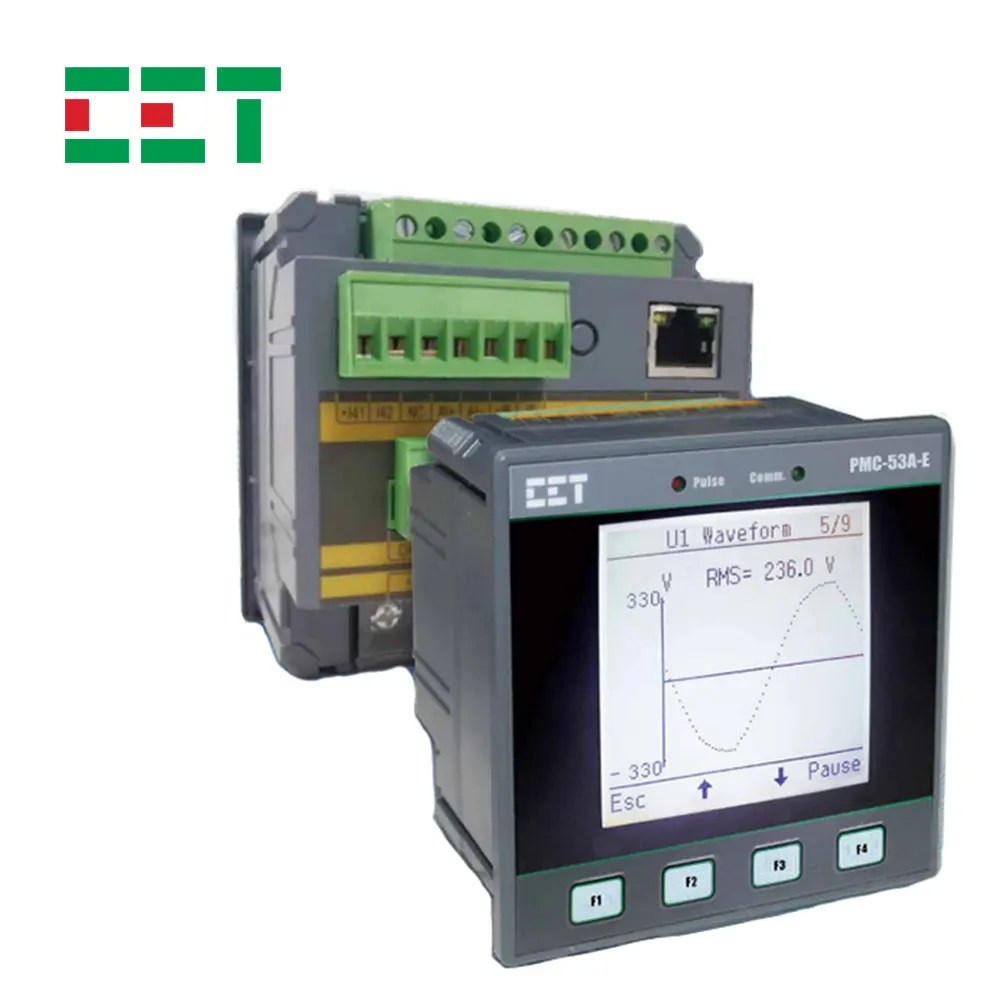

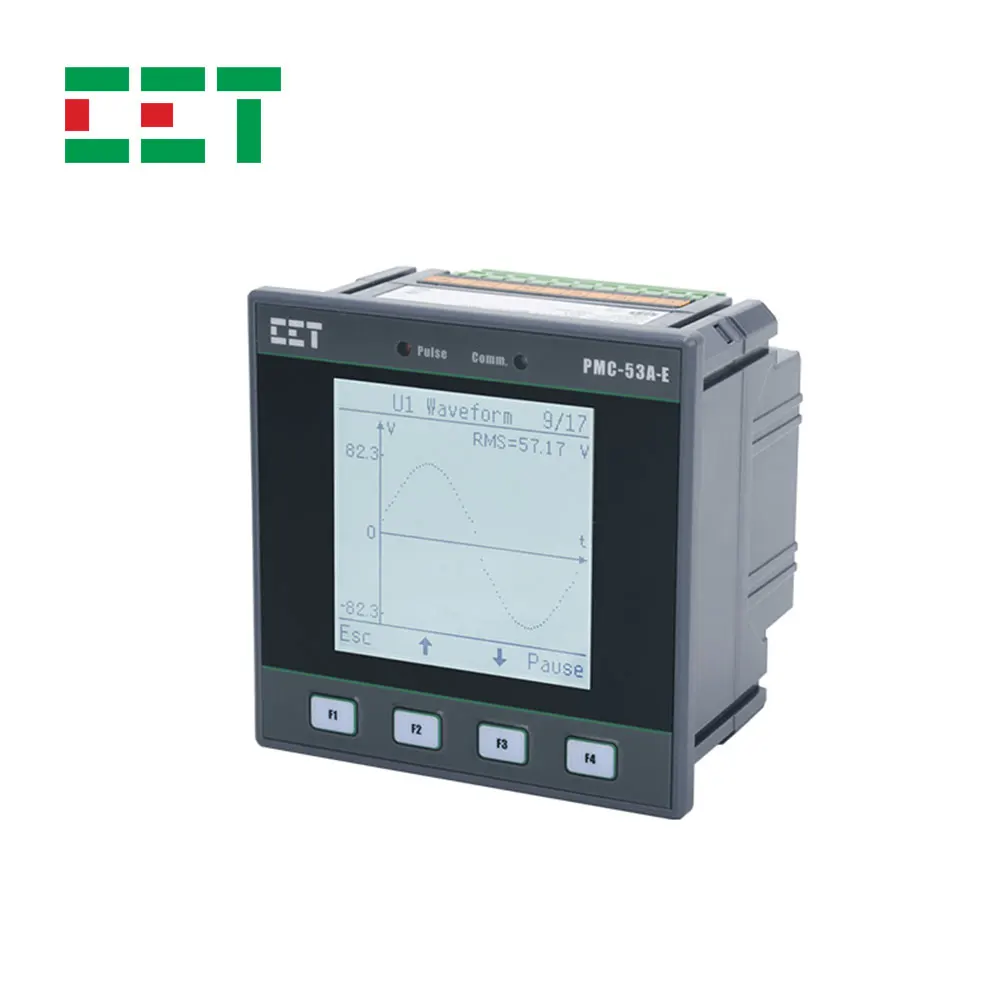

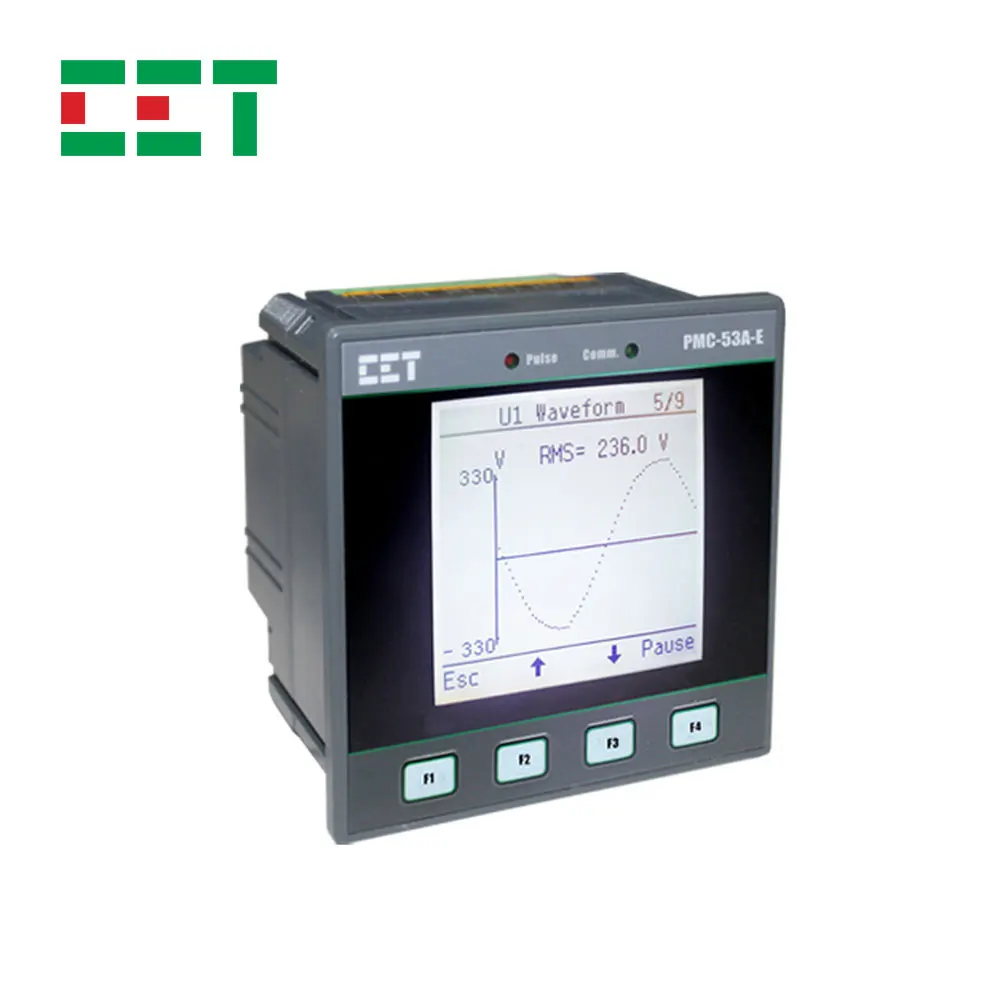

* Waveform Capture on Screen
* Modbus RTU, TCP, HTTP, SNTP, SMTP, TFTP, BACnet, DNP3.0
* 1xEthernet, 1xRS-485
* 4xDI, 2xDO, 1xI4, 1xIr and 1xAI
* Waveform Capture on Screen
* Modbus RTU, TCP, HTTP, SNTP, SMTP, TFTP, BACnet, DNP3.0
* 1xEthernet, 1xRS-485
* 4xDI, 2xDO, 1xI4, 1xIr and 1xAI
Dimension & Application
Product Paramenters
Parameters | Accuracy | |
Voltage | ±0.2% | |
Current | ±0.2% | |
I4 (measurement) | ±0.2% | |
Ir (measurement) | ±0.5% | |
P, Q, S | ±0.5% | |
kWh, kVAh | 5A/1A Option IEC62053-22 Class 0.5S ANSI C12.20 Class 0.2 | |
Frequency | ||
kvarh | 5A/1A Option IEC62053-24 Class 0.5S IEC62053-23 Class 2 | |
SCCT Option IEC62053-24 Class 1 IEC62053-23 Class 2 | ||
PF | ±0.5% | |
Frequency | ±0.02Hz | |
THD | IEC 61000-4-7 Class B | |
K-Factor | IEC 61000-4-7 Class B | |
Phase Angle | ±1° | |
Voltage Inputs (V1, V2, V3, VN) | ||
Standard Un | 400ULN/690ULL | |
Range | 10V to 1.2Un | |
Overload | 1.2xUn continuous, 2xUn for 1s | |
Burden | <0.02VA per phase | |
Measurement Category | CAT III up to 600ULL | |
Frequency | 45-65Hz | |

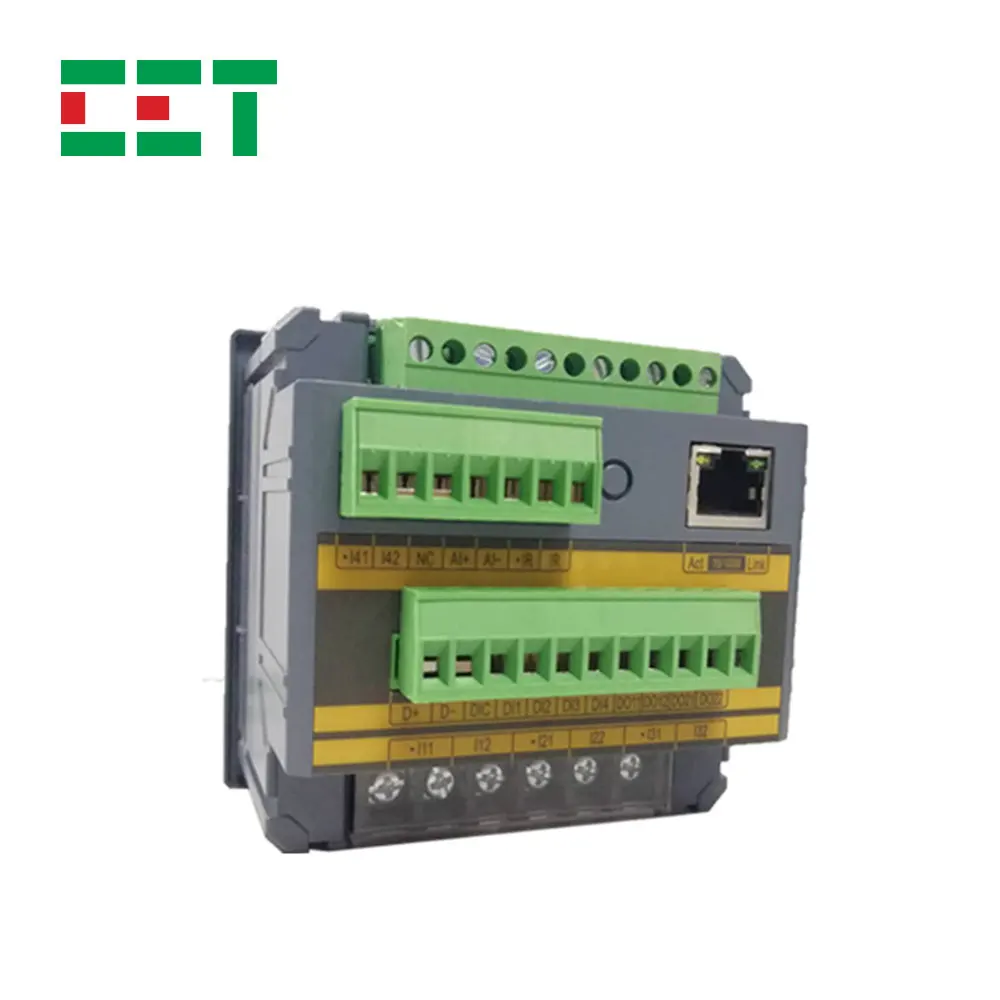

Current Inputs (I11, I12, I21, I22, I31, I32) | ||
Standard | 5A (Optional 1A) | |
SCCT Options | 100A/200A/400A/800A/1600A to 40mA Output | |
Range | 0.1% to 200% In | |
Starting Current | 0.1% In | |
Overload | 2xIn continuous, 20xIn for 1s | |
Measurement Category | CAT III up to 600ULL | |
Burden | <0.15VA per phase @ 5A | |
Power Supply (L+, N-) | ||
Standard | 95-250VAC/DC, ±10%, 47-440Hz | |
Optional | 20-60VDC | |
Burden | <3W | |
Overvoltage Category | CAT III up to 300VLN | |
Digital Inputs (DI1, DI2, DI3, DI4, DIC) | ||
Type | Dry contact, 24VDC internally wetted | |
Sampling | 1000Hz | |
Hysteresis | 1ms minimum | |
Digital Outputs (DO11, DO12, DO21, DO22) | ||
Type | Form A Mechanical Relay | |
Loading | 5A @ 250VAC or 30VDC | |
Load Type | Resistive | |
Optional SS Pulse Outputs (E1+, E1-, E2+, E2-) | ||
Type | Form A Solid State Relay | |
Isolation | Optical | |
Load Type | Resistive | |
Optional I4 Input (I41, I42) | ||
In | 5A (5A/1A Auto-Scaling) | |
Range | 0.1% to 120% In | |
Starting Current | 0.1% In | |
Optional Residual Current Input (·IR, IR) | ||
In | 0.5mA | |
Range | 2% to 500% In | |
CT Type | Solid-Core or Split-Core Residual Current CT | |
Optional Analog Input (AI+, AI-) | ||
Type | 0-20 / 4-20 mA | |
Overload | 24 mA maximum | |
Installation Torque | ||
Current Inputs | 12Ib-in (1.3N.m) | |
Power Supply, Voltage Inputs, RS485, I/O | 5Ib-in (0.5 N.m) | |
Environmental Conditions | ||
Operating Temp. | -25°C to 70°C | |
Storage Temp. | -40°C to 85°C | |
Humidity | 5% to 95% non-condensing | |
Atmospheric Pressure | 70 kPa to 106 kPa | |
Altitude | < 2000m | |
Pollution Degree | 2 | |
Location / Mounting | For indoor use only | |
Mechanical Characteristics | ||
Panel Cutout | 92x92mm (3.62”x3.62”) | |
Unit Dimensions | 96x96x88mm | |
IP Rating | IP65 (Front Panel), IP30 (Body) | |
