Прямая продажа с завода фиксированный Беспроводной Терминал 2G Dowtel Cdma Fct
- Категория: Fixed Wireless Terminals >>>
- Поставщик: Tianjin,Fei,Tu,Tong,Hui,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-19-2025 | 0.16 $* | 0.47 $* |
| Aug-19-2025 | 0.51 $* | 0.96 $* |
| Jul-19-2025 | 0.10 $* | 0.62 $* |
| Jun-19-2025 | 0.51 $* | 0.6 $* |
| May-19-2025 | 0.14 $* | 0.30 $* |
| Apr-19-2025 | 0.86 $* | 0.2 $* |
| Mar-19-2025 | 0.51 $* | 0.96 $* |
| Feb-19-2025 | 0.98 $* | 0.9 $* |
| Jan-19-2025 | 0.53 $* | 0.5 $* |
Характеристики
Product Display

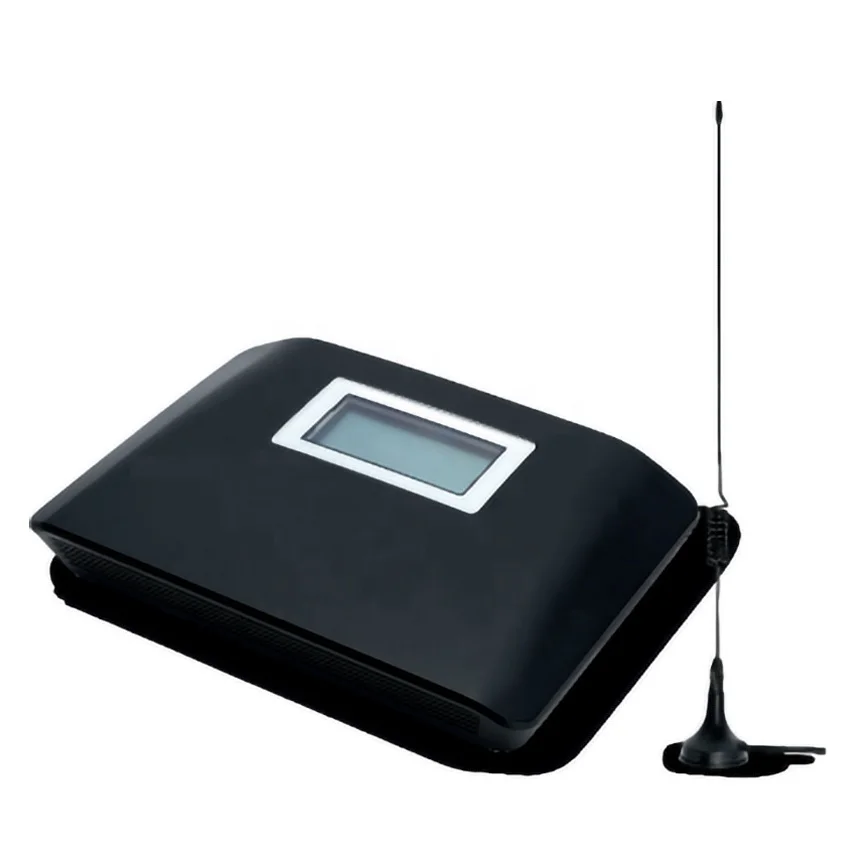

Factory Direct Sale 2G Dowtel Cdma Fct Gsm Fixed Wireless Terminal | ||
Basic Features | ||
Model Name | FS-3388 SEIRES | |
Frequency Band | GSM/GPRS 850/900/1800/1900Mhz | |
Technical Standard | l EGSM/GPRS 3GPP Release 99 compliant | |
Operating Frequency | EGSM 1900 MHz l UP-Link: 1850-1910 MHz l DL-Link: 1930-1990 MHz EGSM 1800 MHz l UP-Link: 1710-1785 MHz l DL-Link: 1805-1880 MHz EGSM 900 MHz l UP-Link: 880-915 MHz l DL-Link: 925-960 MHz EGSM 850 MHz l UP-Link: 824-849 MHz l DL-Link: 869-894 MHz | |
Maximum Output Power | l EGSM/GPRS 850/900 MHz: +33 dBm (Power Class 4 (2W)) l EGSM/GPRS 1800/1900 MHz: +30 dBm (Power Class 1 (1W)) | |
Receiver Sensitivity | l GPRS/EGSM 850/900/1800/1900MHz: compliant with 3GPP TS 05.05 (R99) | |
LCD | 32_4 LCD | |
External Interface | ||

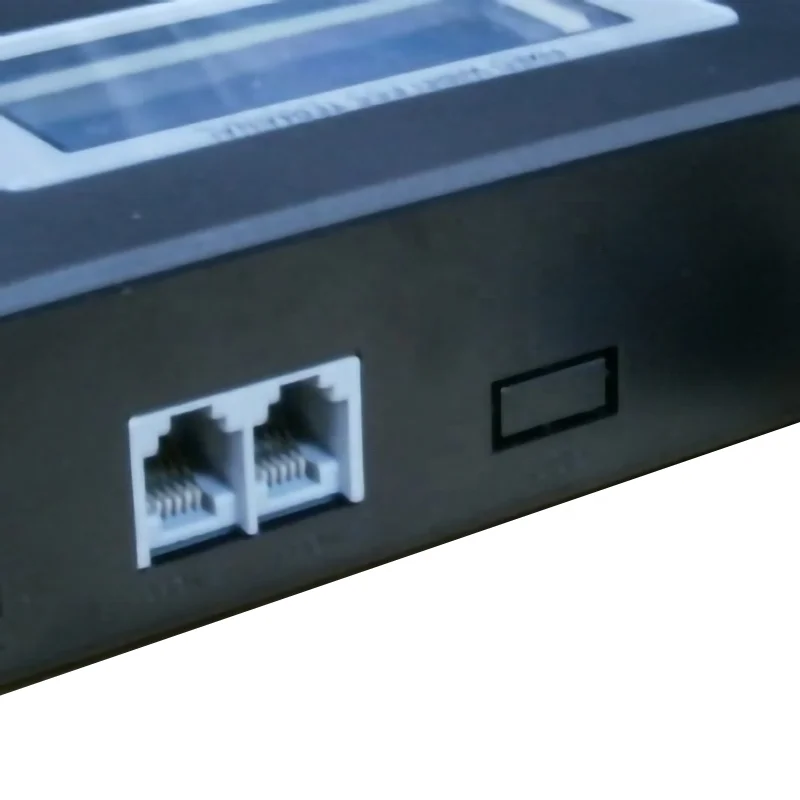

RJ11 | 2 ports, Connect with PSTN phone, Download SW | |
USB port | Modem function | |
DC Connector | 5 V/1.0A Adapter：U.S., U.K., Euro., Australia, India, China | |
Power Switch | power switch | |
Battery Connector | 3 PIN connector | |
SIM interface | Standard 6 pin,1.8/3.0V SIM Card | |
Antenna Connector | SMA (External) | |
Environment Specification | ||
Operating Temperature | -10ºC to 40ºC | |
Storage Temperature | -25ºC to 75ºC | |
Operating Humidity | 10～95％ | |
Antenna
Items | Specification |
Interface | SMA, External |
Frequency bandwidth | 824~894MHz; 880-960 MHZ ; 1710--1880 MHZ 1850MHz~1990; 1920-2170 MHZ |
Voltage standing wave ratio | <3.0 |
Input resistance | 50Ω |
Frequency(MHZ) | 824 | 880 | 894 | 960 | 1710 | 1880 | 1900 | 2170 |
Gain(dBi) | 2.1 | 2.0 | 1.7 | 1.8 | 2.4 | 2.5 | 2.7 | 2.8 |
Battery
Items | Specification |
Type | Li-Ion |
Capacity | 800 mAh |
Voltage | 3.7V |
Talk time | About 4 hrs (Depending on network) |
Standby time | About 72 hrs (Depending on network) |
Power Adapter
Item | Parameters |
Input Voltage | AC , 100~240 V |
Frequency | 50/60Hz |
Max input current | 300mA |
Output Voltage/Current | 5V/1.0A |
Efficiency | >78% |
Software Specifications
General Features | ||
Network type | GSM | |
Band class | GSM/GPRS 850/900/1800/1900Mhz | |
Voice code | FR/EFR/HR/AMR | |
DTMF | Support | |
Delay or Immediate Call | Support | |
Urgency Call | Support without SIM card | |
12KHZ and 16KHZ Pulse | Support | |
IP Call | Support | |
Reverse Polarity | Support | |
Call number display | Support | |
1.8/3.0v SIM card | Support | |
Lock function | ||
Lock Cell | Support | |
Lock Operator | Support | |
Lock Pin / SIM Card | Support | |
Tools | ||
Download tool | Support | |
Configuration tool | Not Support | |
