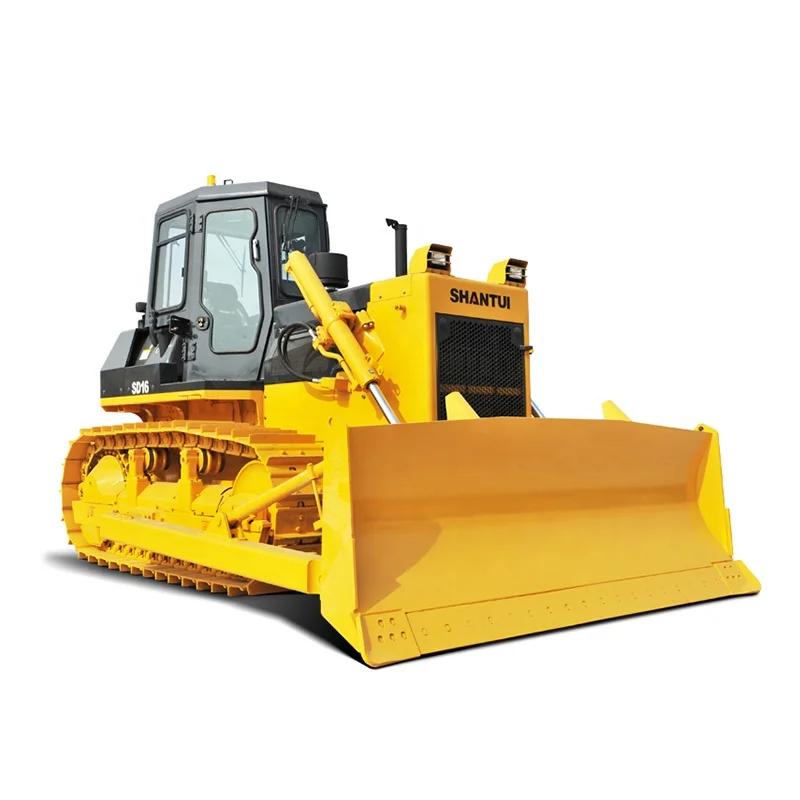

Гусеничный бульдозер Shantui SD16 л.с. 17 кг
- Категория: Bulldozers >>>
- Поставщик: Shandong,Shantui,Construction,Machinery,Import,And,Export,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-19-2025 | 0.21 $* | 0.41 $* |
| Aug-19-2025 | 0.7 $* | 0.4 $* |
| Jul-19-2025 | 0.12 $* | 0.66 $* |
| Jun-19-2025 | 0.68 $* | 0.0 $* |
| May-19-2025 | 0.1 $* | 0.57 $* |
| Apr-19-2025 | 0.49 $* | 0.38 $* |
| Mar-19-2025 | 0.57 $* | 0.27 $* |
| Feb-19-2025 | 0.35 $* | 0.95 $* |
| Jan-19-2025 | 0.9 $* | 0.84 $* |
Характеристики
Products Description
Shantui's best-seller worldwide, this is a medium-duty workhorse that comes off the factory line in various configurations for specific work environments, e.g. desert, swamp, forest, high altitude, etc.The SD16 provides high performance with strong reliability, with Shantui's trademark value.
* Weichai engine and high-efficiency fuel injection pump features high torque, equipped with Weichai 93 sand filter,high performances, high parts universality, and low maintenance cost.
* The core“transmission and torque converter”are fully self-made with features of digital design and precision casting, the torque converter efficiency reaches more than 90%, and the operating efficiency is higher (above 5%) than competitors under the same engine power
* The engine covers 150-170 horsepower, one –button switching and fuel-efficient.
* The core“transmission and torque converter”are fully self-made with features of digital design and precision casting, the torque converter efficiency reaches more than 90%, and the operating efficiency is higher (above 5%) than competitors under the same engine power
* The engine covers 150-170 horsepower, one –button switching and fuel-efficient.
* The ergonomic hexahedral cab features large space and excellent visual field.
* The suspended single accelerator pedal features small volume, large foot space, and high operation comfort.
* The extensively adjustable seat and armrests provide the driver with the most comfortable operation posture.
* The safety walking passage system of the machine guarantees the driver’s safety.
* The suspended single accelerator pedal features small volume, large foot space, and high operation comfort.
* The extensively adjustable seat and armrests provide the driver with the most comfortable operation posture.
* The safety walking passage system of the machine guarantees the driver’s safety.
* Shantui has a number of invention patents, and the chassis system life is longer than the same industry level.
* Developed according to different working conditions, such as standard, wetland, super wetland, sanitation, rock, logging, and plateau. With high environmental adaptation.
* Developed according to different working conditions, such as standard, wetland, super wetland, sanitation, rock, logging, and plateau. With high environmental adaptation.
* With electronically controlled traveling system and hydraulic pilot controlled working device, the traveling system and the working device can be controlled by single joystick.
* The accurate control can be achieved by low operating forces, featuring flexible and light operations, high operation comfort, and high working efficiency.
* The static pressure drive system is capable of stepless speed change, loaded steering, and pivot steering, featuring high flexibility and mobility and applicability for diversified working conditions.
* The accurate control can be achieved by low operating forces, featuring flexible and light operations, high operation comfort, and high working efficiency.
* The static pressure drive system is capable of stepless speed change, loaded steering, and pivot steering, featuring high flexibility and mobility and applicability for diversified working conditions.
* Intelligent large-screen display for automatic fault diagnosis and real-time protection of equipment.
* Equipped with Weichai 93 sand filter, with good durability and long replacement cycle.
* Fuel filter, oil filter centralized arrangement, one-stop maintenance.
* The lubrication points of the key parts are taken out and the maintenance is more convenient.
* Equipped with Weichai 93 sand filter, with good durability and long replacement cycle.
* Fuel filter, oil filter centralized arrangement, one-stop maintenance.
* The lubrication points of the key parts are taken out and the maintenance is more convenient.
Technical Specifications
Engine | Model & type | Shangchai SC11CB184G2B1/Weichai WD10G178E25; water-cooled, in-line, 4-stroke injection direct | ||||
Horsepower | Gross power: 131/175/1850 kW/HP/rpm // Net power: 120/160/1850 kW/HP/rpm | |||||
Number of cylinders | 6—126 x 130 mm (bore x stroke) | |||||
Piston displacement | 9.726 L | |||||
Min. fuel consumption | 214 g/kW·h | |||||
Maximum torque | 765 N·m@1300 rpm | |||||
Power transmission system | Torque converter | 3-element, 1 stage, 1 phase | ||||
Transmission | Planetary gear type, power-shift, forced lubrication | |||||
Main drive | Spiral bevel gear, single-stage speed reduction, splash lubrication | |||||
Steering clutch | Lubricated, multi-disc, spring loaded, hand hydraulically separated, inter-linking with steering brake | |||||
Steering brake | Lubricated, floating band structure, foot brake with hydraulic booster | |||||
Final drive | 2-stage speed reduction of spur gear, splash lubrication | |||||
Travel speed | Gear | 1st | 2nd | 3rd | ||
Forward | 0~3.29 km/h | 0~5.82 km/h | 0~9.63 km/h | |||
Reverse | 0~4.28 km/h | 0~7.59 km/h | 0~12.53 km/h | |||
Undercarriage system | Type | Sprayed beam, suspended structure of equalizer | ||||
Carrier rollers | 2 each side | |||||
Track rollers | 6 each side | |||||
Track type | Assembled, single-grouser | |||||
Width of track shoes | 510 mm | |||||
Pitch | 203.2 mm | |||||
Hydraulic System | Maximum pressure | 14 MPa | ||||
Pump type | Gear pump | |||||
Discharge | 243 L/min | |||||
Bore of working cylinder × no. | 110 mm × 2 | |||||
Blade | Blade Type | Straight-tilt | Angle | U- Blade | ||
Dozing capacity | 4.5 m 3 | 4.4 m 3 | 5.0 m 3 | |||
Efficiency (Theoretical value 40 m) | 225 m 3 /h | 225 m 3 /h | 250 m 3 /h | |||
Blade width | 3388 mm | 3970 mm | 3556 mm | |||
Blade height | 1149 mm | 1040 mm | 1120 mm | |||
Maximum drop below ground | 540 mm | 530 mm | 540 mm | |||
Lifting height of blade | 1095 mm | 1110 mm | 1095 mm | |||
Riipper (Optional) | Maximum digging depth of 3-shank ripper | 572 mm | ||||
Maximum lift above ground | 592 mm | |||||
Weight of 3-shank ripper | 1667 kg | |||||
If you need more product information, please feel free to contact us.
