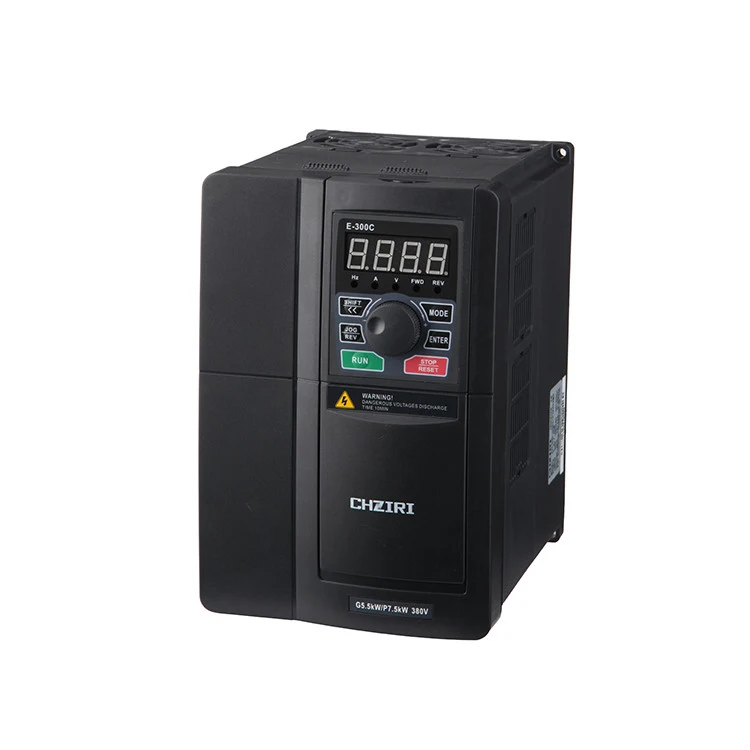

5.5KW/7.5KW 380v преобразователь частоты диск чистая Синусоидальная волна инвертор переменной для моторный накопитель
- Категория: Power Supplies >>>
- Поставщик: Zhejiang,Ziri,Electrical,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Aug-16-2025 | 199.50 $* | 203.19 $* |
| Jul-16-2025 | 162.19 $* | 165.94 $* |
| Jun-16-2025 | 196.33 $* | 200.56 $* |
| May-16-2025 | 195.89 $* | 199.49 $* |
| Apr-16-2025 | 155.27 $* | 158.79 $* |
| Mar-16-2025 | 192.20 $* | 196.2 $* |
| Feb-16-2025 | 190.90 $* | 194.63 $* |
| Jan-16-2025 | 188.14 $* | 192.99 $* |
Характеристики
Banner
Product Details
Parameter Information
Product Model: | Power (KW) G/P | Current (A) | Dimension (mm) | Figure | ||||||||||
H | H1 | W | W1 | D | d | |||||||||
ZVF300H-G5R5/P7R5T4MD | 5.5/7.5 | 13/17 | 215 | 205 | 145 | 135 | 193 | 5 | Fig.1 | |||||
Input Voltage (V) | Output Voltage (V ) | Range (HP) |
Three phase 380V±20% | Three phase 0~lnput Voltage | 0.75KW~630KW |
Technical Feature:
ZVF300H Series inverters are high performance open loop vector inverters for controlling asynchronous AC induction motors and permanent synchronous motors.
1.Output frequency: 0-600Hz.
2.Multiple password protection mode.
3.Remote control operation keypad, convenient for remote control.
4.V/F curve&multi-inflection points setting, flexible configuration.
5.Keyboard parameter copy function, easy to set the parameters for multi-inverters.
6.Wide industry application to expand special function according to different industries.
7.Multiple hardware and software protection and optimized hardware for anti-interference technology.
8.Multi-step speed and wobble frequency running (external terminal 15 steps speed control).
9.Unique adaptive control technology. Auto current limiting and voltage limiting and under-voltage restrain.
10.Optimized external installation, internal structure and independent air flue design, fully enclosed electrical space design.
11.Output automatic voltage regulation function (AVR), automatically adjust the output pulse width.To eliminate the influence of the grid change on load.
12.Built-in PID regulation function to facilitate the realization of closed loop control of the temperature, pressure and flow and reduce the cost of the control system.
13.Standard MODBUS communication protocol, easy to achieve the communication between PLC, IPC and other industrial equipment.
1.Output frequency: 0-600Hz.
2.Multiple password protection mode.
3.Remote control operation keypad, convenient for remote control.
4.V/F curve&multi-inflection points setting, flexible configuration.
5.Keyboard parameter copy function, easy to set the parameters for multi-inverters.
6.Wide industry application to expand special function according to different industries.
7.Multiple hardware and software protection and optimized hardware for anti-interference technology.
8.Multi-step speed and wobble frequency running (external terminal 15 steps speed control).
9.Unique adaptive control technology. Auto current limiting and voltage limiting and under-voltage restrain.
10.Optimized external installation, internal structure and independent air flue design, fully enclosed electrical space design.
11.Output automatic voltage regulation function (AVR), automatically adjust the output pulse width.To eliminate the influence of the grid change on load.
12.Built-in PID regulation function to facilitate the realization of closed loop control of the temperature, pressure and flow and reduce the cost of the control system.
13.Standard MODBUS communication protocol, easy to achieve the communication between PLC, IPC and other industrial equipment.
Overload Capacity:
150% 1 minute ; 180% 1 second ; 200% transient protection
Company Information
About Company
1. low voltage frequency inverter and soft starter manufacturer and exporter.
2. More than 15 years experience and professional devoting the automation control system. we want to be the best to serve our clients.
3. CHZIRI frequency inverter and soft starters are certificated with CE. CHZIRI Electrical passed ISO9001:2008 quality control system.
4.CHZIRI Electrical are near to NINGBO ,SHANGHAI port .The shipping cost will be cheaper.
2. More than 15 years experience and professional devoting the automation control system. we want to be the best to serve our clients.
3. CHZIRI frequency inverter and soft starters are certificated with CE. CHZIRI Electrical passed ISO9001:2008 quality control system.
4.CHZIRI Electrical are near to NINGBO ,SHANGHAI port .The shipping cost will be cheaper.
our customer & main market
Our products have been exported in large quantity to Europe, South America, Southeast Asia, Middle East. Africa and so on.
CUSTOMER PRAISE
